Electric bicycle anti-theft system
System principle
The Intelligent Security Management System for Electric Bicycles is a management system relying on Internet of Things (IoT) technology. By inputting various specific information of electric bicycles and adding an IoT positioning module, this system can achieve functions such as filing registration, management, anti-theft protection, and inquiry of electric bicycles.
It is specifically designed for public security organs to strengthen and standardize the management of electric bicycles. Through anti-theft filing and registration, each electric bicycle will have an electronic "identity card", which can, to a greater extent, prevent and reduce the occurrence of electric bicycle theft cases, improve the case detection rate, and enhance public sense of security and satisfaction.
Three major problems in urban management
| ●At present, there are at least 300 million electric bicycles nationwide. Statistics show that the average annual production of electric bicycles is around 50 million units, among which exports only account for 2.5%, and the vast majority are purchased by Chinese consumers. The data indicates that 40% of the people in China's cities own electric bicycles. Electric bicycles have many problems, such as not requiring the acquisition of a driving license, low traffic safety awareness among riders, speeding, overloading, driving in the opposite direction, running red lights, driving in the motor vehicle lane, and so on. In 2015, in Zhejiang Province alone, accidents involving electric bicycles led to 1,056 deaths, accounting for 24.70% of the total number of deaths in traffic accidents in the province. Electric bicycles also have problems such as being prone to causing fires and a high incidence of theft cases. According to statistics, 151,295 electric bicycles were stolen in Zhejiang Province in 2015.
|
 |
There are mainly four aspects of problems in the traditional prevention and control of electric bicycles.
1. The registration of the identity information of electric bicycles and their owners is not standardized and incomplete.
2. The anti-theft awareness and anti-theft measures of electric bicycle owners are relatively weak, resulting in a high theft rate.
3. Electric bicycles have poor safety performance, are prone to speeding, and have a high rate of traffic accidents.
4. There is a lack of unified management of electric bicycles.
This has led to a high theft rate of electric bicycles, and the activities of criminals selling stolen goods are rampant, forming a gray industrial chain of theft and selling stolen goods. According to statistics, public security alarms related to electric bicycles account for more than 50% of the total number of alarms every day. Due to the information asymmetry, it has become a difficult problem for public security organs in management and solving cases.

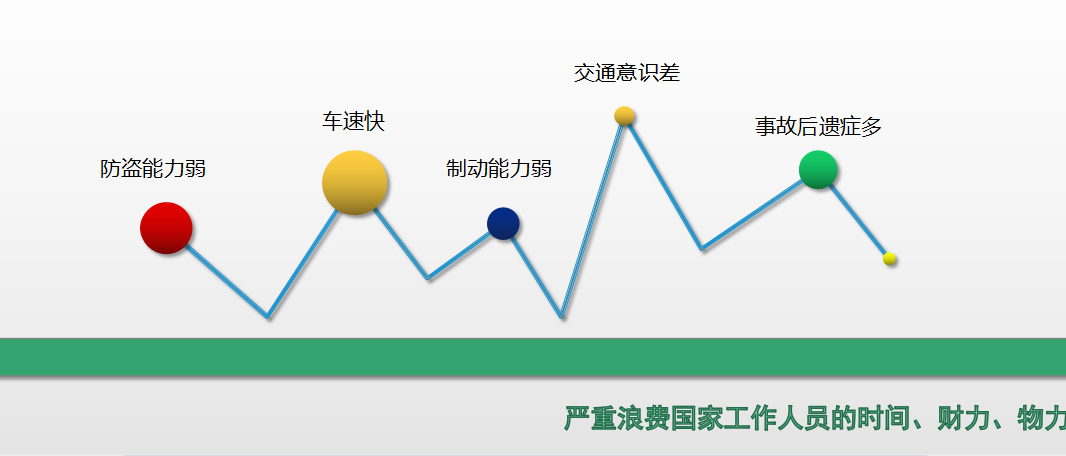

The pain points of traditional electric bicycle management
Smart Security Solution for Electric Bicycles
A smart security solution for electric bicycles has been independently developed based on Internet of Things (IoT) technology, which has completely changed the above-mentioned situation of electric bicycles at one stroke.

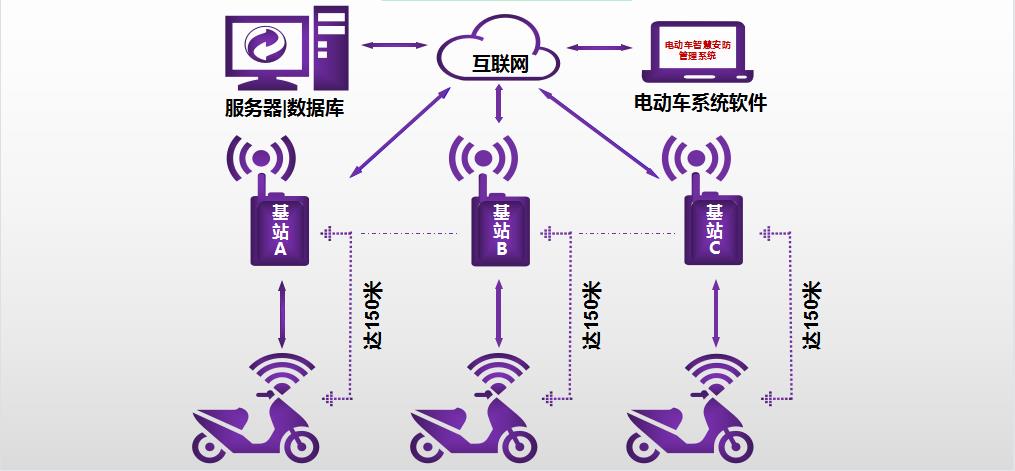

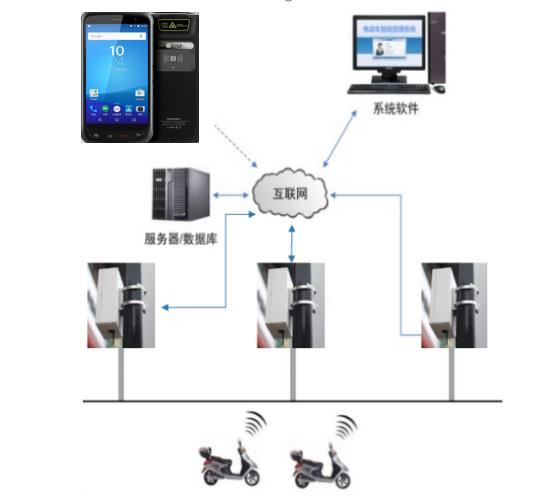

Topological Diagram of the Anti-theft System for Electric Bicycles
Schematic Diagram of the Structure of the Anti-theft System for Electric Bicycles

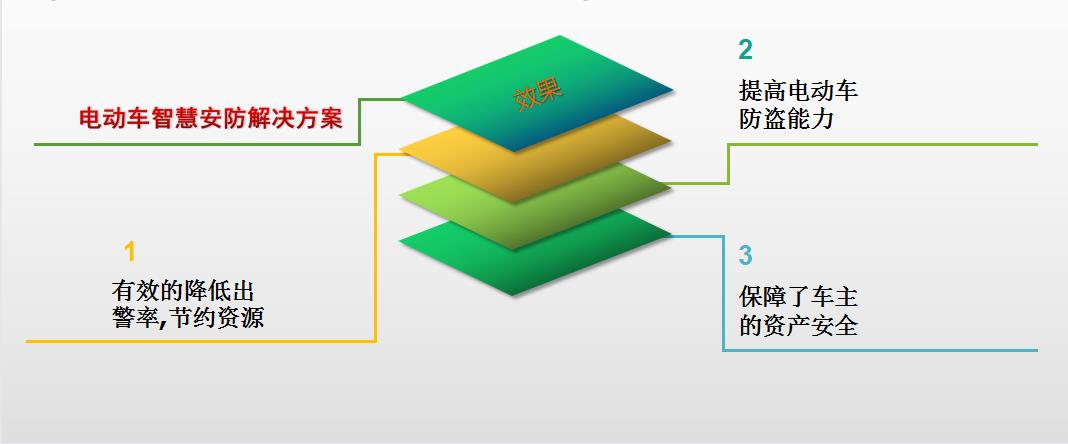

Features of the Solution

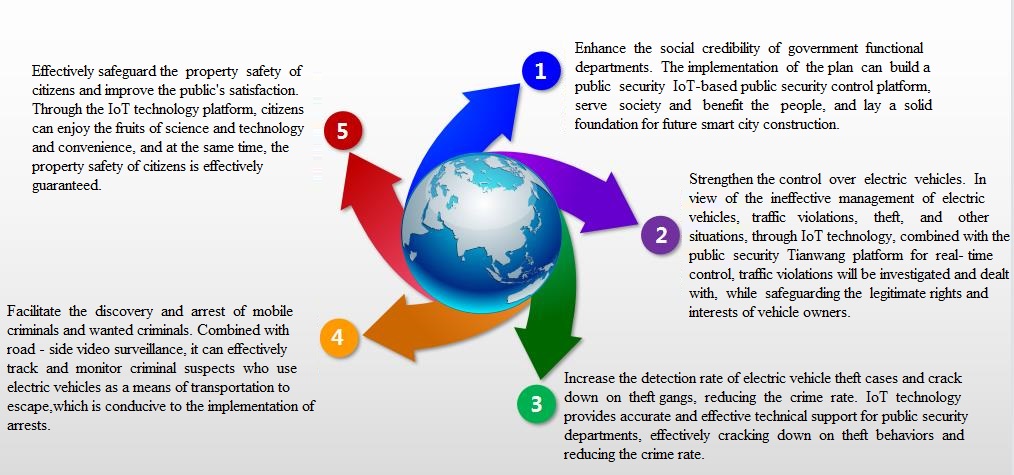

Function of the Solution
The Utility for the Public Security Department
| 1.Effectively assist in solving the difficult problems of public security management. The theft and robbery cases of "two types of vehicles" serve as a barometer of a city's public security situation. Through the management of these "two types of vehicles", the relevant public security cases caused by them can be effectively curbed.
|
 |
 |
| 2.Effectively assist in solving the difficult problems of traffic management. Electric bicycles are fast in speed but weak in braking ability, and many riders have poor traffic awareness. A large number of electric bicycle riders have not received professional training, and bad habits such as driving in the opposite direction, running red lights, and occupying the motor vehicle lane cannot be rectified, resulting in frequent traffic accidents. Moreover, most owners do not have insurance, so they have no protection in terms of personal injury and property loss.
Through the close integration of our company's system with the traffic light monitoring system, effective management of violations committed by electric bicycles can be carried out, which can significantly reduce traffic accidents caused by driving in the opposite direction, running red lights, and occupying motor vehicle lanes.
|
 |
|
| 3.Effectively assist in solving the difficult problems of criminal investigation management. With the further development of the market economy, traditional property-infringing crimes such as theft and robbery have become more rampant. Among them, theft cases still top the list of criminal cases, seriously threatening the social stability of the city. Through the close integration of the "Skynet" system and our company's system, the whereabouts of individuals with a criminal record can be traced at the crime scene. Suspected criminals and vehicles can be quickly identified, which greatly reduces the workload of public security investigations and enables the police to find the criminals in a shorter time.
|
 |
|
| 4.Effectively assist in solving the difficult problems of maintaining social stability and management. Through big data analysis, it is possible to provide the whereabouts tracks of specific monitored groups of people (for example, the supervision of petitioners...). |
 |
Hardware
 |
|

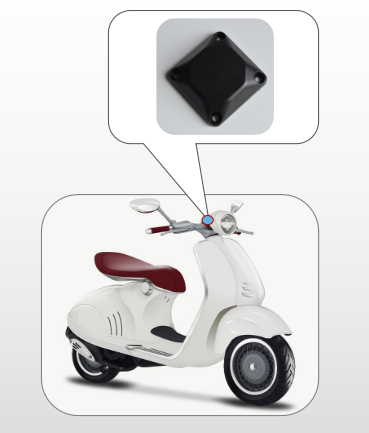

Hardware - Active Tag
A、Each electric bicycle comes with one as standard B、Send a unique ID code to the base station
C、It is small, lightweight and easy to install
D、Send the ID code at regular intervals
E、The shell is made of ABS material and is welded by ultrasonic waves F、It is waterproof, dustproof and shockproof G、Operating temperature: -20°C to 70°C |
 |

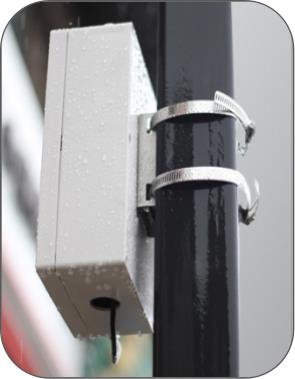

Hardware - Active Base Station 01It can receive active tags and read and write multiple tags simultaneously (up to more than 200 tags per second). 02It is aggregated to the host computer through 2.4G communication. 03Device heartbeat: It maintains communication with the background at regular intervals, and the background software can monitor in real time whether the device is operating normally. 04Information caching: It can cache 1000 pieces of tag ID code records. 05Data filtering: Only the updated records will be saved when the same ID code is received within 3 minutes. 06Power supply mode: It is powered by AC 220V; (There are also charging base stations and solar base stations available.) 07Data upload: GPRS, WIFI, Bluetooth, RJ45 Ethernet interface, etc. can be selected. 08It is waterproof and dustproof, and the working temperature ranges from -40°C to 85°C. |
|
 |
Hardware - Handheld Terminal 01Basic parameters: Dimensions are 164.2 x 78.8 x 17mm; 5.2-inch IPS display screen with a resolution of 1920*1280; 5-megapixel front camera and 13-megapixel rear camera, with the flash supporting autofocus; 4500mAh lithium polymer battery. 02CPU: Quad-core 64-bit Coretex-A53 with a main frequency of 1.45GHz; 03Memory capacity: RAM 2GB, ROM 16GB; 04Operating system: Android 6.0; Programs for warehousing, ex-warehousing, inventory checking and goods searching can be customized. 05Communication: Optional communication methods such as 4G/3G/Bluetooth/WIFI networks, etc. 06RFID: It supports 2.4G, with an adjustable range of 0-200 meters (convenient for searching for unlicensed vehicles), and it can read all 200 tags at one time. 07It is waterproof and dustproof, and the working temperature ranges from -20°C to 50°C. 08Standard configuration: 1 lithium battery, 1 charging head, 1 charging cable and 1 data cable. |
Business Procedure
Investment and Cycle
After the operating company reaches a cooperation and co-construction agreement with relevant government departments, according to the number of electric bicycles in the region, a certain number of base stations and anti-theft chips will be installed first for relevant debugging and testing. After the testing is passed, it will be fully implemented in the main urban areas, townships, and rural areas. In addition, in accordance with the cooperation terms, the operating company will provide each police station in the city with a handheld terminal for free. In some areas that are not covered, tracking can also be carried out through the issued handheld terminals or by installing mobile base stations on patrol vehicles.
|
Initial installation cost
|
The expenses that users need to invest
|
| Management platform construction cost |
Cooperate and jointly build with relevant government departments
|
| theft and robbery insurance |
It includes the theft and robbery insurance with a handling fee of 30 yuan per year. For new vehicles, the compensation within one year can be up to 1,200 yuan, and for used vehicles after one year, the compensation can be up to 800 yuan. (Subject to the specific situations of different regions)
|
|
return
|
The fees invested by users will be returned to them in the form of phone bills and other means, bringing benefits and guarantees to the users.
|
accident insurance |
In addition, if users purchase an accidental injury insurance at a cost of 30-50 yuan per year, the compensation can be up to 100,000 yuan (subject to the specific situations of different regions).
|
Project Patent
