Ultra-high frequency directional antenna ZJTX26026045-8DBI -- Shanghai Zirgy Intelligent Technology Co., Ltd.
Antenna size: 258*258*45mm
Max power: 50W
Joint position: Straight out from the bottom
Frequency range: 902-928
Operating temperature: -40 ~ 70℃
Lightning protection: DC grounding
Application scenarios: logistics, access control system, anti-counterfeiting system and production...
-
Ceramic antenna for UHF reader ZJTCTX-2DBI -- Shanghai Zirgy Intelligent Technology Co., Ltd.
Dimensions: 60*60*5mm
Frequency range: 922±2MHz
Standing wave ratio: 1.5MAX
Impedance: 50Ω
Polarization mode: RHCP
Operating temperature: -40℃ ~ 85℃
Application scenarios: logistics, access control system, anti-counterfeiting system and production process control...
-

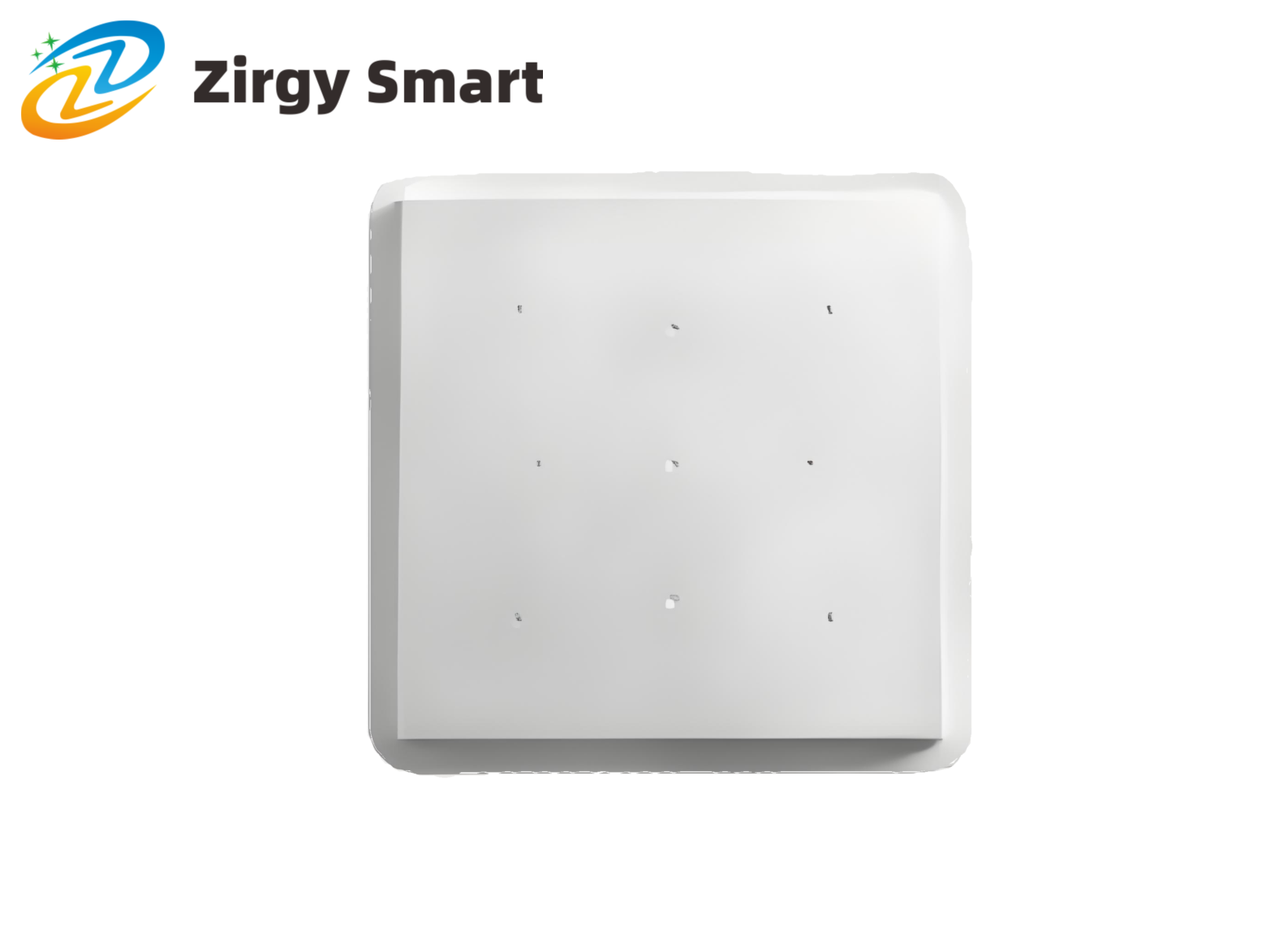

Pure antenna ZJTX26026030-9DBI—Shanghai Zirgy Intelligent Technology Co., Ltd.
Frequency range: 902-928MHz
Antenna size: 260*260*30mm
Polarization mode: circular polarization
Net antenna weight: 1.1kg
Operating temperature: -20-60℃
Connector type: N seats
Application scenarios: RFID logistics tracking, warehouse application, access control system, ...
-

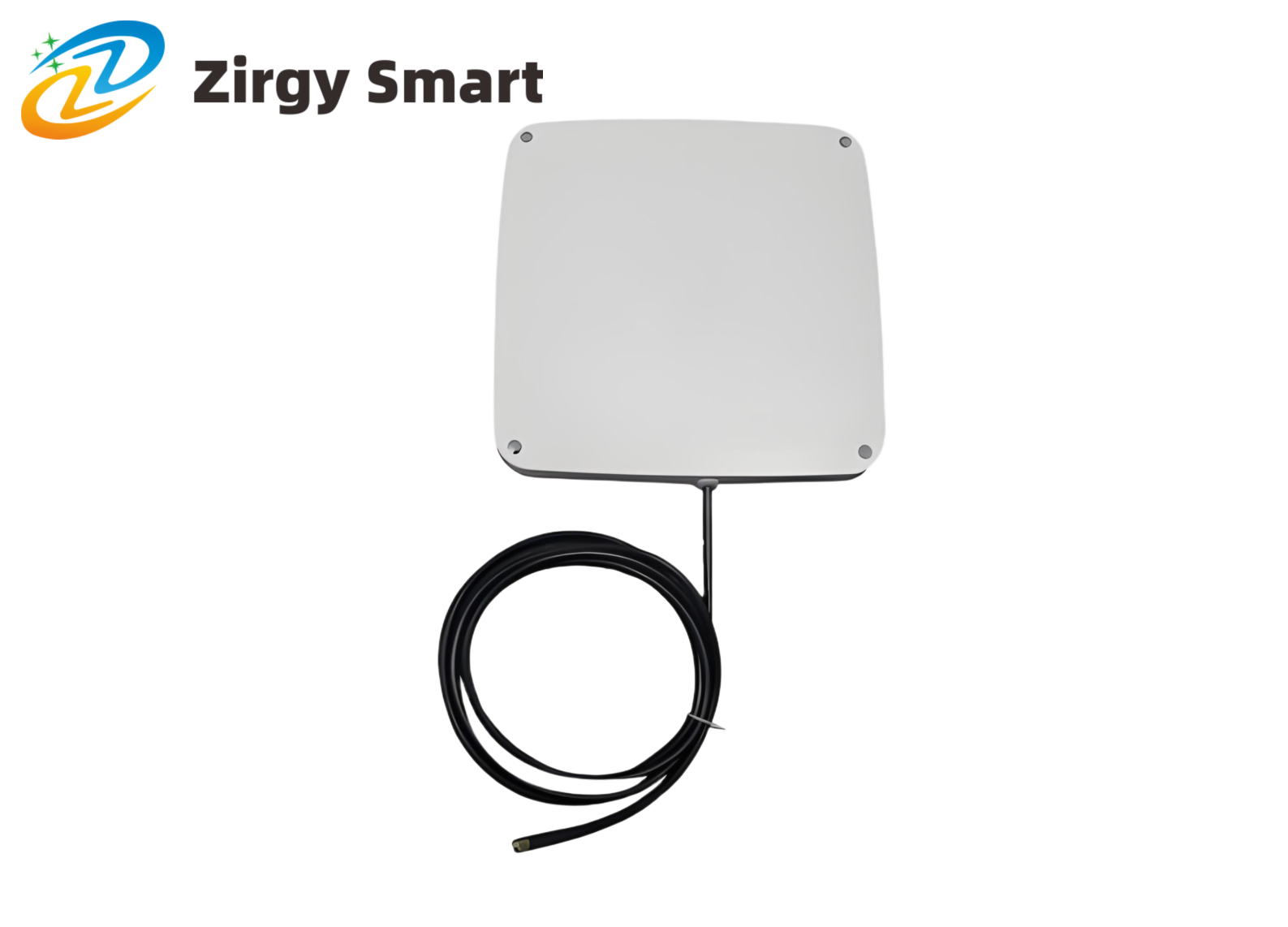

8dBi UHF directional antenna ZJTX23023020-8DBI -- Shanghai Zirgy Intelligent Technology Co., Ltd.
Dimensions: 230*230*20mm
Lightning protection: DC grounding
Frequency range: 902-928
Impedance: 50Ω
Connector: SMA-male
Axis ratio: ≤2dB
Application scenario: 902-928MHz RFID radio frequency identification system, customizable European standard (860-868MHz),...
