Ⅰ Product introduction
Name: Ultra-high frequency directional antenna ZJTX26026045-8DBI
The UHF directional antenna ZJTX26026045-8DBI is suitable for a variety of radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
The UHF directional antenna ZJTX26026045-8DBI is suitable for a variety of radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
Ⅱ Technical parameters
● Electrical performance
| Model | ZJTX26026045-8DBI |
| Frequency scope (MHz) | 902-928 |
| Gain (dBi) | 8dBi |
| Polarization method | Circular polarized |
| Half power angle Beam Width(°) | Hor:68 Ver:68 |
| Standing-wave ratio | ≤1.3 |
| Impedance (Ω) | 50 |
| Front to back ratio (dB) | ≥13 |
| Power (W) | 50 |
| Axis ratio (dB) | ≤2 |
| Lightning protection | Dc ground |
● Mechanical performance
| Connector | N-Female |
| Connector position | Bottom out |
| Antenna dimensions (mm) | 258*258*45mm |
| Net weight (kg) | 0.58 |
| Effective wind area (㎡) | ≤0.2 |
| Wind strength (m/s) | 36.9 |
| Radiation material | Aluminum |
| Antenna cover material | ABS |
| Antenna cover colour | White |
| Operating temperature (℃) | -40～70 |
| Boom diameter (mm) | φ30～φ50 |
Ⅲ Product real-shot
Real-shot display

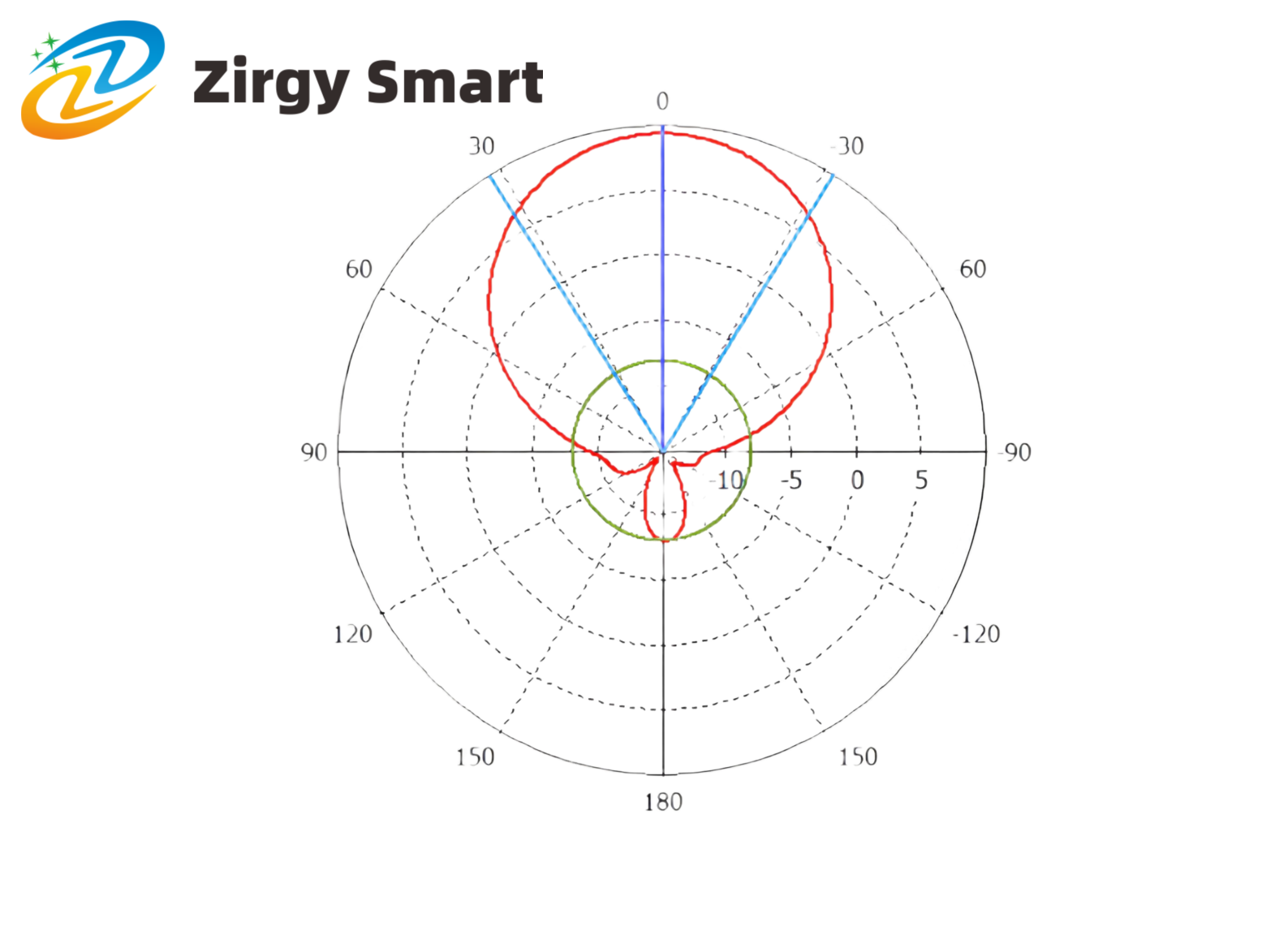

Horizontal pattern
Vertical pattern
Horizontal pattern
Vertical pattern
