Ⅰ Product introduction
Name: UHF reader ceramic antenna ZJTCTX-2DBI
Uhf reader ceramic antenna ZJTCTX-2DBI is used in a variety of radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
Uhf reader ceramic antenna ZJTCTX-2DBI is used in a variety of radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
Ⅱ Main technical parameters
| Antenna | ||
| 1 | Antenna model | 7060D（60mm*60mm*5mm） |
| 2 | Frequency range | 922MHz±2MHz |
| 3 | V.S.W.R | 1.5 MAX |
| 4 | Band Width@10dB | 5.5 MHz MIN |
| 5 | Gain | 4 dB typ @70mm*70mm groundplane |
| 6 | Impendence | 50Ω |
| 7 | Polarization | RHCP |
| Material | ||
| No | Part Name | SPEC |
| 1 | Antenna | Dielectric Ceramics |
| 2 | PCB | FR4 |
| 3 | Bridge | HCO900A03 |
| 4 | Resistance | 100Ω(0402) |
| 5 | RF Cable | RG316 |
| L=20.5cm | ||
| 6 | RF Connector | SMA Male head internal needle |
| Environment Condition | ||
| 1 | Working Temp | -40℃～+85℃, 10%～95% RH |
| 2 | Storage Temp | -55℃～+100℃, 10%～95% RH |
| 3 | Vibration | Sine sweep @1.5mmAM 10~55Hz each Axis |

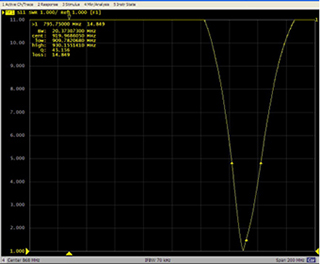

Ⅲ Testing Curve

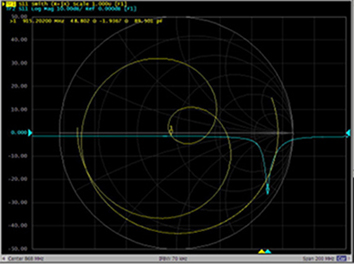

Patch Simth& VSWR

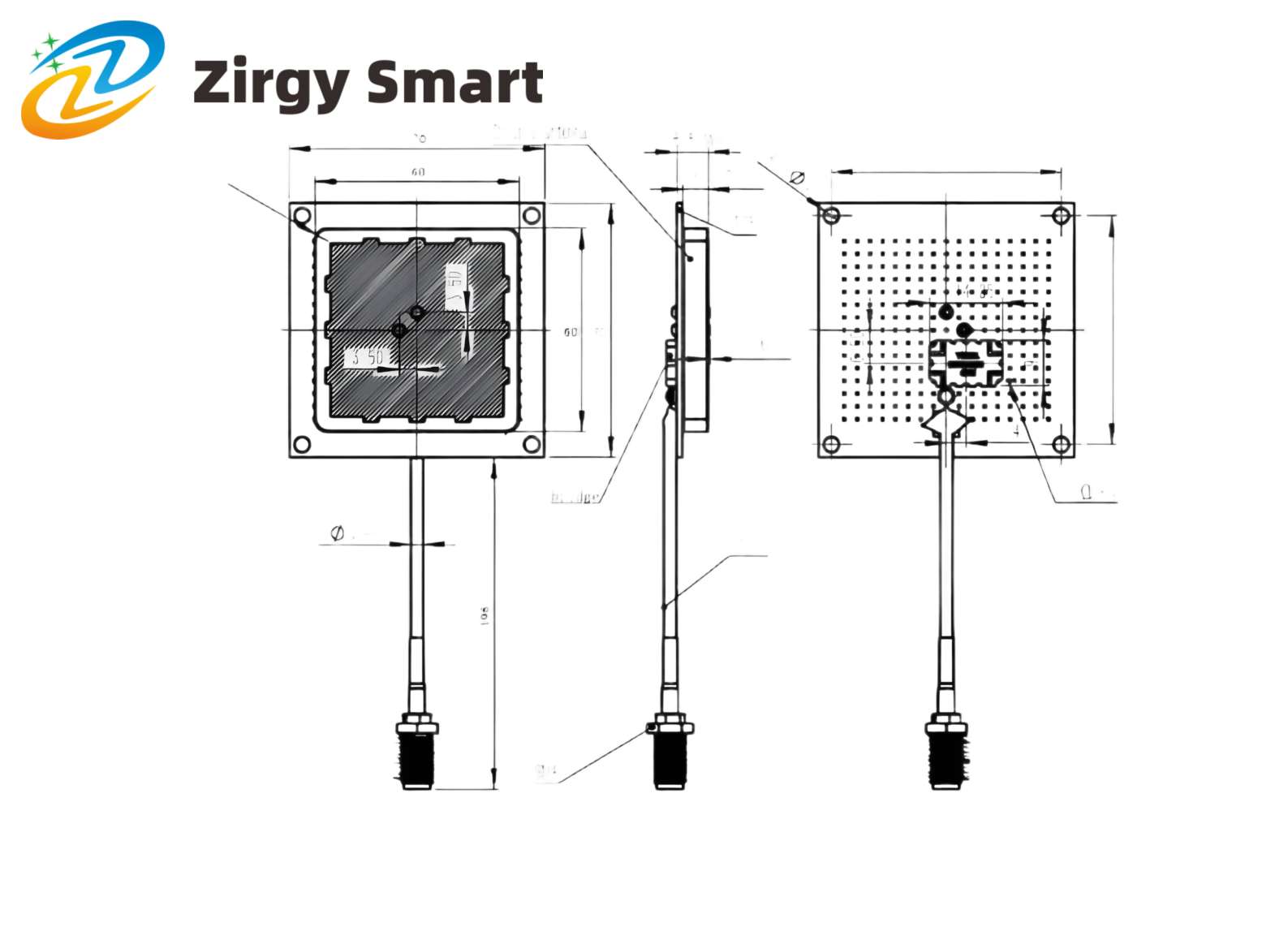

Ⅳ Structure
Ⅴ Note
1. This product specification guarantees the quality of our product as a single unit. Please make sure that your product is evaluated and confirmed against your specifications when our product is mounted to your product.
2. The product will get free warranty for three months since the date of purchase users operate in the correct way; users will have to pay cost of the materials and maintaining fee out of the condition.
3. Electrostatic sensitive device.Observe precautions for handling.
2. The product will get free warranty for three months since the date of purchase users operate in the correct way; users will have to pay cost of the materials and maintaining fee out of the condition.
3. Electrostatic sensitive device.Observe precautions for handling.
Ⅵ Product real-shot
Real-shot display
