Ⅰ Product introduction
Name: 8dBi UHF directional antenna ZJTX23023020-8DBI
8dBi UHF directional antenna ZJTX23023020-8DBI is suitable for 902-928MHz RFID radio frequency identification system, can be customized European standard (860-868MHz), shoes and clothing store management, access control management, logistics warehousing management.
8dBi UHF directional antenna ZJTX23023020-8DBI is suitable for 902-928MHz RFID radio frequency identification system, can be customized European standard (860-868MHz), shoes and clothing store management, access control management, logistics warehousing management.
Ⅱ Product features
● Beautiful appearance, wall hanging or ceiling installation;
● High gain, long read and write distance, sensitive read speed, high stability.
Ⅲ Product performance
● Electrical performance
| Model | ZJTX23023020-8DBI |
| Frequency scope | 902-928MHz |
| Gain | 8dBi |
| Polarization method | Circular polarized |
| Half power angle | Hor:65° Ver:65° |
| Standing-wave ratio | ≤1.3 |
| Impedance | 50Ω |
| Axis ratio | ≤2dB |
| Front-to-back ratio | ≥15dB |
| Maximum power | 50W |
| Lightning protection | Dc ground |
● Mechanical performance
| Connector | SMA-male |

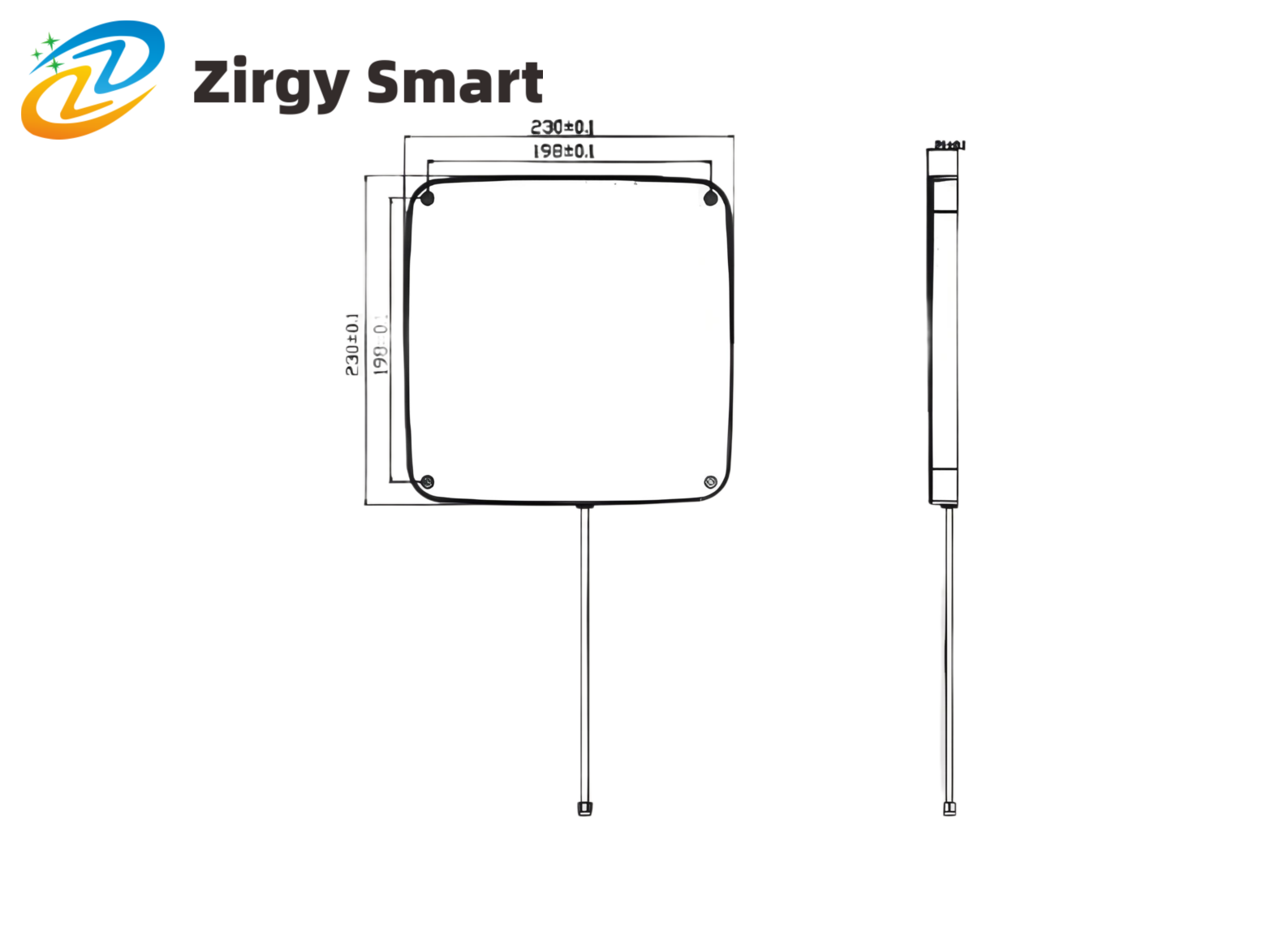

| Antenna dimensions | 230*230*20mm |
| Net weight | 0.4kg |
| Radiation material | F4B |
| Dimensions of mounting holes | 4*φ4-198*198mm |
Ⅳ Product display
Real-shot display

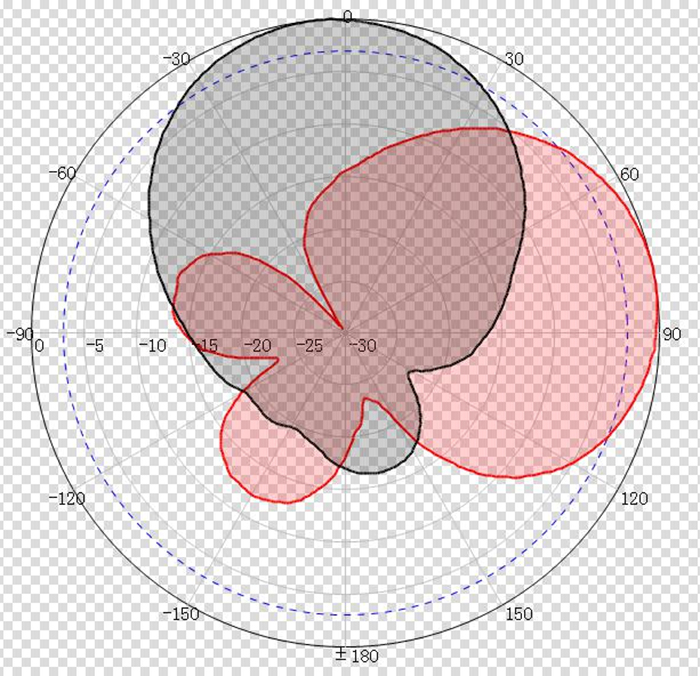

902MHz direction diagram

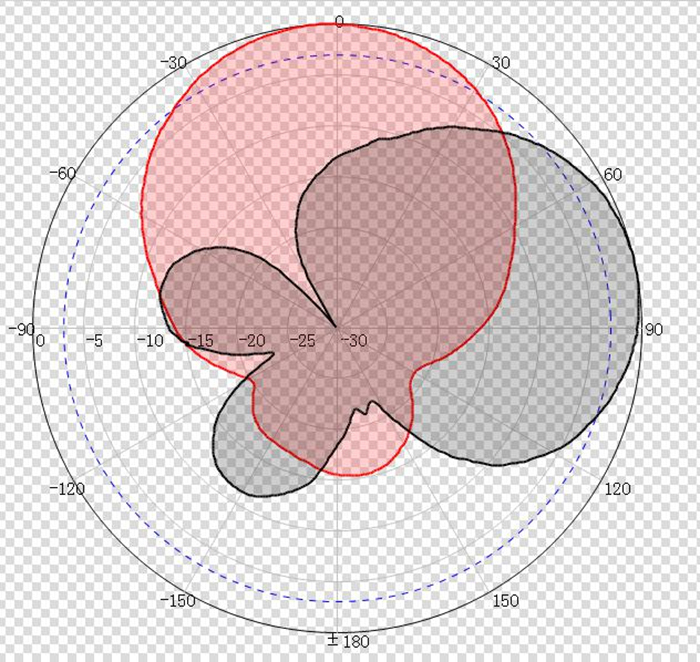

915MHz direction diagram

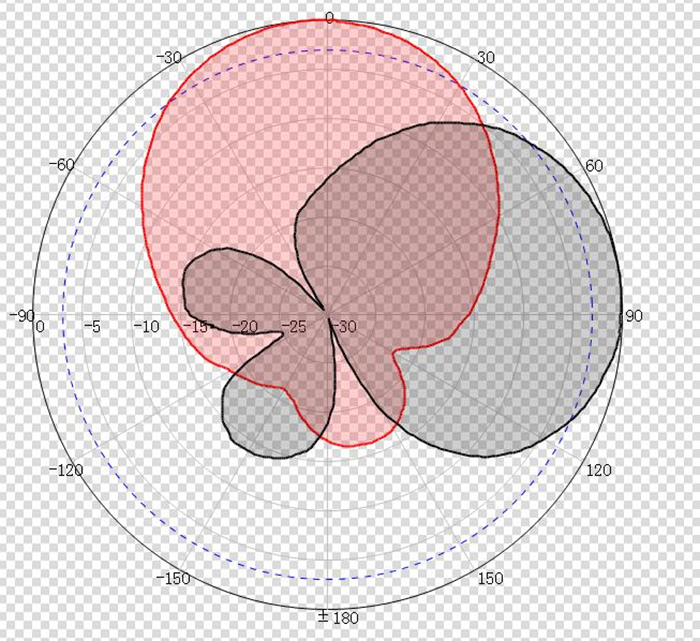

928MHz direction diagram
