Ⅰ Product introduction——Zip tie tag ZJZD9632
Name: Zip tie tag ZJZD9632
The zip tie tag ZJZD9632 can be widely applied in various fields such as express logistics boxes and bags, freight trucks, containers, aviation sealing, duty-free trams, bank money bags, medical waste, inland transportation, customs, or any areas that require sealing and confidentiality. As a data carrier for items, the zip tie tag can, through a contactless spatial sensing method, conveniently play roles in identification, item discrimination, information collection, as well as tracking and tracing.
The zip tie tag ZJZD9632 can be widely applied in various fields such as express logistics boxes and bags, freight trucks, containers, aviation sealing, duty-free trams, bank money bags, medical waste, inland transportation, customs, or any areas that require sealing and confidentiality. As a data carrier for items, the zip tie tag can, through a contactless spatial sensing method, conveniently play roles in identification, item discrimination, information collection, as well as tracking and tracing.
Ⅱ Product features——Zip tie tag ZJZD9632
● Waterproof, drop-resistant, and collision-proof, it can be used outdoors.
● The dustproof and waterproof grade is IP65.
● Laser coding and printing are available, which enhances the manageability. The electronic label of the sign part is located outside the tied area and is not affected by the material of the tied object.
● It enables stable reading, is convenient to use, and is resistant to humidity, high temperature, etc.
● It can be used in harsh environments.
● The appearance and color are optional.
● The dustproof and waterproof grade is IP65.
● Laser coding and printing are available, which enhances the manageability. The electronic label of the sign part is located outside the tied area and is not affected by the material of the tied object.
● It enables stable reading, is convenient to use, and is resistant to humidity, high temperature, etc.
● It can be used in harsh environments.
● The appearance and color are optional.
Ⅲ Product parameters——Zip tie tag ZJZD9632
| Material | Engineering plastic ABS |
| Tag size | 96*32*11mm |
| Total length | 450mm |
| Zip tie length | 358mm (Length can be customized according to requirement) |
| Operating frequency | 13.56mHz/860 ~ 960mHz |
| Chip type | NXP U CODE 9/FM11RF08/NTAG213/H3/H4 等 (chip can be customized) |
| Reading and writing distance | Around 0-10M (related to the configuration of the interrogator) |
| Operating temperature | -25C°~ 65C° |
| Reading and writing cycles | One hundred thousand times |
| Data reservation duration | More than ten years |
| Printing | Colour, printing and coding can be customized |
| Standard packaging | 100 pieces per package, 5,000 pieces per carton. |
Ⅳ The production process of the product can be customized——Zip tie tag ZJZD9632
● Customizable size;
● Customizable chip;
● Encapsulation material;
● Barcodes and codes can be printed (the barcodes can be changed);
● Logo, patterns, texts, etc. can be printed;
● For other requirements, you can consult online.
● Customizable chip;
● Encapsulation material;
● Barcodes and codes can be printed (the barcodes can be changed);
● Logo, patterns, texts, etc. can be printed;
● For other requirements, you can consult online.
Ⅴ Product display——Zip tie tag ZJZD9632

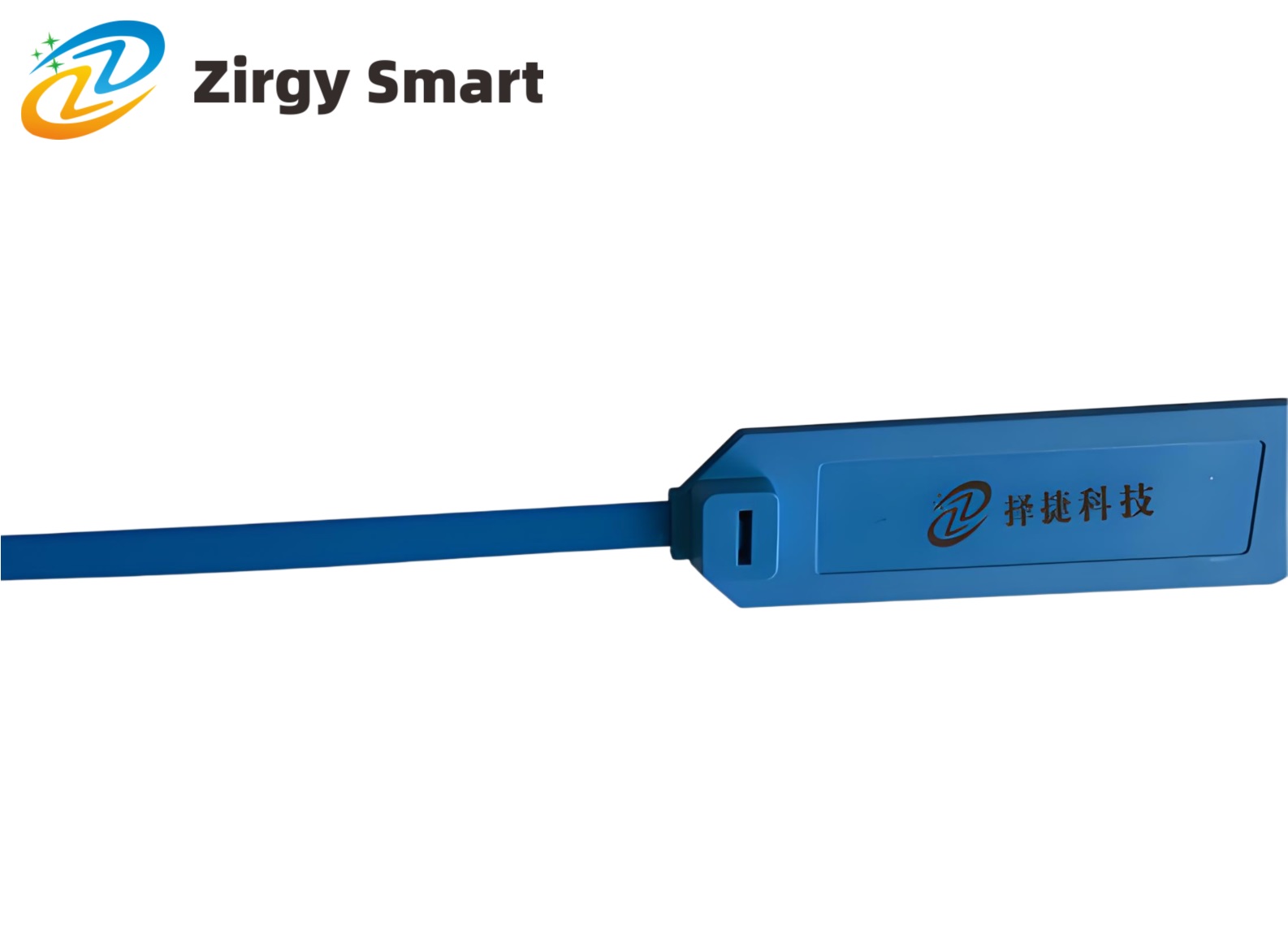

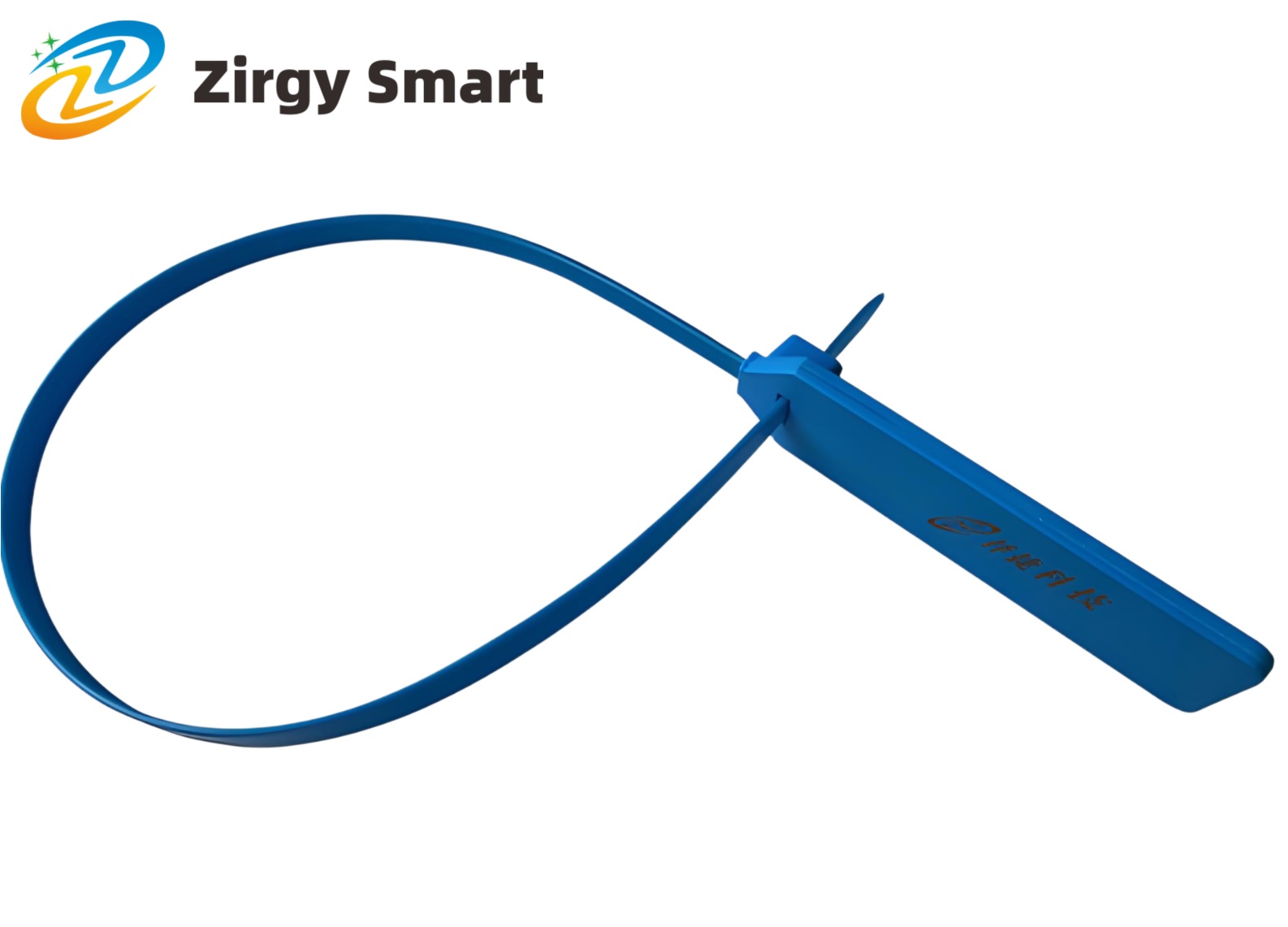

Real-shot display

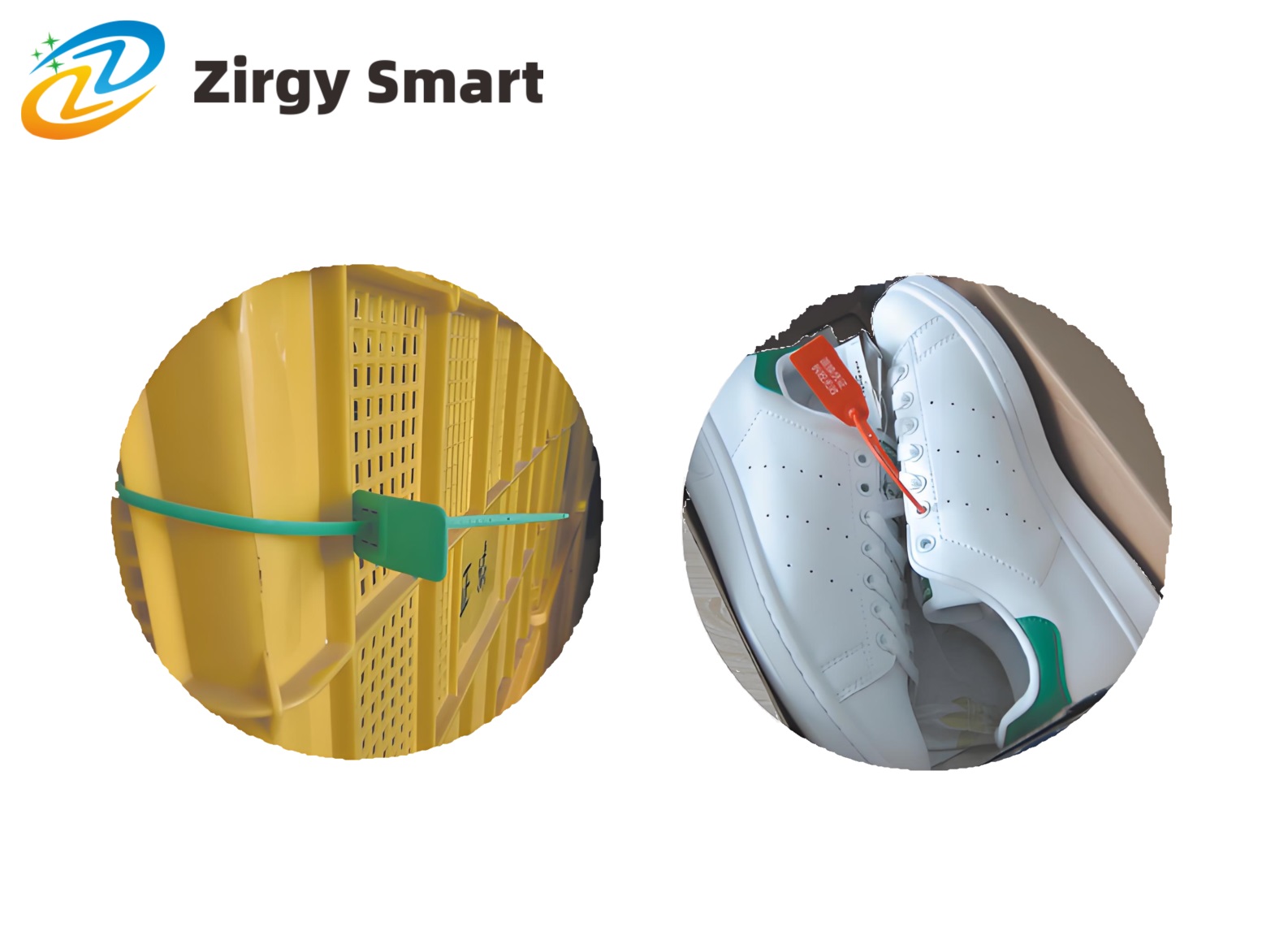

Product application display
