Ⅰ Product Overview -- Cable tie electronic label ZJ-03F
Name: Cable electronic label ZJ-03F
ZJ-03F can be widely used in express logistics bags, container trucks, containers, aviation seals, tax-free trams, bank money bags, medical waste, inland transportation, customs or any field that needs to be sealed and confidential. As the data carrier of items, the cable label can be very convenient through non-contact spatial sensing, and can play the role of identification, item identification, information collection, tracking and traceability.
ZJ-03F can be widely used in express logistics bags, container trucks, containers, aviation seals, tax-free trams, bank money bags, medical waste, inland transportation, customs or any field that needs to be sealed and confidential. As the data carrier of items, the cable label can be very convenient through non-contact spatial sensing, and can play the role of identification, item identification, information collection, tracking and traceability.
Ⅱ Product features -- Cable tie electronic label ZJ-03F
● Waterproof, fall resistant, anti-collision, can be used outdoors;
● Dustproof and waterproof rating IP65;
● Laser coding printing strengthens the electronic label of the management sign part in the external position of the binding, which is not affected by the material to be tied;
● Stable reading, easy to use, moisture resistance, high temperature resistance, etc.
● Can be used in harsh environment;
● Appearance, color optional.
● Dustproof and waterproof rating IP65;
● Laser coding printing strengthens the electronic label of the management sign part in the external position of the binding, which is not affected by the material to be tied;
● Stable reading, easy to use, moisture resistance, high temperature resistance, etc.
● Can be used in harsh environment;
● Appearance, color optional.
Ⅲ Product parameters -- Cable tie electronic label ZJ-03F
| Material | Engineering plastic ABS |

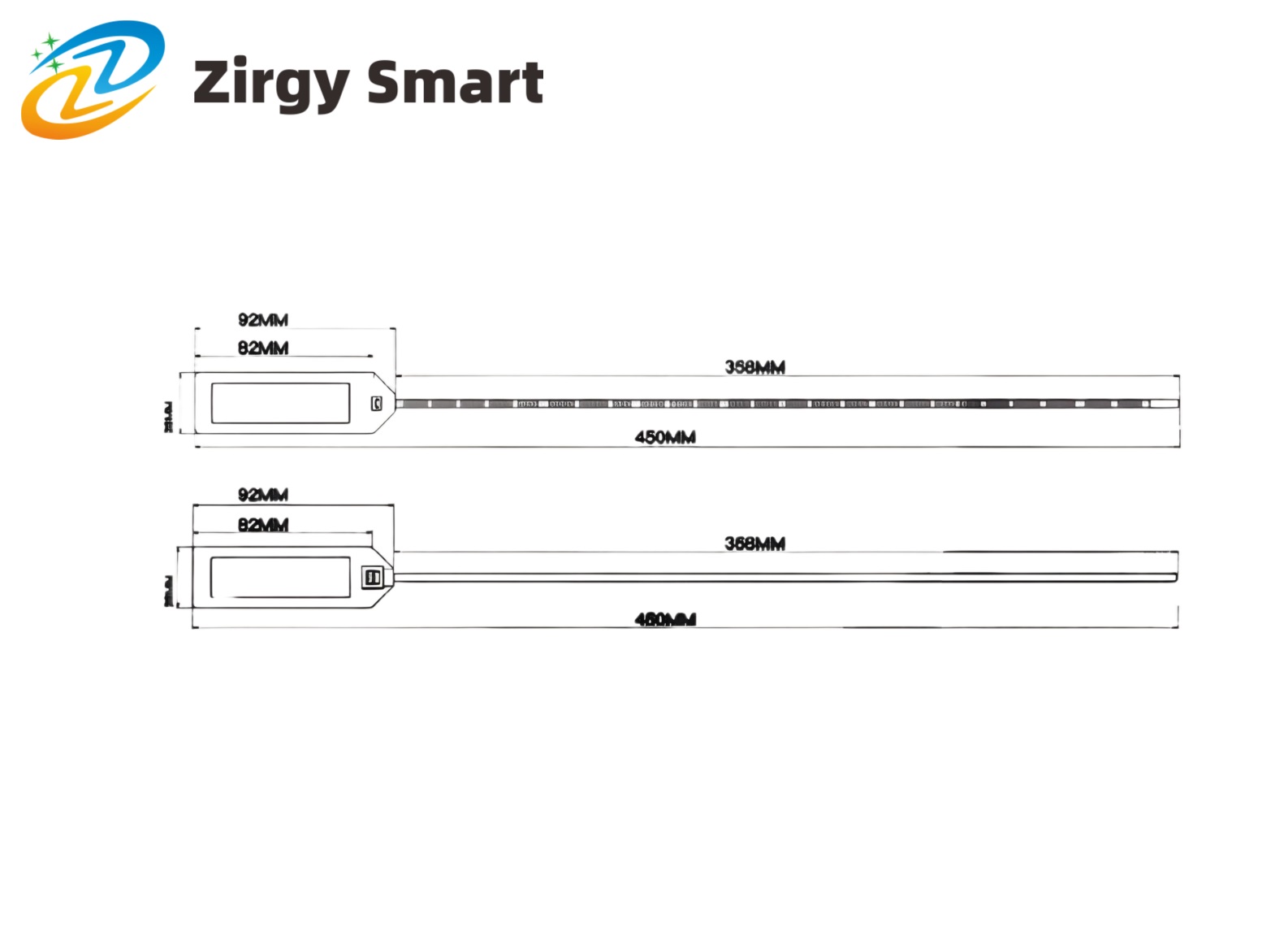

| Tag dimensions | 92*28*3mm |
| Total length | 450mm |
| ZIp tie length | 358mm (length can be customized) |
| Operating frequency | 13.56mHz/860 ~ 960mHz |
| Chip type | NXP U CODE 7/FM11RF08/NTAG213/H3/H4, etc. (chip can be customized) |
| Read-write distance | Around 0-4M (related to configuration of interrogation device) |
| Operating temperature | -25C°~ 65C° |
| Read-write times | 100,000 times |
| Data retention time | More than 10 years |
| Printing | Custom color, printing, coding |
| Standard packing | 100 pieces/bag 5000 pieces/box |
Ⅳ Products can be customized process - cable tie electronic label ZJ-03F
● Custom size;
● Custom chip;
● Packaging material;
● Can print bar code, code (bar code can be changed);
● Low can be printed LOGO, design, text, etc.;
● Other requirements can be consulted online.
● Custom chip;
● Packaging material;
● Can print bar code, code (bar code can be changed);
● Low can be printed LOGO, design, text, etc.;
● Other requirements can be consulted online.
Ⅴ Product display -- Cable tie electronic label ZJ-03F

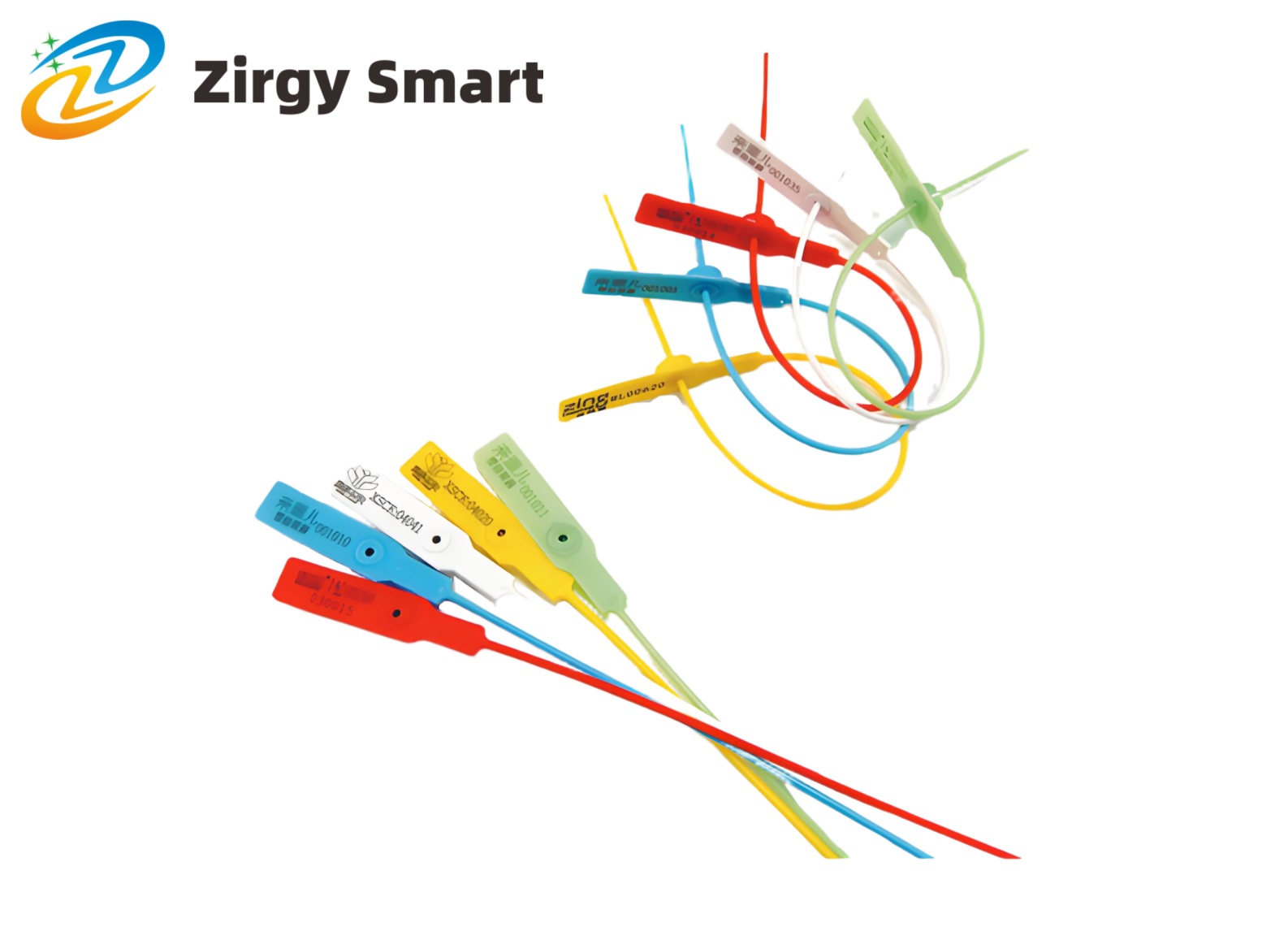

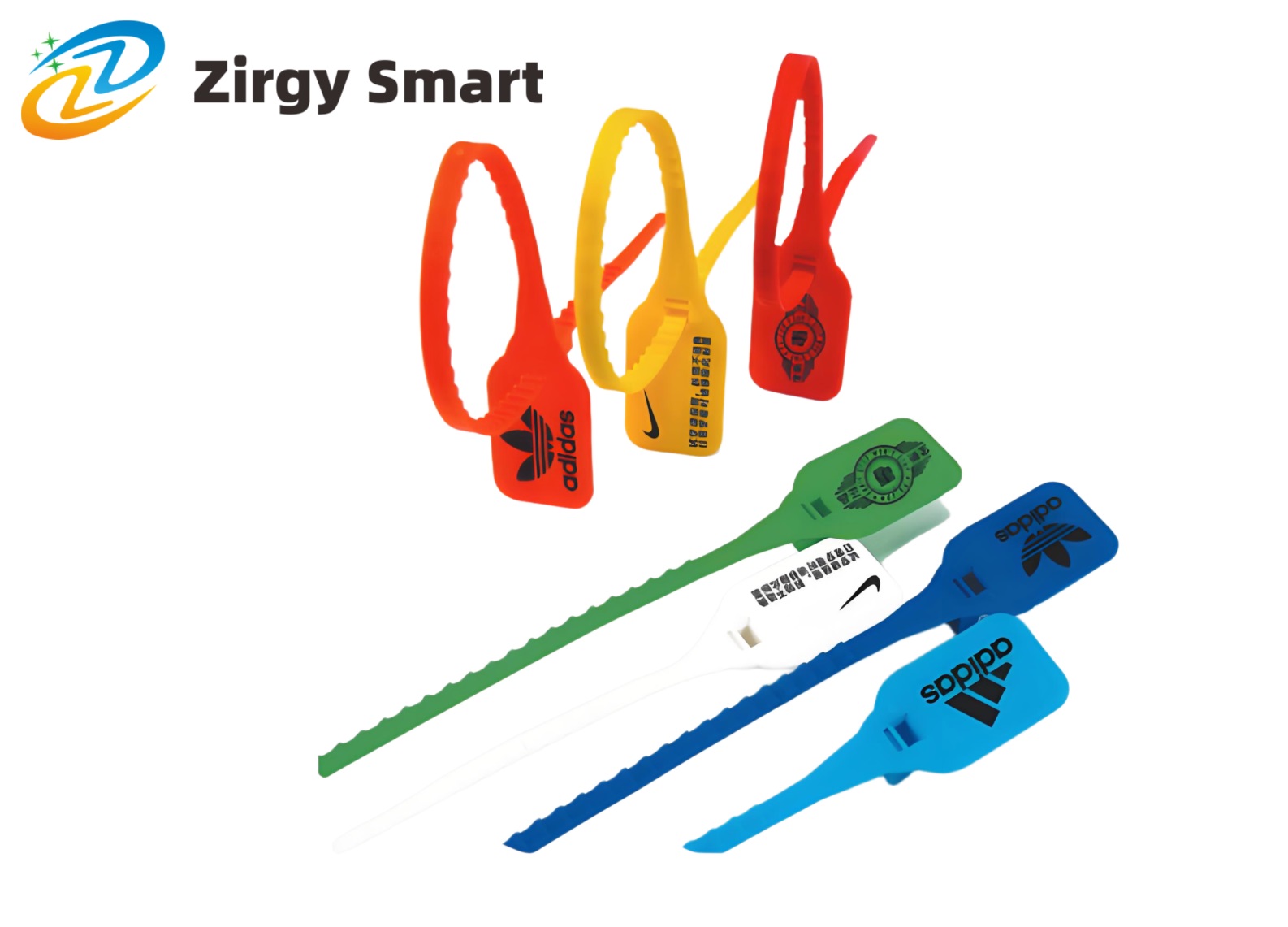

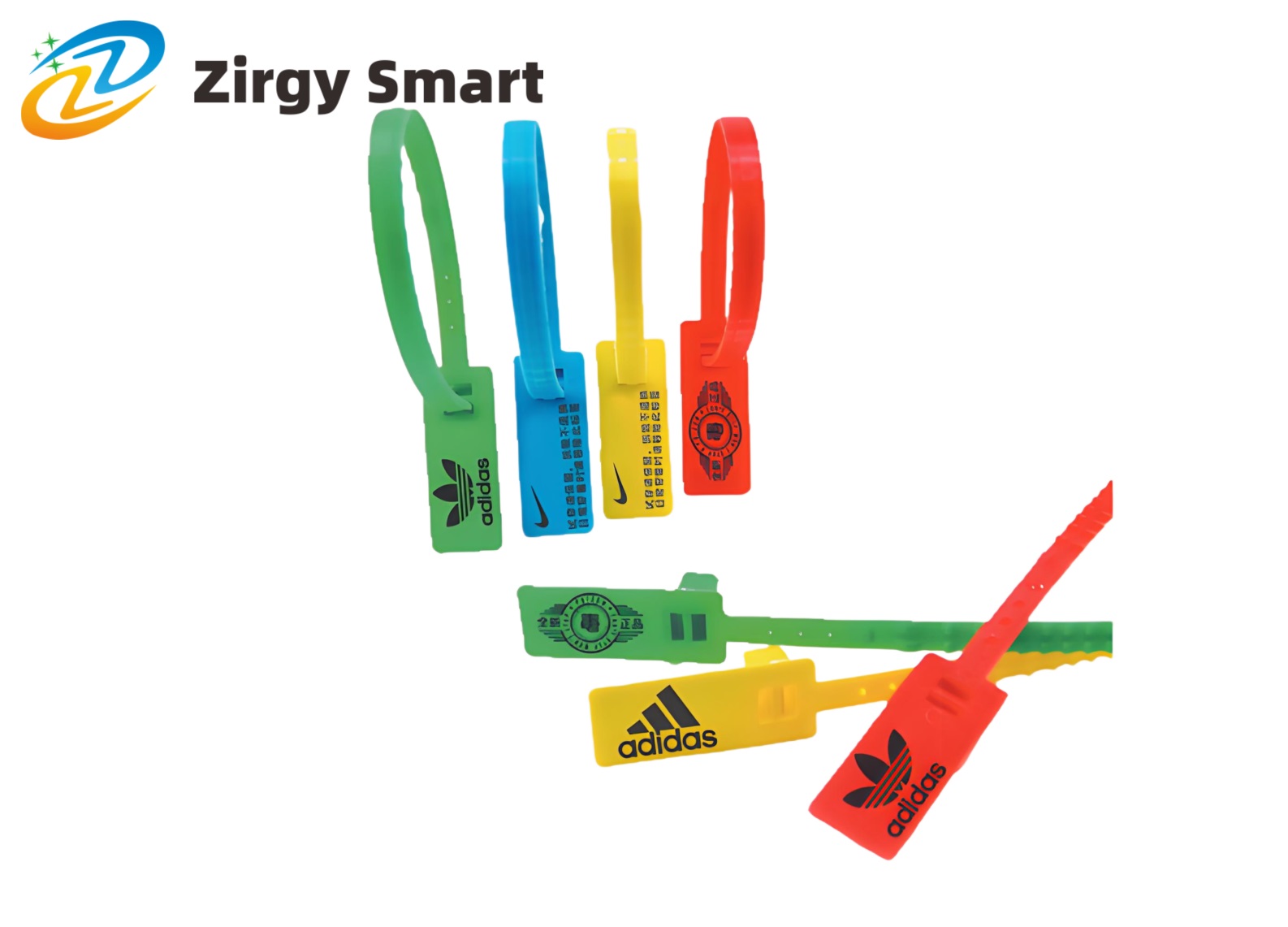

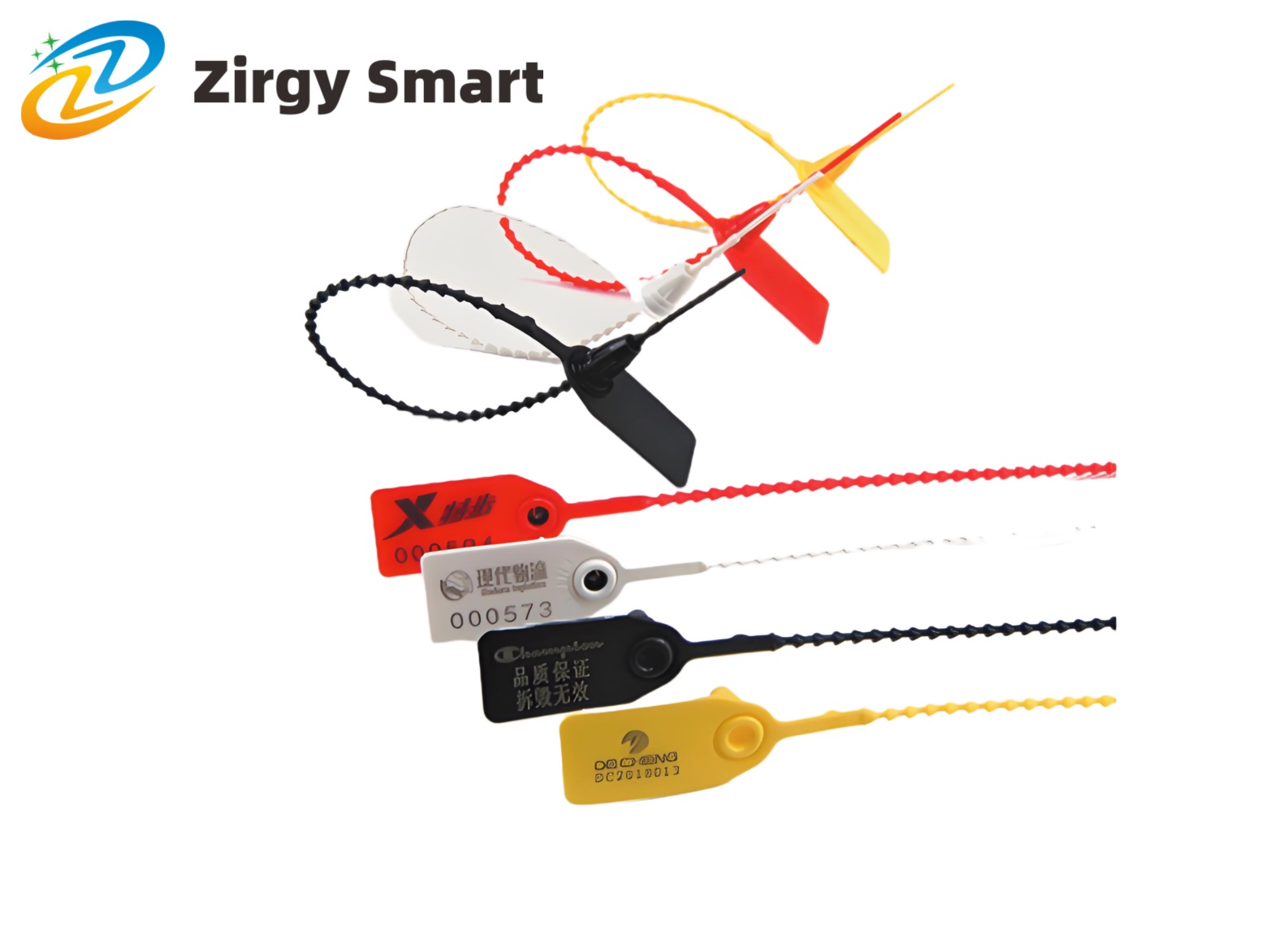

Real-shot display

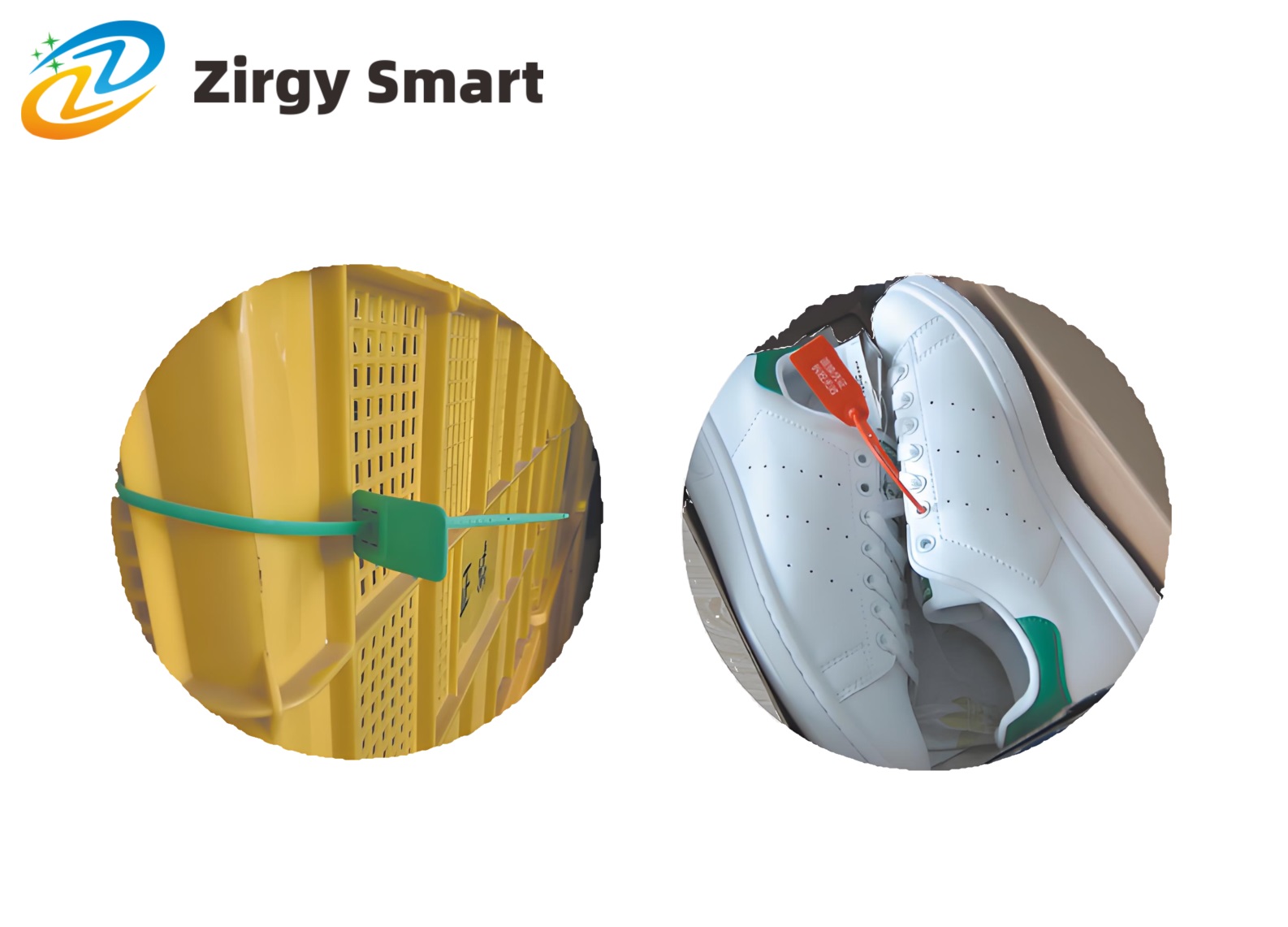

Product application display
