Ⅰ **Chip features -- high frequency Wet inlay FM1108 56*18mm**

● Compliant with ISO/IEC 1443A
● Working efficiency 13.56MHz
● Communication baud rate 106kbit/s
● Non-contact data and energy transmission (no power required)
● Operating distance not less than 100m (related to antenna size)
● Half duplex communication mode
● Encryption algorithm conforms to M1 standard
● Typical processing time <100ms

Ⅱ Technical parameters——High frequency Wet inlay FM1108 56*18mm

Name: High frequency Wet inlay FM1108 56*18mm
Optional chip: FM1108
Antenna size: 52*15mm
Label size: 56*18mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃

Ⅲ Product display——High frequency Wet inlay FM1108 56*18mm

1.Sectional display

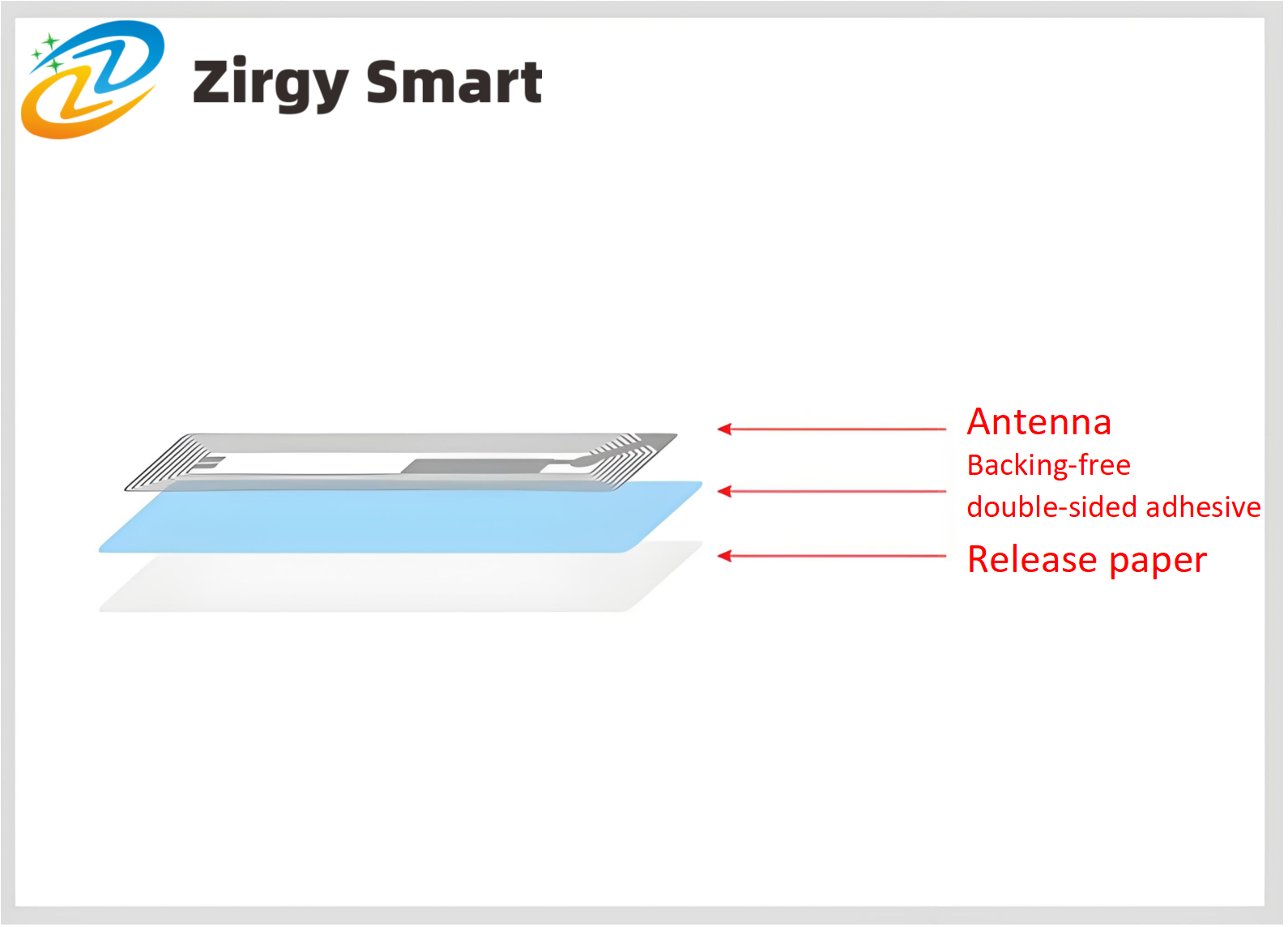

High frequency Wet inlay FM1108 56*18mm product analysis display Figure 1

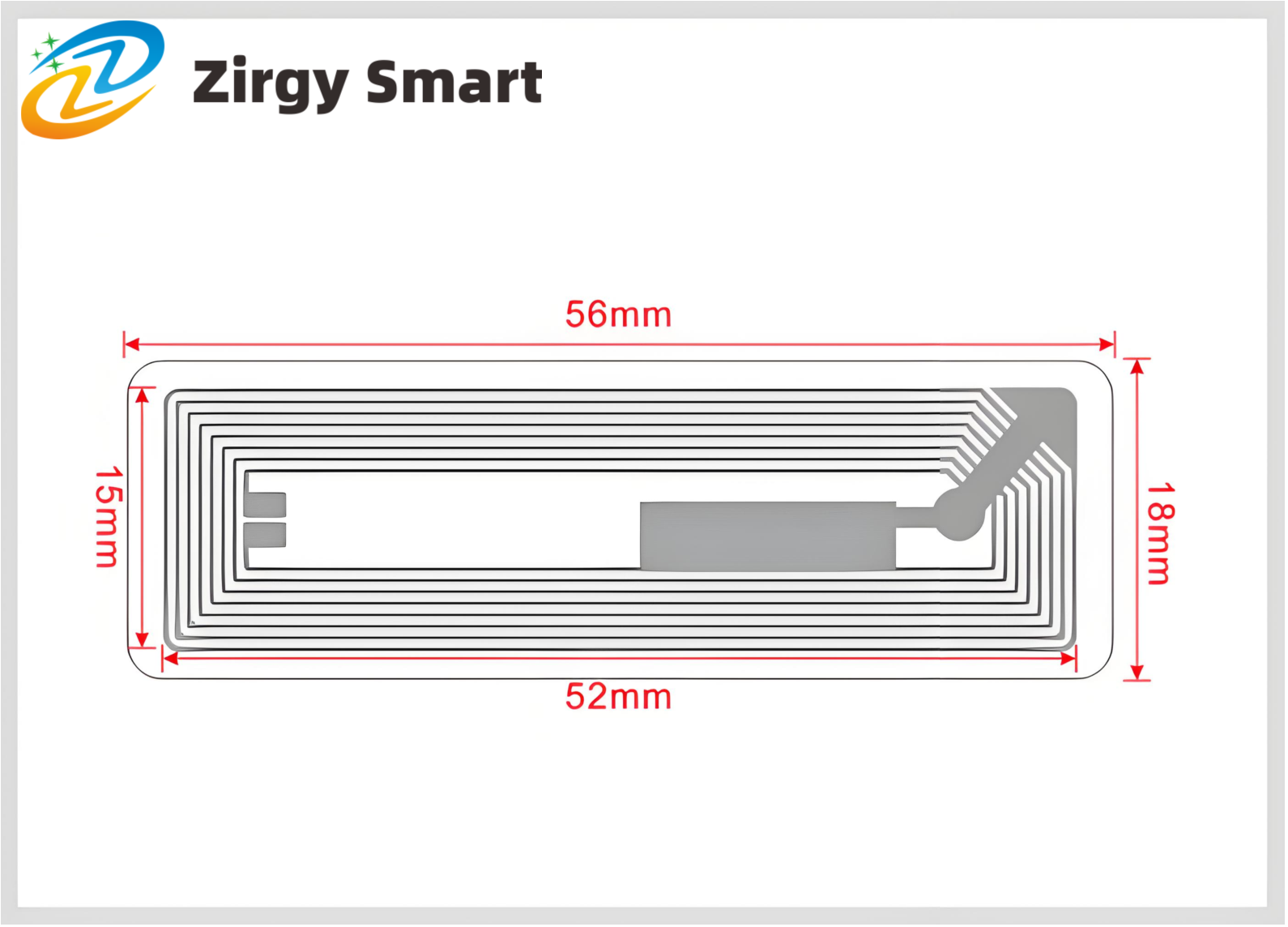

High frequency Wet inlay FM1108 56*18mm product analysis display Figure 2

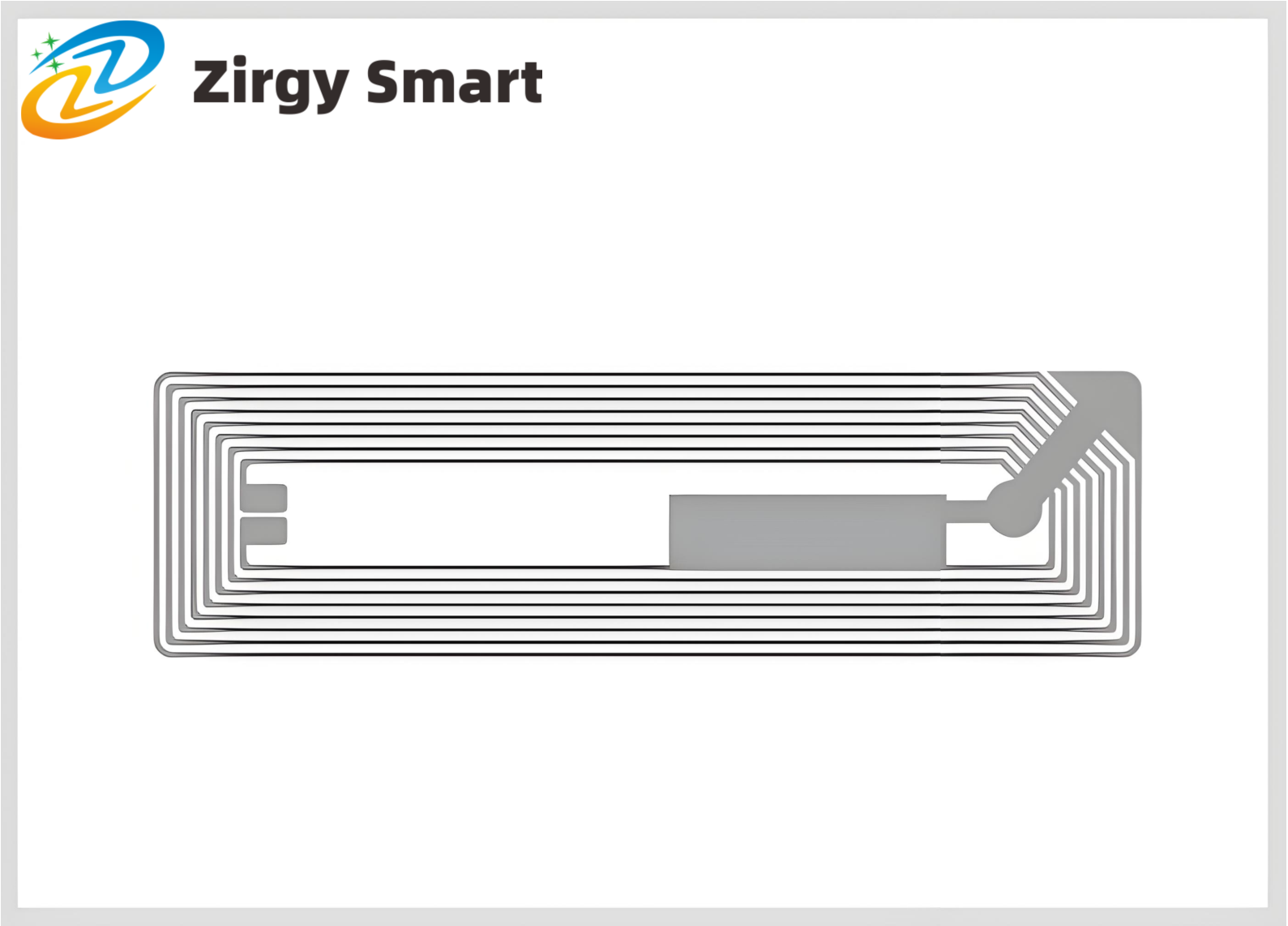

High frequency Wet inlay FM1108 56*18mm product analysis display Figure 3

2.Real-shot display

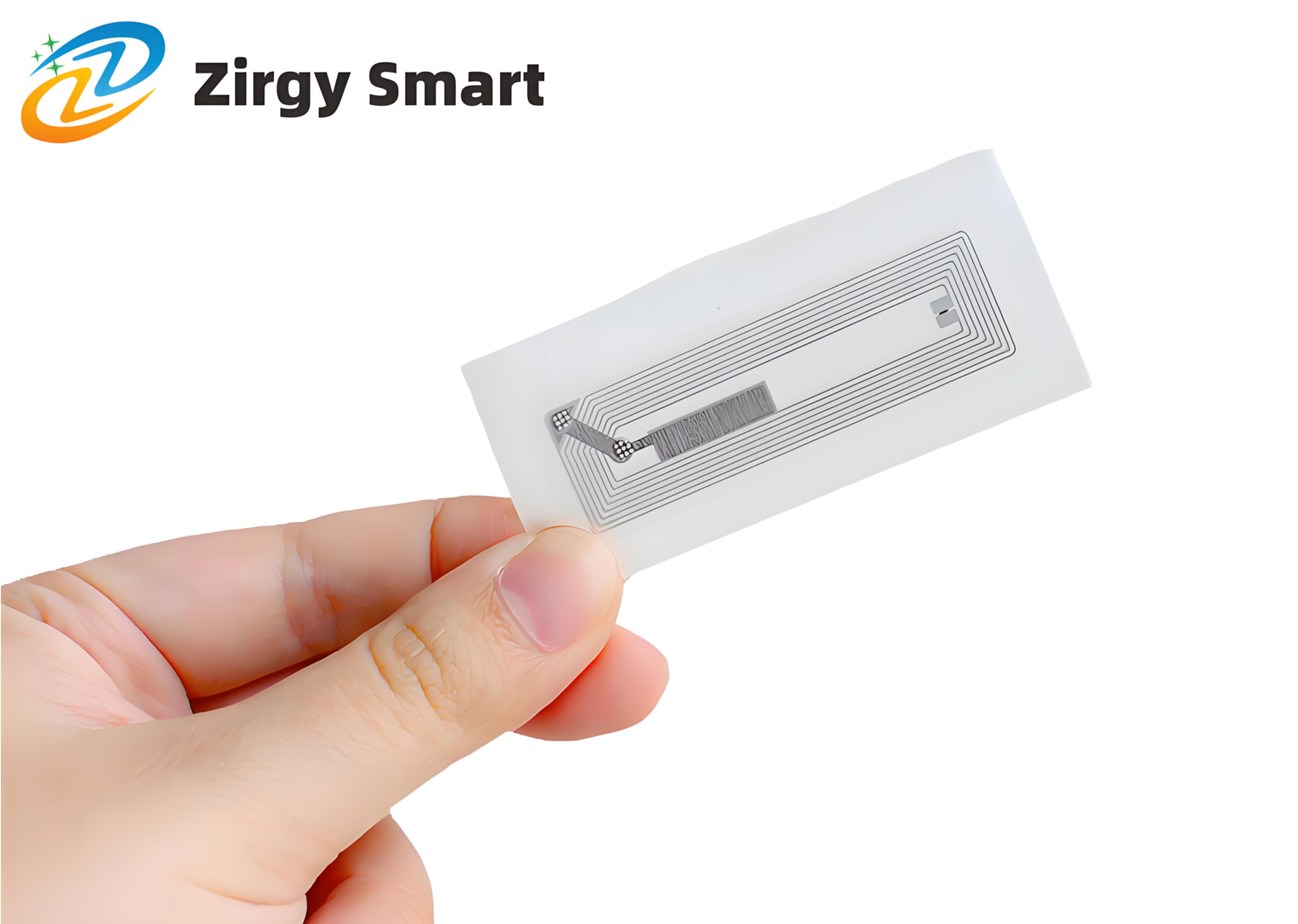

High frequency Wet inlay FM1108 56*18mm product real shot display Figure 1

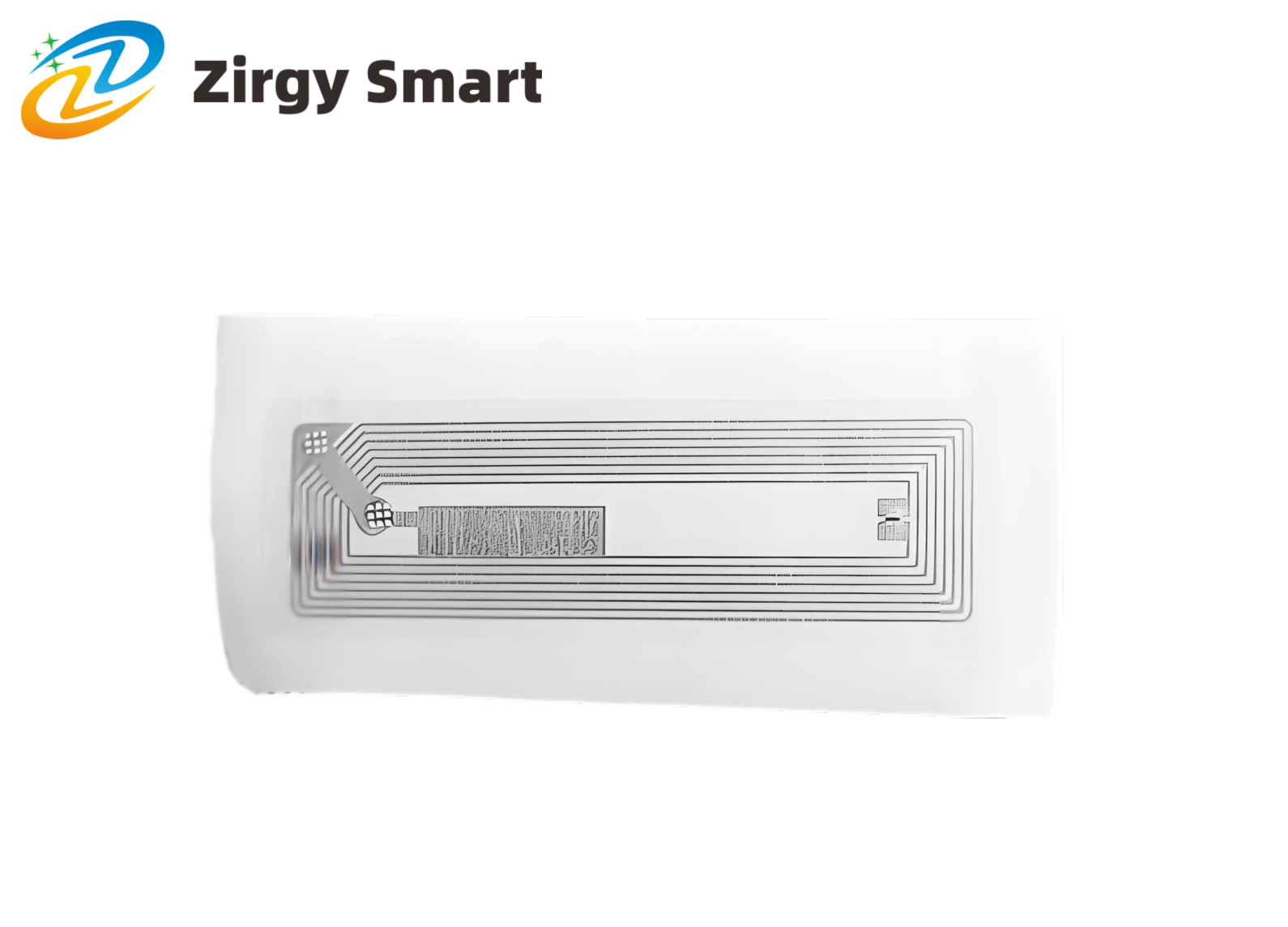

High frequency Wet inlay FM1108 56*18mm product real shot display figure 2

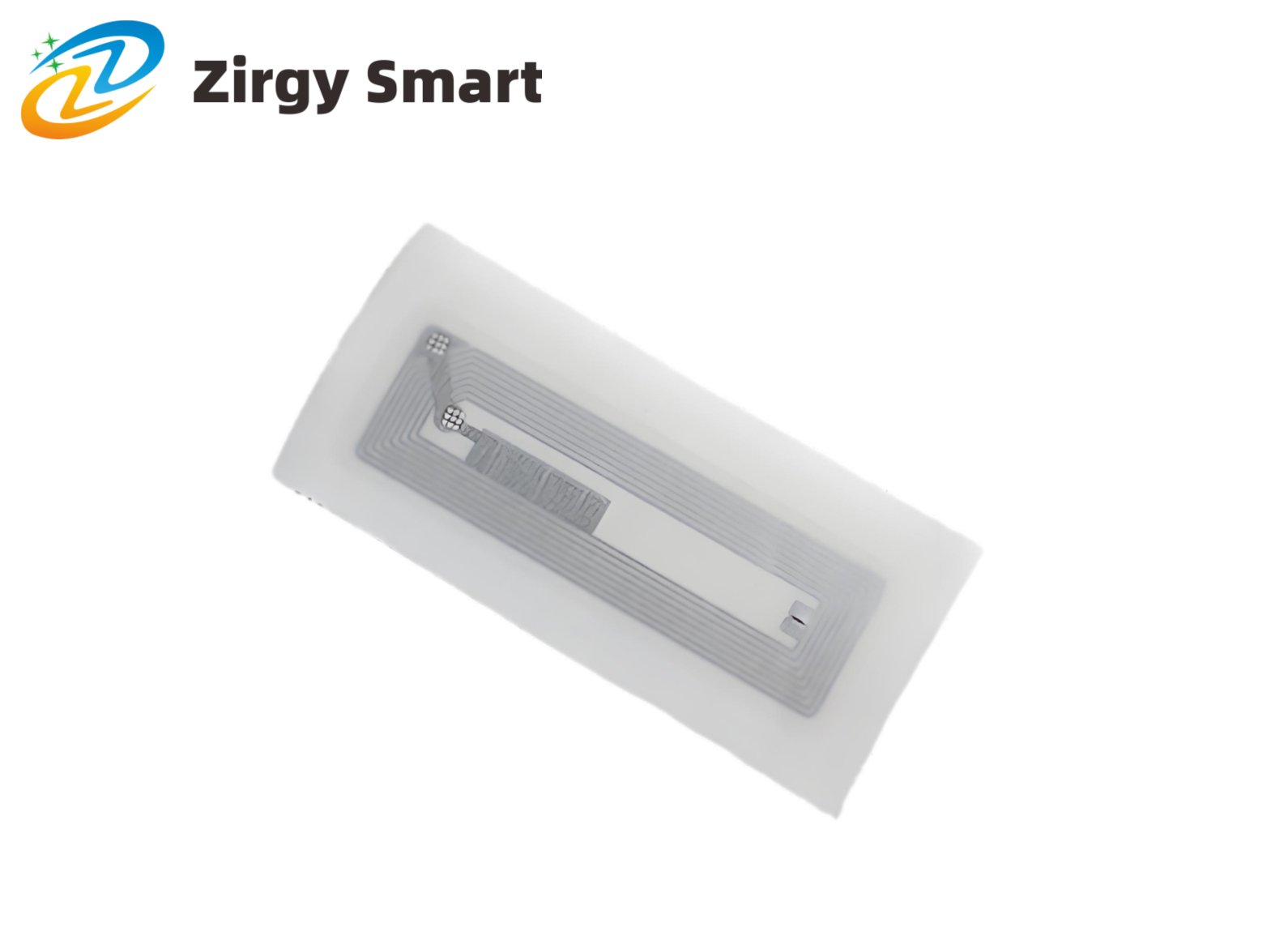

High frequency Wet inlay FM1108 56*18mm product real shot display Figure 3

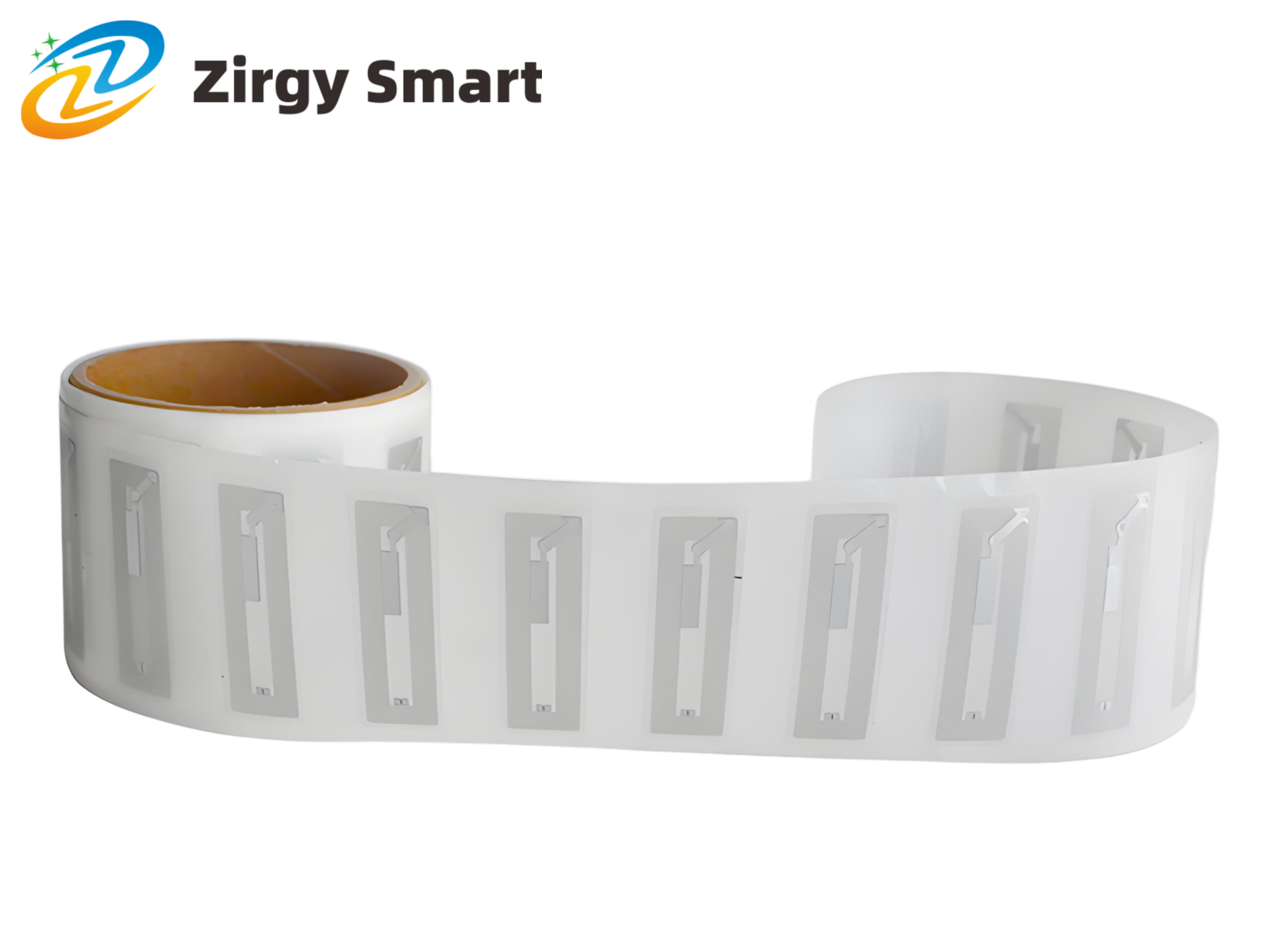

High frequency Wet inlay FM1108 56*18mm product real shot display Figure 4

High frequency Wet inlay FM1108 56*18mm product real shooting display Figure 5

High frequency Wet inlay FM1108 56*18mm product real shot display Figure 6

Ⅳ Antenna display - High frequency Wet inlay FM1108 56*18mm

High frequency Wet inlay FM1108 56*18mm product antenna display

Ⅴ Production process -- high frequency Wet inlay FM1108 56*18mm

Hf Wet inlay FM1108 Reverse packaging diagram of 56*18mm product manufacturing process

High frequency Wet inlay FM1108 Strip diagram of 56*18mm product manufacturing process

Composite diagram of high frequency Wet inlay FM1108 56*18mm product production process

High frequency Wet inlay FM1108 Die cutting diagram of 56*18mm product production process
