Ⅰ Product application -- Soft washing label ZJ-5815
* Linen rental management
* Standard clothing management and washing management
* Service rental and washing management
: : Hospital linen and washing management
* Military clothing and bedding management
* Railway linen management and washing management
* Police clothing management
* People Management
* Access Control
* Fire clothing and soft material management
Other applications requiring soft and pressure resistant products
Ⅱ Main features - Soft washing label ZJ-5815
* Soft washing labels can be customized according to customer requirements
* Soft, no damage to textiles, feel good
* Chip module size is one of the smallest in the international market
* Can withstand pressure of 60Bars
* One of the few models on the global market that can withstand 180 degrees 30 minutes, 200 times of pre-drying process
* Impinj chip, with spectrum modulation function, can achieve excellent group reading performance by the reader and software optimization in the system application
Ⅲ Product advantage - Soft washing label ZJ-5815
* Truly up to and beyond 200 industrial wash lives
* All materials and designs are verified for reliability and application
* Full power verification and write verification before delivery
ⅣTechnical parameters -- Soft washing label ZJ-5815
| Air interface protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | 845~ 950MHz (worldwide) |
| Chip | Impinj R6P |
| Storage area | EPC 96bits,User 32bits |
| Read-write support | Yes |
| Data storage | 20 years |
| Useful life and quality warranty | 200 industrial washes or 2 years (whichever comes first) |
| Material | Textile |
| Dimensions | Length 58mm x Width15mm x Thickness 1.5 mm (Thickness only at chip location) |
| Storage temperature | -40℃~ +85 ℃ |
| Usage temperature | 1) Washing: 90℃(194οF), 15 minutes, 200 times 2) High temperature pre-drying: 180℃(320οF), 30 minutes, 200 times 3) Ironing: 180℃(356οF), 10 seconds, 200 times 4) High temperature disinfection: 135℃(275οF), 20 minutes, 200 times (This product does not support medical MRI test, the company has other products that can pass MRI test) |
| Peak compressive strength | 60 bars |
| Product type | Single |

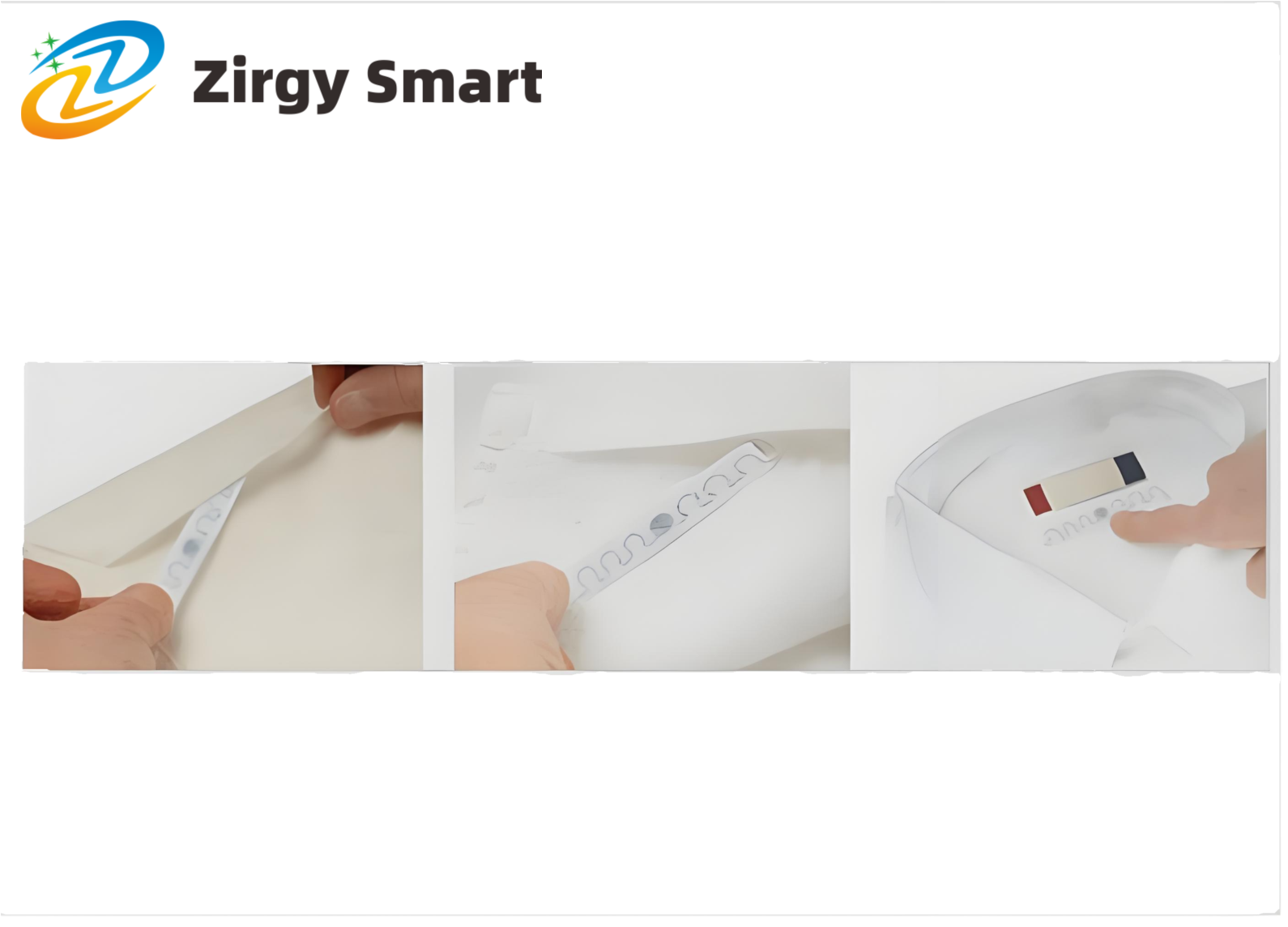

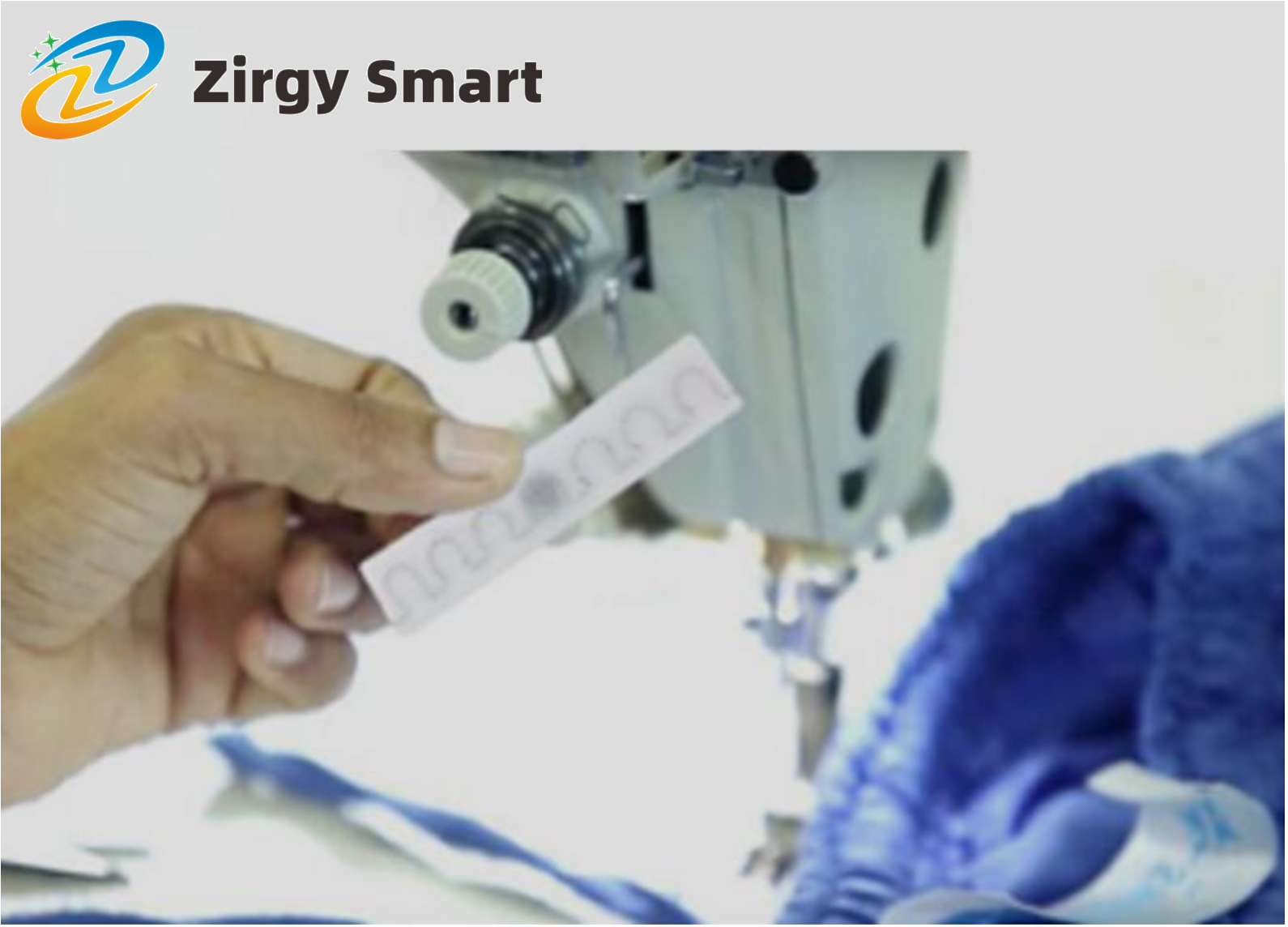

| Installation mode | Sew into the hem, or sew into the woven sleeve (do not sew to the wire or chip module during sewing) |
| Weight | Approx. 0.6 g/piece |
| Packing method | Esd bag and carton packing |
| Colour | White |
| Power supply method | Passive |
| Chemical performance | Can withstand all chemicals in normal industrial washing processes |
| RoHS | Compliant |
| Reading distance* | Fixed: Over 5.5 m (ERP=2W) Handheld: over 2m (with ATID AT880 handheld) |
| Polarization mode | Linear polarization |
Ⅴ Product display -- Soft washing label ZJ-5815

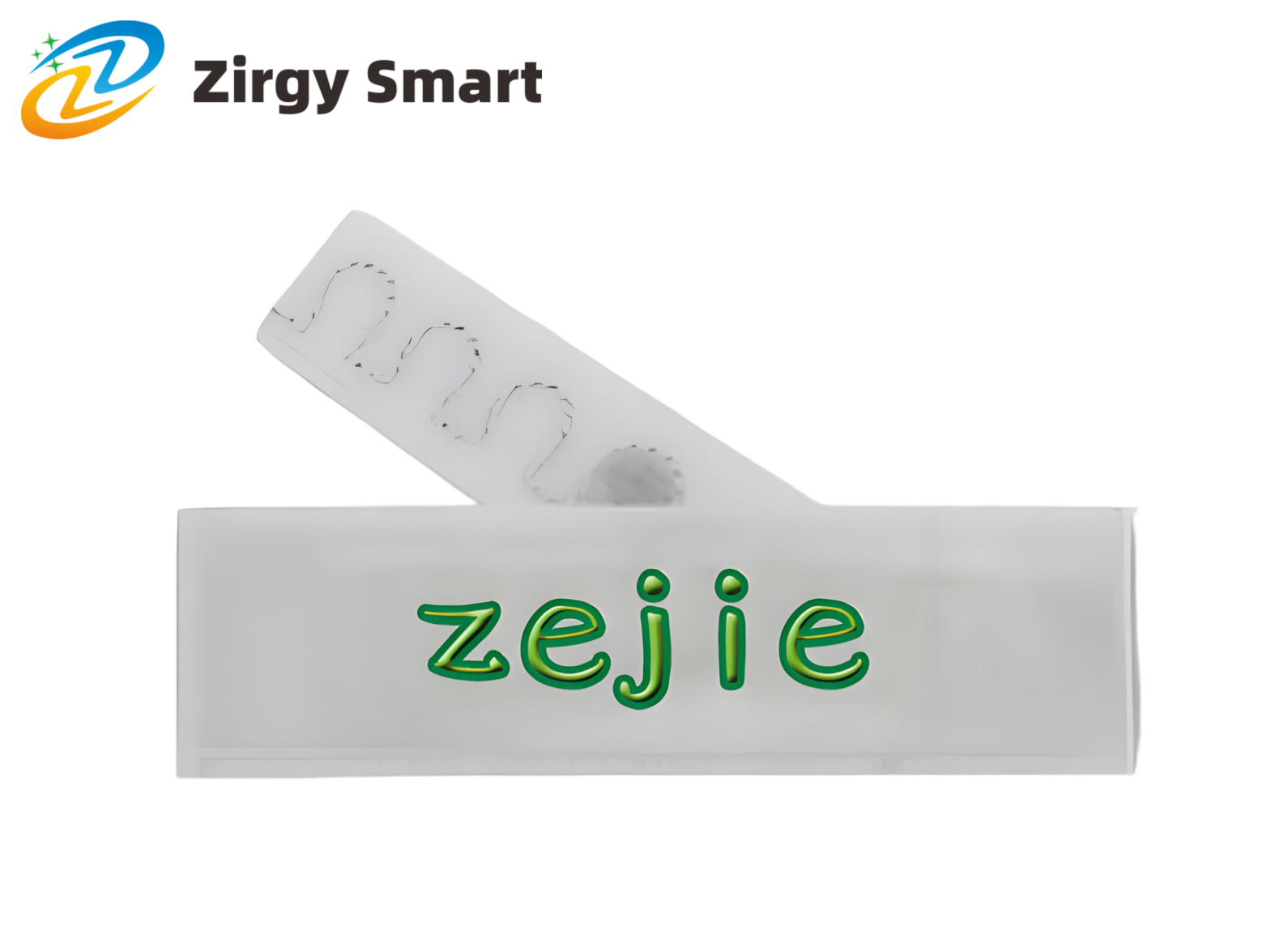

Real-shot display
