Ⅰ Product introduction——Black special electronic tag ZJDX1806PCB
Name: Black special electronic tag ZJDX1806PCB
The black special electronic tag ZJDX1806PCB has a shell made by injection molding with refined molds and high-grade anti-corrosion and high-temperature resistant materials. The RFID radio frequency chip is encapsulated inside, and it is filled with high-temperature resistant epoxy resin. It can be installed on objects made of non-metallic media, such as walls, stones, wooden boards, plastics, glass, etc. It is widely used in logistics, patrol inspection, anti-counterfeiting and other applications, and can also be widely applied to the application scenarios of miniature RFID products that require secondary packaging.
Ⅱ Product features——Black special electronic tag ZJDX1806PCB
* It has a small and exquisite appearance, is sturdy and durable, and the color will not fade.
* The product is waterproof, shockproof and corrosion-resistant.
* It is convenient to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as required.
* The product is waterproof, shockproof and corrosion-resistant.
* It is convenient to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as required.
Ⅲ Product application——Black special electronic tag ZJDX1806PCB
Concrete management
Anti-counterfeiting management of pharmaceuticals and cosmetics
Chip frequency: Low frequency (ID)
Ⅳ Technical parameters——Black special electronic tag ZJDX1806PCBAnti-counterfeiting management of pharmaceuticals and cosmetics
Chip frequency: Low frequency (ID)
| Product code | ZJ-DX1806 |
| Chip type | TK4100/EM4305/I CODE SLI/Ntag 213/F08 .etc |
| Operating frequency (modulation mode) | 125KHz |
| Protocol standard | ISO18000-2/ISO11784/11785/ISO1443A/ISO15693 |
| Reading and writing times | More than 1,000,000 times |
| Size (customizable) | 19*6.5mm (with holes or without holes） |
| Material | ABS |
| Colour (customizable) | Black or red |
| Anti-static | Prevent electrostatic breakdown, with a withstand voltage of more than 5000 volts. |
| Operating temperature | -20℃ - 75℃ |
| Storage temperature | -40℃ - 90℃ |
| Useful life | More than ten years |
| Weight | 0.5 grams |

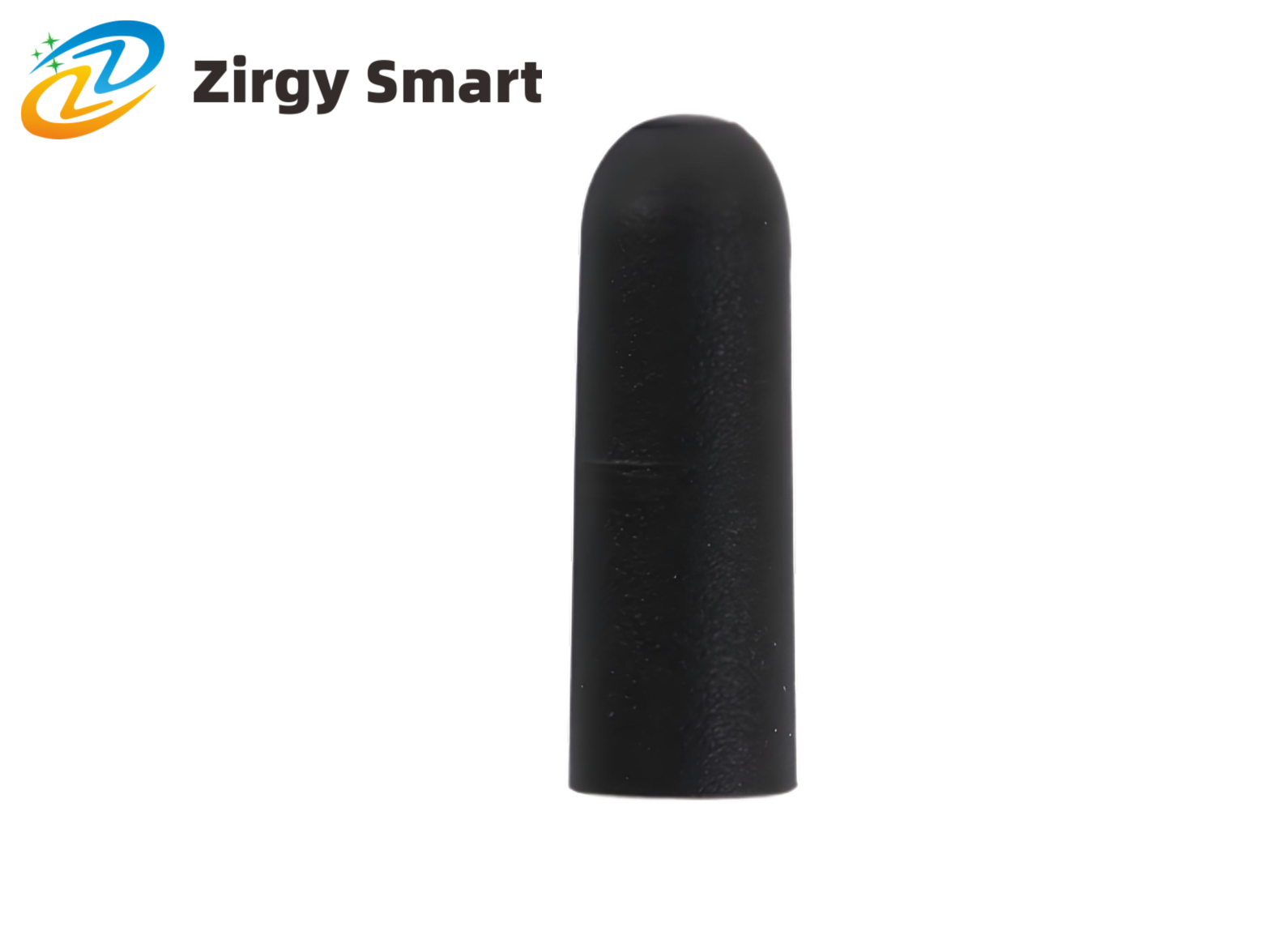

Ⅴ Product display——Black special electronic tag ZJDX1806PCB
