Ⅰ Product introduction——Red special electronic tag ZJDX1806
Name: Red special electronic tag ZJDX1806
The shell of the red special electronic tag ZJDX1806 is made by injection molding with refined molds and high-grade anti-corrosion and high-temperature resistant materials. The RFID radio frequency chip is encapsulated inside, and it is filled with high-temperature resistant epoxy resin. It can be installed on objects made of non-metallic media, such as walls, stones, wooden boards, plastics, glass, etc. It is widely used in logistics, patrol inspection, anti-counterfeiting and other applications, and can also be widely applied to the application scenarios of miniature RFID products that require secondary packaging.
The shell of the red special electronic tag ZJDX1806 is made by injection molding with refined molds and high-grade anti-corrosion and high-temperature resistant materials. The RFID radio frequency chip is encapsulated inside, and it is filled with high-temperature resistant epoxy resin. It can be installed on objects made of non-metallic media, such as walls, stones, wooden boards, plastics, glass, etc. It is widely used in logistics, patrol inspection, anti-counterfeiting and other applications, and can also be widely applied to the application scenarios of miniature RFID products that require secondary packaging.
Ⅱ Product features——Red special electronic tag ZJDX1806
* It has a small and delicate appearance, is sturdy and durable, and the color won't fade.
* The product is waterproof, shockproof and corrosion-resistant.
* It is easy to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as per the requirements.
* The product is waterproof, shockproof and corrosion-resistant.
* It is easy to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as per the requirements.
Ⅲ Product application——Red special electronic tag ZJDX1806
Concrete management
Anti-counterfeiting management of pharmaceuticals and cosmetics
Anti-counterfeiting management of pharmaceuticals and cosmetics
Chip frequency: Low frequency (ID)
Ⅳ Technical parameters——Red special electronic tag ZJDX1806| Product code | ZJ-DX1806 |
| Chip type | TK4100/EM4305/I CODE SLI/Ntag 213/F08 .etc |
| Operating frequency (modulation mode) | 125KHz |
| Protocol standard | ISO18000-2/ISO11784/11785/ISO1443A/ISO15693 |
| Reading and writing times | More than 1,000,000 times |
| Size (customizable) | 19*6.5mm (with holes or without holes） |
| Material | ABS |
| Colour (customizable) | Black or red |
| Anti-static | Prevent electrostatic breakdown, and it can withstand a voltage of more than 5000 volts. |
| Operating temperature | -20℃ - 75℃ |
| Storage temperature | -40℃ - 90℃ |
| Useful life | More than ten years |
| Weight | 0.5 gram |

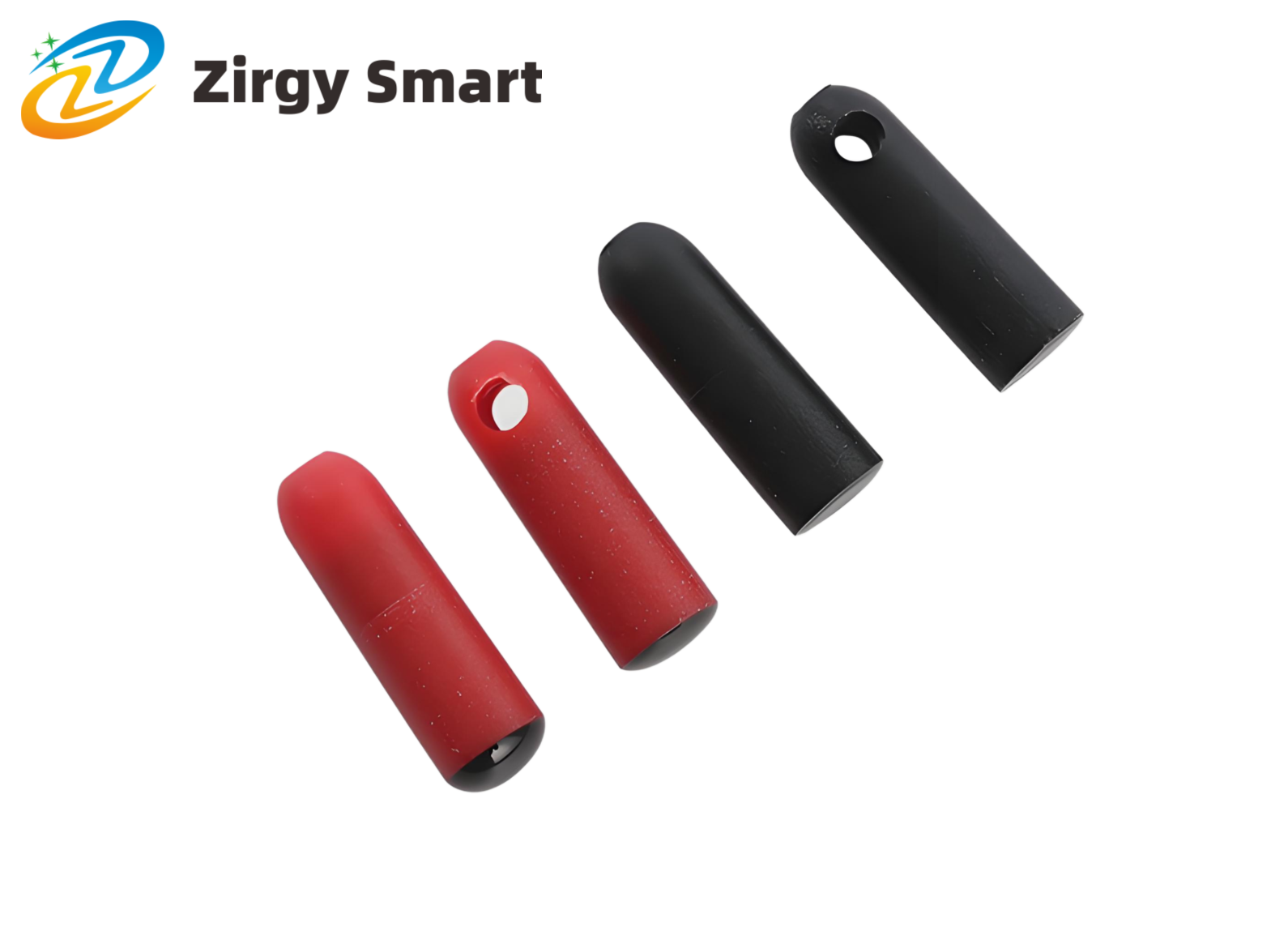

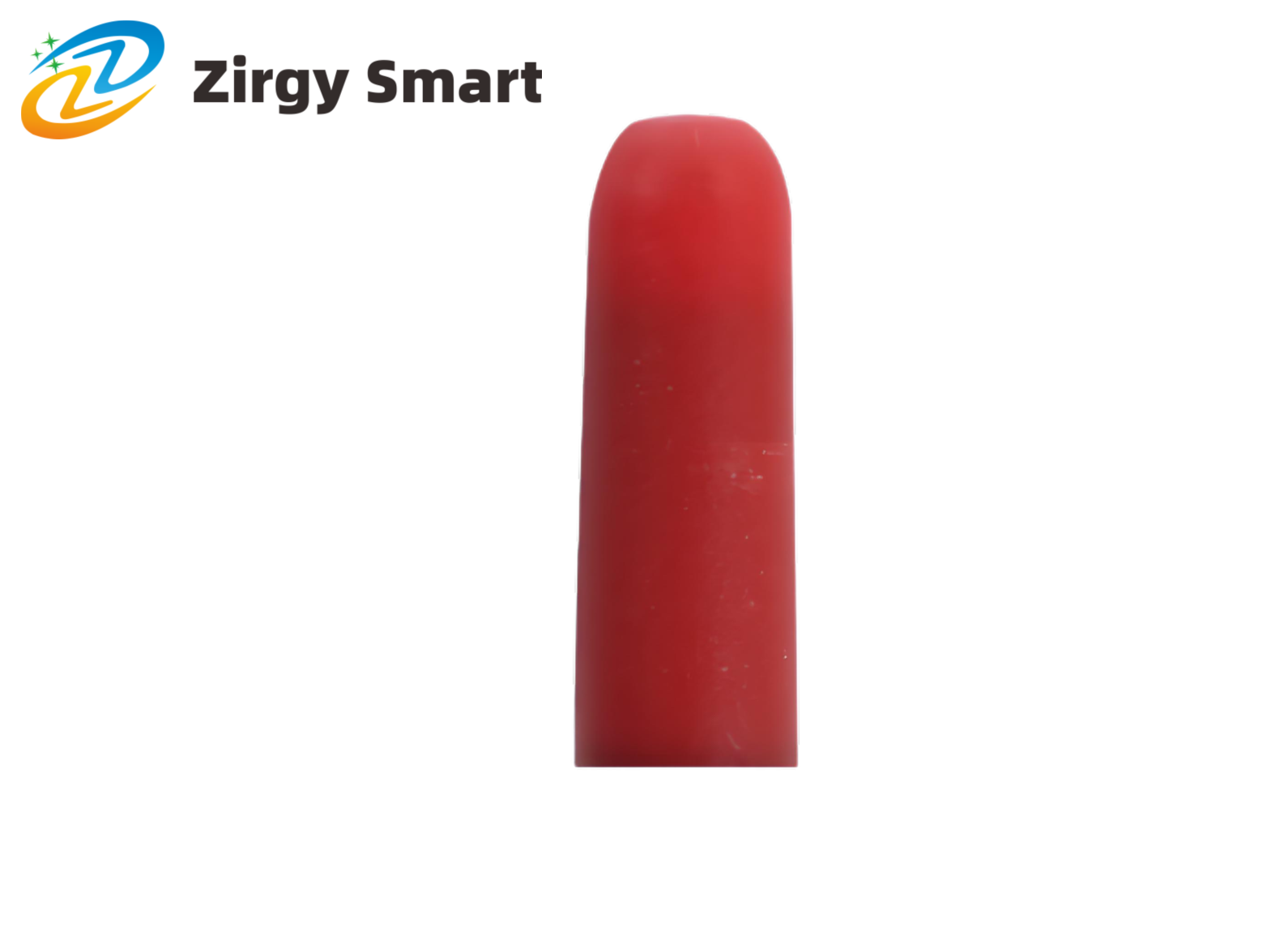

Ⅴ Product display——Red special electronic tag ZJDX1806
