Ⅰ Main features - ceramic smart label
● Good vehicle or personnel gating management performance
● Suitable for vehicle door control management
● Suitable for sticking on the windshield inside the car
● Up to 128-BIT EPC memory
● Up to 512-BIT operable user memory
● 64-BIT Global Specific Coding (TID)
● Contains 32-BIT serial numbers
Ⅱ Technical parameters -- ceramic smart label
Name: Ceramic smart label 0604
Antenna size: 88*36mm
Label size: 92*40mm
Communication protocol: Epc Glass 1 Gen2 18000-6C
EPC memory: up to 128 BIT
User Memory: Maximum 512 bits
Operating frequency: 860-960MHz
Data retention: ≥10 years
Antenna material: PET AL
Outer material: ceramic
Operating temperature: -10℃-120℃
Ⅲ Product display -- Ceramic smart label
1.Sectional display

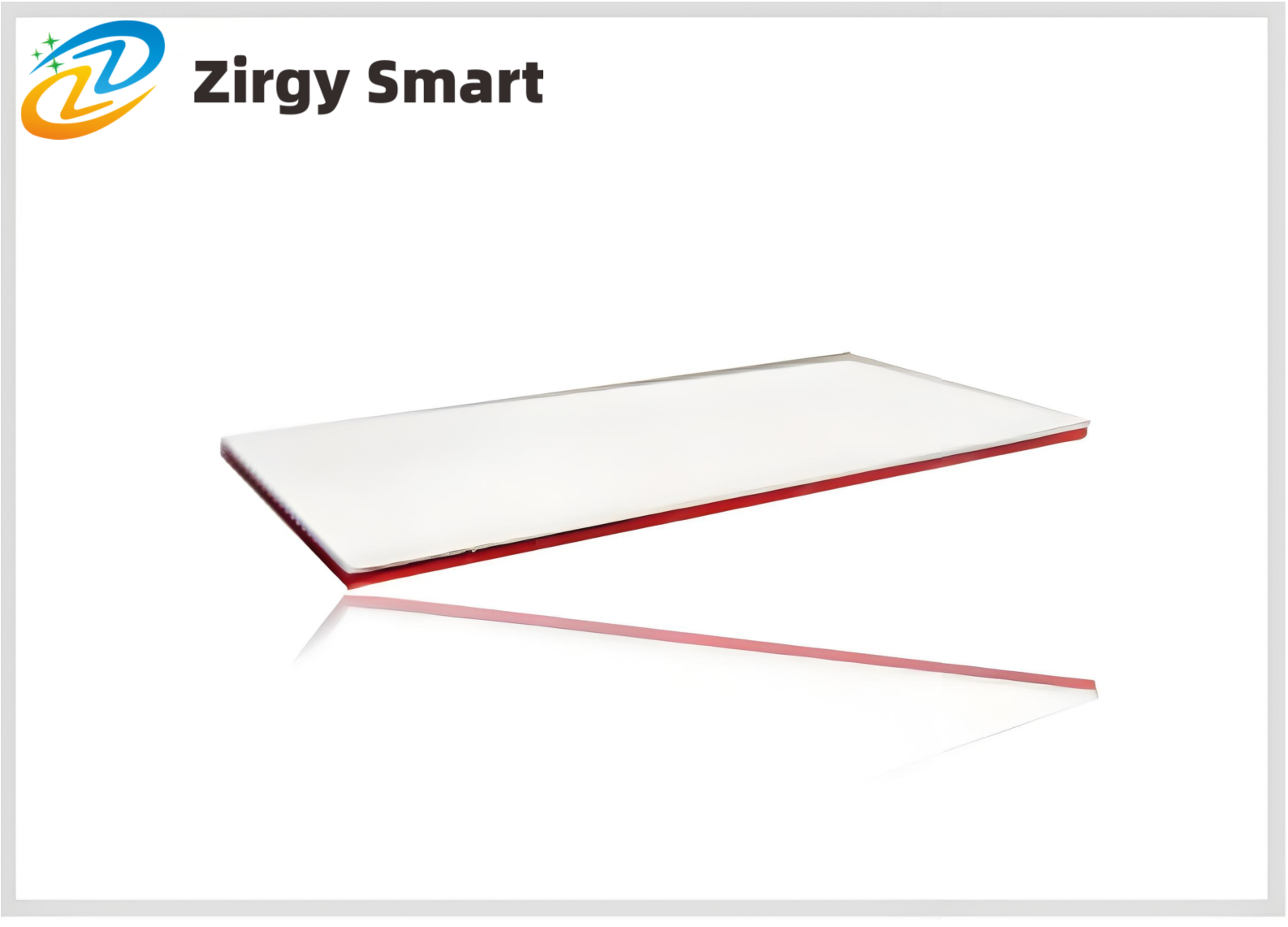

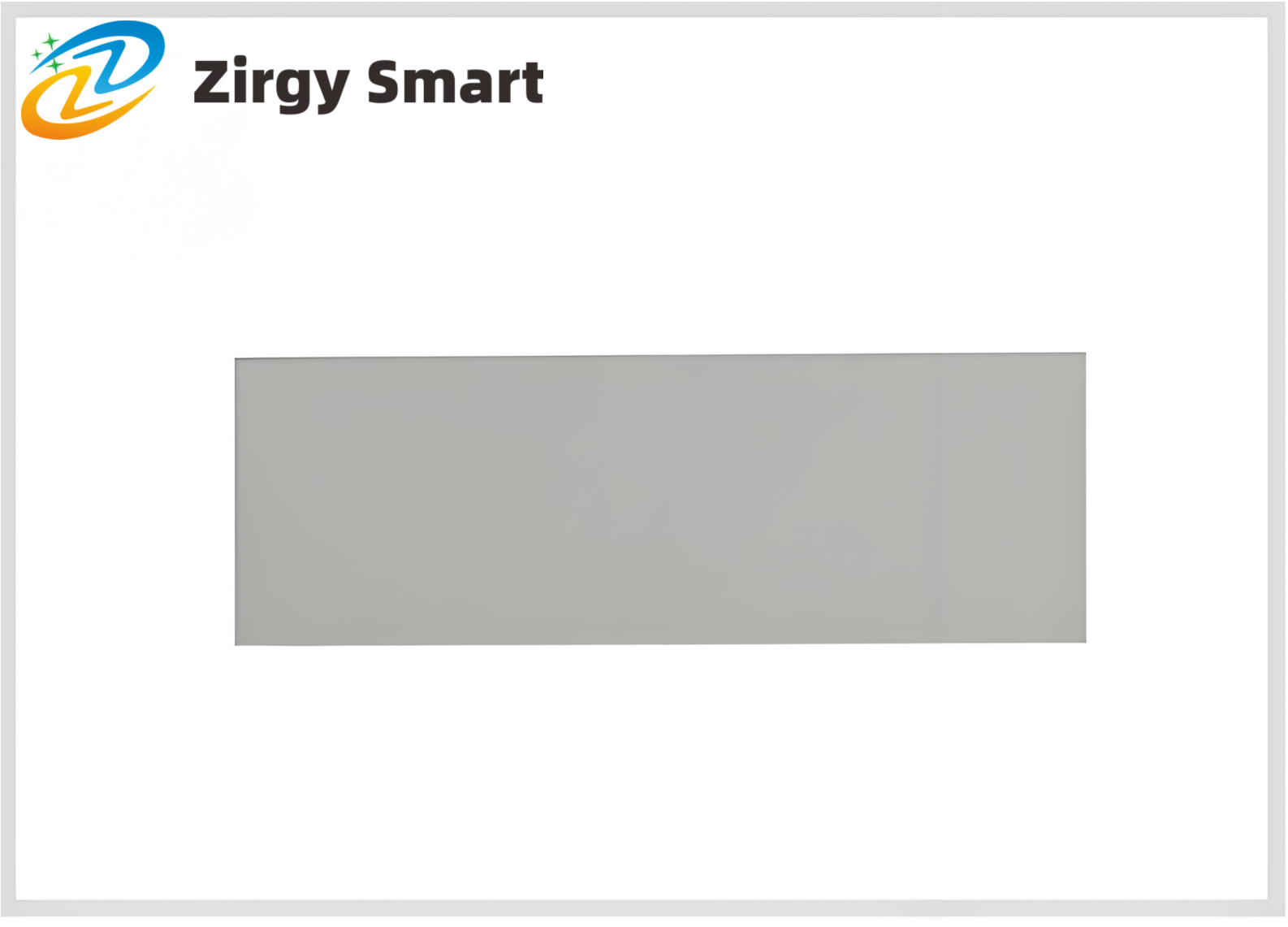

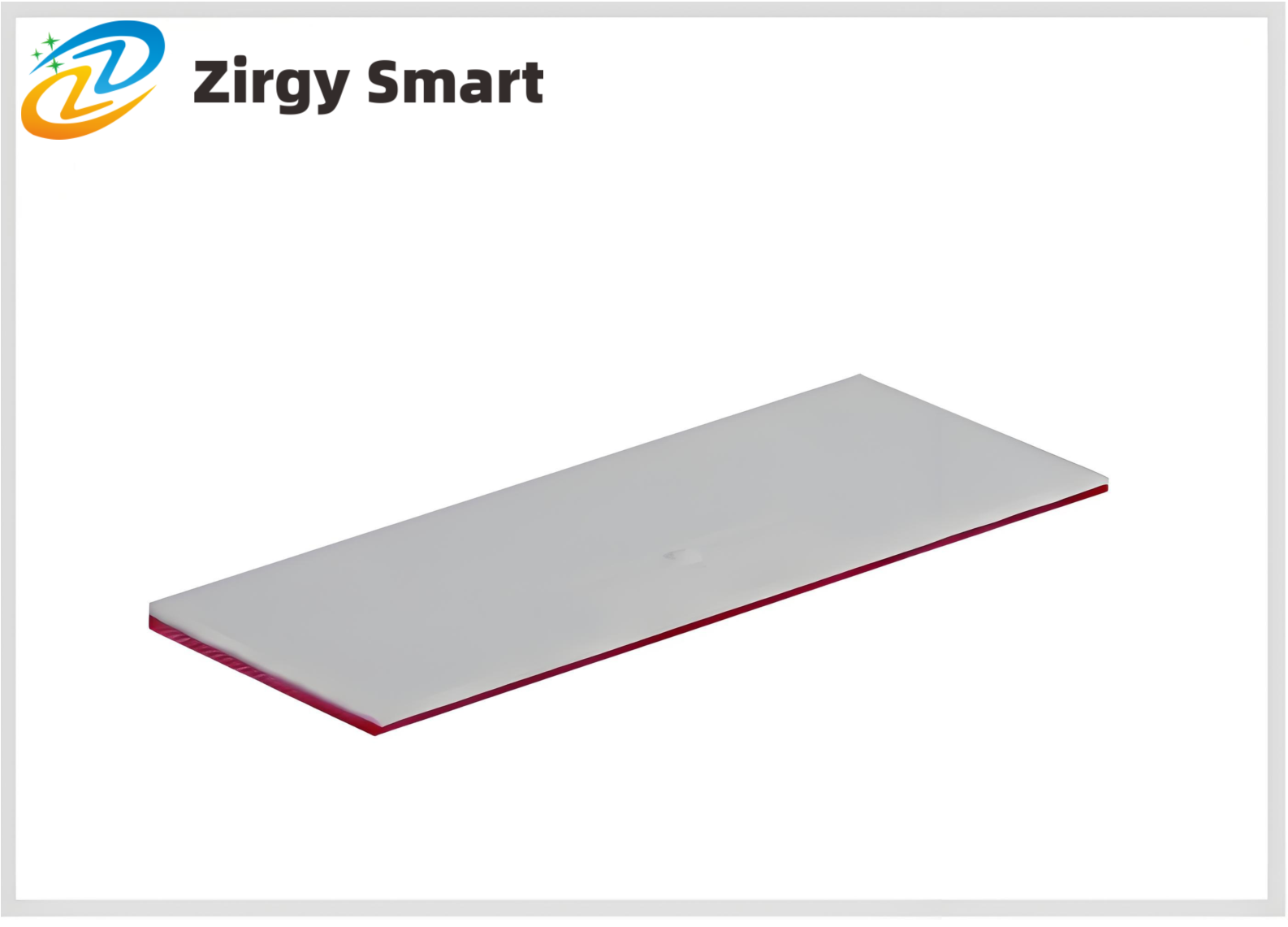

2.Real-shot display
