Ⅰ Product parameters -- ultra-high frequency ultra-long distance electronic smart label (customizable)
Name: ultra long distance ultra high frequency electronic smart label
| Protocol | EPC Class1 Gen2,ISO18000-6C |
| Operating frequency | 902-928kHz |
| Chip | R6, R6P, U7, U8, H3, H4, M4 and other types of UHF chips |
| Memory | EPC area: 96~496 bits, TID area 48~96 bits, password area: 0~64 bits, user area 0~3072 bits |
| Tag dimensions | 120*29*12.5mm, steel wire length 300mm Steel wire diameter 1.8mm (length can be customized according to customer requirements), sealing length can be adjusted. |
| Tension | F≥3000N |
| Reading distance by handheld device | About 8M (read/write distance is related to the reader) |
| Operating temperature | (-40~100)℃ |
| Colour | Red, white, black, yellow, blue (other colors can be customized) |
| Weight per strip | 17g |
| Package | 50 pieces/bag, 1000 pieces/box |
Ⅱ Product use method and field -- ultra-high frequency ultra-long distance electronic smart label (customizable)
● How to use: The metal lock body adopts steel ball cable structure, the seal can be directly perforated one pull, the seal is a one-time seal, after pulling will leave traces, each has an independent flow number, security protection, firm, easy to lock, after use can not be used again.
● Application fields: logistics, warehousing, valuables, dangerous goods management, network wiring, finance, department stores, electricity, petrochemical, shipping, horticulture and other industries for anti-counterfeiting and security purposes.
● Surface treatment: The surface can be laser engraving or silk screen printing on the unit, date, serial number, bar code and other personalized content according to different customer needs.
Ⅲ Product Photo -- Ultra-high frequency ultra-long distance electronic smart label (customizable)

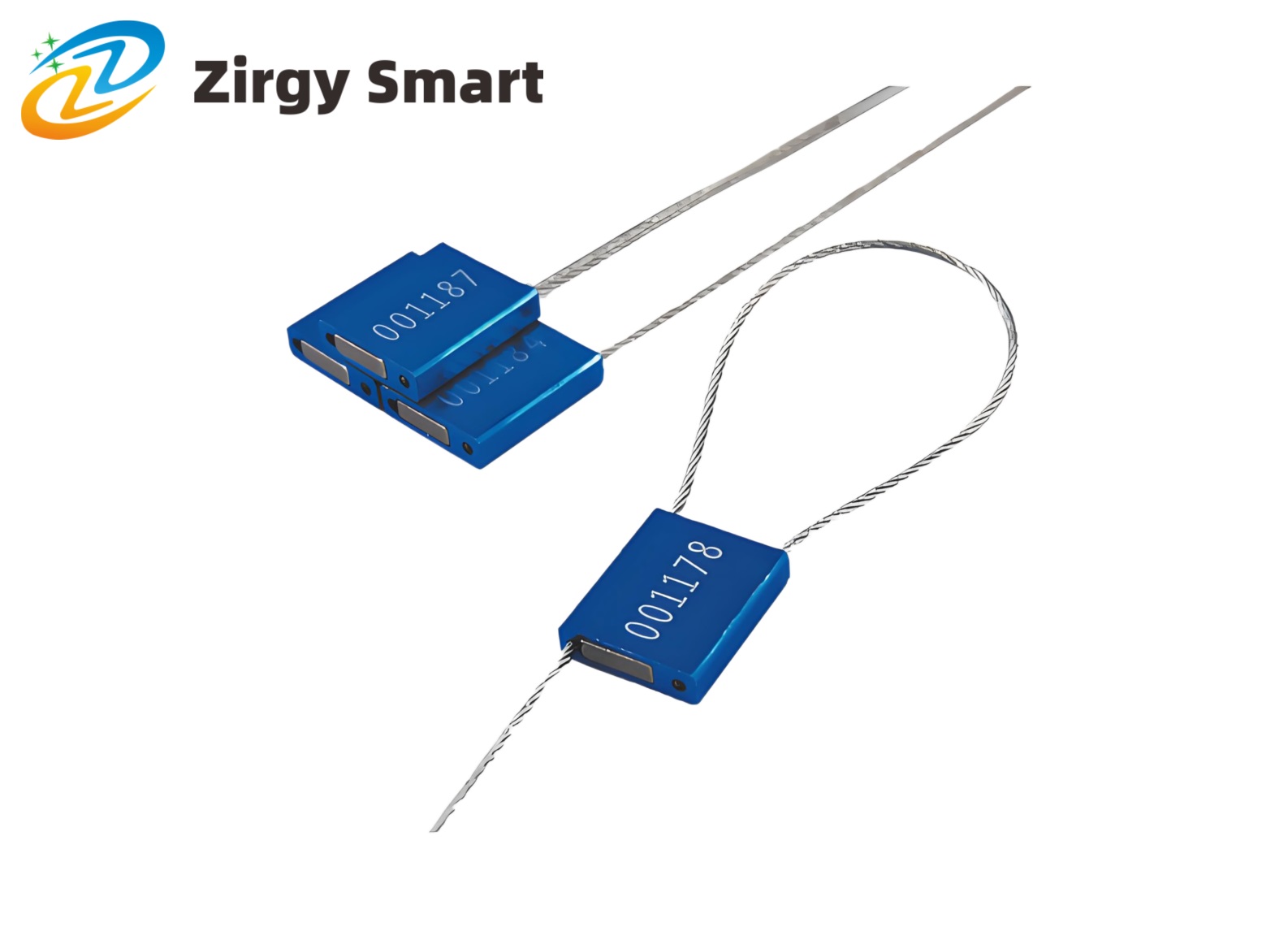

Real-shot display
Application display
