Ⅰ Physical characteristics - ucode8 UHF self-adhesive label

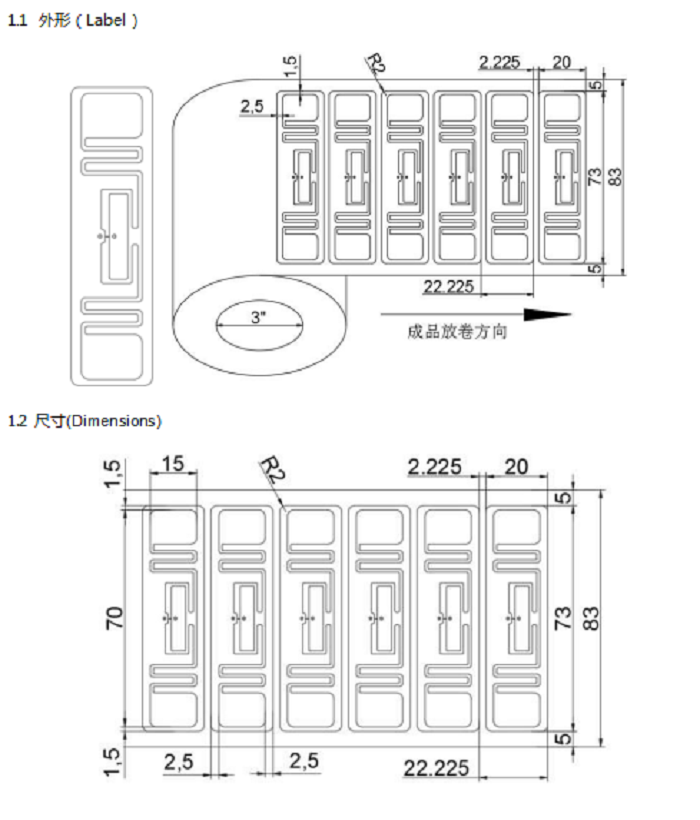

1.3 Dimensions Deviation
| Serial number | Item | mm Parametersmm |
| 1 | Inlay Length | 15±0.20 |
| 2 | Inlay Width | 70±0.20 |
| 3 | Inlay right to label right | 2.5±1.0 |
| 4 | Inlay left to label left | 2.5±1.0 |
| 5 | Label Length | 20±0.20 |
| 6 | Label Width | 73±0.20 |
| 7 | Label Corner Radius | R=2±0.50 |
| 8 | Label Edge to Liner Edge (Top) | 5±1.0 |
| 9 | Label Edge to Liner Edge (Bottom) | 5±1.0 |
| 10 | Label Pitch | 22.225±0.5 |
| 11 | Label Gap | 2.225±0.5 |
| 12 | Liner Width | 83±1.00 |
| 13 | Core ID | 3inch(76.20±0.50) |
| 14 | Roll OD | ≦188 |
| 15 | Inlay Top to Label Top | 1.5±1.0 |
| 16 | Inlay Edge to Label Edge (Bottom) | 1.5±1.0 |
| 17 | Antenna Length | 15±0.20 |
| 18 | Antenna Width | 70±0.20 |
1.4 Structure
Ⅱ Electrical characteristics - ucode8 UHF self-adhesive label
Name: high-frequency ucode8-73*20mm ZJ7320 self-adhesive label
Optional chip: NXP/UCODE 8
Substrate material: PET (50μm)
Antenna process: Aluminum etching AI (9μm)
Antenna size: 70*15mm
Label size: 73*20mm
Communication protocol: IS018000-6C/EPC Class1 Gen2
Applicable carrier frequency: 860-960MHz
Storage capacity: EPC 128Bits can read and write; TID 48Bits scale can not be written; Unique TID 48 Bits;
Password area Kill/Access-64Bits Read and write; User area None
Working mode: Passive
Read and write times: 100,000 times
Data retention: 10 years
Anti-static performance of chip: 2000V (human body model)
Optional chip: NXP/UCODE 8
Substrate material: PET (50μm)
Antenna process: Aluminum etching AI (9μm)
Antenna size: 70*15mm
Label size: 73*20mm
Communication protocol: IS018000-6C/EPC Class1 Gen2
Applicable carrier frequency: 860-960MHz
Storage capacity: EPC 128Bits can read and write; TID 48Bits scale can not be written; Unique TID 48 Bits;
Password area Kill/Access-64Bits Read and write; User area None
Working mode: Passive
Read and write times: 100,000 times
Data retention: 10 years
Anti-static performance of chip: 2000V (human body model)

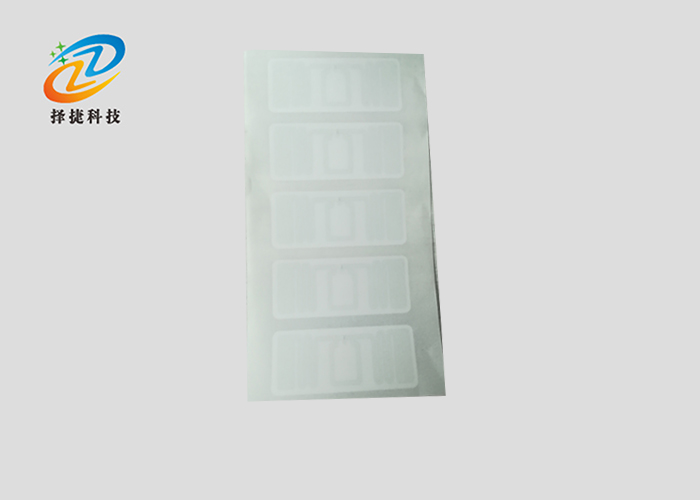

Ⅲ Product display -- ucode8 UHF self-adhesive label
Ⅳ Environment requirements - ucode8 UHF self-adhesive label
(Temperature/Humidity for Label Attach): [10℃ to 40℃] 20% to 80%RH
(Temperature/Humidity after Label Attached to the Products):
[-20℃ to +50℃] 20% to 80%RH
(Environmental requirements of adhesive may vary on different materials).
(Shelf Life):
From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), sealed in the vacuum bag and avoid direct sunlight exposure.
Disclaimer: Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
Ⅴ Operational warning - ucode8 UHF self-adhesive label
4.1 Keep away from water and collision. DO NOT BEND.
4.2 Special requirement：Nil
Ⅵ Packaging -- ucode8 UHF self-adhesive label
| 1 | Shipping format | 1. Roll 2. vacuumed packing in ESD bag |
| 2 | Quantity | 1000±2Pcs/roll |
| 3 | Packaging method | 8 rolls/ctn(Actual Qty as per Shipping Mark) |
| 4 | Packaging pictures |  |
| 5 | Special requirement | The box was sealed without a gap. |
