● Customized based on EPCgen2 (V1.2.0) and ISO/IEC18000-6C protocol
● Operating frequency: 840MHz-960MHz
● Minimum reading sensitivity: -22.5dBm
● Minimum write sensitivity: -16dBm
● Memory adopts XLPM memory, data storage time is not less than 100 years, tamper-proof, physical can not be erased
● Storage space
ØEPC area capacity is 128bits
Ø TID area length is 96bits (non-rewritable), expandable to 192bits (factory setting required)
The available capacity of users in the ØUser area is 0bit
Ø RFU area 32bits access and 32bits off command
● The basic unit of storage is word (16bits), and the memory area of the chip is managed according to the block, which can be locked and password protected respectively
● All mandatory and optional commands are supported
● Low power read and write operations
● Excellent working distance, with the appropriate antenna can reach 30 meters

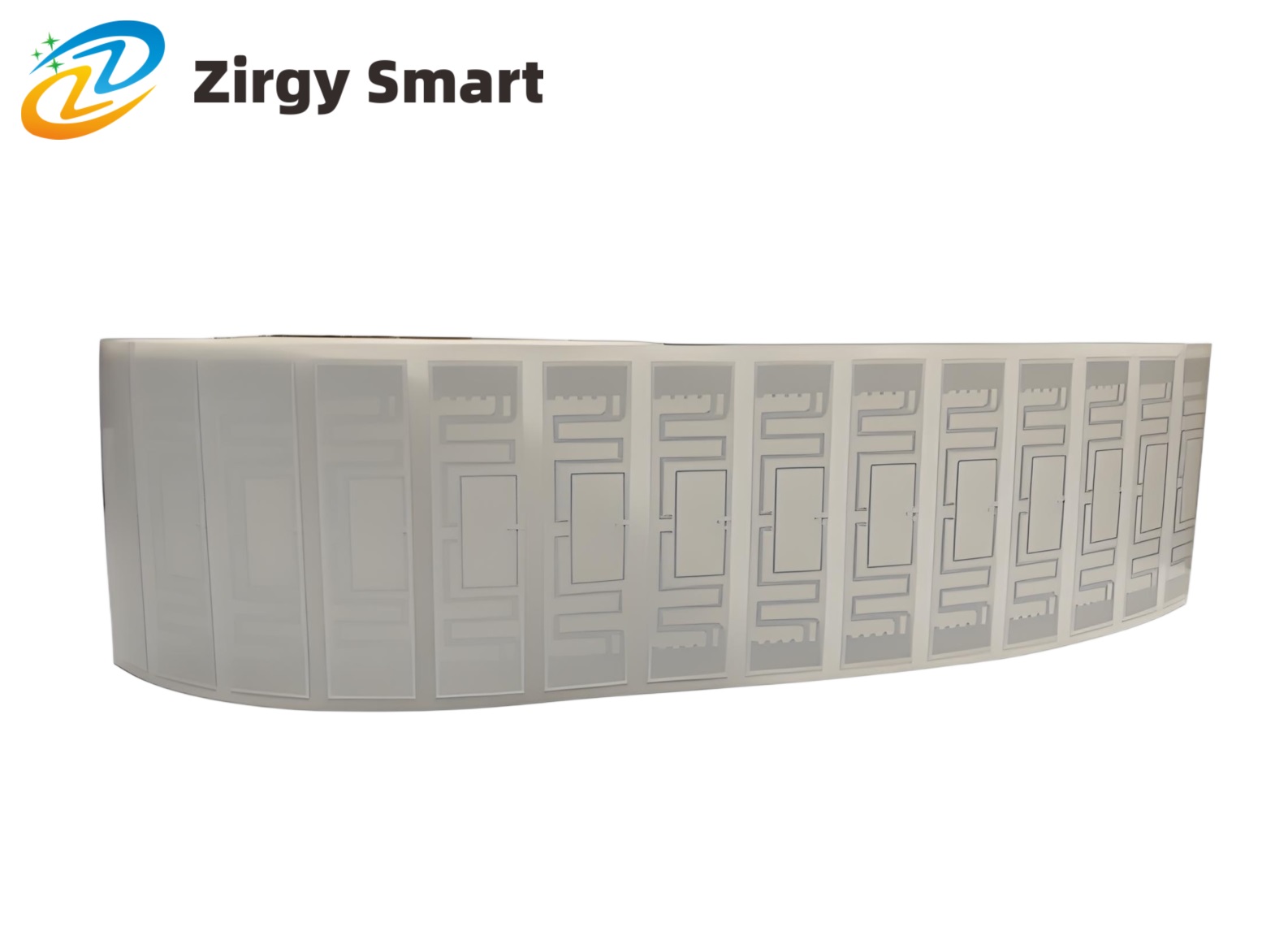

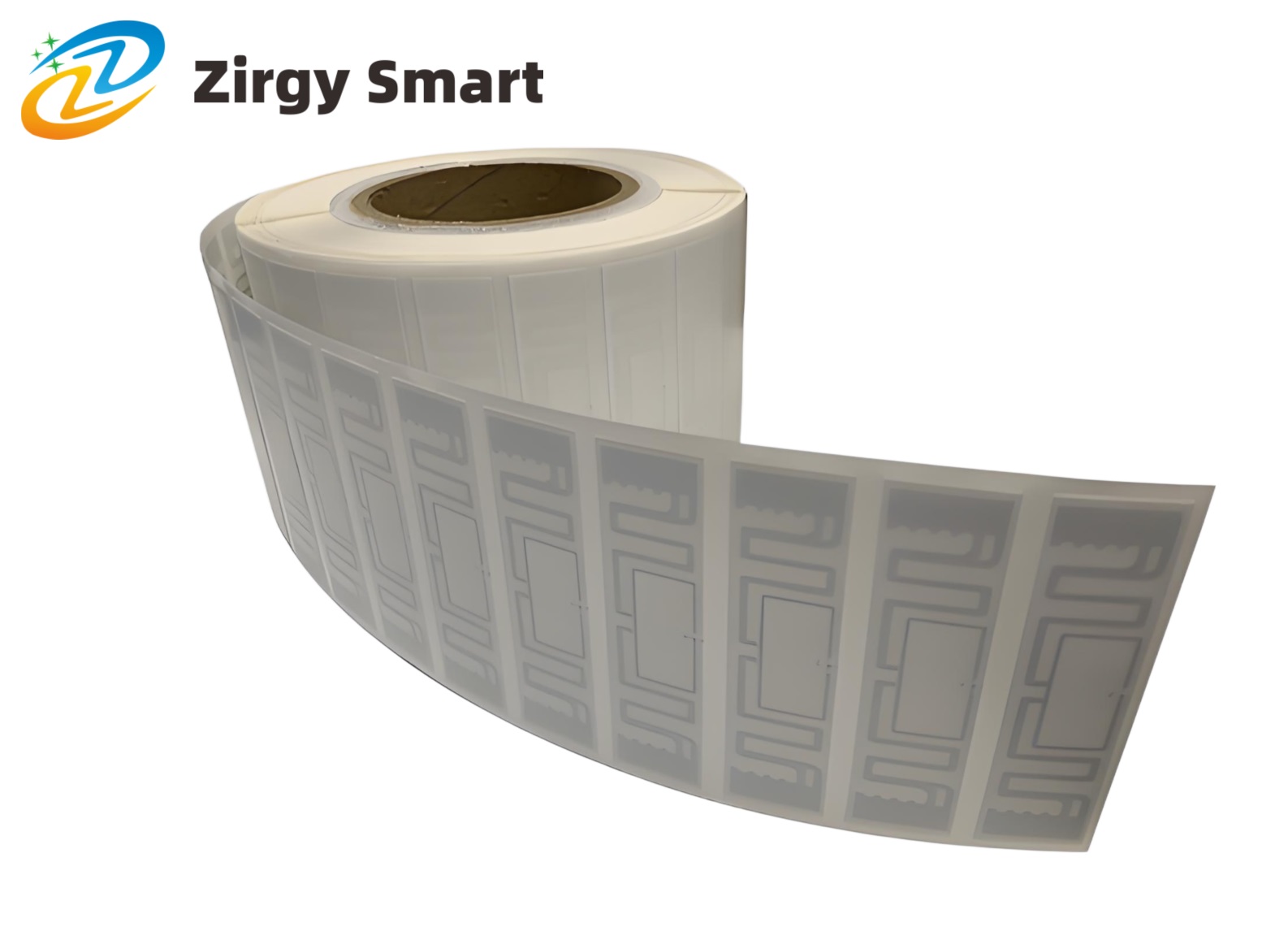

ⅢProduct display -- blank coated paper UHF label ZJ7319

Real-shot display
