Ⅰ Environmental requirements - UHF jewelry tags
tag temperature/humidity: [10℃ to 40℃] 20% to 80%RH
Temperature/humidity after taging: [-20℃ to 50℃] 20% to 80%RH(depending on the material to be pasted).
Shelf life of the finished product: under the condition of temperature 23±5℃ relative humidity 50±10%, sealed packaging with anti-static bag can be stored for one year.
Statement: The above environmental requirements are based on our new knowledge and existing experience, the company reserves the right to final interpretation of the product.
Ⅱ Operational use alert - UHF jewelry tag
● Waterproof when handling and use, do not impact violently, do not squeeze or bend the chip part.
● Special requirements t: Product special glue.
Ⅲ Size error - UHF jewelry tag
| Serial numbers | Items | Characteristic parameters |
| 1 | Transponder length | 11±0.20 |
| 2 | Transponder width | 42±0.20 |
| 3 | Distance from the right of the transponder to the right of the tag | 1±1.0 |
| 4 | Distance from the left of the transponder to the left of the tag | 14±1.0 |
| 5 | Tag length | 26±0.20 |
| 6 | Tag width | 68±0.20 |
| 7 | Tag fillet radius | R=0.5±0.50 |
| 8 | Distance from top of tag to top of release paper | 4.5±1.0 |
| 9 | Distance from bottom of tag to bottom of release paper | 4.5±1.0 |
| 10 | Tag pitch | 40.005±0.5 |
| 11 | Distance between adjacent labels | 4.005±0.5 |
| 12 | Release paper width | 80±1.00 |
| 13 | Paper core tube inner diameter | 3inch（76.20±0.50） |
| 14 | Finished outer warp | ≦201 |
| 15 | Distance from transponder top to tag top | 1±1.0 |
| 16 | Distance from below transponder to below tag | 25±1.0 |
| 17 | Antenna lengthy | 11±0.20 |
| 18 | Antenna width | 42±0.20 |
Ⅳ Product display - UHF jewelry label

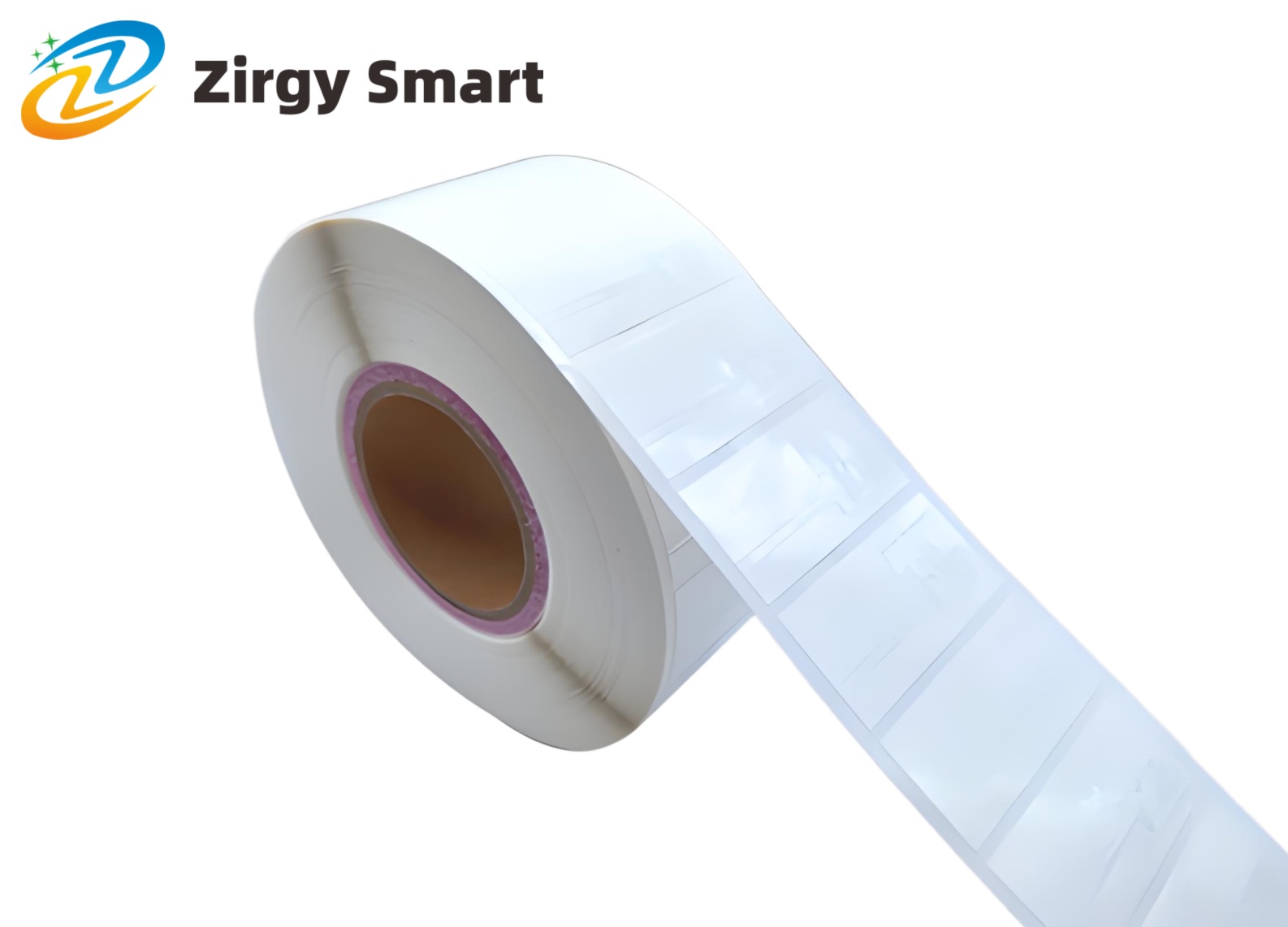

Uhf jewelry label real shot display
Ⅴ Production process - UHF jewelry label
