Ⅰ Physical features ---- Round 27mm dry lnlay label

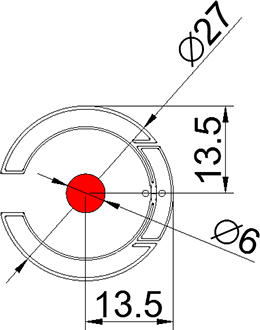

Name: Round 27mm dry Inlay label ZJ27

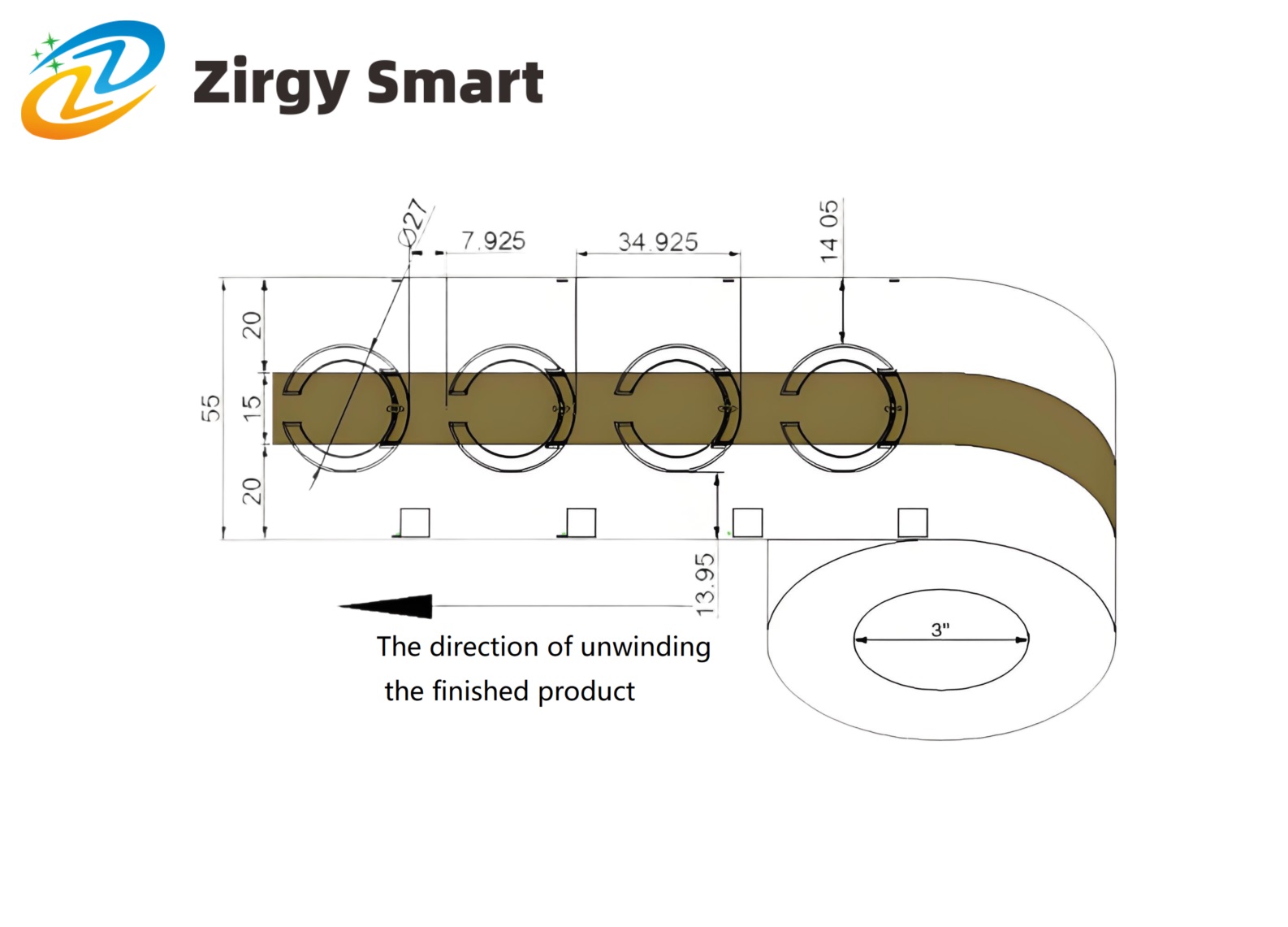

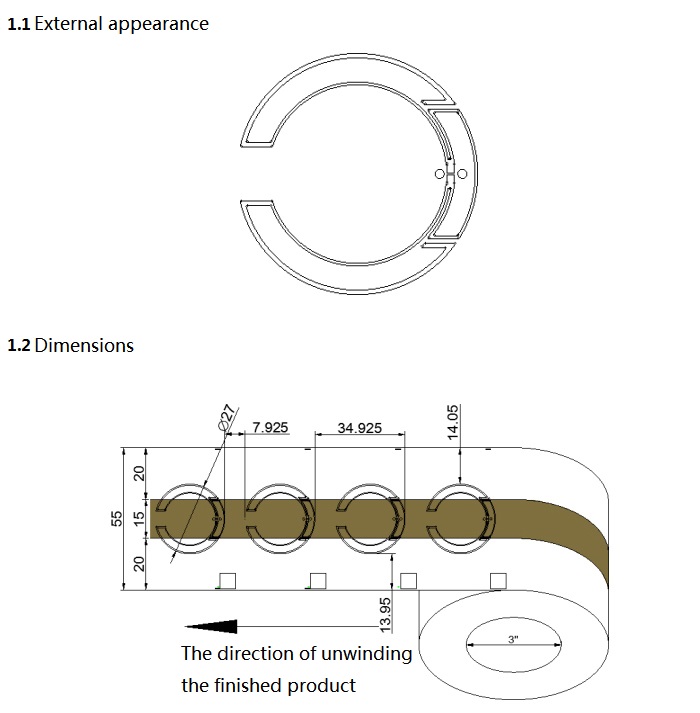

1.3 Dimensional error
1.3 Dimensional error
|
Serial numbers
|
Items
|
Characteristic parameters
|
|
1
|
Paper core tube inner diameter
|
3（76.2±0.50）
|
|
2
|
Antenna length
|
Ø27±0.20
|
|
3
|
Antenna width
|
Ø27±0.20
|
|
4
|
Distance from antenna top edge to PET top edge
|
14.05±1
|
|
5
|
Distance from antenna bottom edge to PET bottom edge
|
13.95±1
|
|
6
|
Antenna pitch
|
34.925
|
|
7
|
Substrate width
|
55
|
Ⅱ Electrical features ---- round 27mm dry lnlay label
|
Items
|
Descriptions
|
Marks
|
|
| Manufacturer/Chip |
/
|
|
|
| Substrate material |
PET(50µm)
|
|
|
| Antenna manufacturing process | Aluminum engraving Al (9µm) |
|
|
| Compliant standard |
ISO/IEC 18000-6C EPC Class1 Gen2
|
|
|
| Chip memory area |
EPC
|
128 Bits
|
Readable and writable |
|
TID
|
48 Bits
|
Readable but not writable
|
|
|
Unique
TID |
48 Bits
|
Readable but not writable
|
|
| Password field |
Kill/Access-64Bits
|
Readable and writable
|
|
| User area |
None
|
|
|
|
Applicable carrier frequency
|
860～960MHz
|
|
|
| Reading distance |
|
|
|
|
Operating mode
|
Passive
|
|
|
|
Chip useful life
|
Write 100,000 times and keep the data for 10 years |
|
|
| Anti-static (ESD) performance of the chip |
2000V
|
Human Body Model (HBM) | |
Ⅲ Environment requirements ---- 27mm round dry lnlay label
Shelf life of the finished product: under the condition of temperature 23±5℃ relative humidity 50±10%, sealed packaging with anti-static bag can be stored for one year.
Statement: The above environmental requirements are based on our new knowledge and existing experience, the company reserves the right to final interpretation of the product.
Statement: The above environmental requirements are based on our new knowledge and existing experience, the company reserves the right to final interpretation of the product.
Ⅳ Use job warning ---- round 27mm dry lnlay label
1, marked with black ink spots for defective products, do not use. The location of the rejected label is shown in the following figure.
2. Waterproof during handling and use. Do not impact or squeeze or bend the chip.
ⅤPacking ---- round 27mm dry lnlay label
|
1
|
Shipment quantity
|
5000±300pcs/ roll, 8 rolls/box
|
|
2
|
Packing method
|
Volute; Vacuum packing.
|
| 3 | Package picture |  |
Ⅵ Product photo ---- round 27mm dry lnlay label
