Ⅰ Chip features——High frequency self-adhesive tag FM1108
●Complies with ISO/IEC 1443A
●Operating frequency is 13.56MHz
●Communication baud rate is 106kbit/s
●Contactless data and energy transmission (no power supply required)
●Operating distance is not less than 100m (related to the antenna size)
●Half-duplex communication mode
●The encryption algorithm complies with the M1 standard
●Typical processing time < 100ms
Ⅱ Technical parameters——High frequency slef-adhesive tag FM1108
Name: high frequency self-adhesive tag FM1108 diameter: 25mm

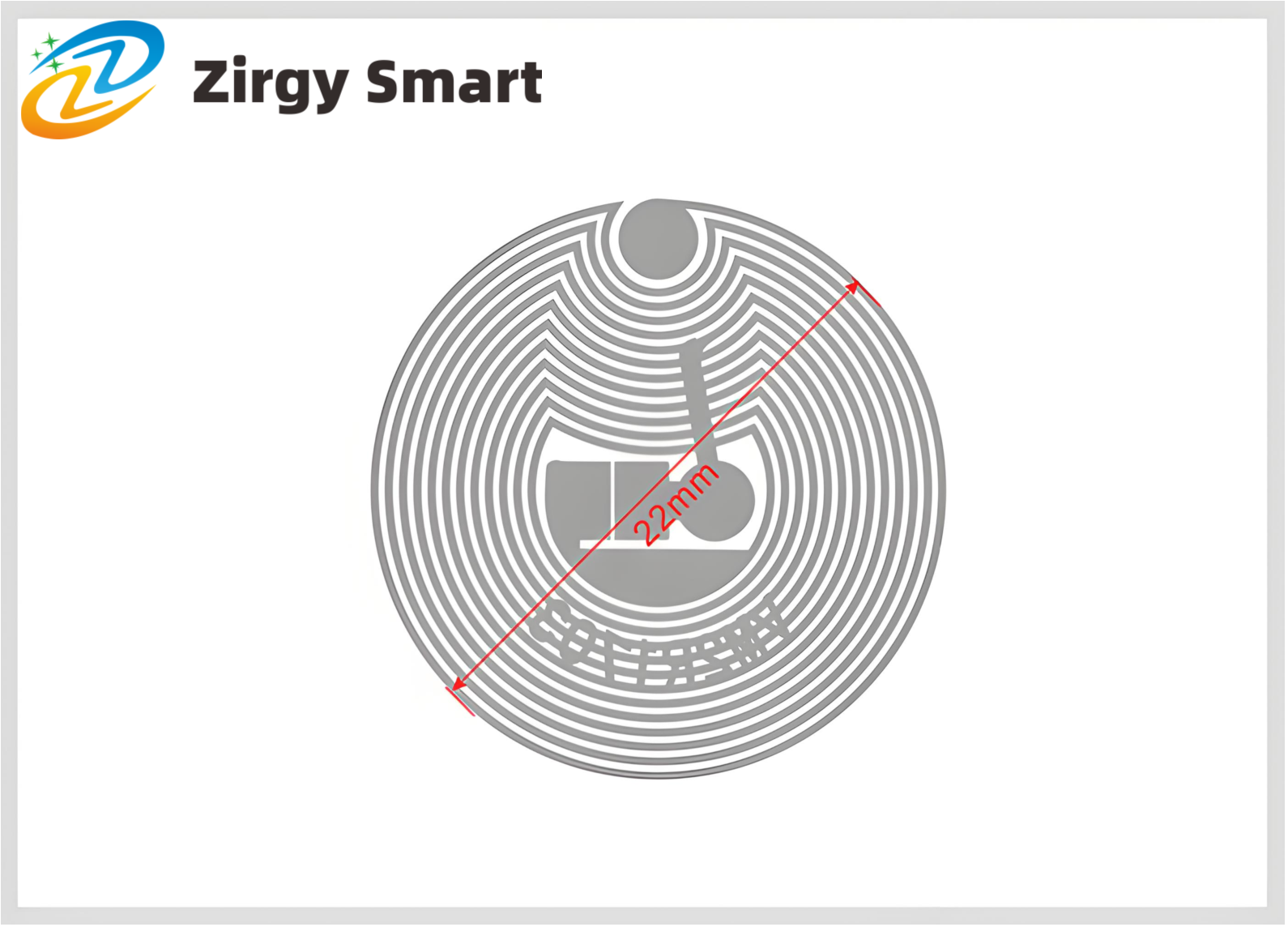

Antenna dimension: Φ22mm
Tag dimension: Φ25mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Times of reading and writing: More than 100,000 times
Data retention: More than ten years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display——High frequency self-adhesive tag FM1108
1.Sectional display

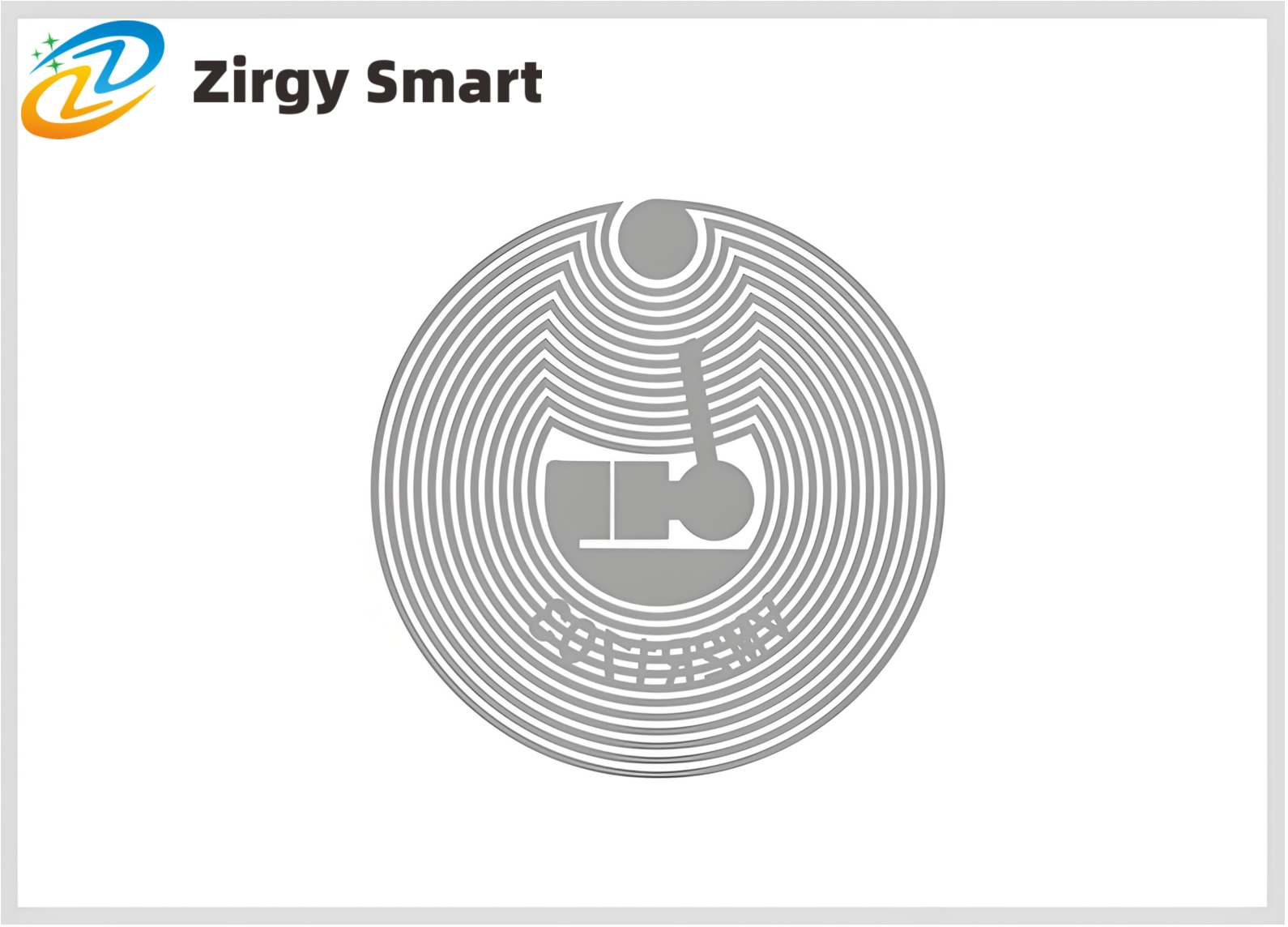

2.Real-shot display

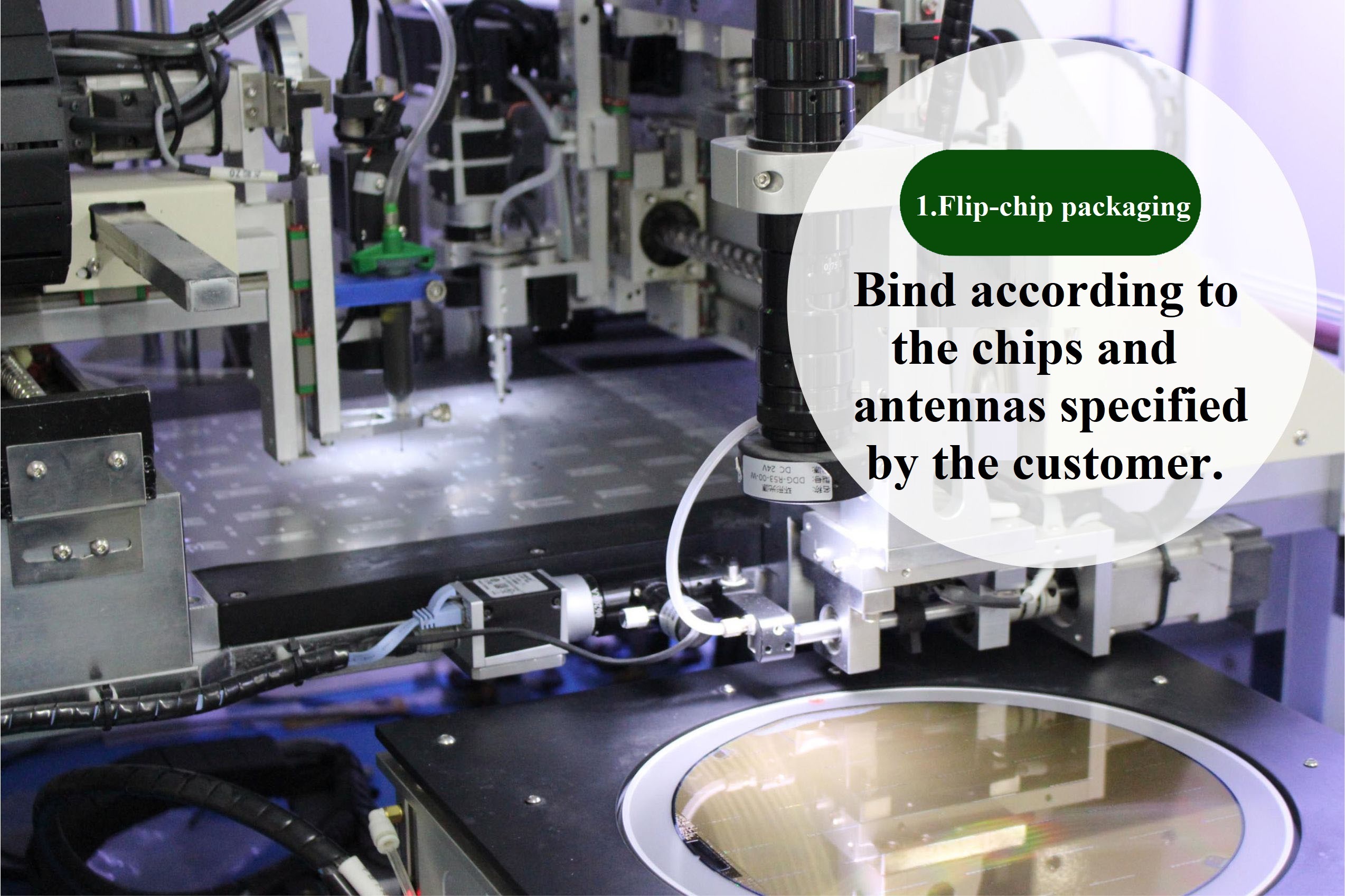

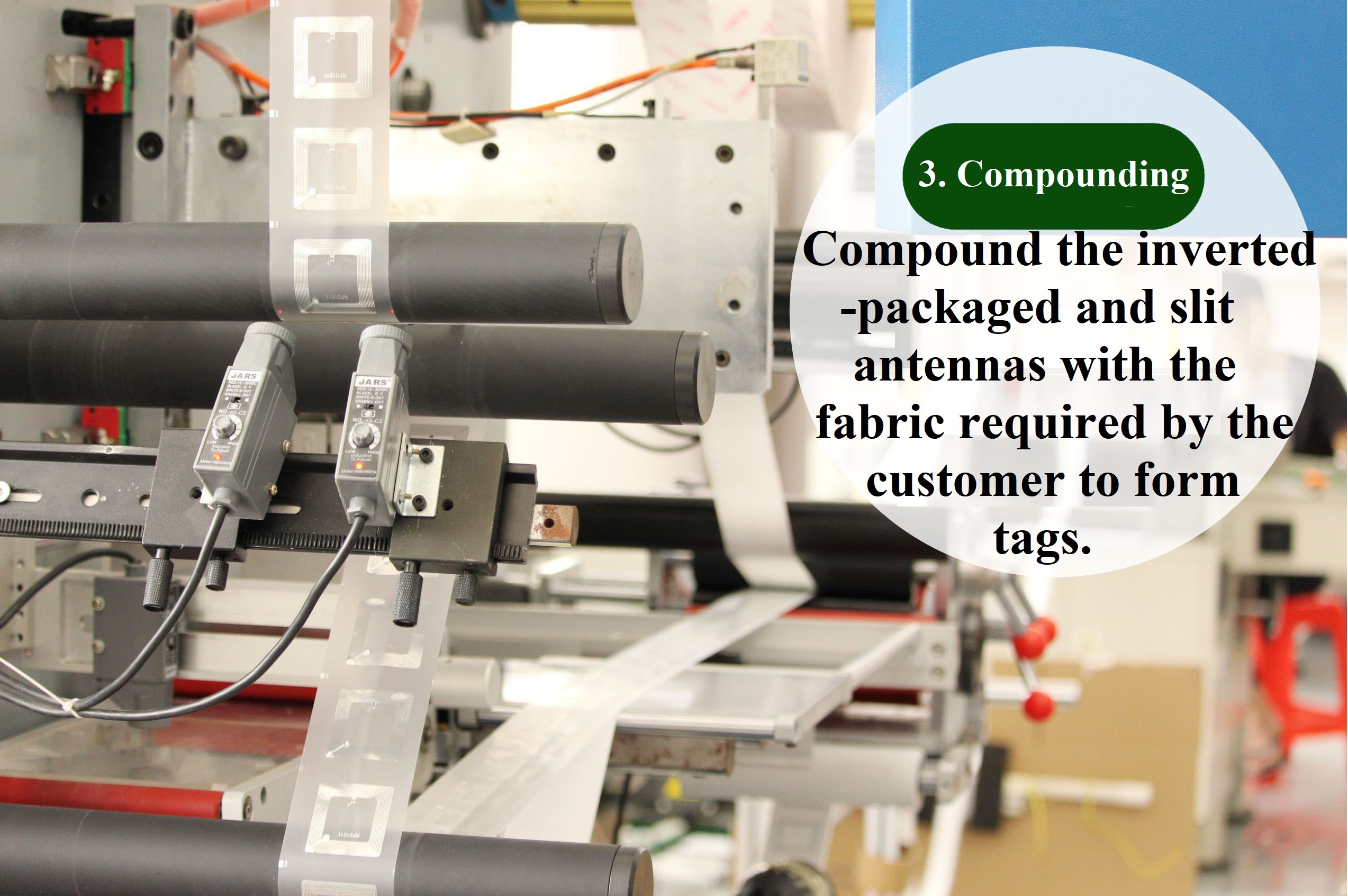

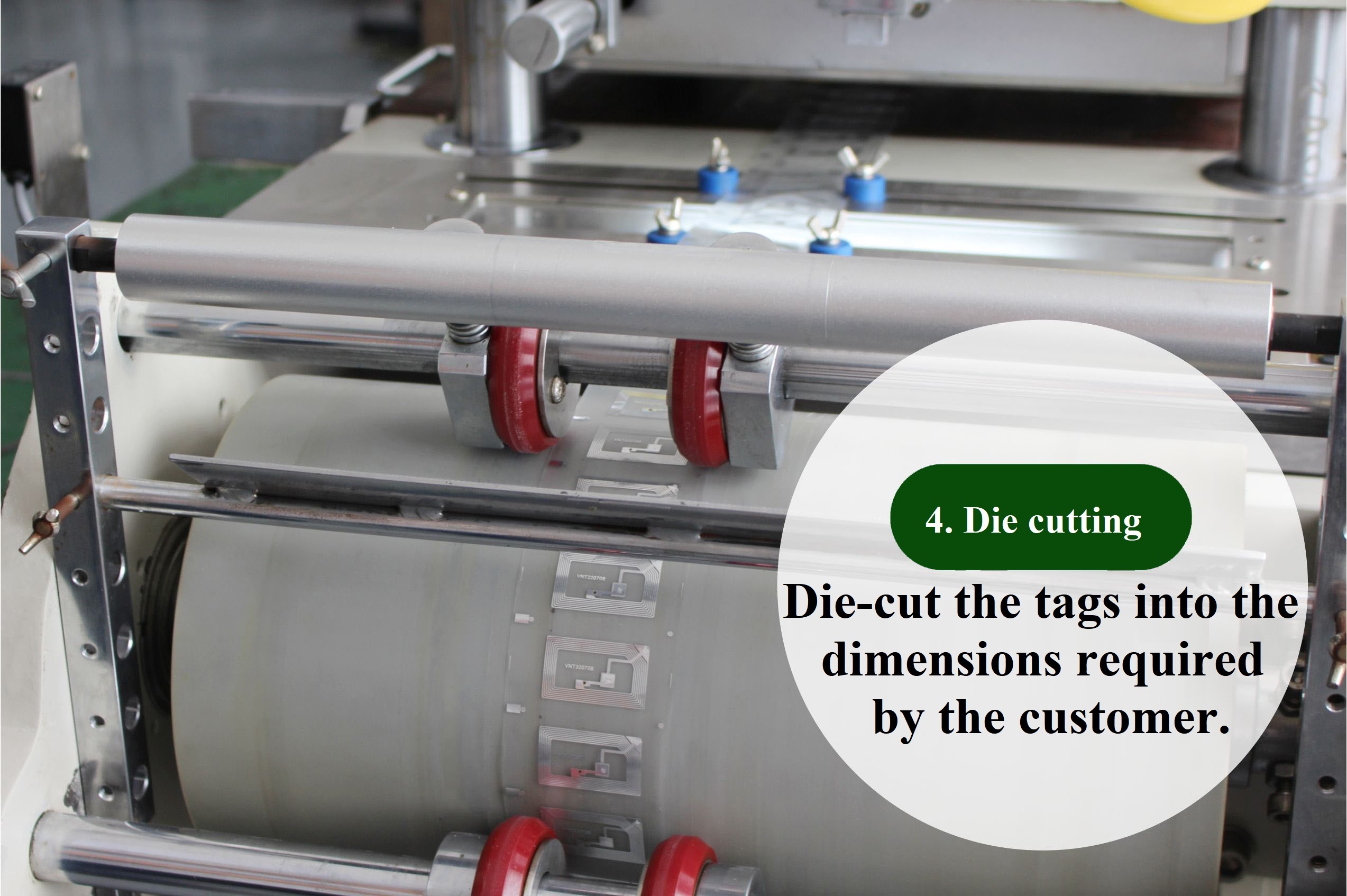

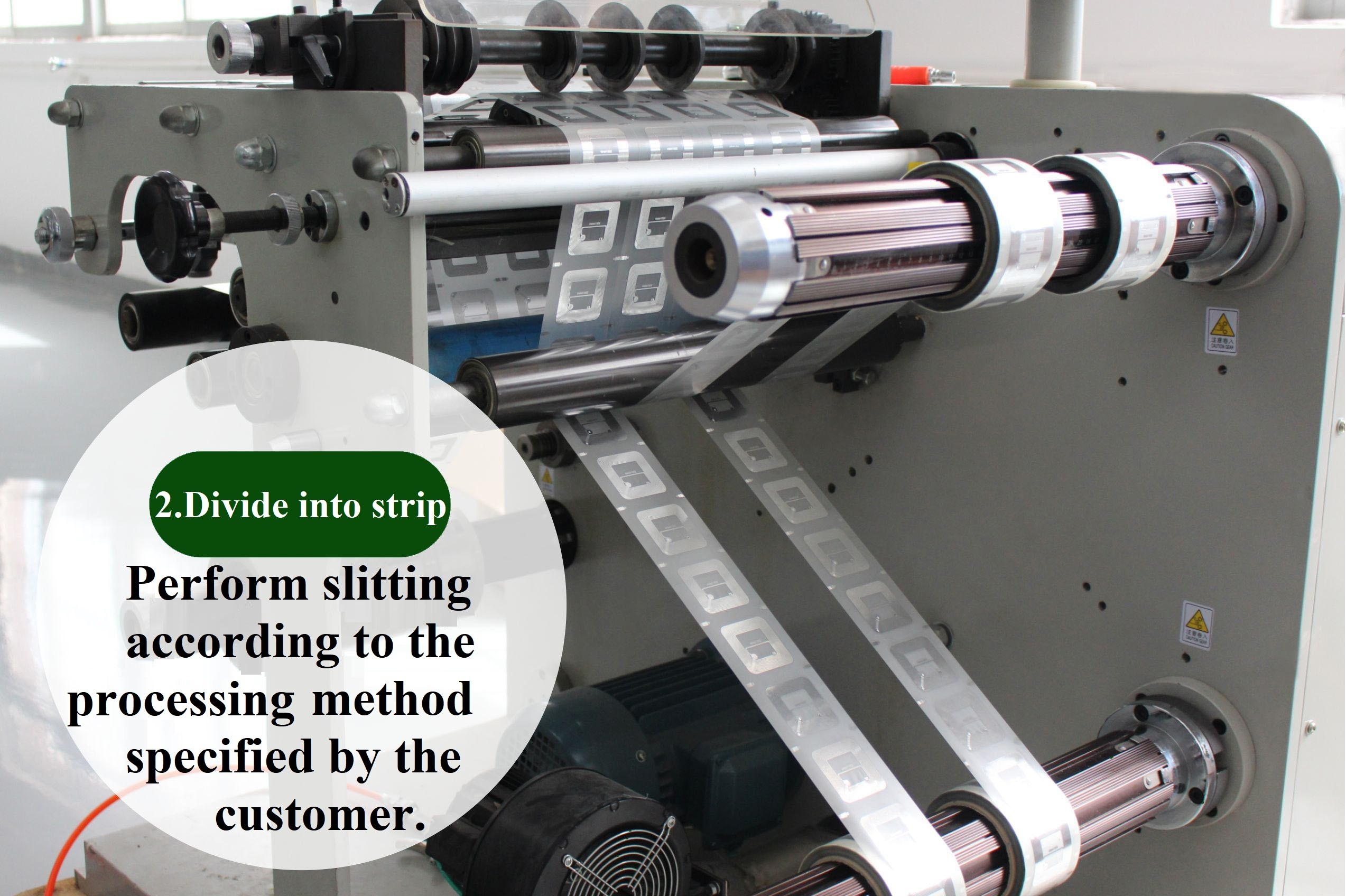

Ⅳ Production process——High frequency self-adhesive tag FM1108
