Ⅰ Product introduction——Black bullet electronic tag
Name: Black bullet electronic tag ZJ-DZ008PCB
The outer shell of this product is made by injection molding with refined molds and high-grade anti-corrosion and high-temperature resistant materials. The RFID radio frequency chip is encapsulated inside, and it is filled with high-temperature resistant epoxy resin. It can be installed on objects made of non-metallic media, such as walls, stones, wooden boards, plastics, glass, etc. It is widely used in logistics, patrol check, anti-counterfeiting, and other applications. It can also be widely applied to the application scenarios of miniature RFID products that require secondary encapsulation.
Ⅱ Product features——Black bullet electronic tag
- The product is waterproof, shockproof and corrosion-resistant.
- It is easy to install.
- It can be manufactured according to the appearance design provided by customers.
- A variety of chips can be encapsulated as required.
- Concrete management
Ⅲ Product application——Black bullet electronic tag
- Concrete management
- Anti-counterfeiting management of pharmaceuticals and cosmetics
- Chip frequency: Low frequency (ID)
Ⅳ Technical parameters——Black bullet electronic tag
|
Product model
|
ZJ-DZ008
|
|
Chip type
|
TK4100/EM4305/I CODE SLI/Ntag 213/F08, etc.
|
|
Operating frequency (modulation method)
|
125KHz
|
|
Protocol standard
|
ISO18000-2/ISO11784/11785/ISO1443A/ISO15693
|
|
Times of reading and writing
|
More than 1,000,000 times
|
|
Dimension (customizable)
|
19-6.5mm (with holes or without holes)
|
|
Material
|
ABS
|
|
Colour (customizable)
|
Black or red
|
|
Anti-static
|
Prevent electrostatic breakdown, with a withstand voltage of over 5000 volts.
|
|
Operating tempearture
|
-20℃ ~ +75℃
|
|
Storage temperature
|
-40℃ ~ +90℃
|
|
Useful life
|
More than ten years
|
|
Weight
|
0.5 gram
|
Ⅴ Product display——Black bullet electronic tag

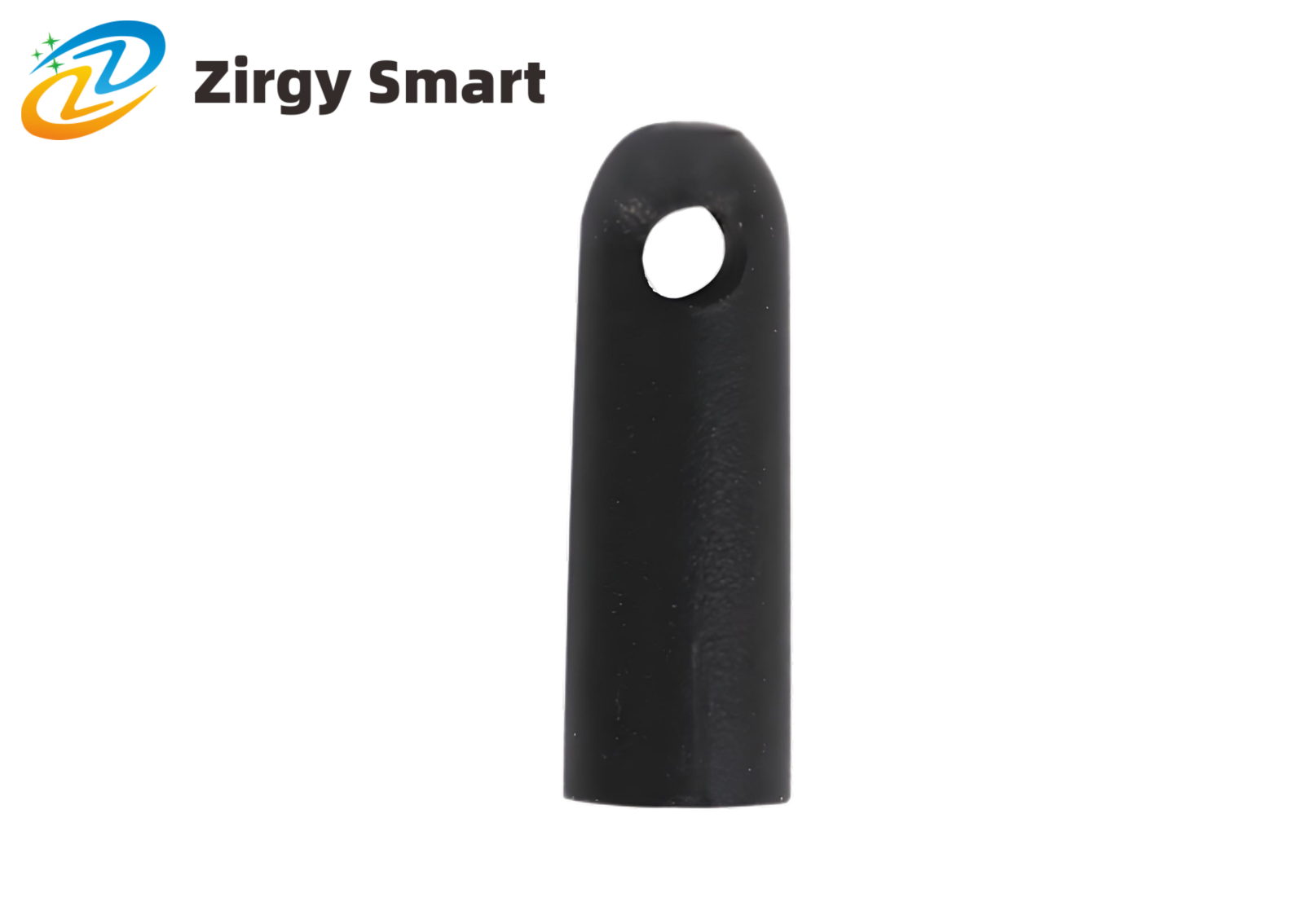

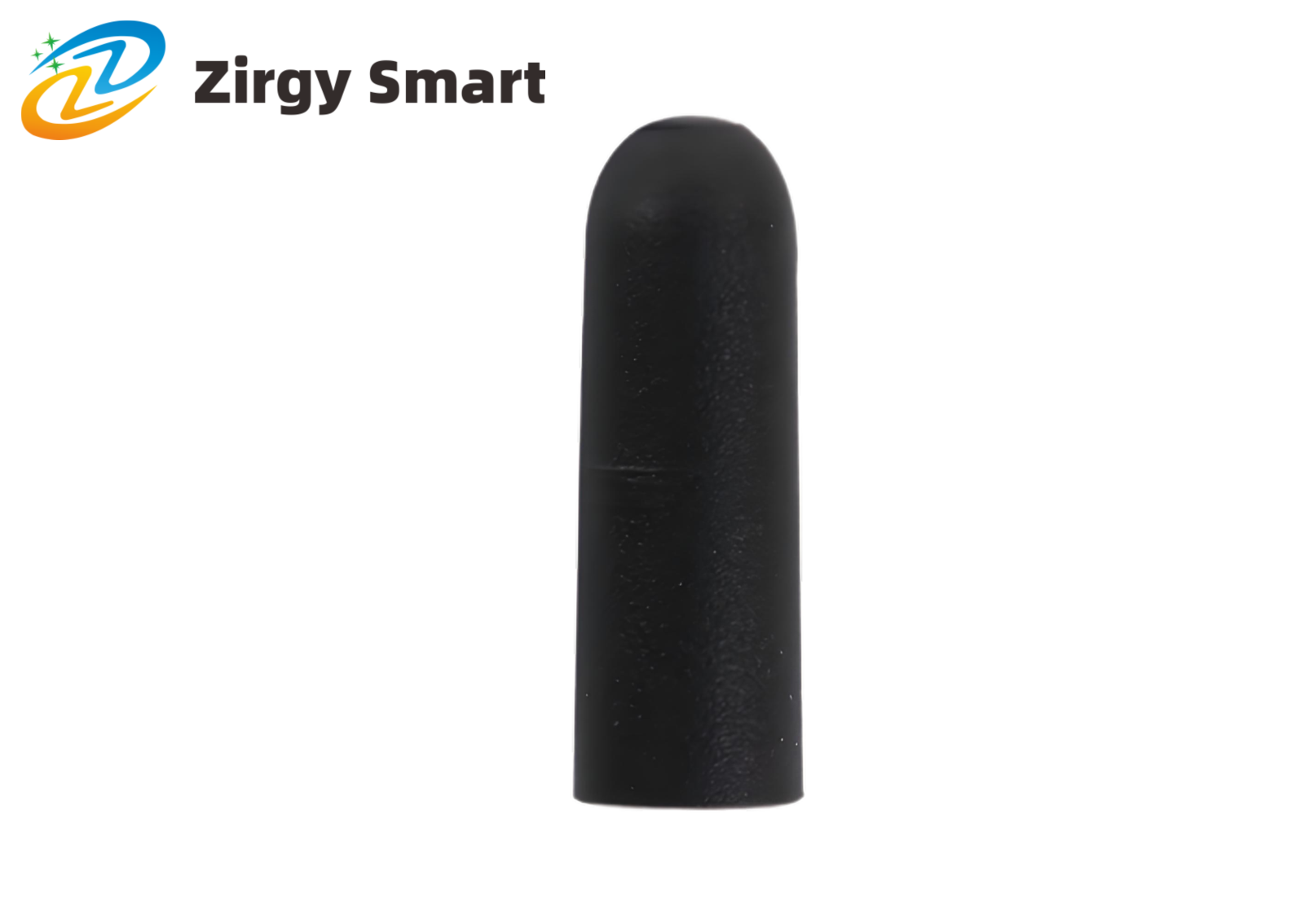

Real-shot display
