Ⅰ Product introduction——Nail-shaped electronic tag
Name: Nail-shaped electronic tagZJ-DZ007
This product is suitable for the management of ancient trees in cities, anti-counterfeiting of concrete, etc. The outer shell is made by injection molding with a refined mold and high-grade anti-corrosion and high-temperature resistant materials. The RFID radio frequency chip is encapsulated inside, and it is filled with high-temperature resistant epoxy resin.
Ⅱ Product features——Nail-shaped electronic tag
* It has a small and exquisite appearance, is sturdy and durable, and the color won't fade.
* The product is waterproof, shockproof and corrosion-resistant.
* It is easy to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as required.
* The product is waterproof, shockproof and corrosion-resistant.
* It is easy to install.
* It can be manufactured according to the appearance design provided by customers.
* Various types of chips can be encapsulated as required.
Ⅲ Product application——Nail-shaped electronic tag
It is suitable for the management of ancient trees in cities, timber tracking, anti-counterfeiting of concrete, etc.
Commonly used chip frequencies:
Low frequency TK4100 (small head), high frequency, ultra-high frequency H3 (big head)
|
Product model
|
ZJ-DZ007
|
|
Chip type
|
TK4100/I CODE SLI-X/H3, etc.
|
|
Operating frequency (modulation method)
|
125KHz/13.56MHz/915MHz
|
|
Protocol standard
|
ISO11784/11785,ISO15693,ISO14443A/B,ISO18000-6C
|
|
Read-write times
|
More than 1,000,000 times
|
|
Dimensions (customizable)
|
36*6mm
|
|
Material
|
ABS
|
|
Colour (customizable)
|
Black/White
|
|
Electrostatic prevention
|
Prevent electrostatic breakdown, with a withstand voltage of more than 5000 volts.
|
|
Operating temperature
|
-20℃ - 75℃
|
|
Storage temperature
|
-20℃ - 90℃
|
|
Useful life
|
More than 10 years
|
|
Weight
|
0.5 gram
|
Ⅴ Product display——Nail-shaped electronic tag

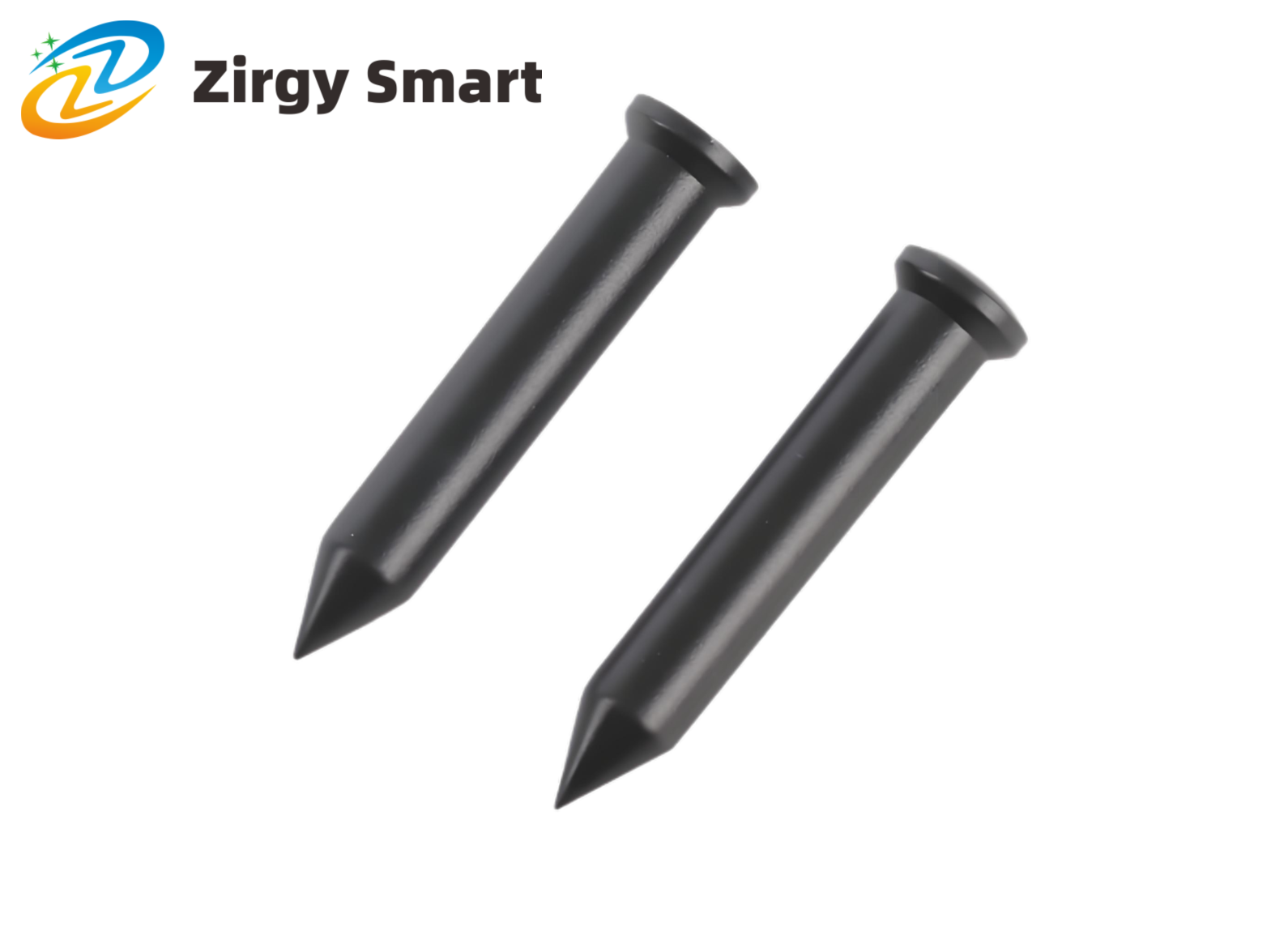

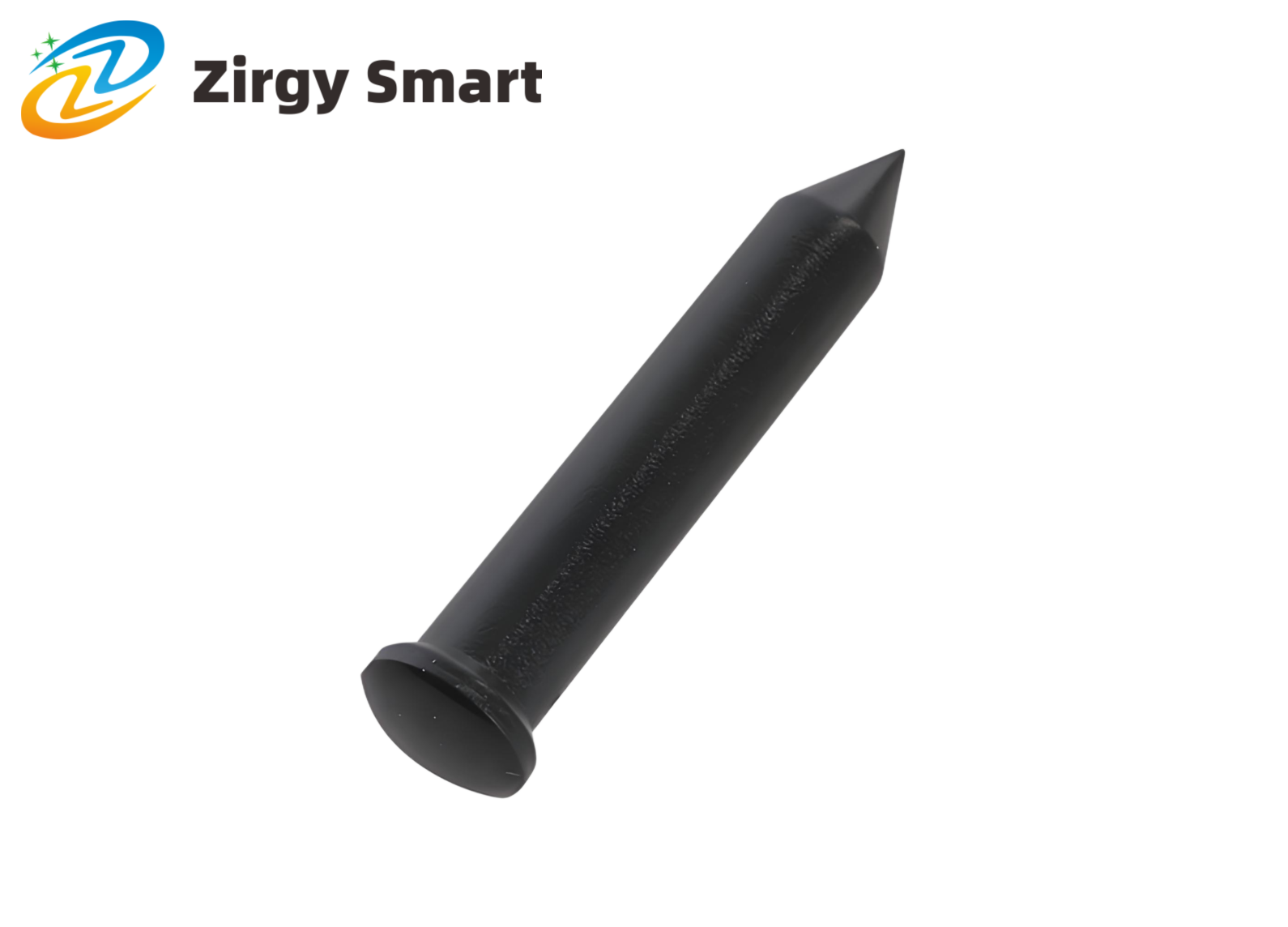

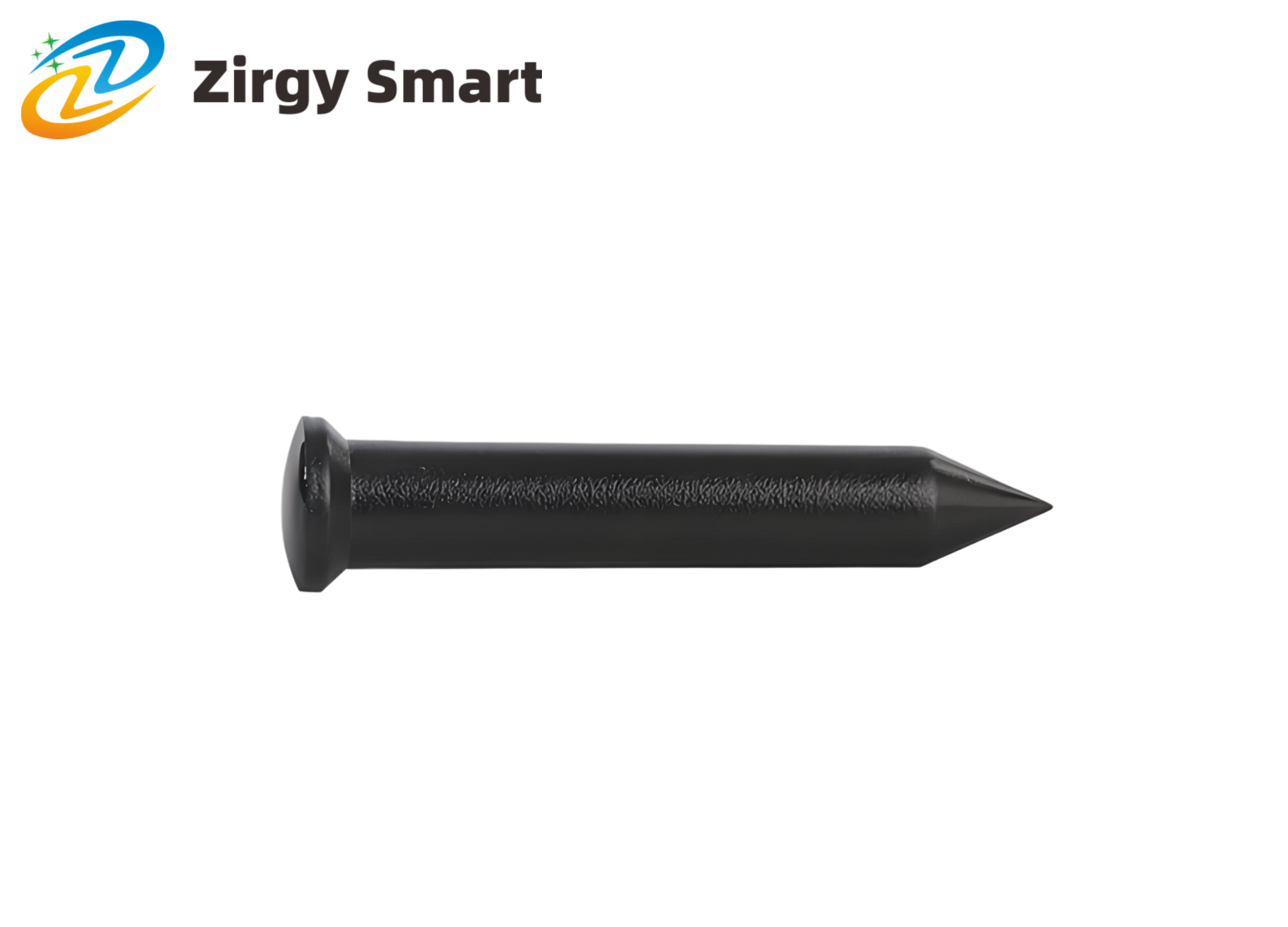

Real-shot display
