Ⅰ Product introduction——π30 black patrol electronic tag
Name: π30 black patrol electronic tag ZJ-DZ003
The casing of this product is made by injection molding with a refined mold and high-grade anti-corrosion and high-temperature resistant materials. The radio frequency card chip is encapsulated inside. It is round hole-shaped, with a thickness of 4.5mm. A screw can be installed through the middle hole for fixation, or it can be attached to an object. It is encapsulated with epoxy engineering resin inside, which makes it resistant to moisture and corrosion, and it is suitable for harsh environments.
Ⅱ Product features——π30 black patrol electronic tag
The casing of this product is made by injection molding with a refined mold and high-grade anti-corrosion and high-temperature resistant materials. The radio frequency card chip is encapsulated inside. It is round hole-shaped, with a thickness of 4.5mm. A screw can be installed through the middle hole for fixation, or it can be attached to an object. It is encapsulated with epoxy engineering resin inside, which makes it resistant to moisture and corrosion, and it is suitable for harsh environments.
Ⅱ Product features——π30 black patrol electronic tag
* Waterproof and moisture-proof, with the chip encapsulated by ultrasonic welding.
* Compact and exquisite in appearance, sturdy and durable, and the color will not fade.
* The product is waterproof, shockproof and corrosion-resistant.
* It can be strung and hung on a keychain, making it convenient to carry.
* Multiple colors are available for selection (such as black, white, etc.).
* It can be manufactured according to the appearance design provided by the customer.
* ID codes and serial numbers can be sprayed, and it supports laser marking and printing.
* Compact and exquisite in appearance, sturdy and durable, and the color will not fade.
* The product is waterproof, shockproof and corrosion-resistant.
* It can be strung and hung on a keychain, making it convenient to carry.
* Multiple colors are available for selection (such as black, white, etc.).
* It can be manufactured according to the appearance design provided by the customer.
* ID codes and serial numbers can be sprayed, and it supports laser marking and printing.
Ⅲ Product application——π30 black patrol electronic tag
It is applicable to production line piece-rate work, product identification, patrol inspection, access control, public transportation, parking lots, identity authentication, attendance management, tickets, all-in-one card payment, asset management, property management, security patrol, etc.
Common chip frequencies:
Low frequency (ID), high frequency (F08\NTAG series), ultra-high frequency (H3-UBIK711 circular inlay or PCB board)
Remarks: Anti-metal patrol tags can be made (with 3M double-sided adhesive on the back).
| Product model | ZJ-DZ003 |
| Chip type | Low frequency, high frequency, ultra-high frequency can be encapsulated |
| Operating frequency (modulation method) | 125Khz, 13.56Mhz, 915Mhz |
| Protocol standard | ISO11784/11785,ISO15693,ISO14443A/B,ISO18000-6C |
| Times of reading and writing | More than 1,000,000 times |
| Dimension (customizable) | Outer diameter 30mm inner diameter 5mm thickness 4.5mm |
| Material | ABS |
| Colours (customizable) | White, black |
| Static-resistant | Prevent electrostatic breakdown, with a withstand voltage of more than 5000 volts. |
| Operating temperature | -20℃ ~ 75℃ |
| Storage temperature | -20℃ ~ 90℃ |
| Useful life | More than ten years |
| Weight | 5 grams |
Ⅴ Product display——π30 black patrol electronic tag

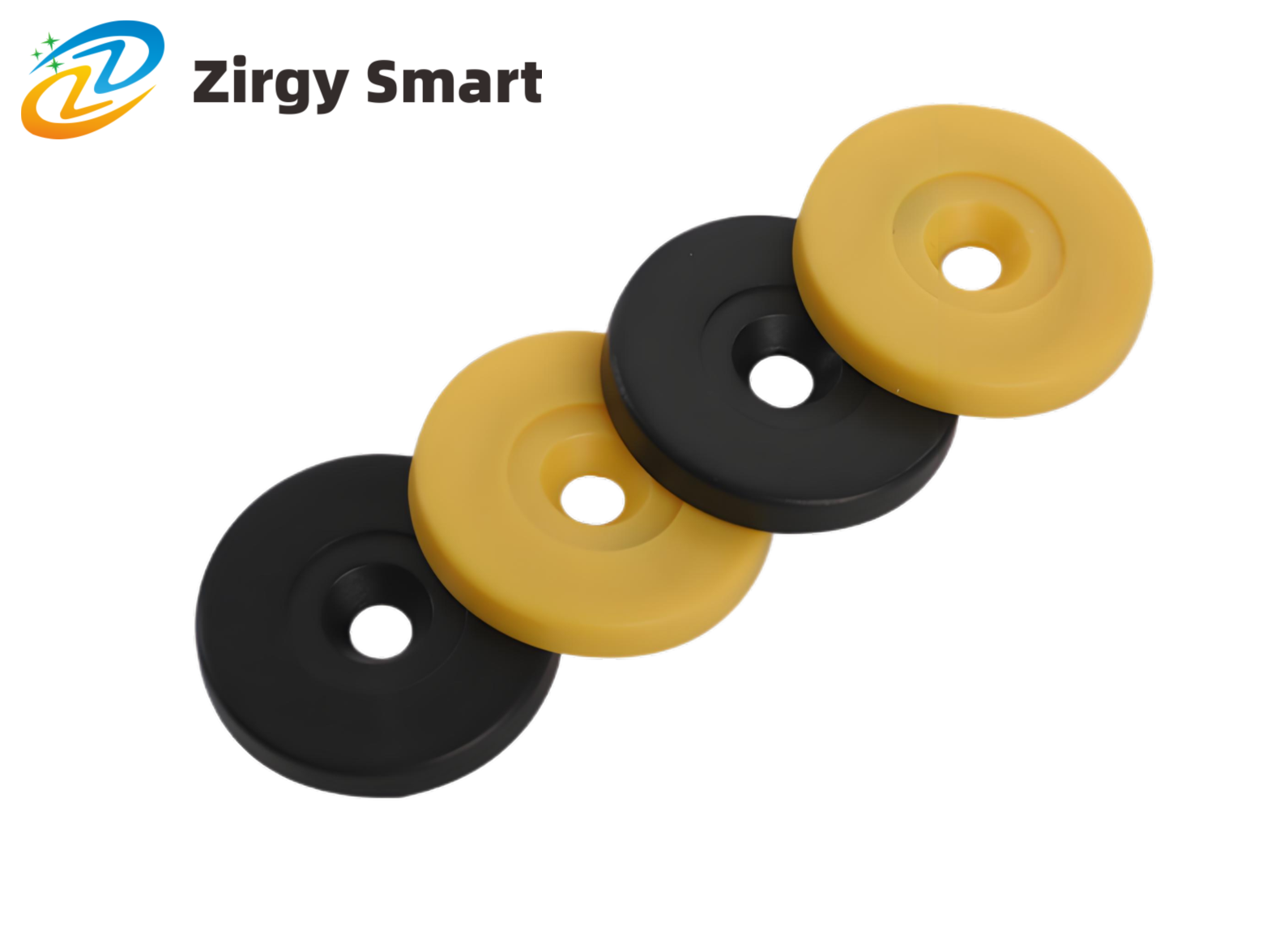

Real-shot display
