Ⅰ Product application——Soft washing tag ZJ-7015
Name: Soft washing tag ZJ-7015
- Industrial washing management
- Linen rental management
- Standard uniform management and washing management
- Work uniform rental and washing management
- Hospital linen and washing management
- Management of military uniforms and bedding
- Railway linen management and washing management
- Management of police uniforms
- Personnel management
- Access control management
- Management of fire-fighting uniforms and soft materials
Other applications requiring soft and pressure-resistant products
- Industrial washing management
- Linen rental management
- Standard uniform management and washing management
- Work uniform rental and washing management
- Hospital linen and washing management
- Management of military uniforms and bedding
- Railway linen management and washing management
- Management of police uniforms
- Personnel management
- Access control management
- Management of fire-fighting uniforms and soft materials
Other applications requiring soft and pressure-resistant products
Ⅱ Main features——Soft washing tag ZJ-7015
- The soft washing tag can be customized according to customers' requirements.
- It is soft, will not damage the textiles, and has a good hand feel.
- The size of the chip module is one of the smallest in the international market.
- It can withstand a pressure of 60 Bars.
- It is one of the few products in the global market that can withstand a pre-drying process of 180 degrees for 30 minutes, a total of 200 times.
- With an Impinj chip, it has a tuning function. Through the optimization of the reader and software in the system application, excellent group reading performance can be achieved.
- It is soft, will not damage the textiles, and has a good hand feel.
- The size of the chip module is one of the smallest in the international market.
- It can withstand a pressure of 60 Bars.
- It is one of the few products in the global market that can withstand a pre-drying process of 180 degrees for 30 minutes, a total of 200 times.
- With an Impinj chip, it has a tuning function. Through the optimization of the reader and software in the system application, excellent group reading performance can be achieved.
Ⅲ Product advantage——Soft washing tag ZJ-7015
- Truly achieving and exceeding a lifespan of 200 times of industrial washing.
- All materials and designs have been verified for reliability and application.
- Full-power verification and writing verification are conducted before leaving the factory.
- All materials and designs have been verified for reliability and application.
- Full-power verification and writing verification are conducted before leaving the factory.
Ⅳ Technical parameters——Soft washing tagZJ-7015
| Air interface protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | 902-928MHz or 865~866MHz |
| Chip | NXP Ucode7M |
| Storage area | EPC 96bits, User 32bits |
| Read-write performance | Readable and writable (Customers can repeatedly write content into the chip.) |
| Data storage | 20 years |
| Useful life and quality warranty | 200 industrial washing or two years (It shall be calculated based on whichever comes first.) |
| Material | Textile |
| Dimensions | 70mm(Length) x 15mm(Width) x 1.5 mm(Thickness) (The thickness is only at the position of the chip) |
| Operating temperature | -25℃~ +110℃ |
| Storage temperature | -40℃~ +85 ℃ |
| Usage temperature | 1) Washing: At 90℃ (194°F) for 15 minutes, 200 times. 2) High-temperature pre-drying: At 180℃ (320°F) for 30 minutes, 200 times. 3) Ironing: At 180℃ (356°F) for 10 seconds, 200 times. 4) High-temperature disinfection: At 135℃ (275°F) for 20 minutes, 200 times. (This product does not support medical MRI testing. The company has other products that can pass the MRI testing.) |
| Peak compressive pressure | 60 bars |
| Product type | Single piece |

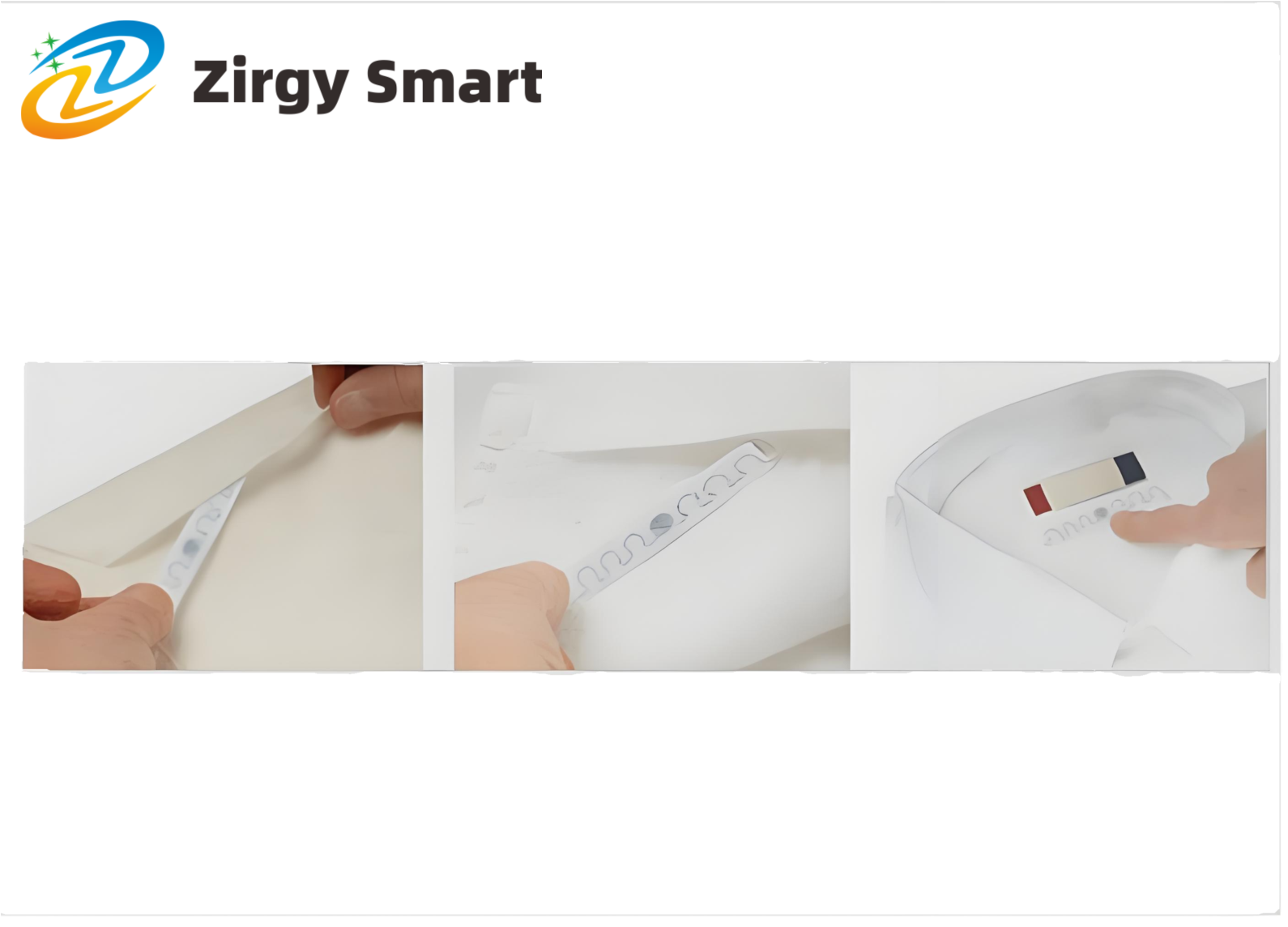

| Installation method | Sewn into the hem or sewn into the woven label sleeve (Do not sew onto the metal wire or the chip module during sewing). |
| Weight | Approximately 0.7 grams per piece. |
| Packaging method | Packed in anti-static bags and cartons. |
| Colour | White |
| Power supply mode | Passive |
| Chemical performance | Capable of withstanding all chemical materials in the normal industrial washing process. |
| RoHS | Compliant |
| Reading distance * | Fixed device: More than 5.5 meters (ERP=2W) Handheld device: More than 2 meters ( with ATID AT880 handheld device) |
| Polarization mode | Linear polarization |
Ⅴ Product display——Soft washing tagZJ-7015

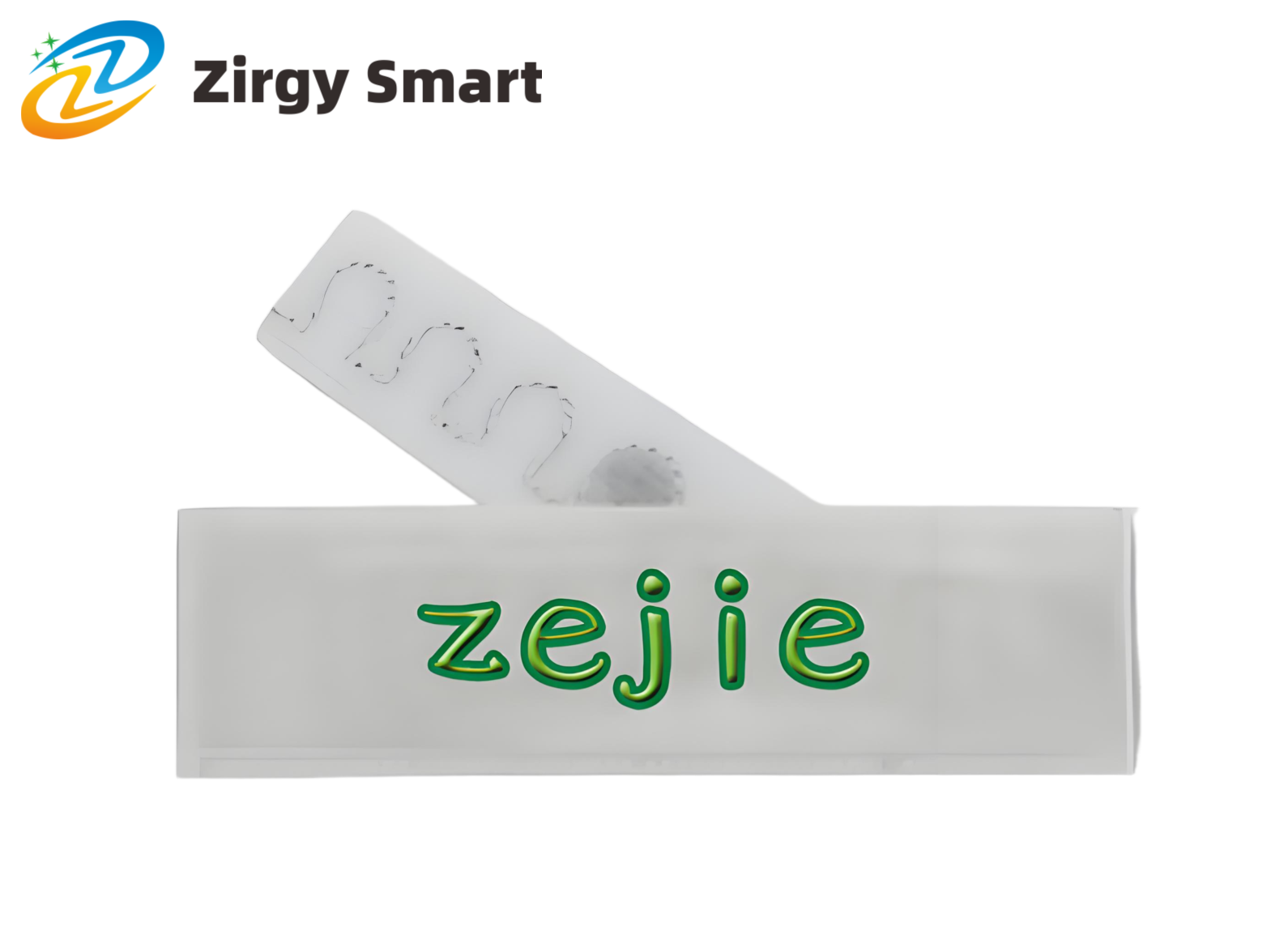

Real-shot display
