Ⅰ Chip features-NFC tag
●Non-contact energy and data transmission
●The operating frequency is 13.56 MHz.
●The data transmission rate is 106 kbit/s.
●The data integrity includes 16-bit CRC, parity check, bit encoding, and bit counting.
●The operating distance can reach up to 100 millimeters (depending on various parameters such as the field strength and the geometry of the antenna).
●7-byte serial number (in accordance with the ISO/IEC 14443-3 protocol)
●UID ASCII mirroring for the automatic serialization of NDEF messages
●Automatically triggers the NFC counter when a read command is issued.
●The fast read function allows for scanning the complete NDEF message using a single FAST-READ command, thus reducing the overhead in high-throughput production environments.
Ⅱ Technical parameters-NFC tag
Name: NFC tag diameter 25mm
Antenna dimension: Φ25mm

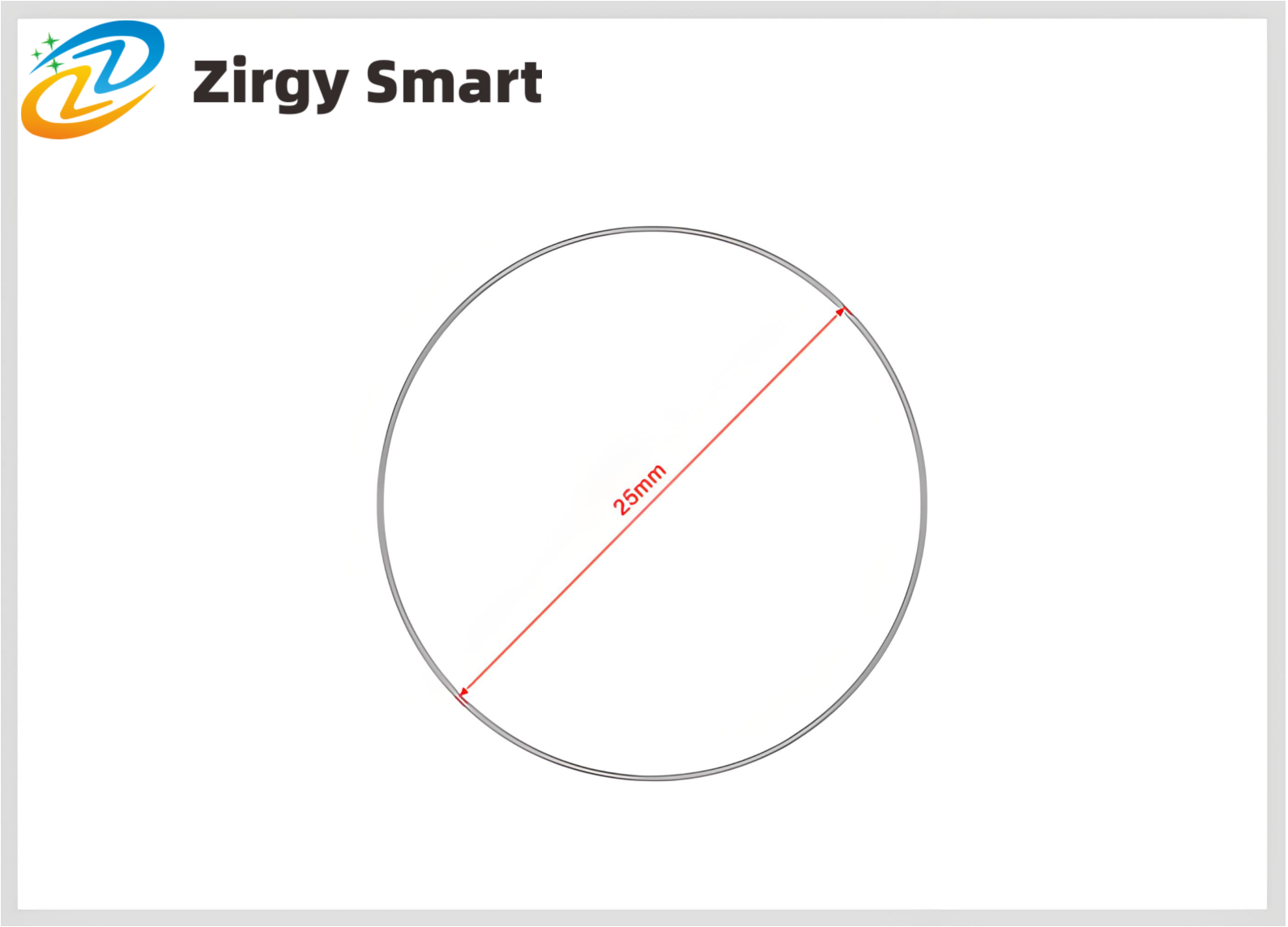

Tag dimension: Φ25mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read-write times: More than 100,000 times
Data retention: More than 10 years
Optional fabric: None
Operating temperature: -10℃~+65℃
Ⅲ Product display-NFC tag

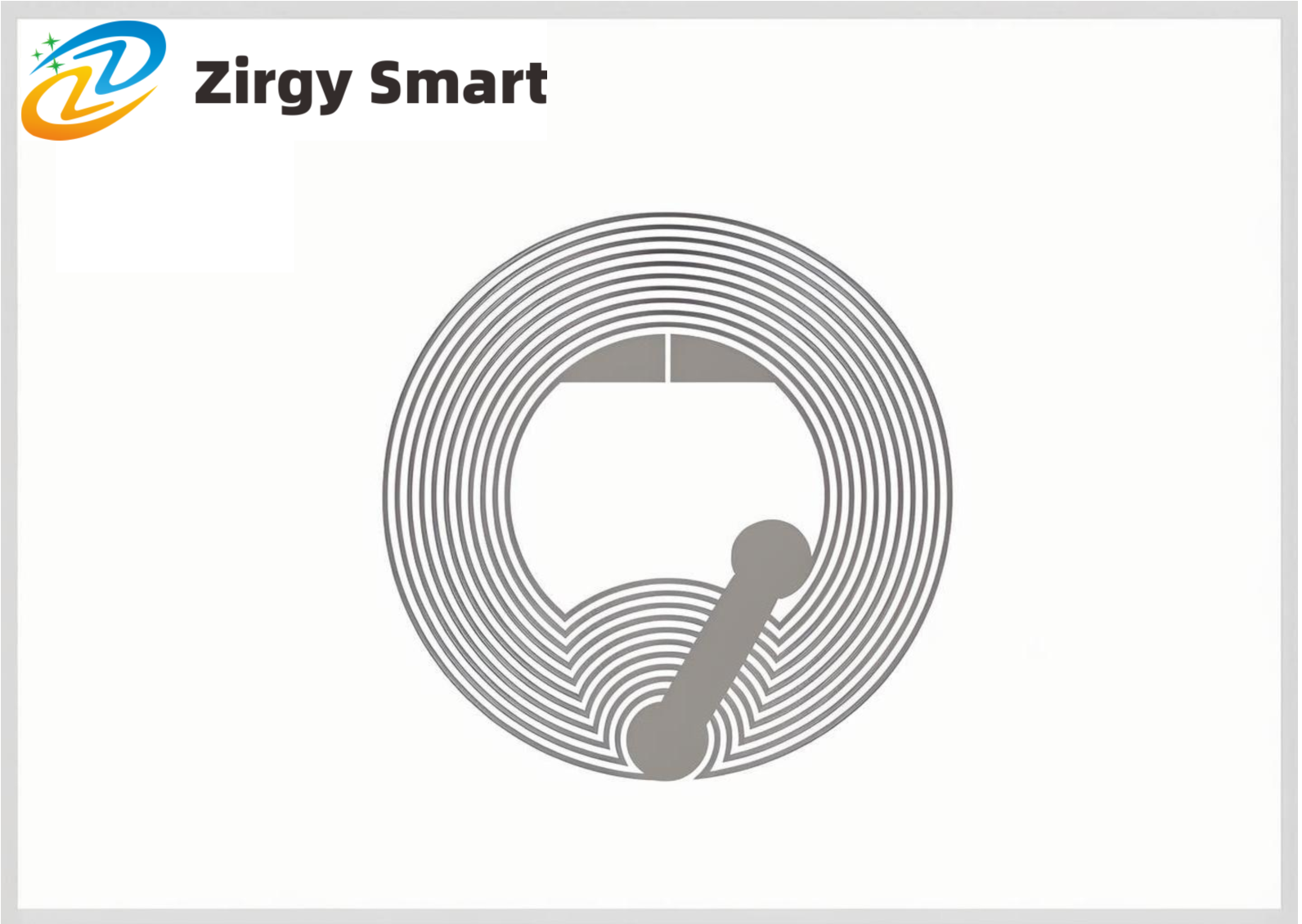

Sectional display

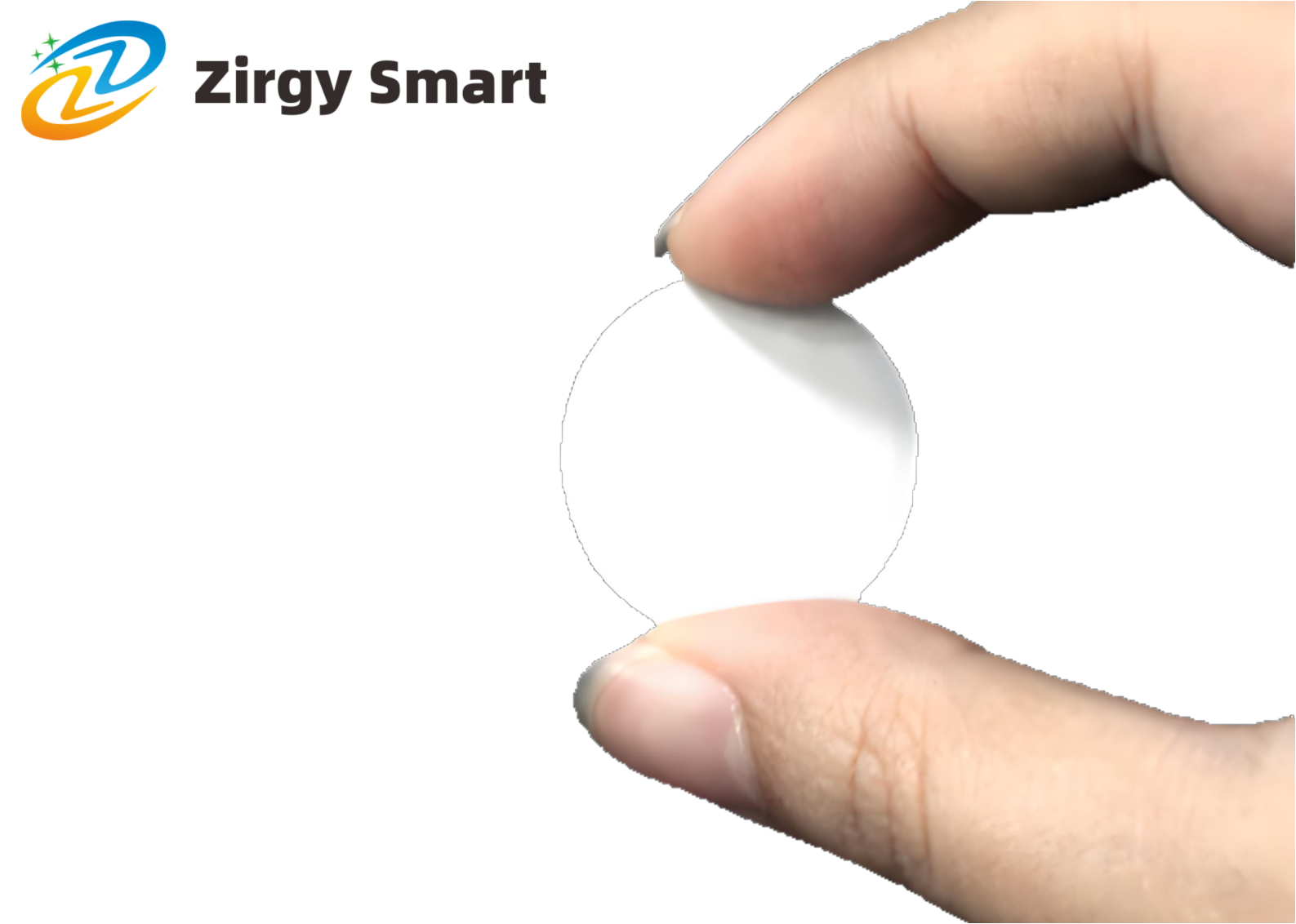

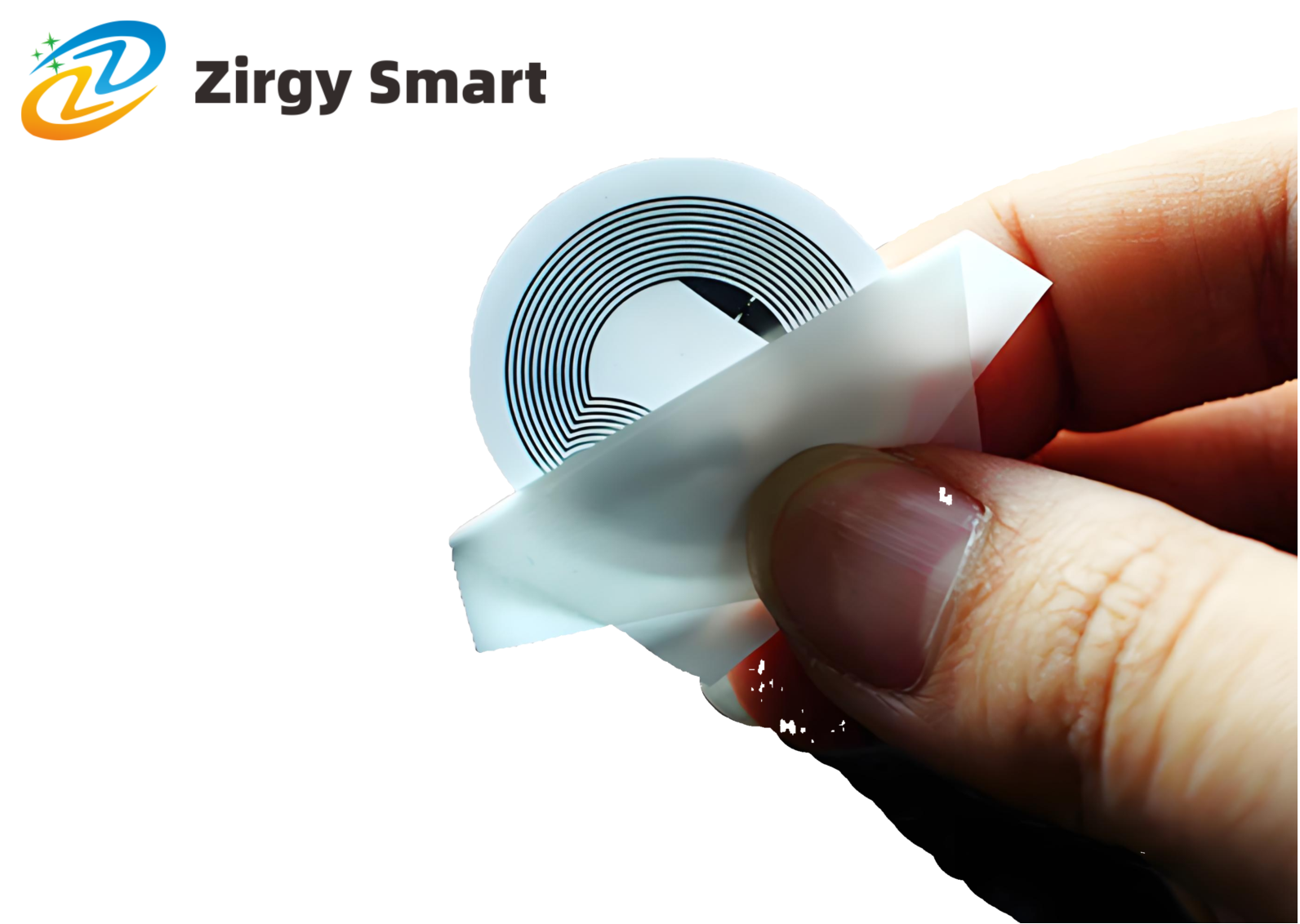

Real-shot display
Ⅳ Production processes
