Ⅰ Chip features——Self-adhesive electronic tag
- Compliant with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
- Universal global tag: Operating frequency 860MHz - 960MHz
- 800-bit non-volatile memory
- 96-bit EPC
- 512-bit User Memory
- 64-bit unique TID (unmodifiable)
- 32-bit access and confusion password
- Pre-programmed unique and unchangeable 64-bit serial number
- User storage can be managed in 64-bit blocks, can be permanently locked and protected by an access password
- Supports all mandatory and optional commands, including item-level commands
- There are customized commands for high-speed data writing, which can write the EPC codes of 30 labels per second
- Low-power reading and writing operations
- Excellent operating distance, which can reach up to 10 meters when using an appropriate antenna
Ⅱ Technical parameters——Self-adhesive electronic tag
Name: Self-adhesive electronic tag (white tag) 70mm*17mm

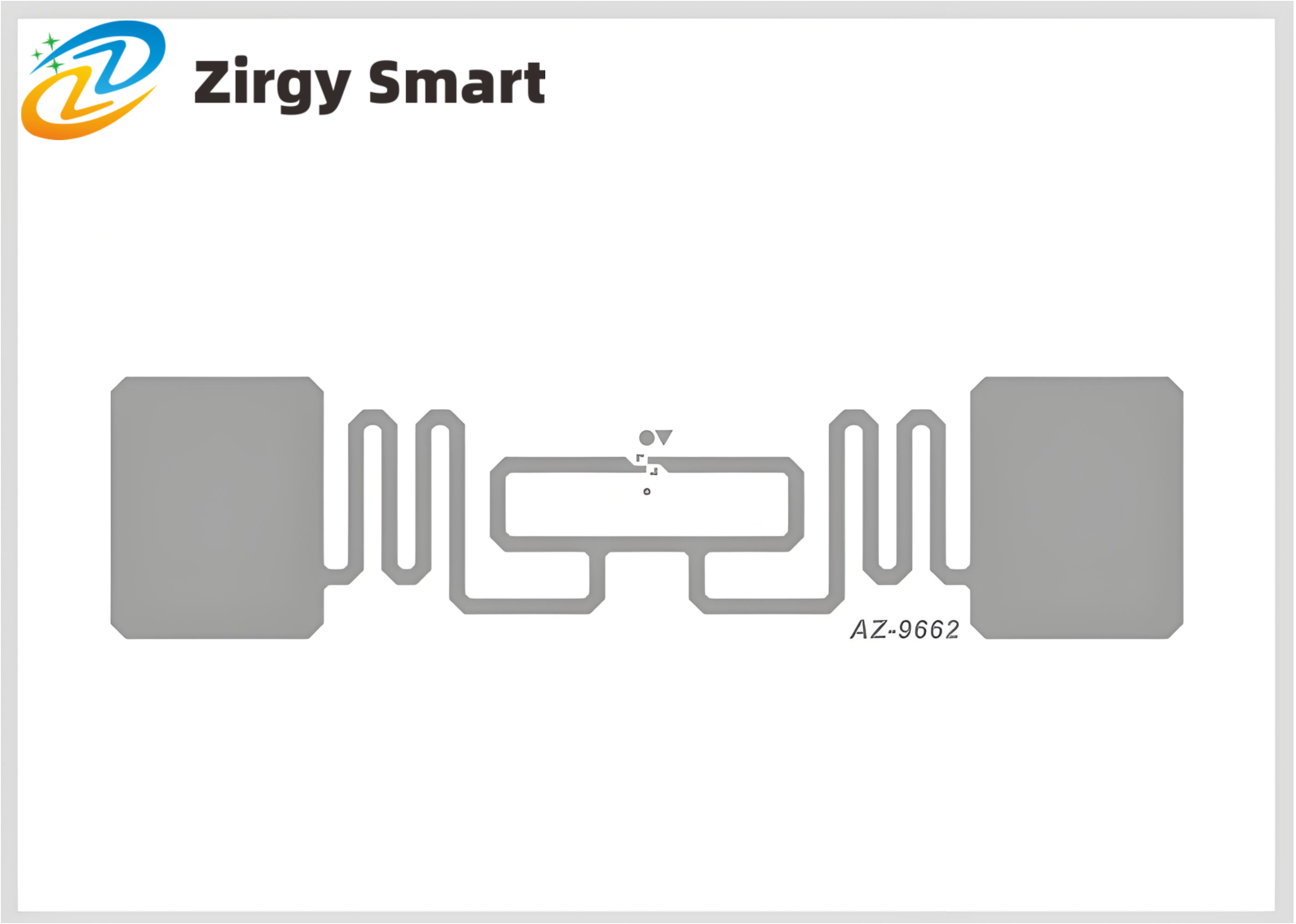

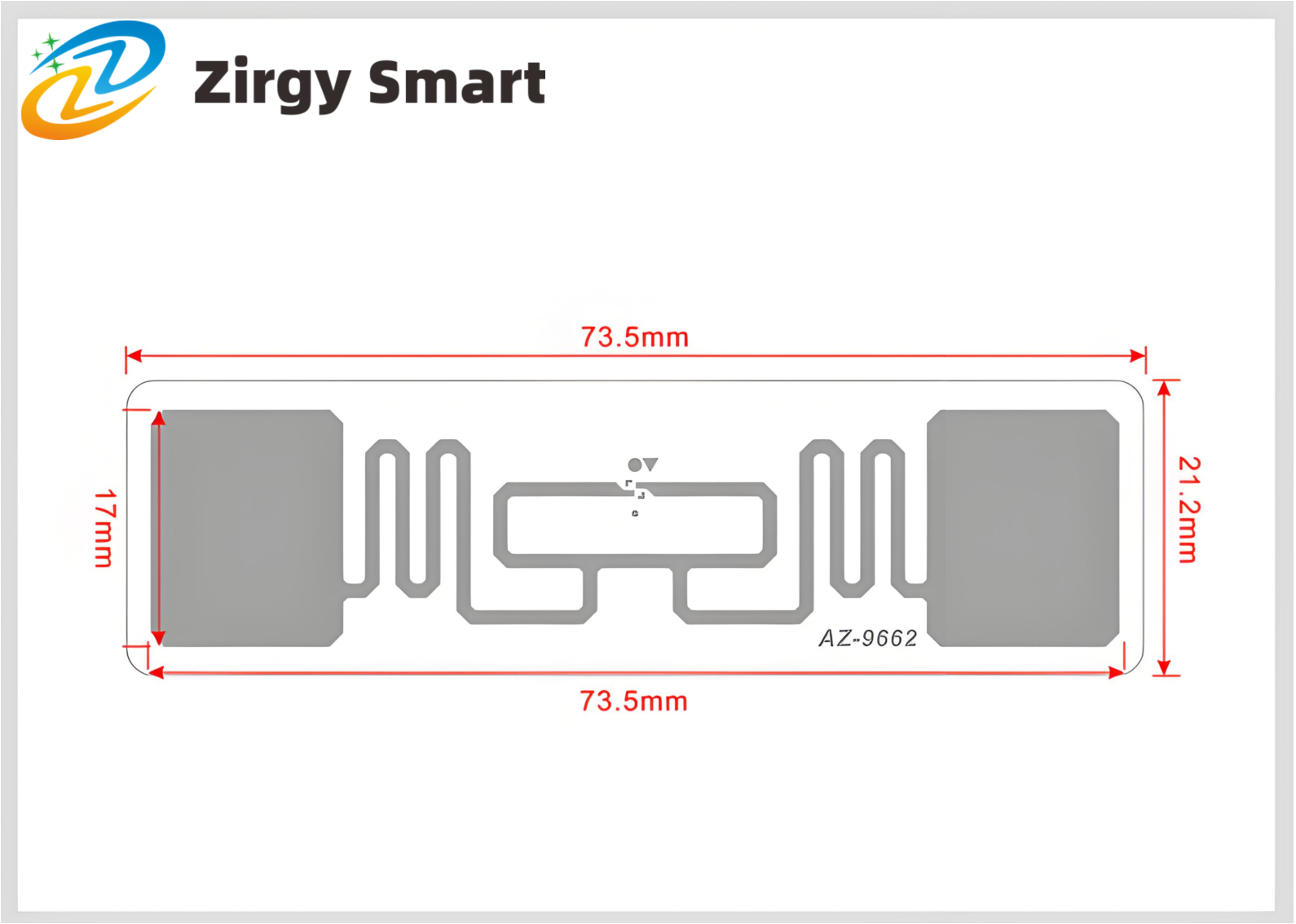

Antenna size：70*17mm
Tag size：None
Communication protocol：ISO18000-6C
Operating frequency：860-960MHz
Storage capacity：512Bits
Times of reading and writing：≥ 100,000 times
Data reservation：≥ 10 years
Optional fabric：None
Operating temperature: -20℃-65℃
Ⅲ Product display——Self-adhesive electronic tag

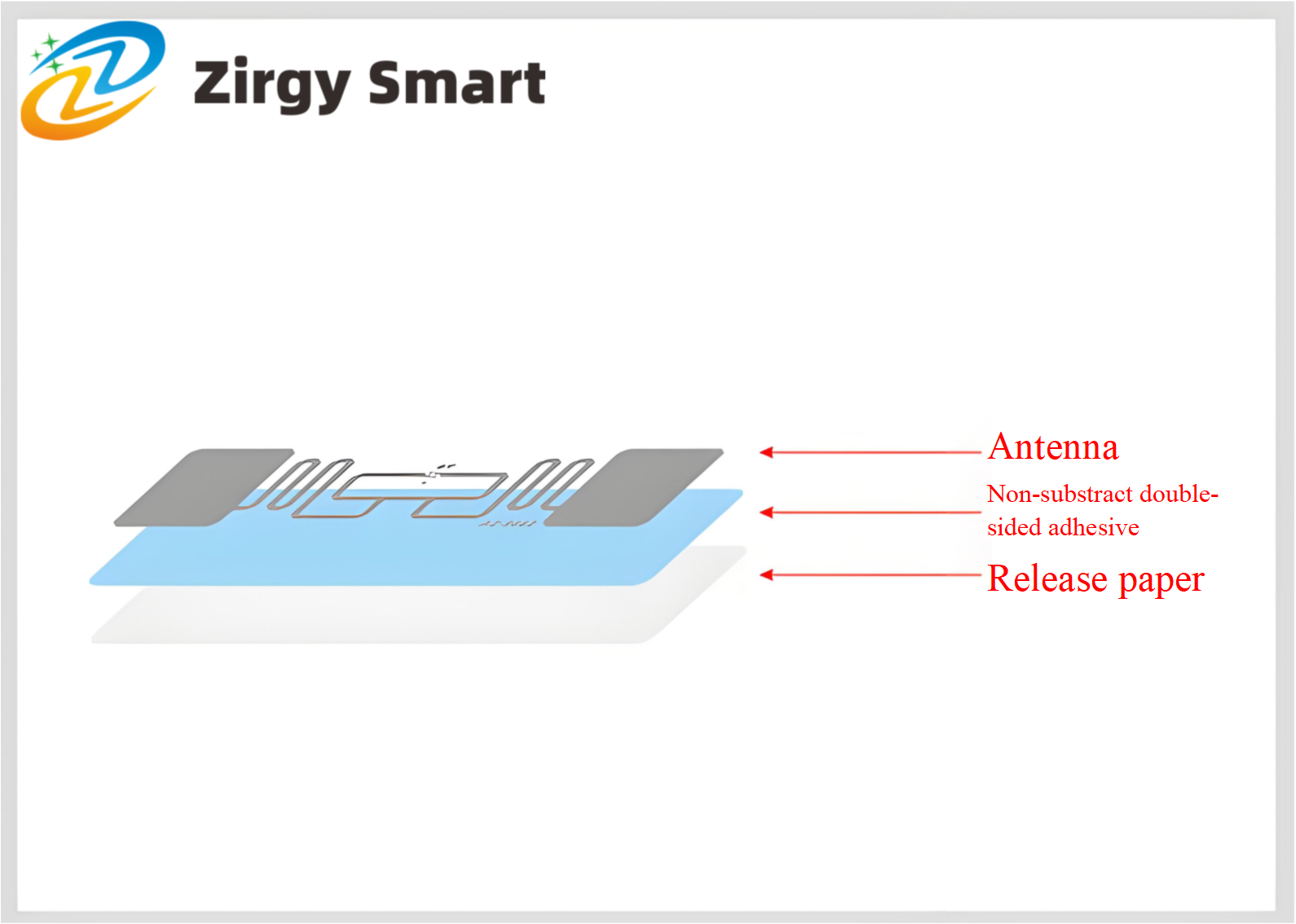

Sectional display

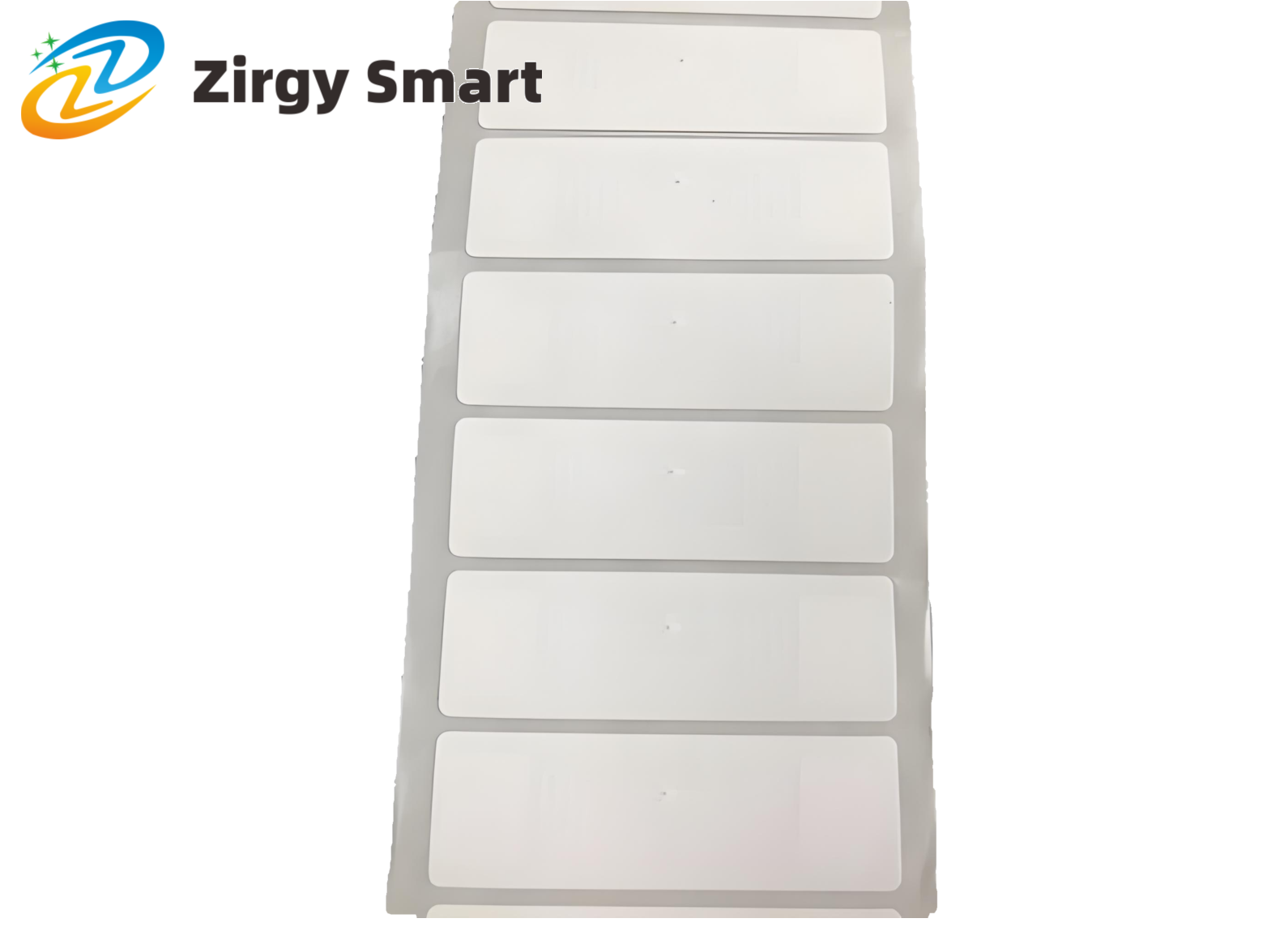

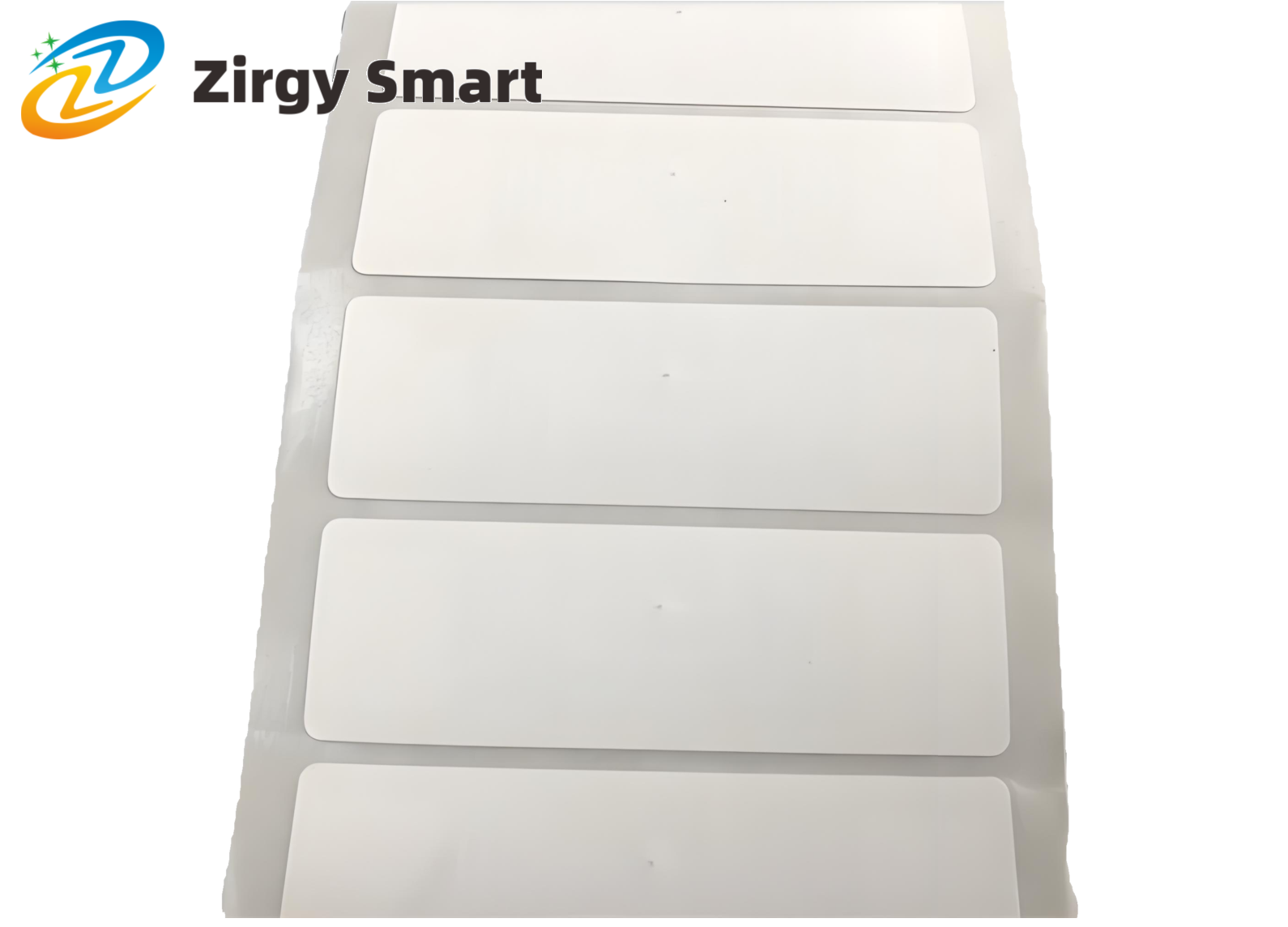

Real-shot display

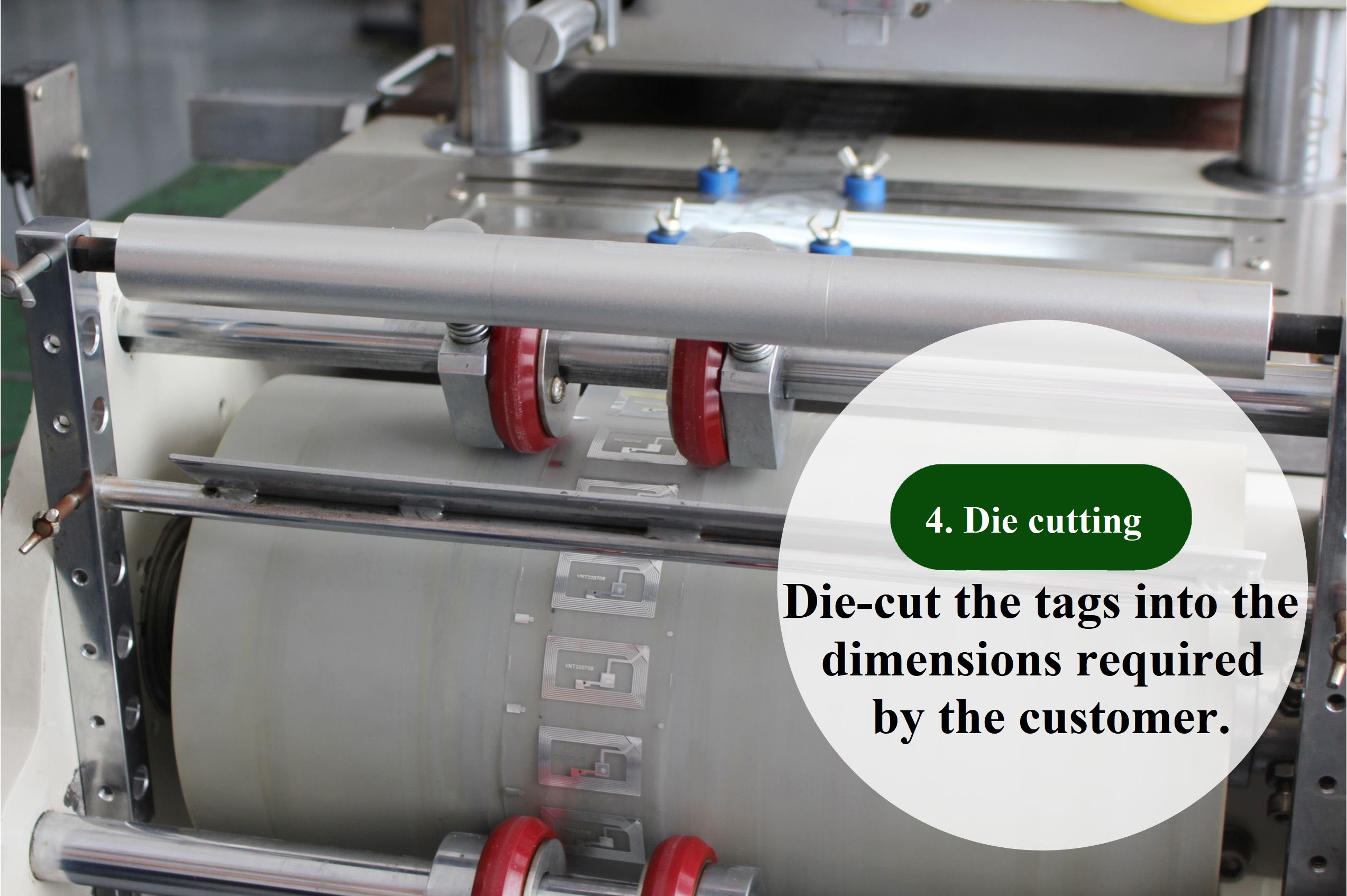

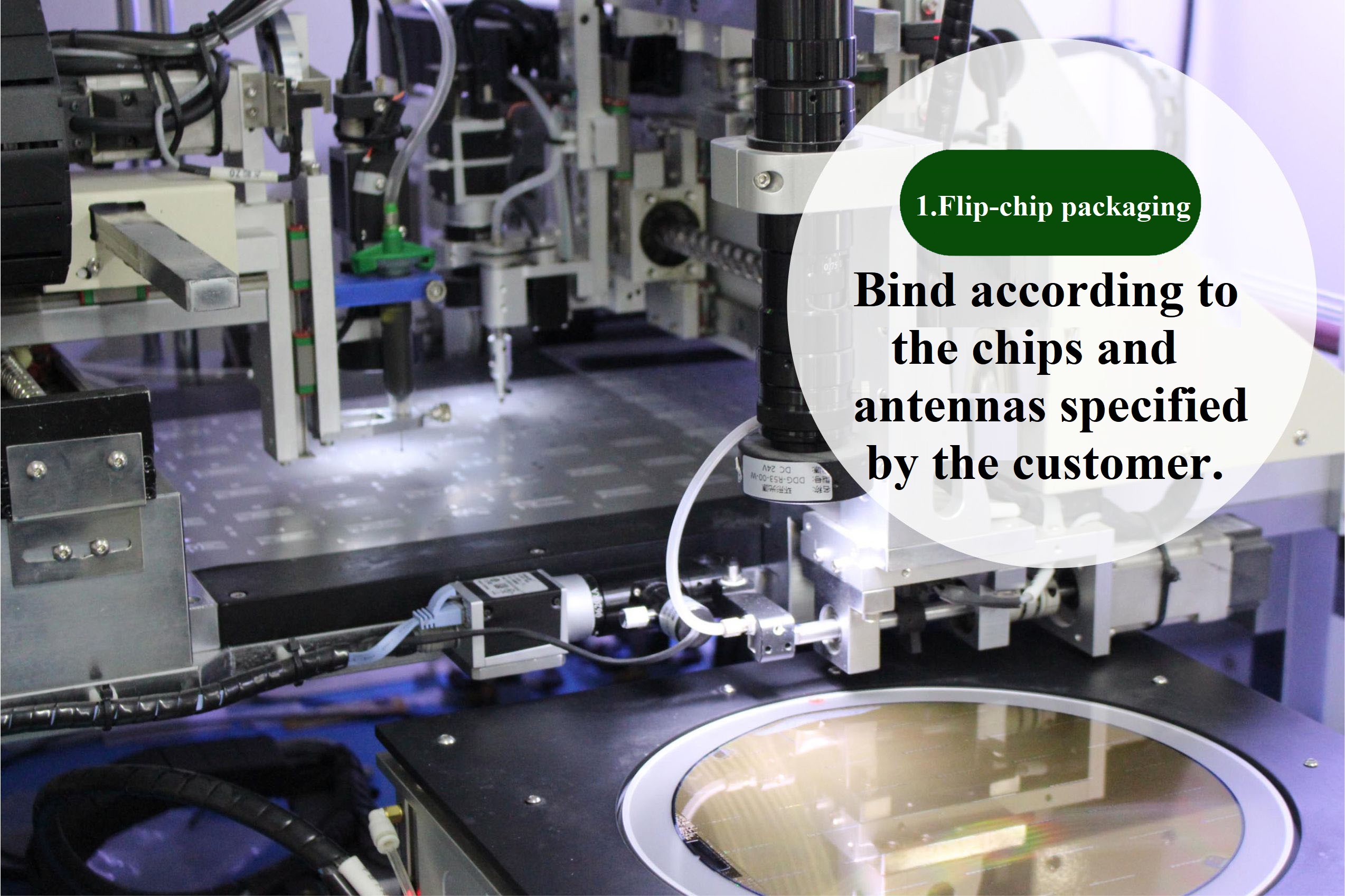

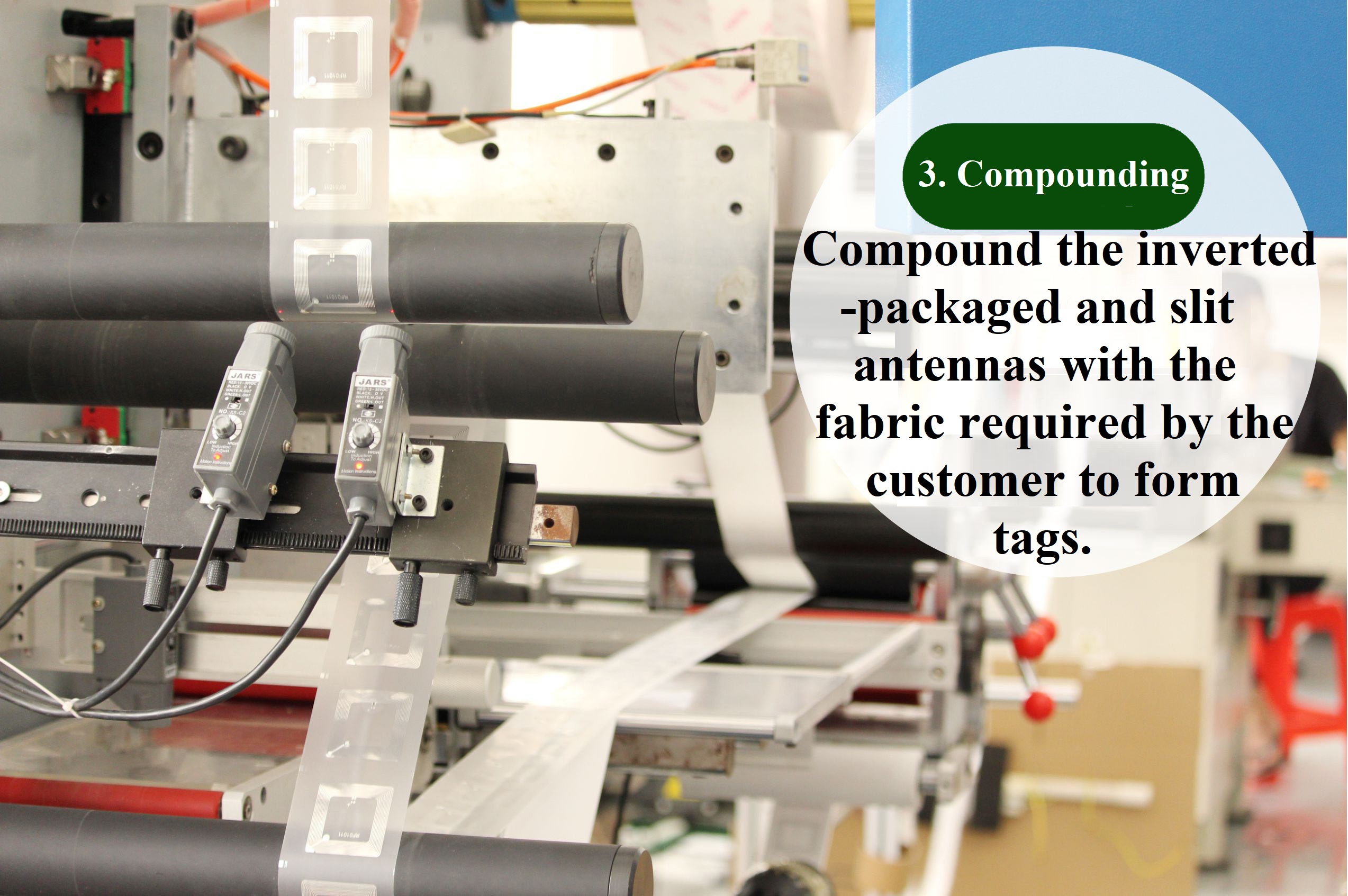

Ⅳ Production process——Self-adhesive electronic tag
