Ⅰ Chip features——Dry inlay
- Complies with EPC Gen2 (V1.2.0) and ISO/IEC 18000 - 6C standards.
- Globally - applicable tag: Operating frequency ranges from 860 MHz to 960 MHz.
- 800 - bit non - volatile memory.
- 96 - bit EPC.
- 512 - bit User Memory.
- 64 - bit unique TID (non - rewritable).
- 32 - bit access and kill passwords.
- Pre - programmed with a unique and unchangeable 64 - bit serial number.
- User storage can be managed in 64 - bit blocks, locked, and protected with an access password.
- Supports all mandatory and optional commands, including item - level commands.
- Features a customized command for high - speed data writing, capable of writing the EPC codes of 30 tags per second.
- Low - power read and write operations.
- Excellent operating distance, up to 10 meters with a suitable antenna.
Ⅱ Technical parameters——Dry inlay
Name: Dry inlay 70mm*17mm
Antenna dimensions: 70mm*17mm
Tag dimensions: None
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Times of reading and writing: More than 100,000 times
Data retention: More than ten years
Optional fabric: None
Operating temperature: -20℃~65℃
Ⅲ Product display——Dry inlay
Sectional display

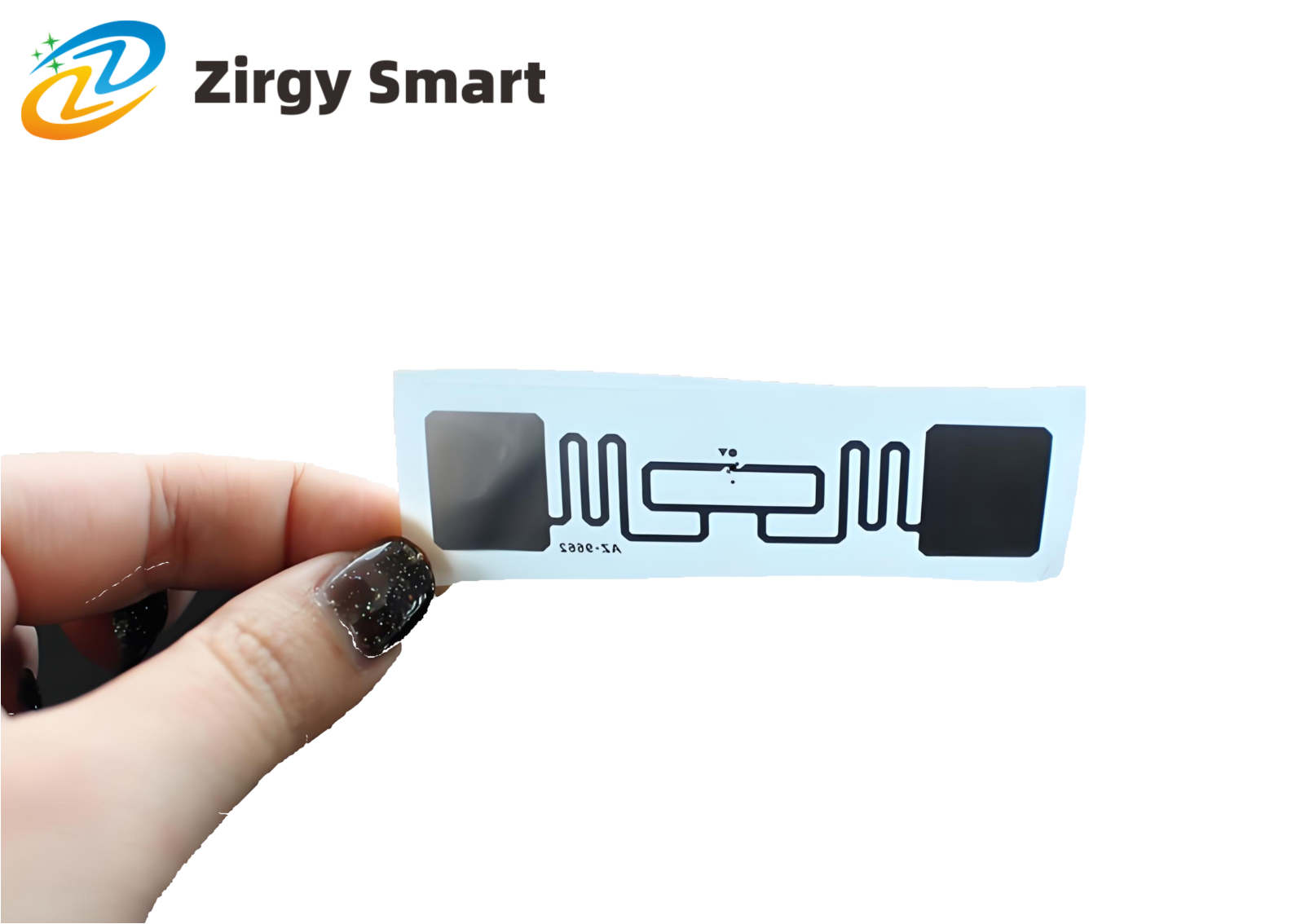

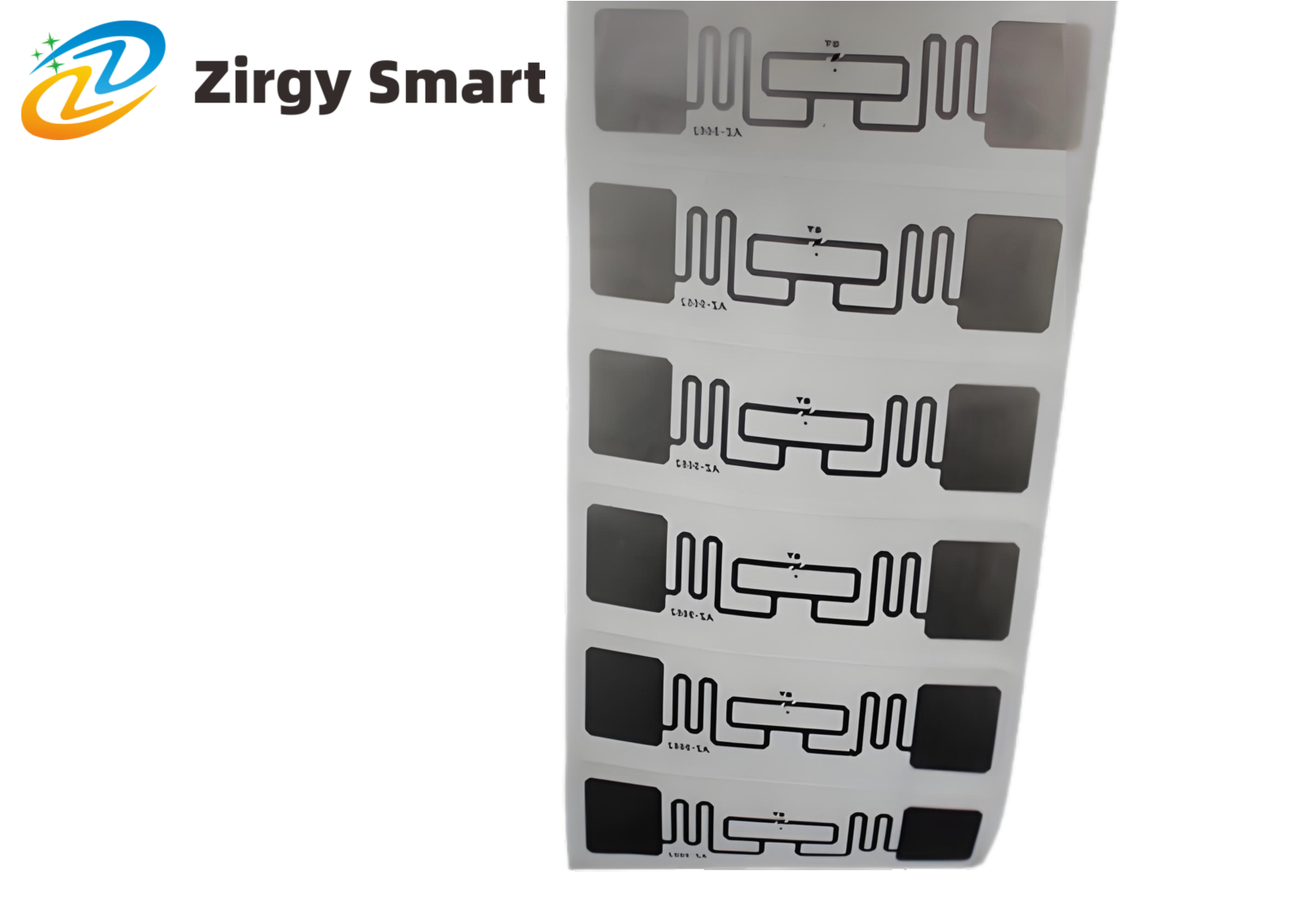

Real-shot display

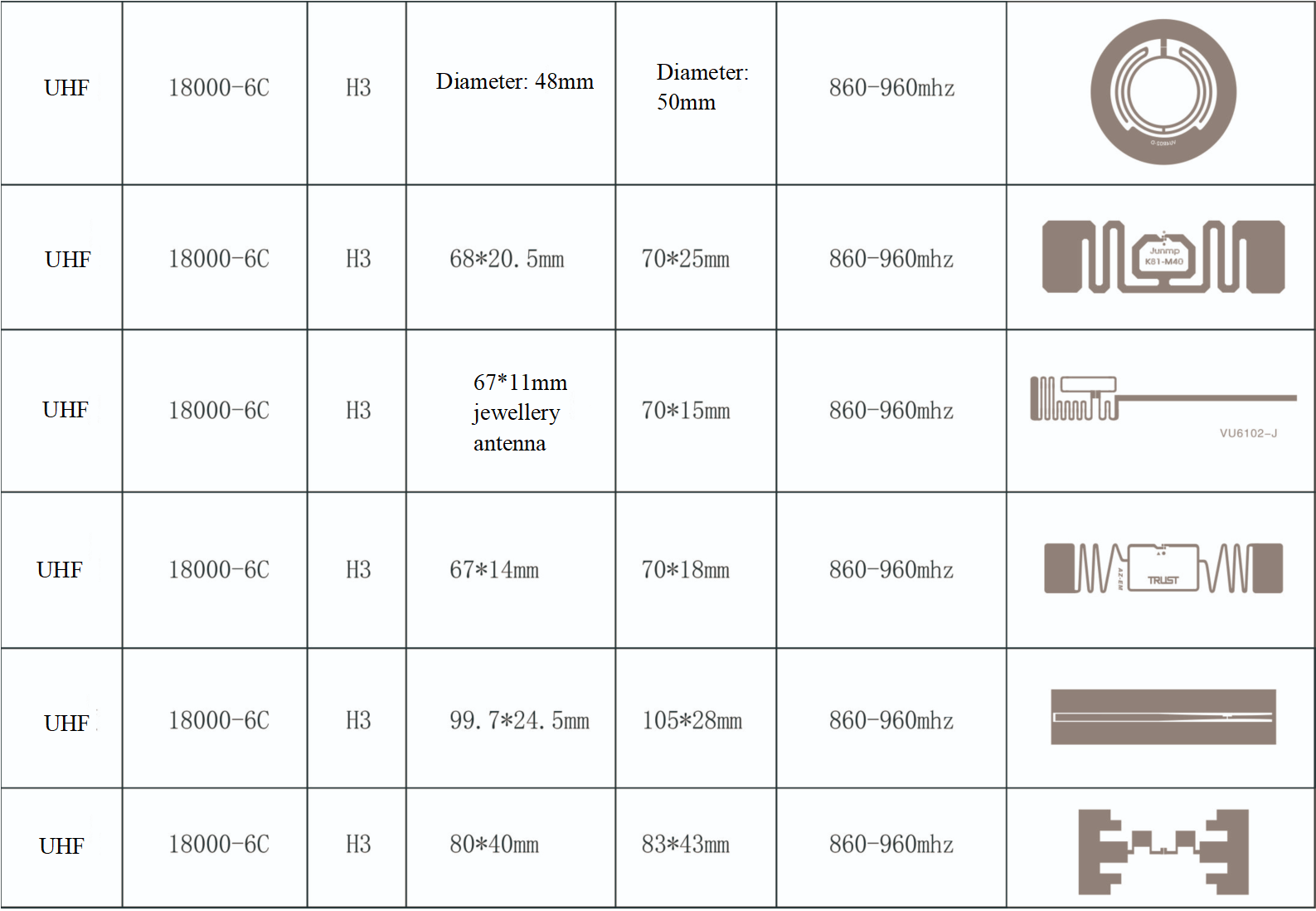

Ⅳ Antenna display——Dry inlay
Ⅴ Production process——Dry inlay
