Ⅰ Chip features——Wet inlay
- Compliant with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
- Universal global tag: Operating frequency is 860MHz - 960MHz
- 800-bit non-volatile memory
- 96-bit EPC
- 512-bit User Memory
- 64-bit unique TID (unmodifiable)
- 32-bit access and confusing password
- Pre-programmed unique and unchangeable 64-bit serial number
- User storage can be managed in blocks of 64 bits, can be permanently locked and protected by an access password
- Supports all mandatory and optional commands, including item-level commands
- There are customized commands for high-speed data writing, which can write the EPC codes of 30 labels per second
- Low-power reading and writing operations
- Excellent operating distance, which can reach up to 10 meters when using an appropriate antenna
Ⅱ Technical parameters——Wet inlay
Name: Wet inlay 70mm*17mm
Antenna size: 70*17mm
Tag size: None
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Times of reading and writing: ≥ 100,000 times
Data saving: ≥ 10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display——Wet inlay
Sectional display

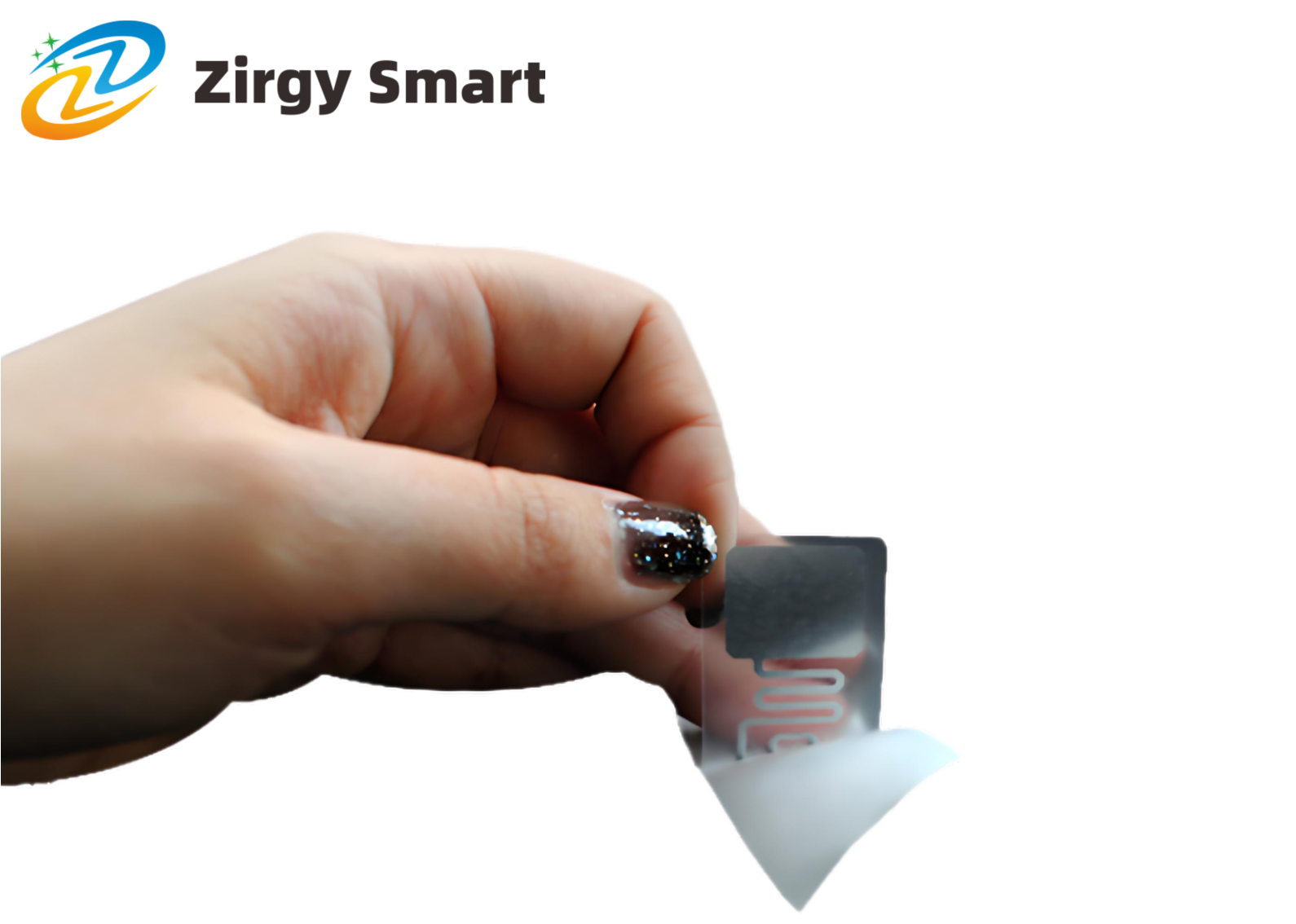

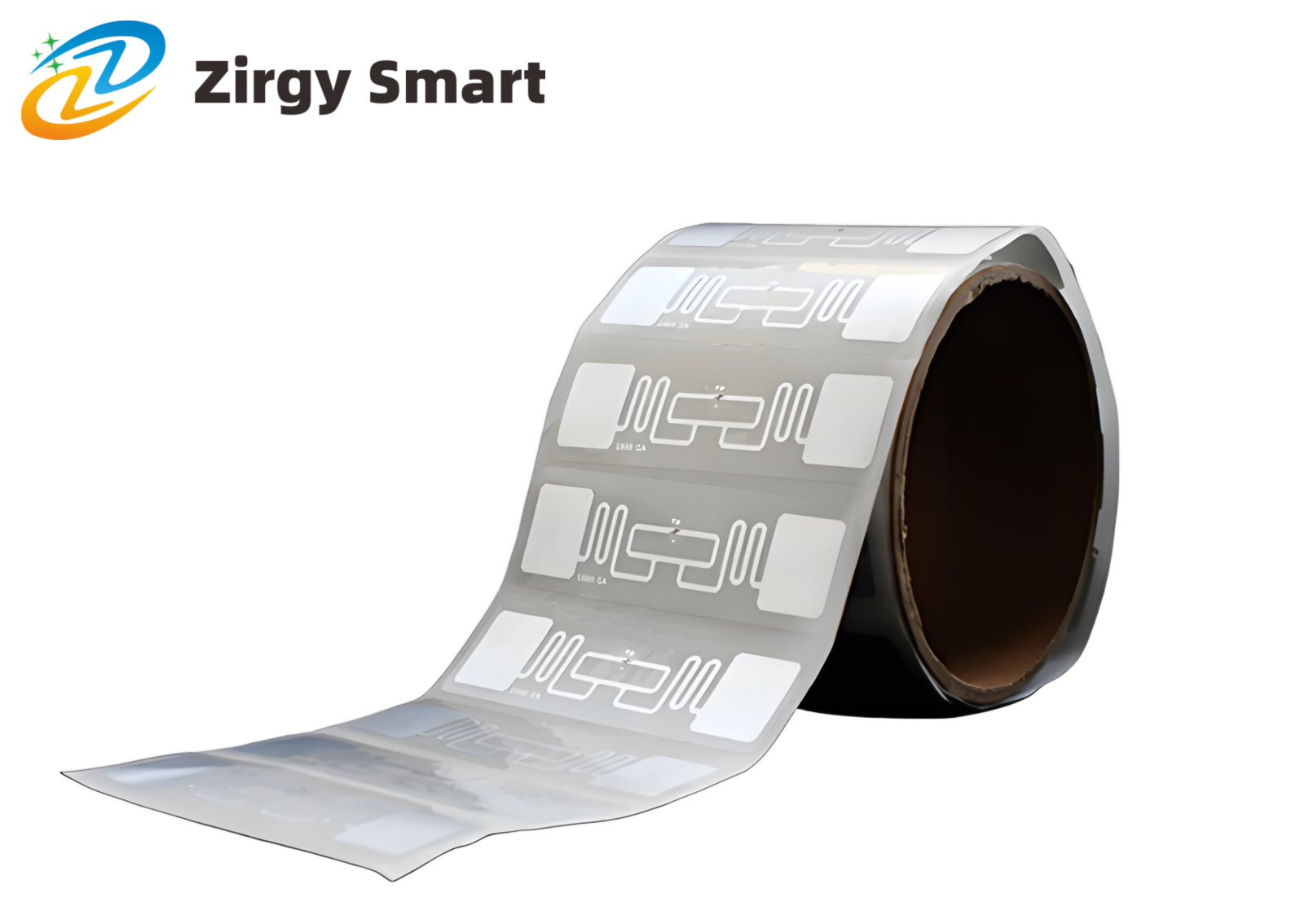

Real-shot display
Ⅳ Antenna display——Wet inlay
Ⅴ Production process——Wet inlay
