Ⅰ Main features——Ceramic electronic tag
- It has excellent performance and is widely used in equipment and inventory management.
- It is applicable to asset management.
- It is suitable for being pasted on metal materials.
- It has an EPC memory of up to 128 bits.
- It has an operable user memory of up to 512 bits.
- It has a 64-bit TID global unique code.
- It includes a 32-bit serial number.
Ⅱ Technical parameters——Ceramic electronic tag
Name: Ceramic electronic tag 25mm*9mm
Antenna dimensions: None
Tag dimensions: 25mm*9mm*3mm
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Antenna material: AL
External material: Ceramic
Data retention: More than ten years
Storage temperature: -20℃~220℃
Operating temperature: -20℃~50℃
Static pressure: <10MPA
Ⅲ Product display——Ceramic electronic tag
Sectional display

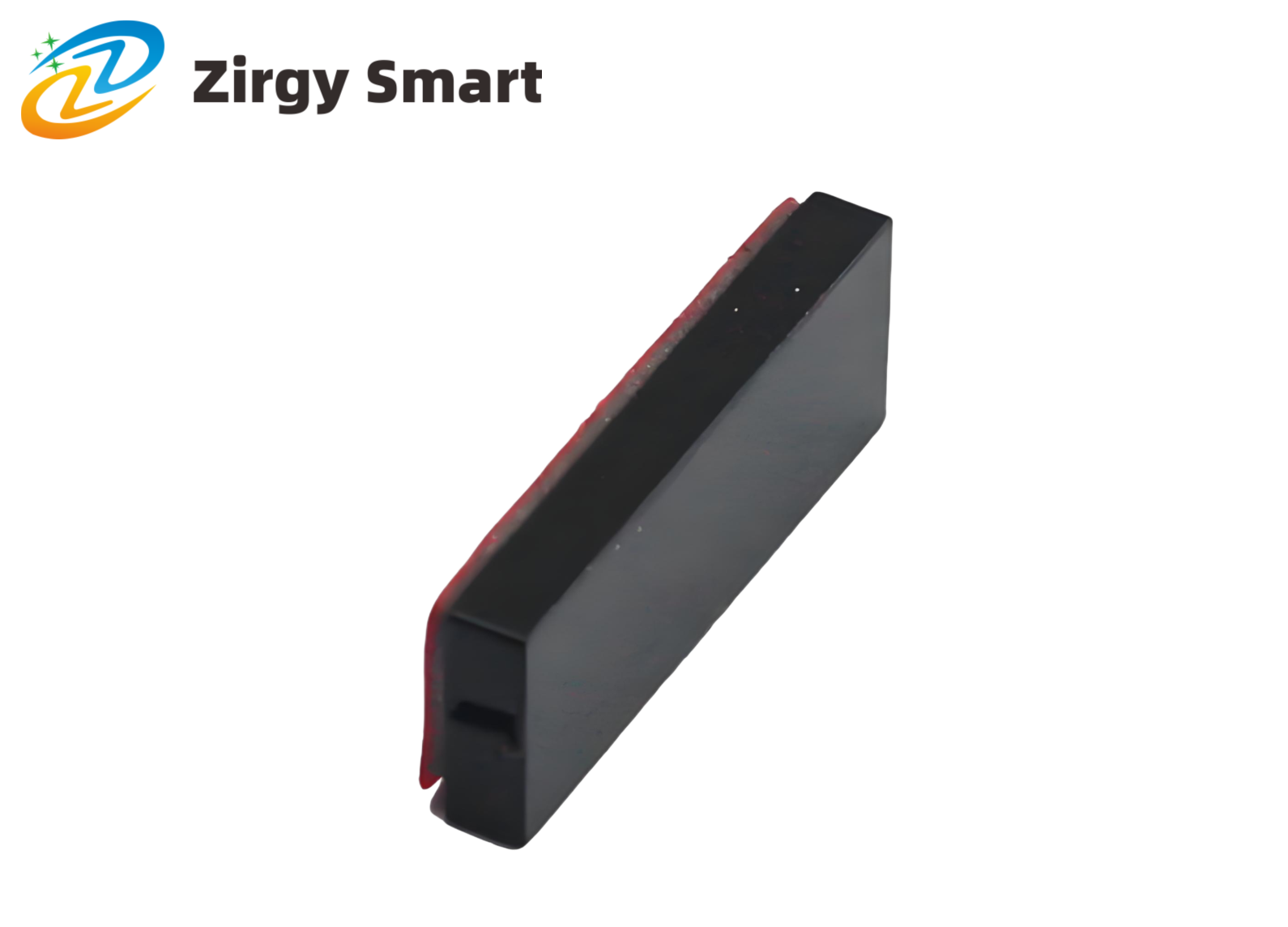

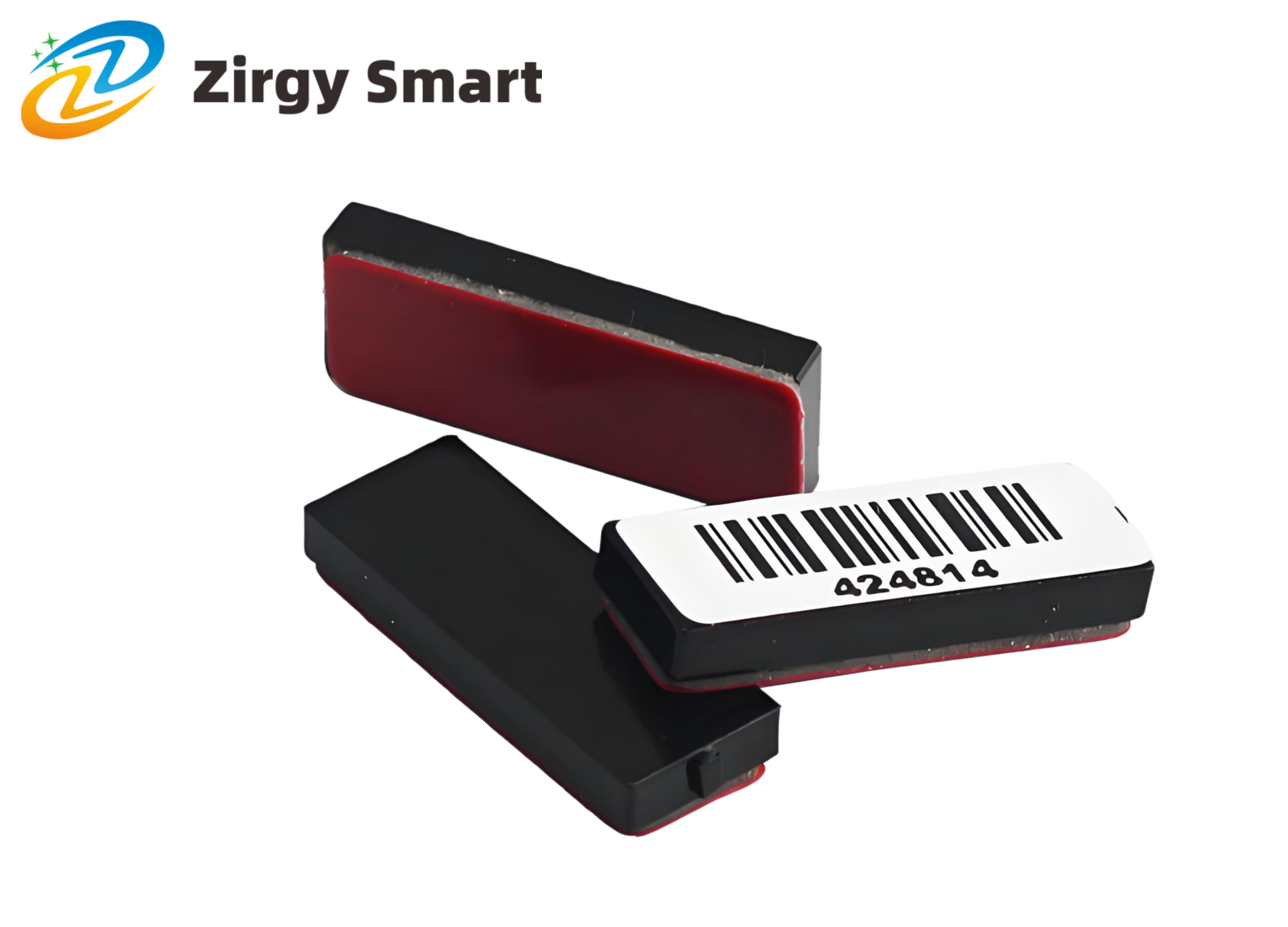

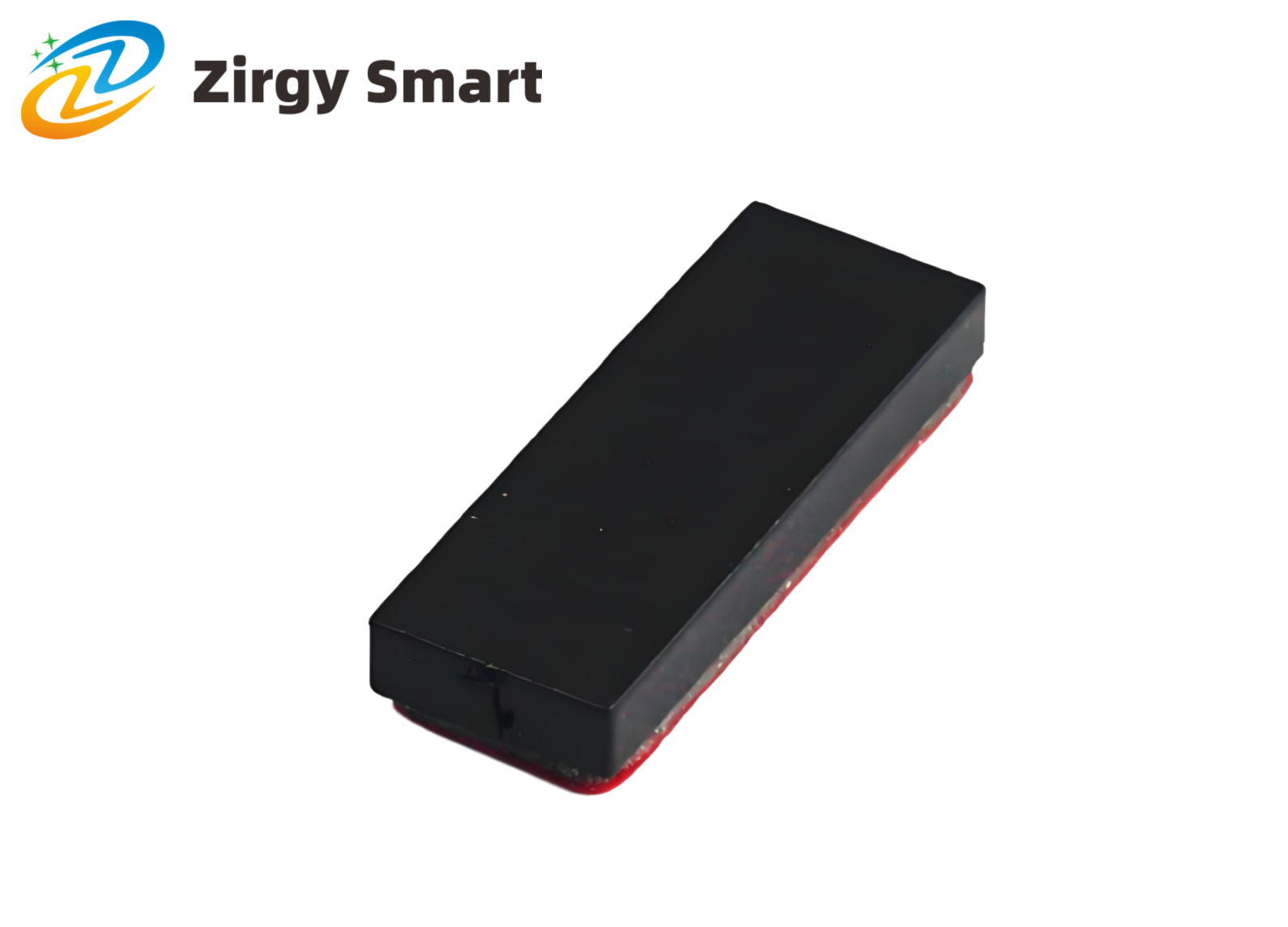

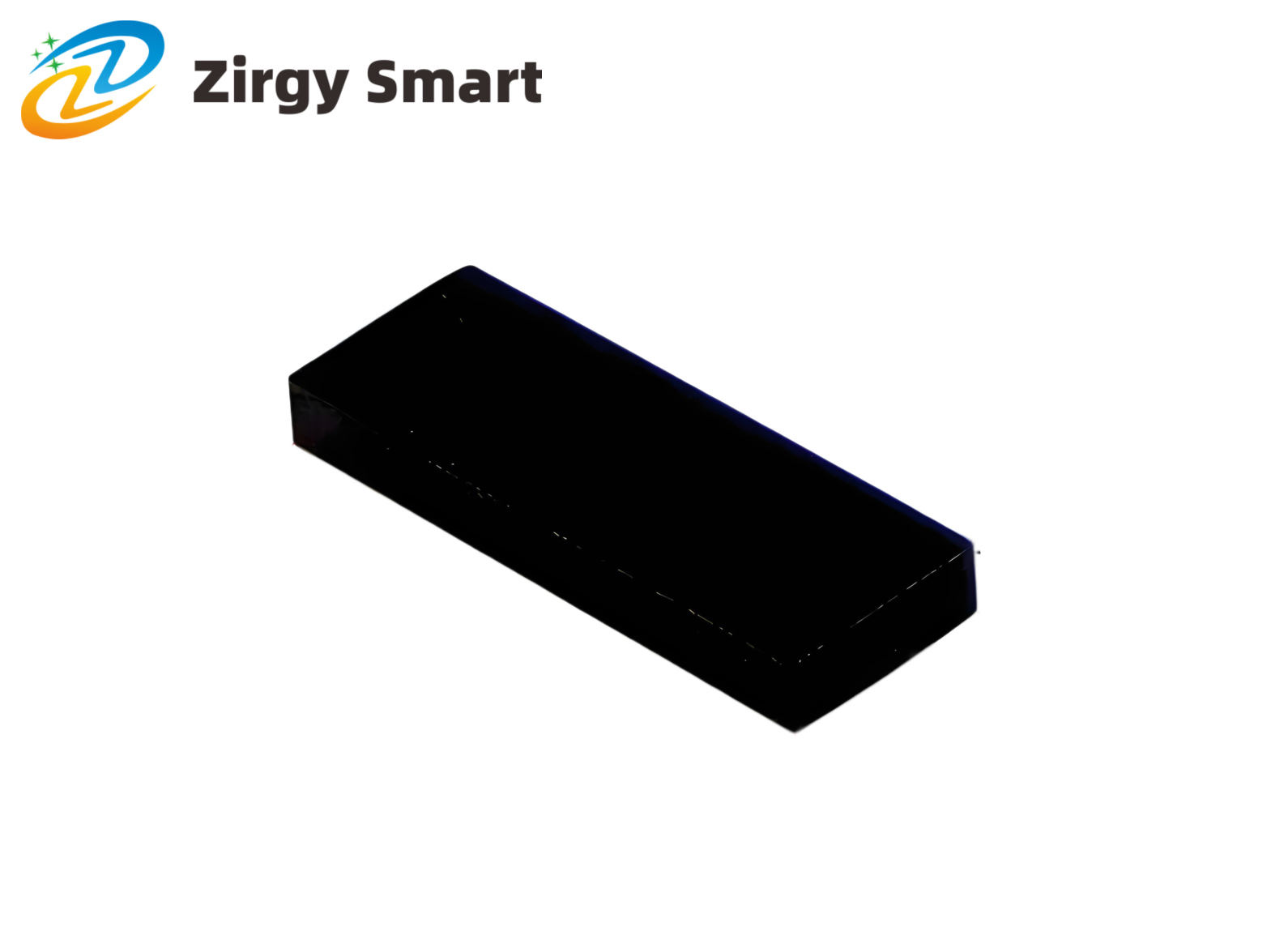

Real-shot display
