Ⅰ Chip features——Metal-resistant electronic tag
- Complies with EPC Gen2 (V1.2.0) and ISO/IEC 18000 - 6C standards.
- Globally applicable tag: Operating frequency ranges from 860 to 960 MHz.
- 800 - bit non - volatile memory.
- 96 - bit EPC.
- 512 - bit User Memory.
- 64 - bit unique TID (non - rewritable).
- 32 - bit access and kill passwords.
- It has a customized command for high - speed data writing, capable of writing the EPC codes of 30 tags per second.
- Excellent operating distance, up to 10 meters with a suitable antenna.
Ⅱ Technical parameters——Metal-resistant electronic tag
Name: Metal-resistant electronic tag 155*32

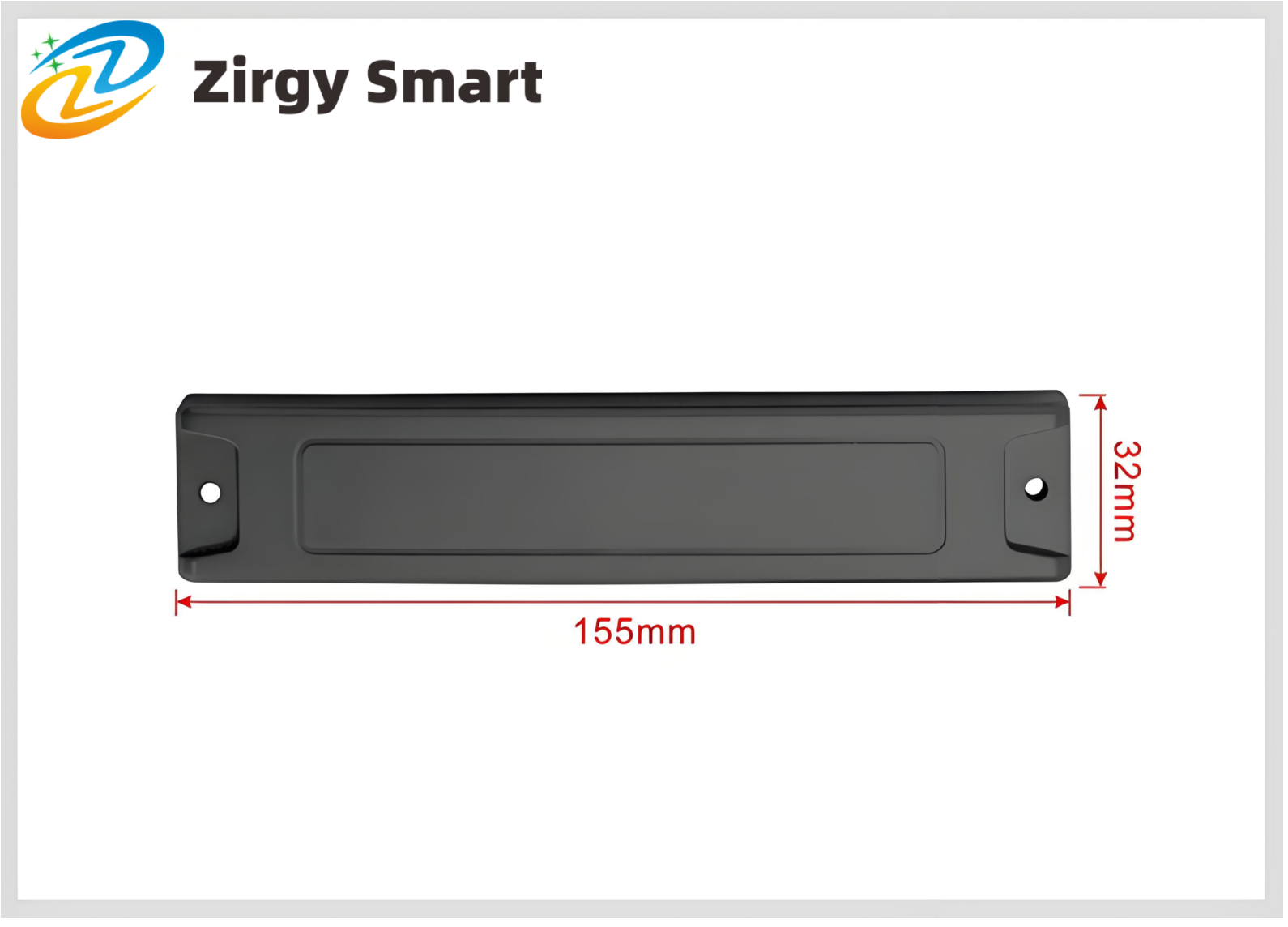

- Tag dimensions: 155*32mm
- Communication protocol: ISO18000-6C
- Operating frequency: 860-960MHz
- Storage capacity: 512bits
- Times of reading and writing: More than 100,000 times
- Data retention: More than ten years
- Optional fabric: ABS
- Operating temperature: -20℃~100℃
- Optional processes: Spot color silk - screening, laser engraving, UV coding, etc.
Ⅲ Product display——Metal-resistant electronic tag

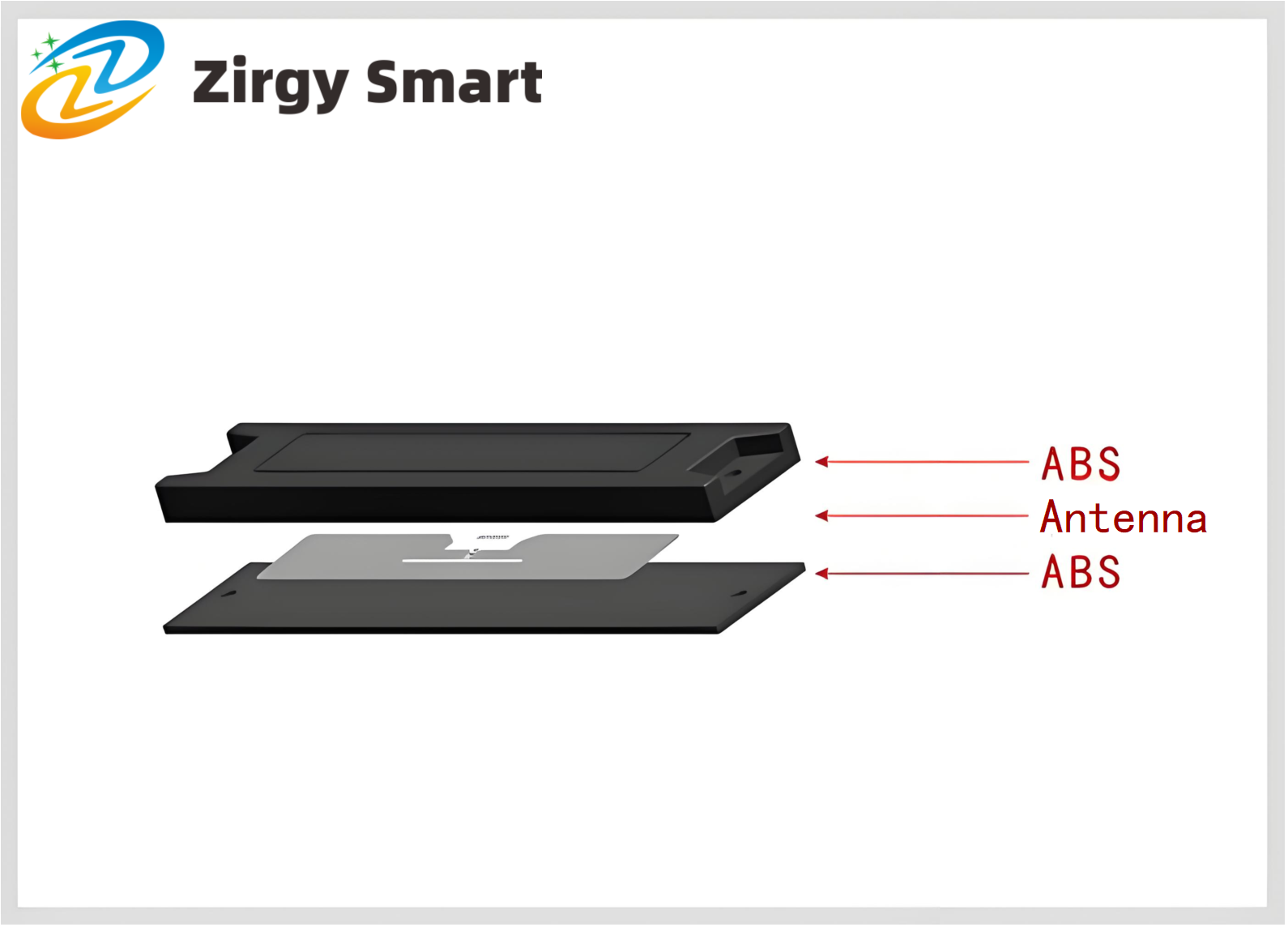

Sectional display

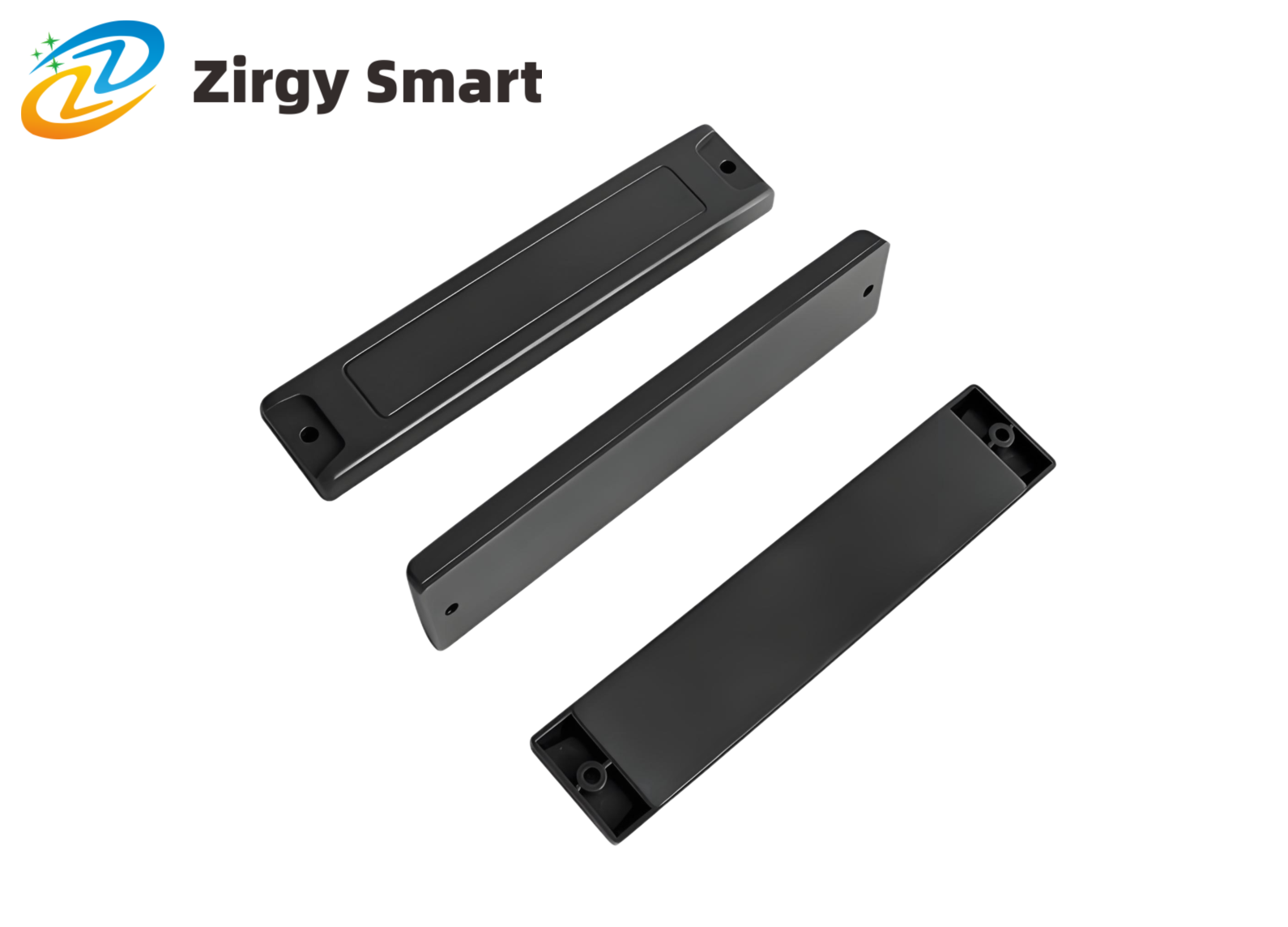

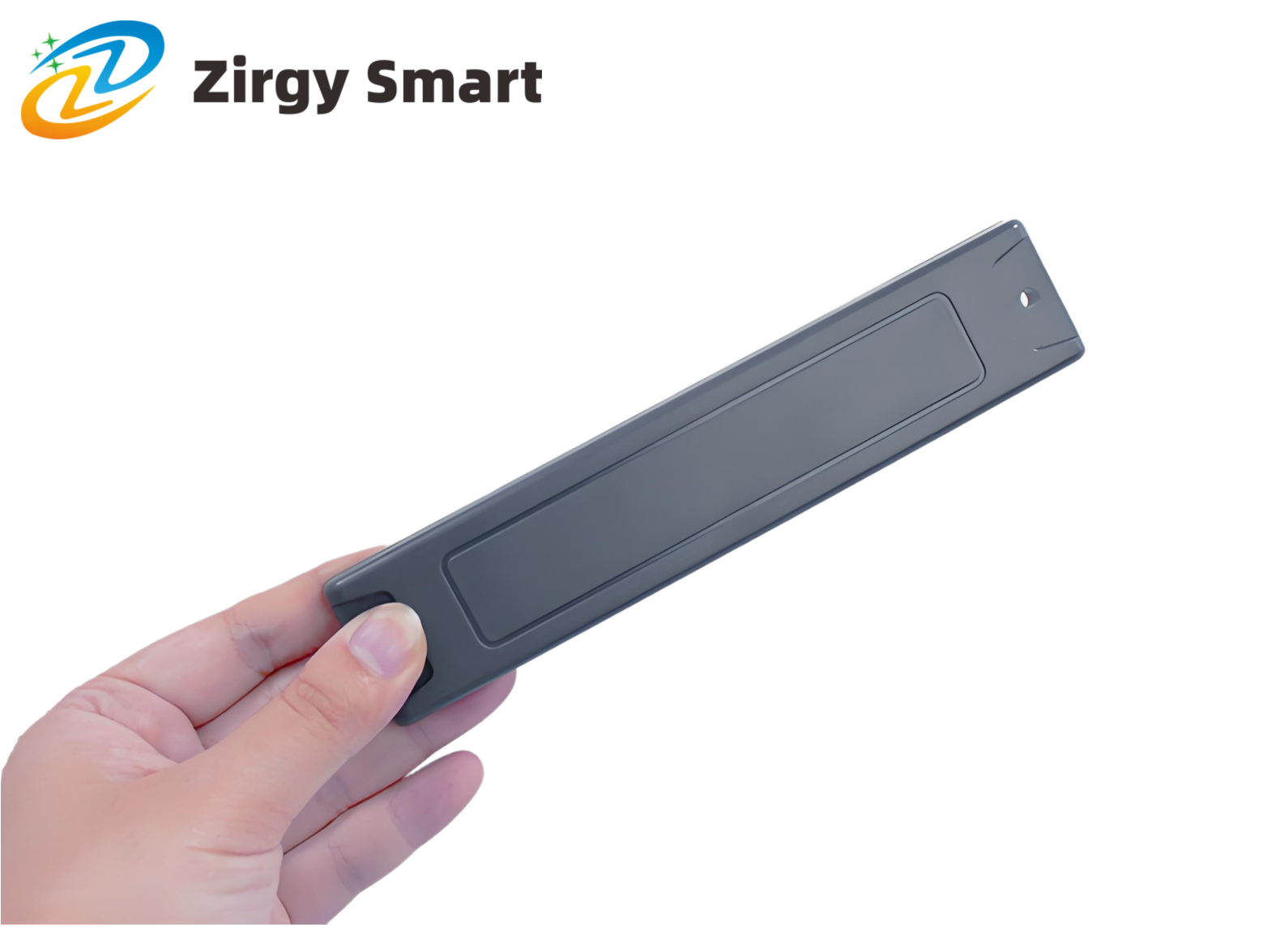

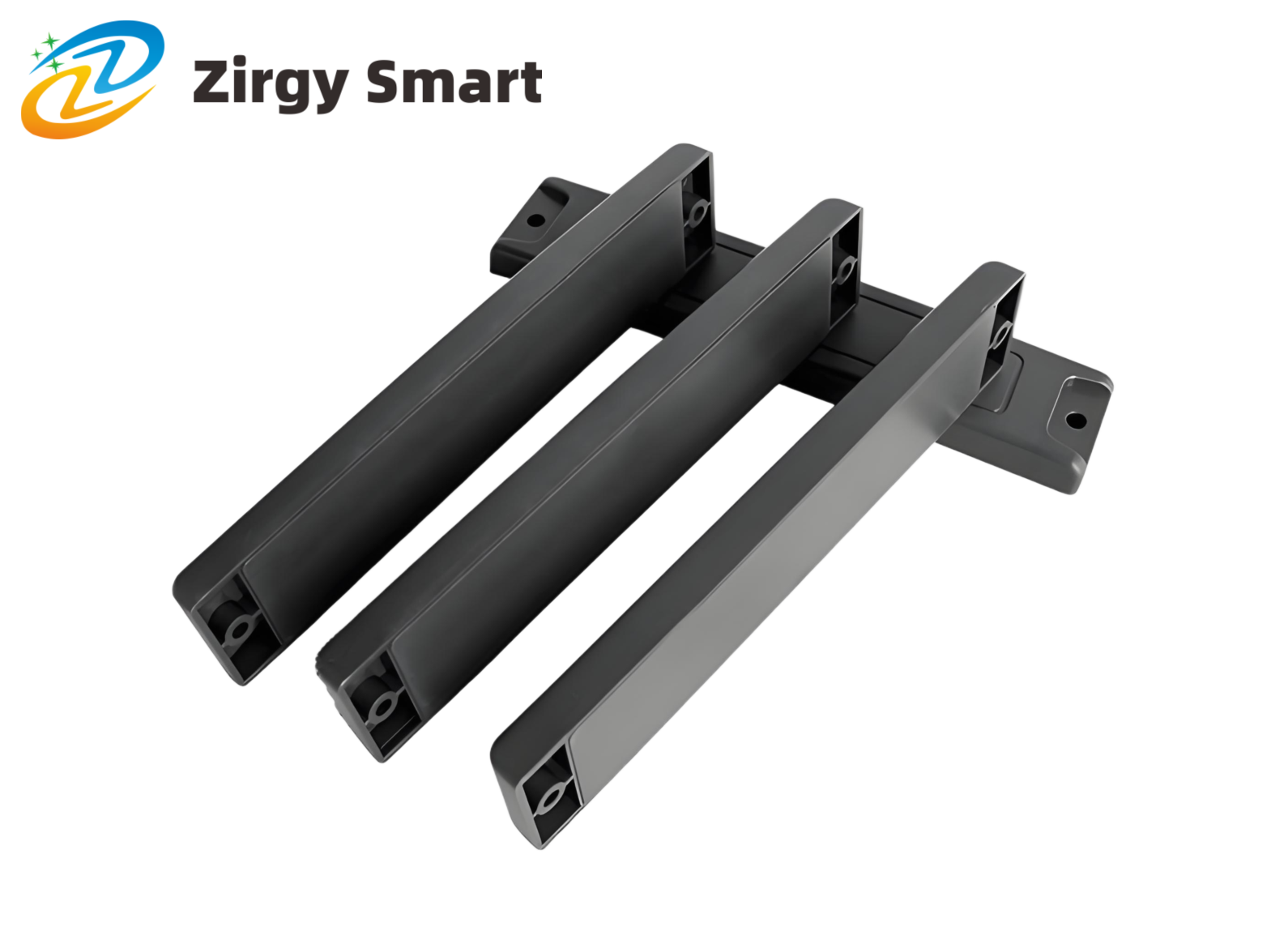

Real-shot display

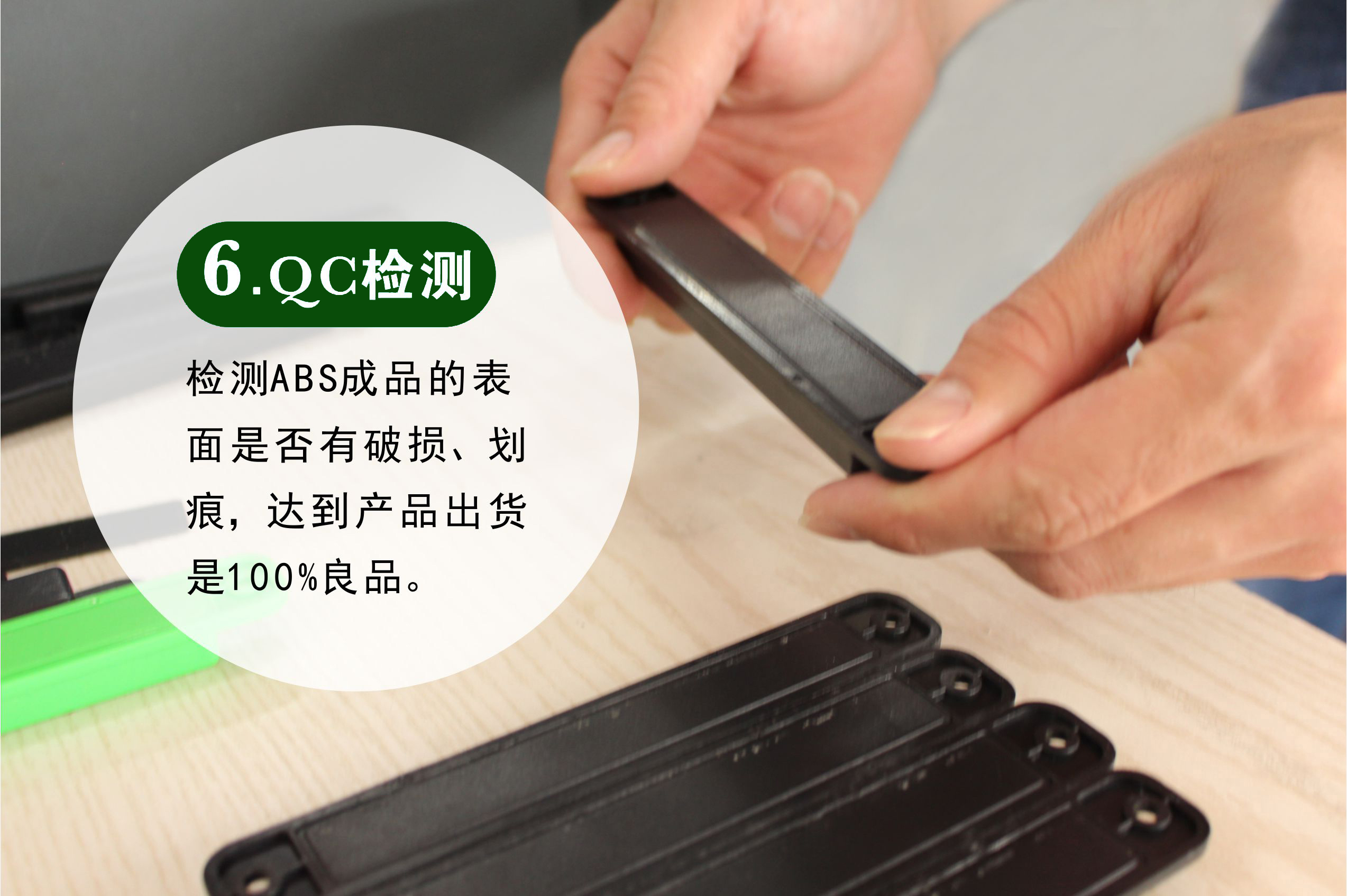

Ⅳ Production process——Metal-resistant electronic tag
