I Chip features--[High-frequency blank paper]
- Compliant with ISO/IEC 1443A
- Operating frequency: 13.56MHz
- Communication baud rate: 106kbit/s
- Contactless transmission of data and energy (no power supply required)
- The operating distance is not less than 100 millimeters (related to the dimensions of antenna)
- Half-duplex communication mode
- The encryption algorithm complies with the M1 standard
- The typical processing time is less than 0.1 seconds
- Compliant with ISO/IEC 1443A
- Operating frequency: 13.56MHz
- Communication baud rate: 106kbit/s
- Contactless transmission of data and energy (no power supply required)
- The operating distance is not less than 100 millimeters (related to the dimensions of antenna)
- Half-duplex communication mode
- The encryption algorithm complies with the M1 standard
- The typical processing time is less than 0.1 seconds
II Technical parameters--[High-frequency blank paper]
Name: High-frequency blank paper (FM1108; 86mm*54mm)
- Optional chip: FM1108 - Antenna dimensions: 76mm*45mm
- Tag dimensions: 86mm*54mm
- Communication protocol: ISO14443A
- Operating frequency: 13.56MHz
- Storage capacity: 8Kbit
- Read-write times: More than 100,000 times
- Data retention: More than 10 years
- Optional fabric: None
- Operating temperature: -20℃~+65℃
III Product display--[High-frequency blank paper]

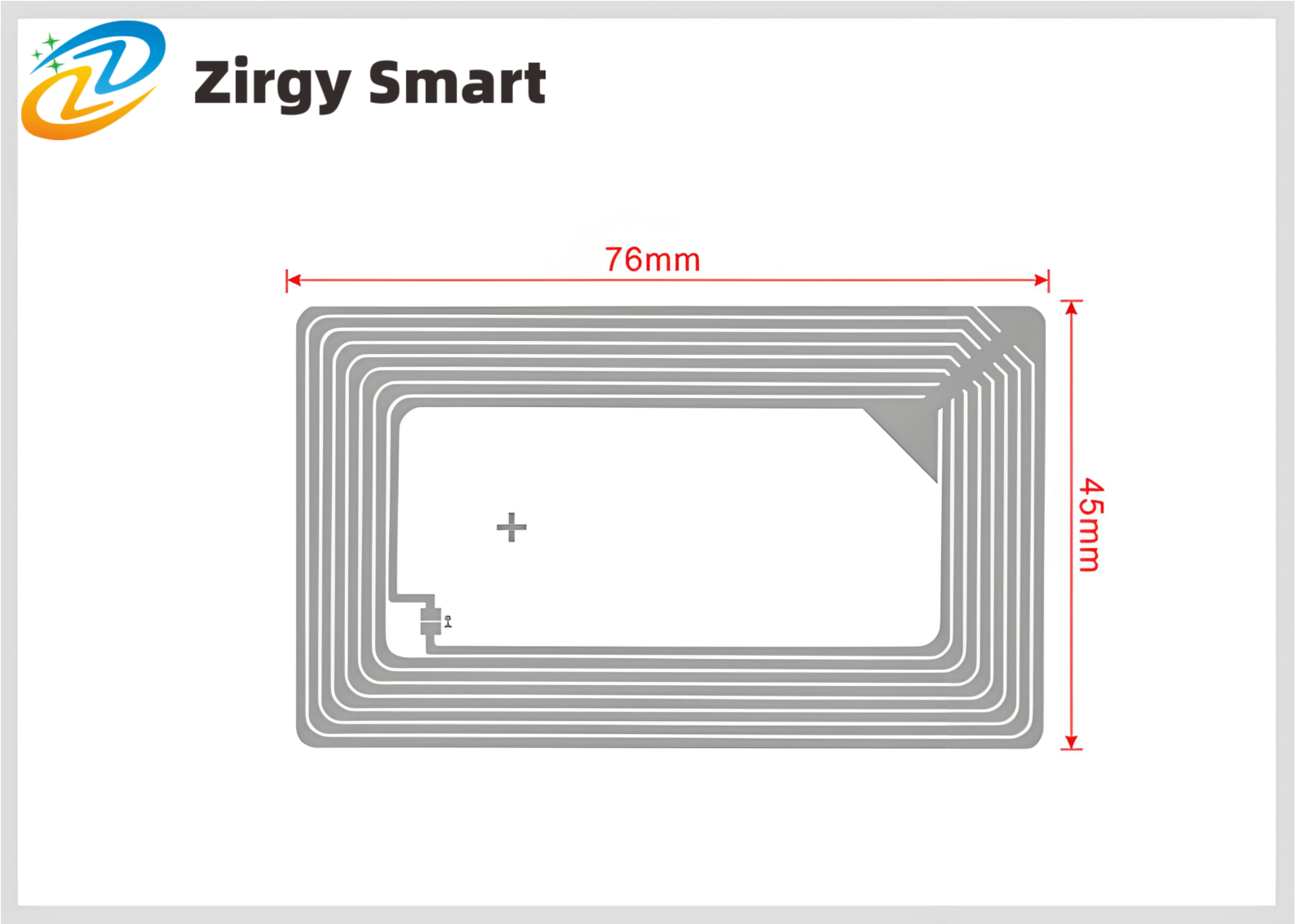

Sectional display

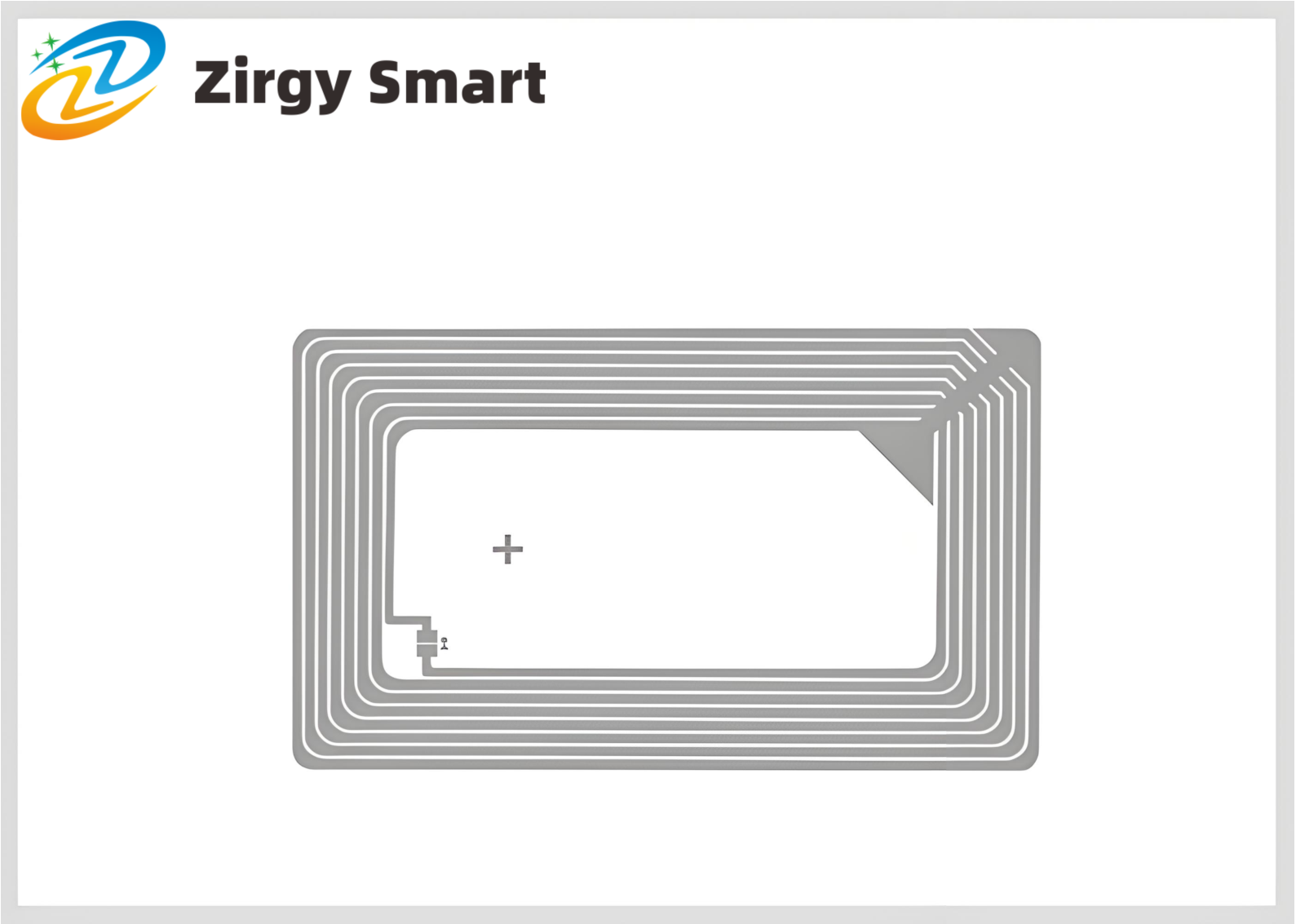

Sectional display

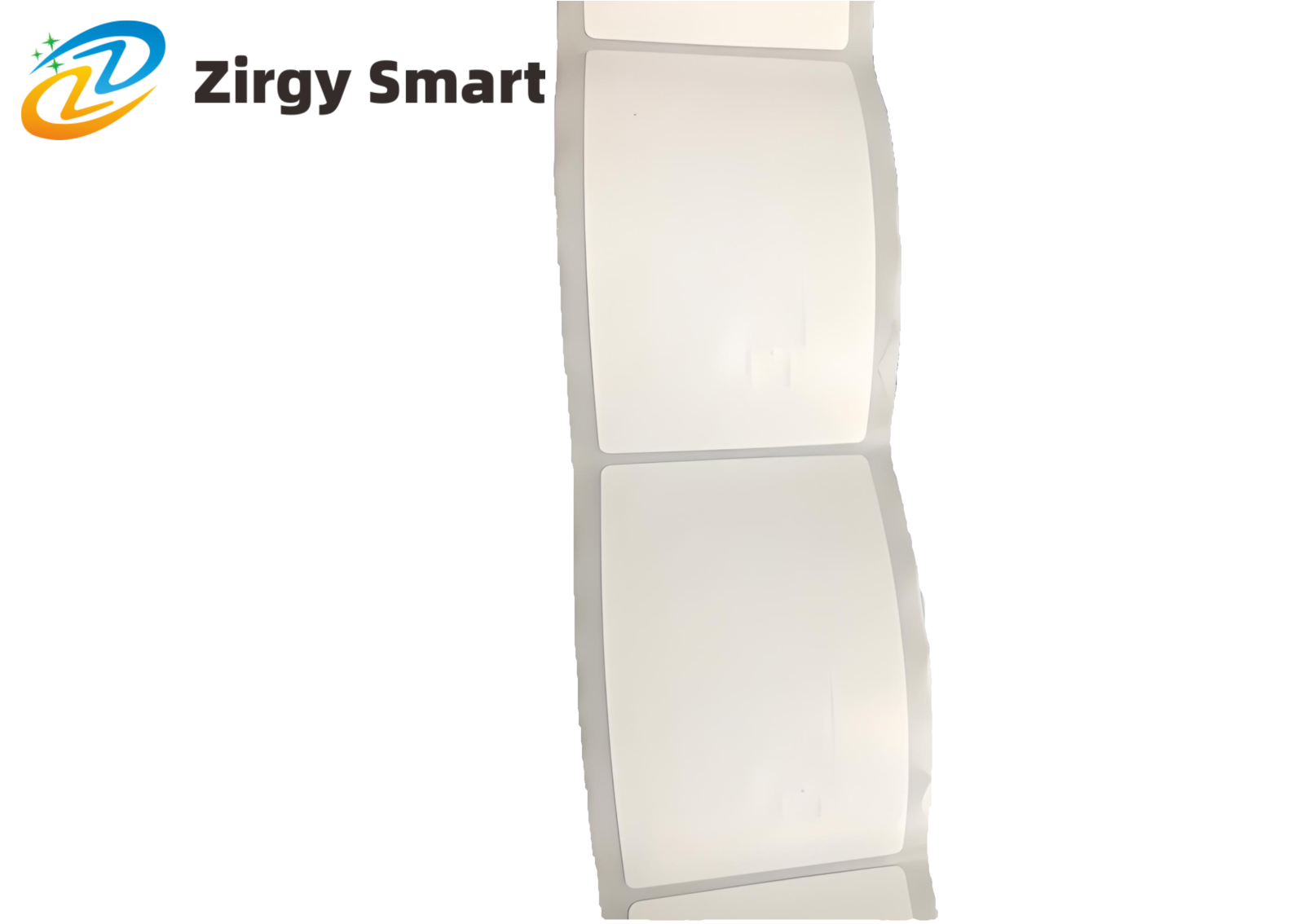

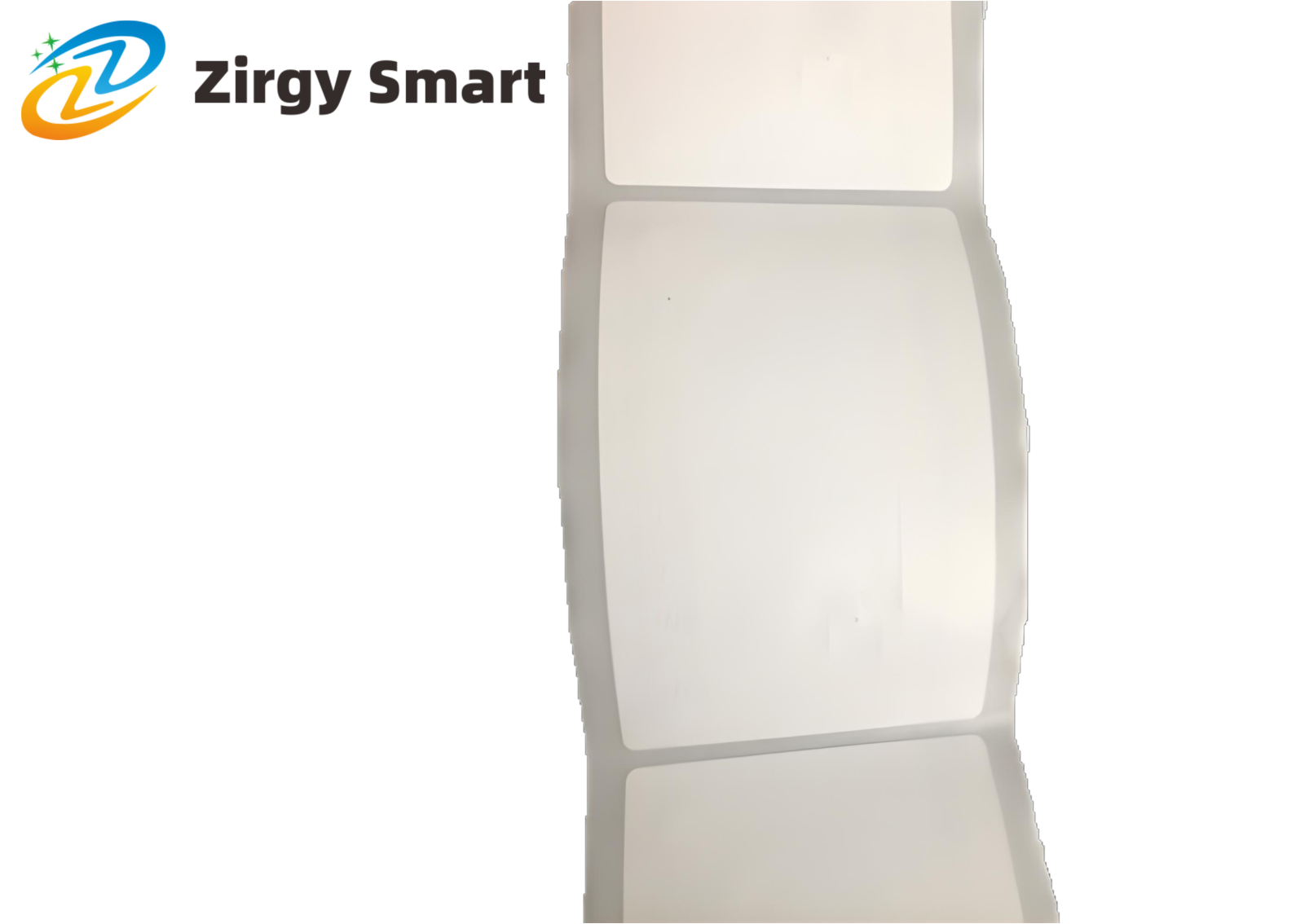

Real-shot display
IV Production process--High-frequency blank paper
