Ⅰ Technical parameters -- electric vehicle anti-theft active radio frequency tag
Name: Electric vehicle anti-theft active RF tag ZJJZ4201
● Product features
The electric vehicle anti-theft active radio frequency tag ZJJZ4201 is an RFID active active electronic tag based on the 2.45GHz band. It is independently developed and produced by ZJIE Intelligence, and has a number of patented technologies, the frequency is 2.4GHZ microwave band, the selection of high-end RF SOC chip design main control unit, the integration of advanced micro-power technology, anti-collision algorithm, radio technology, strong anti-interference, no manual participation, can meet the requirements of various use environments. With automatic identification, tracking, positioning, collection and other functions. It is installed on the traffic security monitoring pole of the road section or in the environment of warehousing, factory buildings, etc., and installed every 500 meters (the actual distance needs to be determined according to the site environment), which is used to receive the ID code of the electronic label on the item, and summarized to the server for management. It is suitable for integrated applications such as automatic identification of electric vehicles, vehicle inspection, parking lot management, ETC non-parking fee application, ETC.
· Compact and light, easy to install
· Ultra-low power consumption, long service life;
· Long identification distance, high sensitivity, automatic identification, tracking, positioning, collection, without manual intervention.
● Specifications
| Model | ZJJZ4201 |
| Operating frequency | ISM2.45GHz |
| Output power | 0dbm |
| Communication distance | 80~150 meters |
| Ultra-low power consumption | Static working current 2~3 microamps (25℃ working temperature) |
| Electrical characteristic | Built-in button CR2450 battery, working voltage 3V |
| Useful life | More than 3 years |
| Secure encryption | 5 byte encrypted ID, high security |
| Signal cycle | Send ID code every 3 seconds (send time can be adjusted according to the actual situation of customers) |
| Operating temperature | -20℃ ~ +60℃ |
| Dimensions | 42*42*13mm (Subsequent label size and shape can be customized according to customer requirements) |
| Weight | 16g (including battery) |
| Data processing | Proprietary anti-interference data encryption algorithm is adopted to ensure data security and reliability |
| External shell | ABS material, ultrasonic welding, waterproof, dustproof and shock resistant |
| Protection rating | IP65 |
| Quality rating | The product has passed the national human electromagnetic radiation test and is harmless to people |
Ⅱ Product display -- electric vehicle anti-theft active radio frequency tag

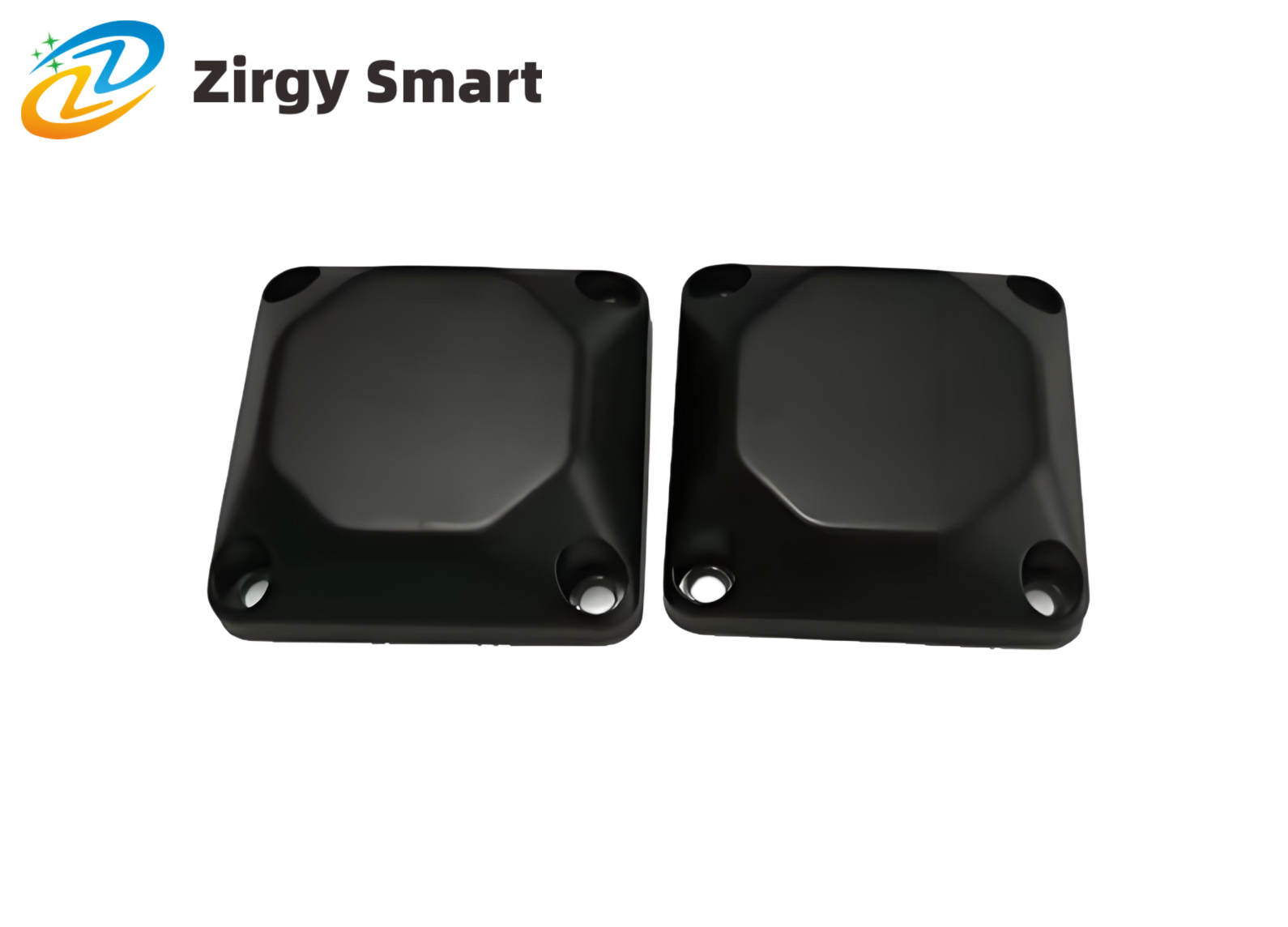

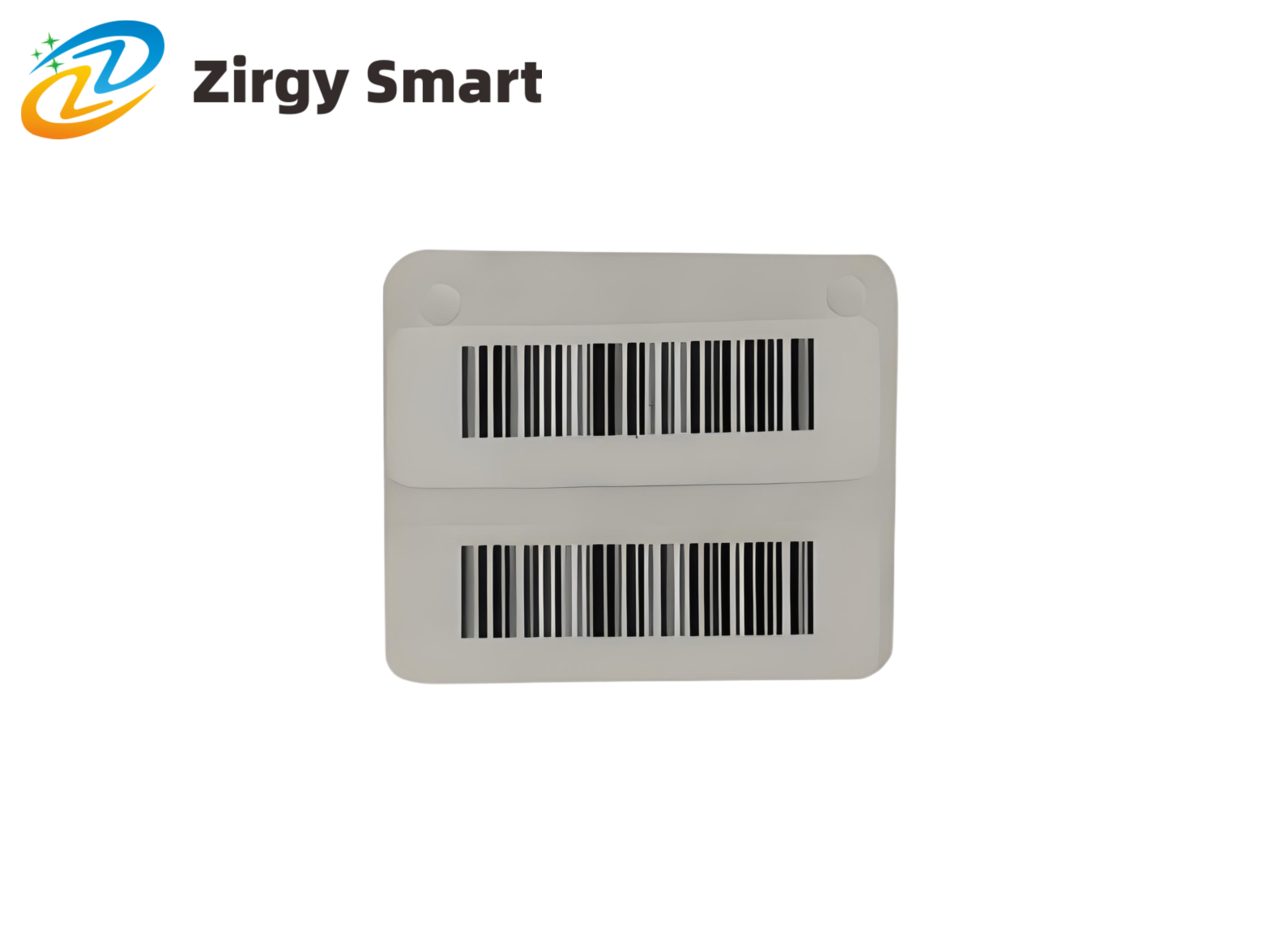

Real-shot display
