Ⅰ Product Overview -- Electronic lead seal RF label
Name: Electronic lead seal RF label ZJ-04E
Electronic lead seal RF label ZJ-04E has a bar code label inside, built-in RFID chip, the product will form a one-time seal after successful sealing, can only be removed after cutting the sealing line.
● Product features: PS transparent plastic seal shell, self-locking plug-in using colored ABS plastic and embedded stainless steel shrapnel, RFID chip using epoxy resin curing package, to ensure the seal waterproof, dustproof, anti-vibration.
● Application: water and electricity meters, refueling machines, taxi meters, mail bags, logistics, banking, chemical industry, mining, foreign trade commodity inspection and other industries.
Electronic lead seal RF label ZJ-04E has a bar code label inside, built-in RFID chip, the product will form a one-time seal after successful sealing, can only be removed after cutting the sealing line.
● Product features: PS transparent plastic seal shell, self-locking plug-in using colored ABS plastic and embedded stainless steel shrapnel, RFID chip using epoxy resin curing package, to ensure the seal waterproof, dustproof, anti-vibration.
● Application: water and electricity meters, refueling machines, taxi meters, mail bags, logistics, banking, chemical industry, mining, foreign trade commodity inspection and other industries.
Ⅱ Product parameters -- electronic lead seal RF label

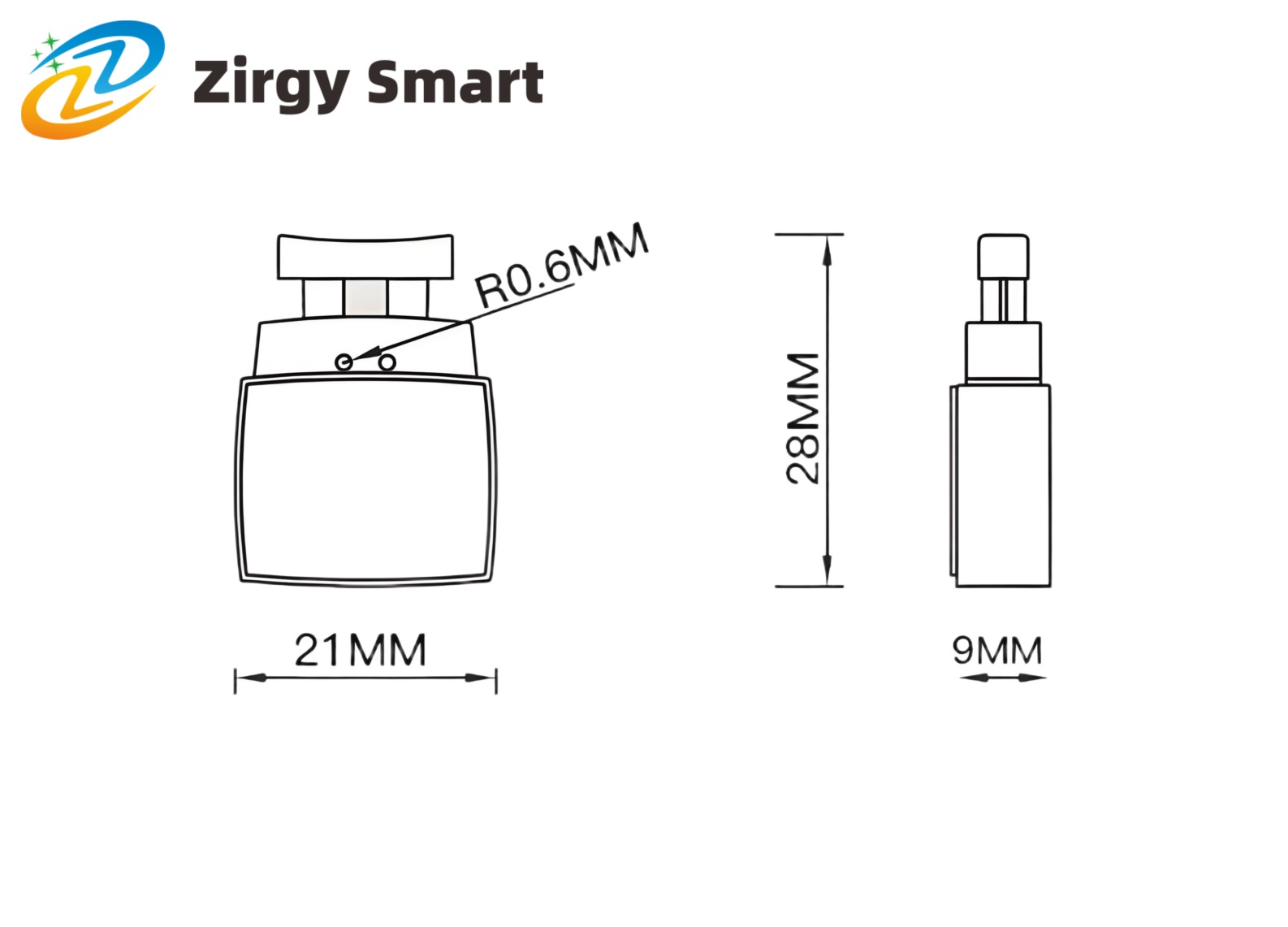

| Product dimensions | 25.6*17.2*8.2mm |
| Waterproof and dustproof performance | Compliant with IP65 international standard |
| Executive standard | Compatible with ISO15693 protocol |
| Standard operating frequency | 125K\13.56M\915MHz |
| Product material | Plastic lock body and metal wire. The plastic lock body consists of two parts: the lock core and the lock sleeve, both of which are made of ABS plastic injection molding. |
| Metal wire specification | 0.7 mm diameter, six steel and one copper |
| Standard length | 15 cm, can be increased or decreased according to customer requirements |
| Locking mode | Press lock easy installation: thread through the two holes of the plastic lock head, adjust the position, press into the plug-in fixed |
| Printing mode | Laser engraving code, company name, serial number, bar code |
| Product colour | Lock cover: transparent or opaque; Lock core: red, blue, yellow, green, blue, etc., can be customized according to customer requirements |
Ⅲ Product photo - Electronic lead seal RF label

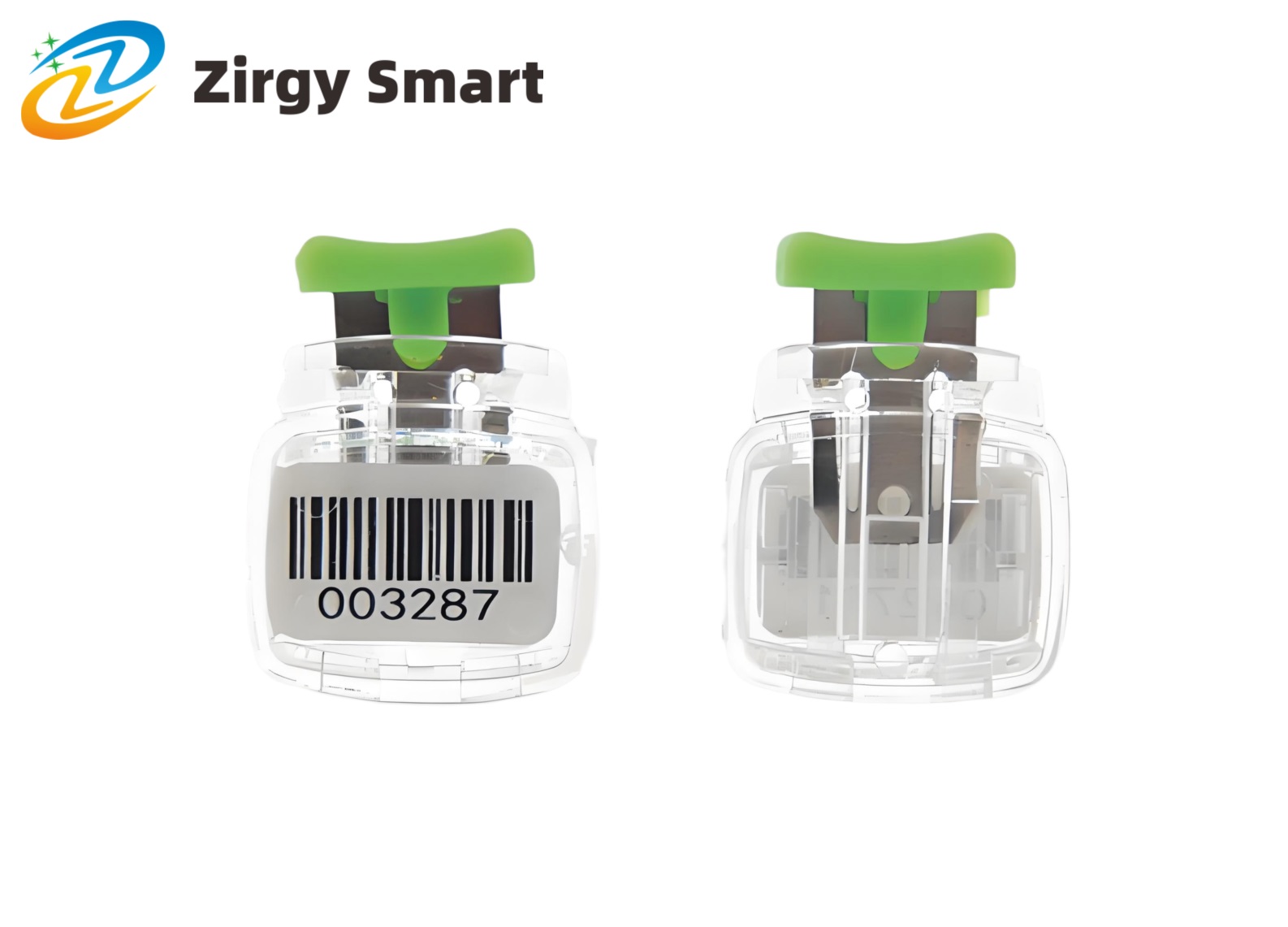

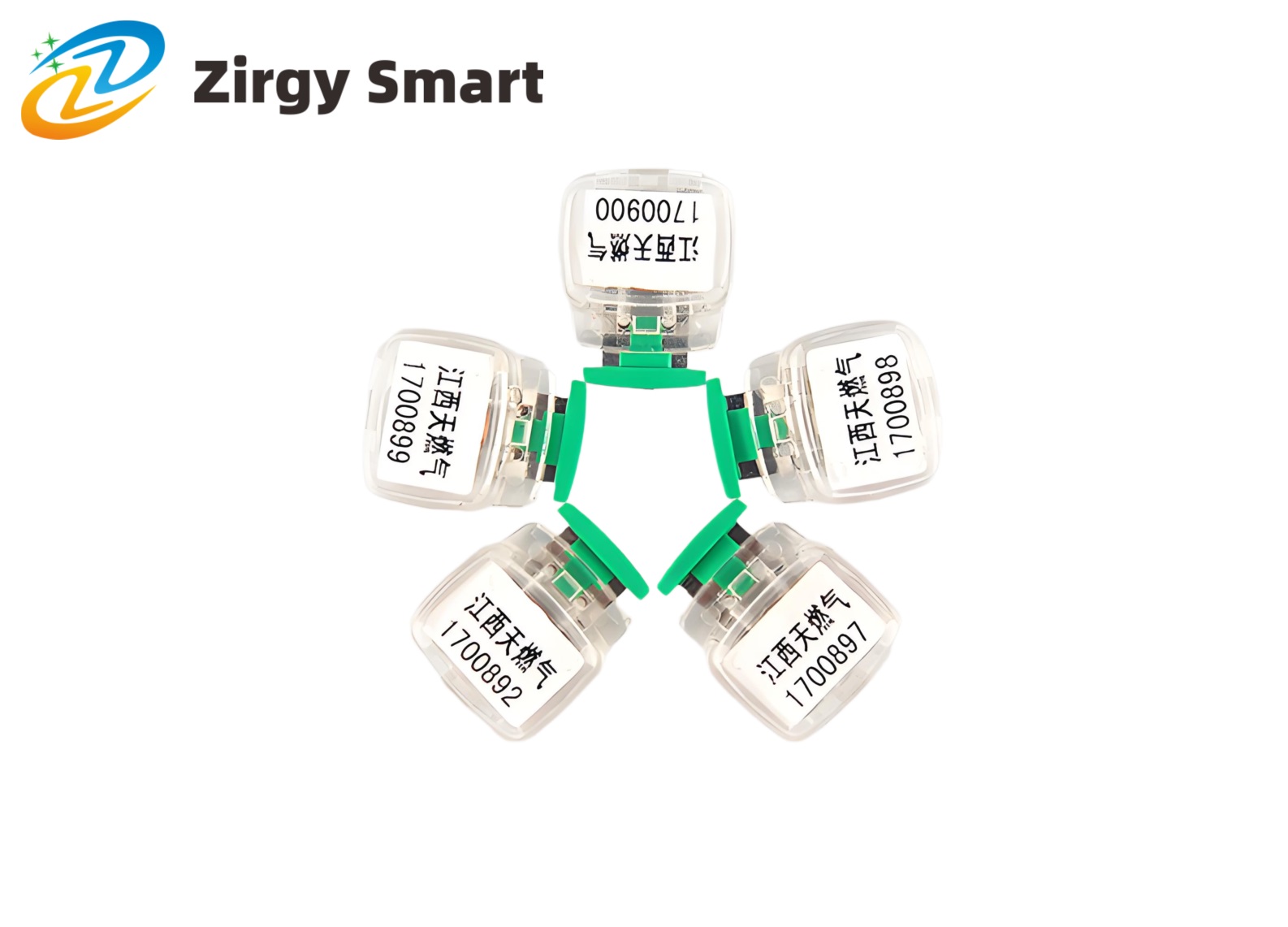

Real-shot display

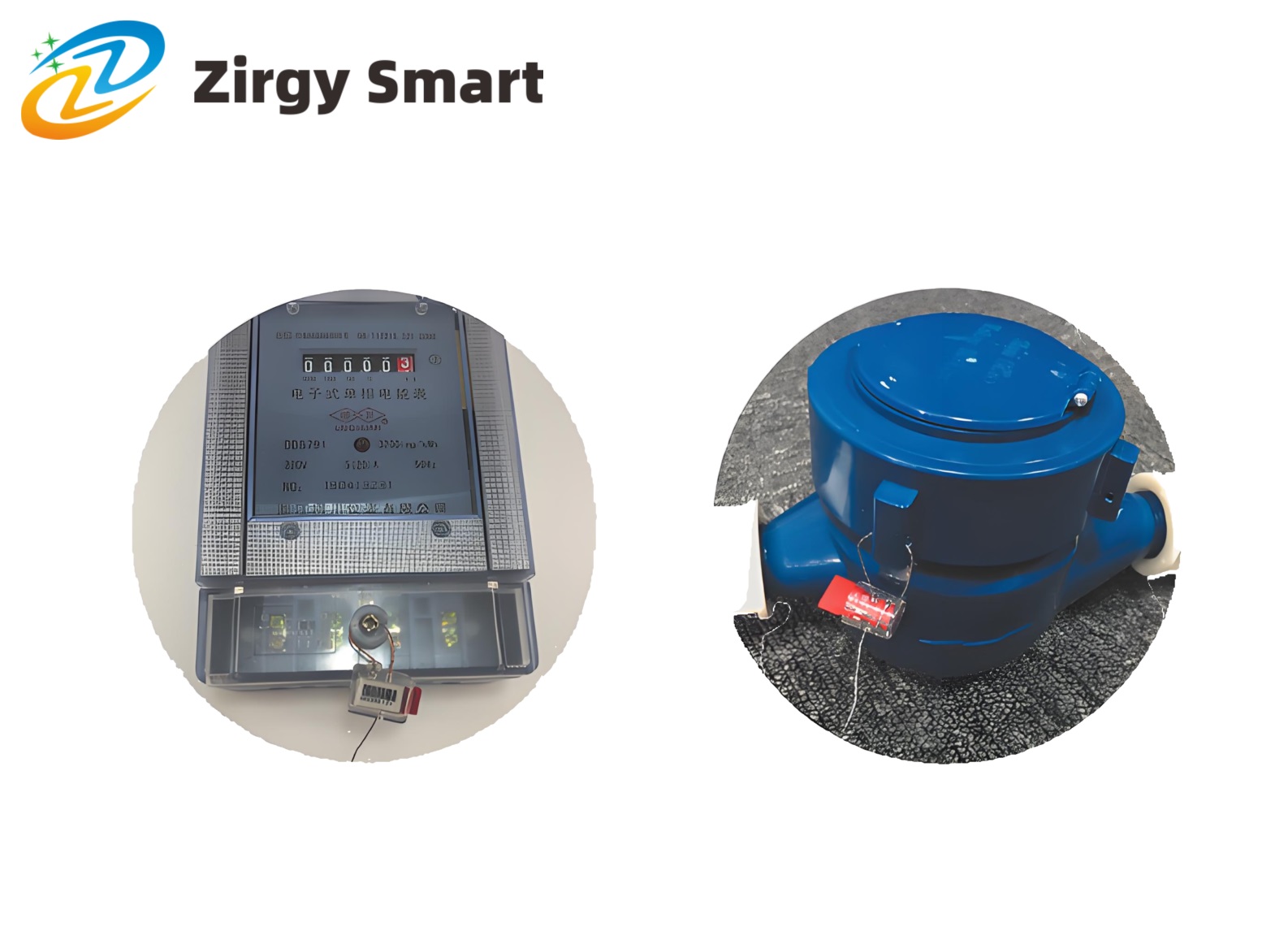

Application display
