Ⅰ Fundamental specification and parameters——GPS 3G positioning and photo-taking pendant ZJGPS-06
2G GSM frequency band: 850/900/1800/1900MHz
3G WCDMA frequency band: 850/1900MHz model A
900/2100MHz model B
It is necessary to select a reasonable frequency band (choose one of the two) according to different usage regions.
GPRS standard: Class 12, TCP/IP
GPS positioning time: cold start 60sec(outdoor open sky)
warm start 29sec(outdoor open sky)
hot start 5sec (outdoor open sky)
GPS positioning accuracy: 10-15 meters (outdoor open sky)
WiFi positioning accuracy: 15-100 meters
Base station positioning accuracy: 100-1000 meters
Colour: Blue, grey, red
Material: ABS
Operating temperature: -18℃ ~ +45℃
Operating humidity: 5% ~ 95% RH
Product dimensions: 45 (length) x 50 (Width) x 15.5 (Height)mm
Product net weight: 33 grams
Battery capacity: 500 mA
Ⅱ Main function introduction——GPS 3G positioning photo-taking pendant ZJGPS-06
- Real - time tracking
- Historical trajectory playback
- Electronic fence
- SOS emergency call and one - key dialing
- Voice time announcement
- Fall alarm
- Picture monitoring function
- Ringtone + vibration alert for incoming calls
- Two - way high - fidelity voice call
- Silent care mode
- Low - battery alarm
- SIM card replacement prompt

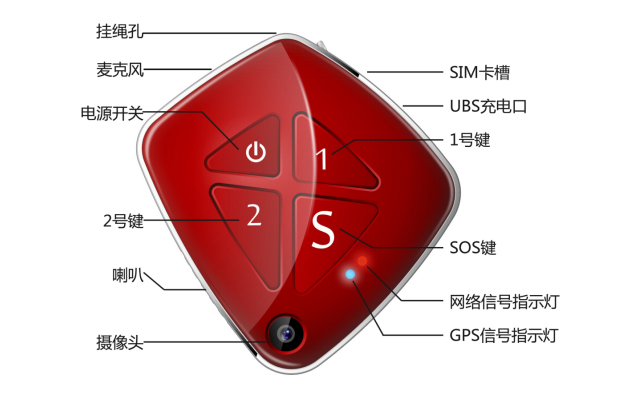

Ⅲ Interface introduction——GPS 3G positioning photo-taking pendant ZJGPS-06
Indicator light instructions:
Details of the GPS indicator light and the communication network indicator light:
|
Light |
Function |
Slow flash |
Fast flash |
Light off |
|
Blue |
GPS indicator |
GPS positioning in progress. |
Positioning successful. |
GPS is in sleep mode. |
|
Red |
communication indicator |
Searching for a communication network. |
Communication network search successful. |
Communication is in sleep mode. |
Ⅳ Packaging accessories——GPS 3G positioning and photo-taking pendant ZJGPS-06
Ⅴ Usage cases——GPS 3G positioning and photo-taking pendant ZJGPS-06

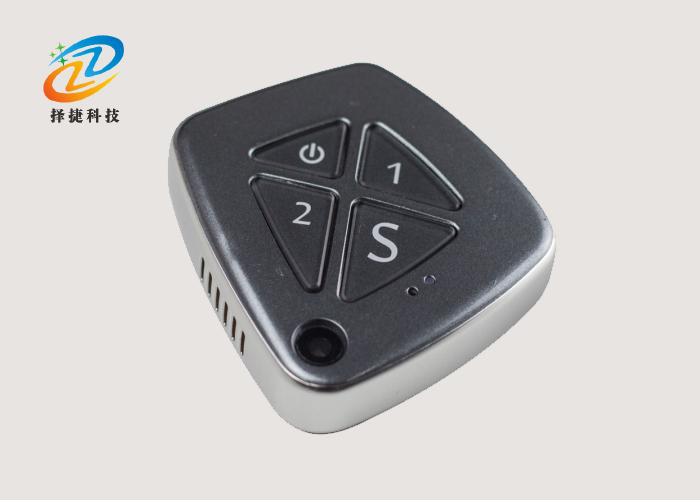

Ⅵ Product display——GPS 3G positioning photo-taking pendant ZJGPS-06
