Ⅰ Product introduction——Text tag for picking big screen ZJ-ZW06
Name: Text tag for picking big screen ZJ-ZW06
Text tag for the picking big screen ZJ-ZW06 The super-large liquid crystal display screen offers more content and a larger display area. It can display Chinese electronic location labels in the GB18030 character set, showing location information and relevant data that customers care about. It provides 7 types of confirmation lights for users to choose from to distinguish different operations.The Chinese label for the picking big screen ZJ-ZW06 is an IoT device applied to shelves. Its main function is to serve as an IoT information access point for the storage location. It collects user operation information through sensors such as buttons, and transmits system data to users in the form of visual information through lights and the screen to complete human-machine interaction.Generally, in this way, it can intuitively and efficiently guide users to find the storage location corresponding to the electronic location label, improving operation efficiency and accuracy, and reducing labor costs and management costs. It is widely used in storage and picking scenarios such as outpatient pharmacies, hospital pharmacies, e-commerce warehouses, spare parts warehouses, electronic component warehouses, hardware accessories, and mechanical manufacturing.
Ⅱ Technical parameters——Text tag for picking big screen ZJ-ZW06
| Model | ZJ-ZW06 |
| Screen dimension | 4.3 inches |
| Resolution | 480×272 pixels |
| Colour | 260,000 colours |
| Display character | Digital |
| Confirmation light key | 7 colours, can be set separately |
| Useful life of confirmation key | More than 20,000,000 times |
| Communication protocol | CAN |
| Operating voltage | 24VDC |
| Power consumption | 1.2W |
| Operating temperature | -20 ～ +70℃ |
| External dimension | 180.5×80×18.5mm |

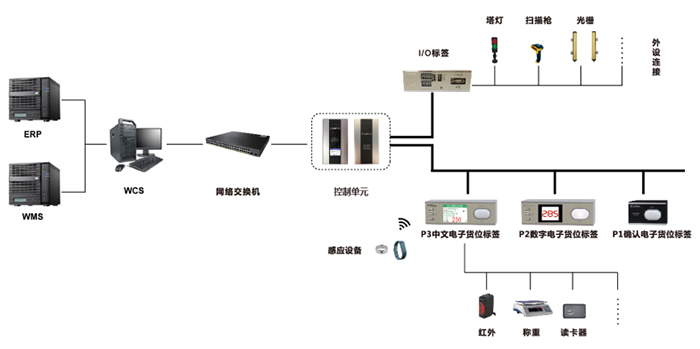

Ⅲ Product networking diagram for use——Text tag for picking big screen ZJ-ZW06
● The total number of electronic tags (including adapters) covered by each single-channel area controller and area power supply: In an S-shaped connection, 80 pieces.
● The total number of electronic tags (including adapters) covered by each dual-channel area controller and area power supply: In an S-shaped connection, 120 pieces.
● The total number of electronic tags (including adapters) covered by each dual-channel area controller and area power supply: In an S-shaped connection, 120 pieces.

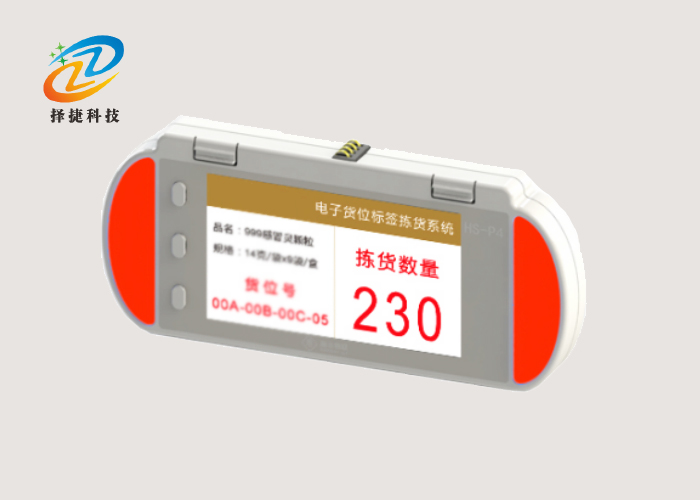

Ⅳ Product real-shot——Text tag for picking big screen ZJ-ZW06
