Ⅰ Product Overview -- Chinese electronic picking label ZJ-ZW02
Name: Chinese electronic picking label ZJ-ZW02
Chinese electronic picking label ZJ-ZW02 can display the GB18030 character set of Chinese electronic location label, can display the location information and customer concern about the relevant data, can provide 7 kinds of confirmation lights for users to choose to distinguish different operations. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Ⅱ Product features -- Chinese electronic picking label ZJ-ZW02
● Multi-font library
Supports multiple sizes, fonts and languages.
● Support rare words
Support GB18030 character set Chinese characters, a total of 27538 Chinese characters.
● Icon display
Custom ICONS can be imported online and displayed in a specified position on the LCD screen.
● One-dimensional code/two-dimensional code
One-dimensional bar codes such as EAN13 and CODE128 are supported, and QR CODE is supported.
● Customized templates
LOGO, templates, etc. can be customized according to customer needs, and customers can adjust the content displayed on the screen according to their own needs.
● Multi-template switching
Supports template switching during process use, diversified information display, and supports a maximum of three templates.
● Voltage detection
Support label voltage detection, intuitively understand the power supply status of the line.
● Light on mode
You can select blinking, steady on, breathing light and other lighting modes.
● Screen brightness adjustment
Adjustable screen brightness: the brightest, bright, off screen, a total of three.
● Screen orientation adjustment
Adjustable screen landscape or portrait display, adapt to different display needs, the default is landscape display.
● Online upgrade
Support e-tag firmware online upgrade, online transmission of image data.
Ⅲ Technical parameters -- Chinese electronic picking label ZJ-ZW02
| Model | ZJ-ZW02 |
| Screen dimensions | 2.4 inches, TFT screen |
| Resolution | 320 * 240 pixels |
| Colours | 65,000 colours |
| Displayed character | Alphanumeric man, support GB18030 character set |
| Confirming light button | Seven colours, can be set separately |
| Useful life of confirming light button | ≥20 million times |
| Communication protocol | CAN2.0B |
| Operating voltage | 24VDC |
| Power consumption | 0.48W±10% |
| Operating temperature | -20 to 70 degrees |
| Dimensions | 145.6 * 48.5 * 17mm |

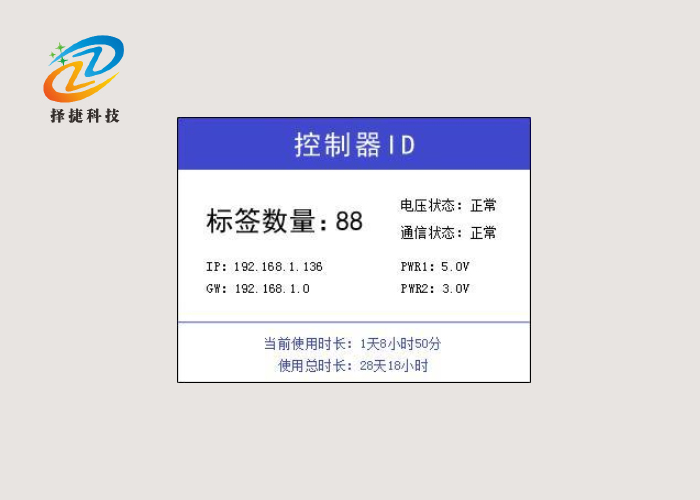

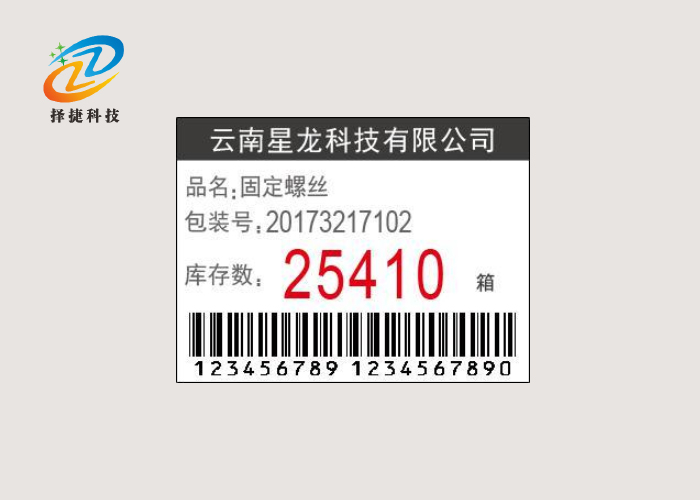

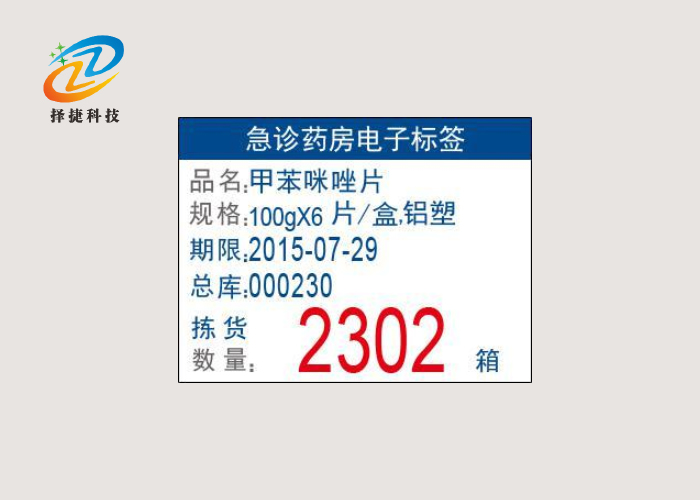

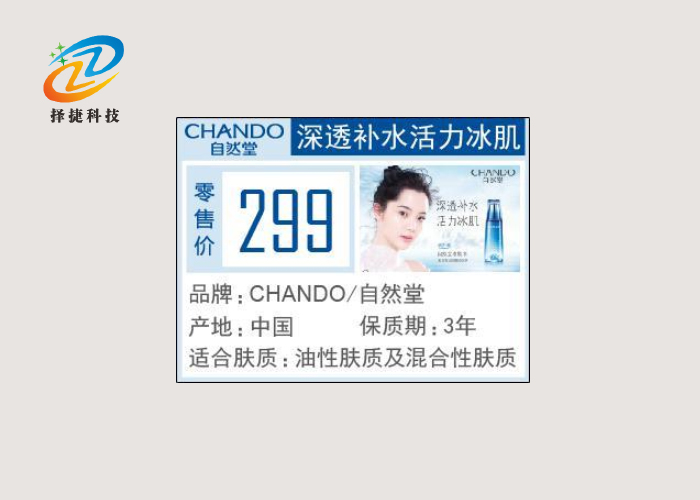

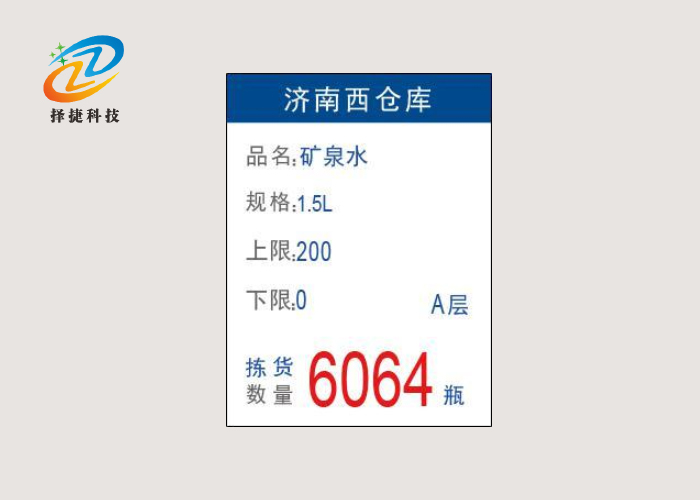

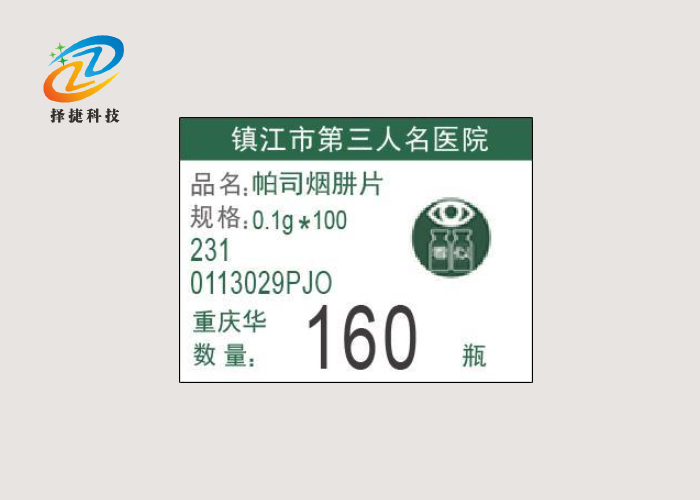

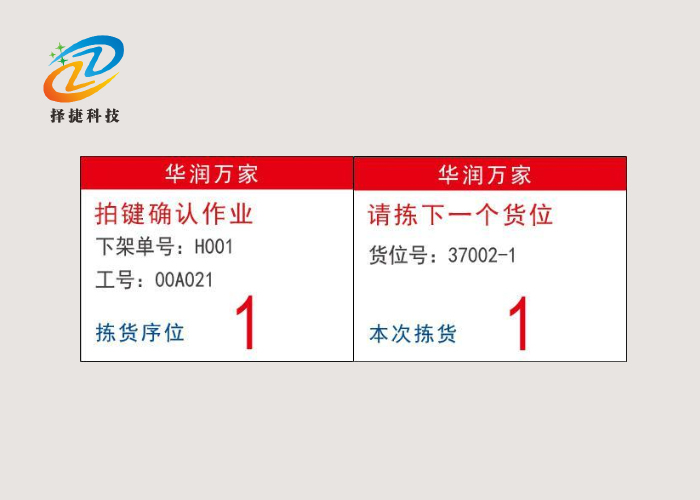

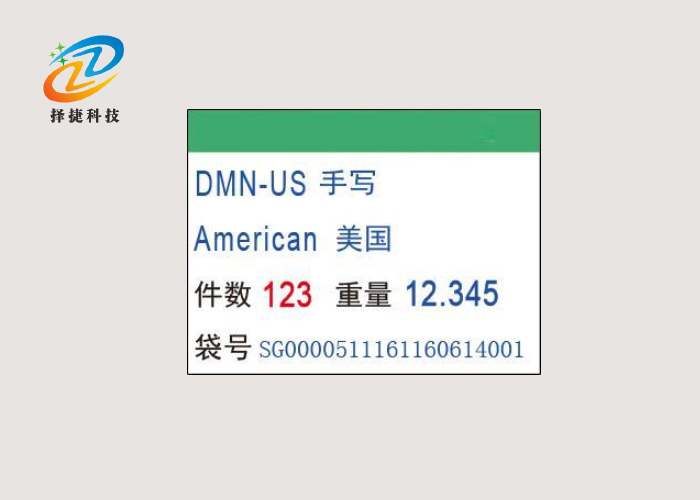

Ⅳ Product display -- Chinese electronic picking label ZJ-ZW02
