Ⅰ Product Overview -- Picking guide PCB ZJ-PCB01
Name: Picking rail PCB ZJ-PCB01
Picking guide PCB ZJ-PCB01 is one of the main structural parts of the label electrical connection. It realizes the physical and electrical connection of the area controller, power supply and label, and realizes the transmission of power and information through the active guide. Picking rail PCB ZJ-PCB01 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Picking guide PCB ZJ-PCB01 is one of the main structural parts of the label electrical connection. It realizes the physical and electrical connection of the area controller, power supply and label, and realizes the transmission of power and information through the active guide. Picking rail PCB ZJ-PCB01 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Ⅱ Technical parameters -- Picking guide PCB ZJ-PCB01
| Model | ZJ-PCB01 |
| Dimensions | Width 18mm, single 1 meter |
| Operating voltage | 24V DC |
Ⅲ Product networking diagram -- Picking guide PCB ZJ-PCB01
● Total number of electronic tags (including adapters) covered by each single zone controller and zone power supply: 80 S-shaped connections;
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.

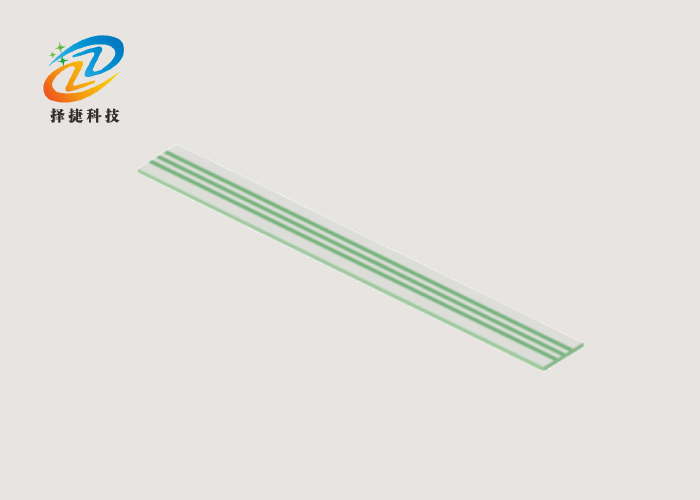

Ⅳ Product display -- picking rail PCB ZJ-PCB01
