Ⅰ Product Overview -- Pick crossover board ZJ-KJB01
Name: Pick crossover board ZJ-KJB01
The pick jumper board ZJ-KJB01 enables the physical and electrical connection of the two rail PCBS through the bottom shrapnel. The pick jumper board ZJ-KJB01 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
The pick jumper board ZJ-KJB01 enables the physical and electrical connection of the two rail PCBS through the bottom shrapnel. The pick jumper board ZJ-KJB01 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Ⅱ Technical parameters -- Pick crossover board ZJ-KJB01
| Model | ZJ-KJB01 |
| Dimensions | 42.5mm×21mm×5mm |
| Operating voltage | 24V DC |
| Current | 5A |
Ⅲ Product use networking diagram -- Pick crossover board ZJ-KJB01
● Total number of electronic tags (including adapters) covered by each single zone controller and zone power supply: 80 S-shaped connections;
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.

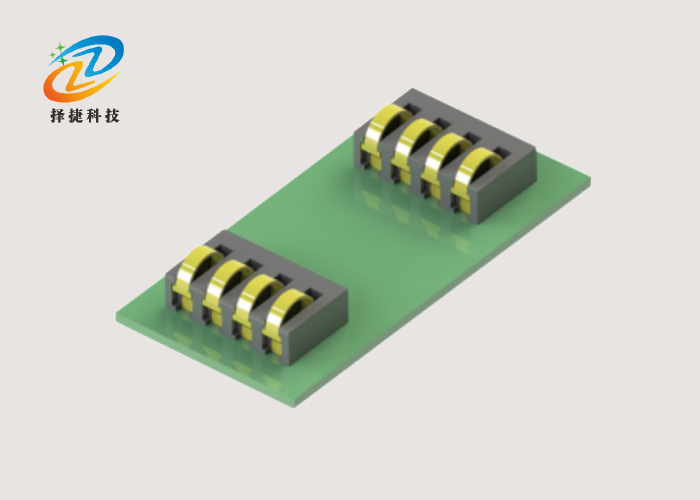

Ⅳ Product display -- pick crossover board ZJ-KJB01
