Ⅰ Product Overview -- Picking controller power supply ZJ-DY03
Name: Picking controller power supply ZJ-DY03
The picking controller power supply ZJ-DY03 is a power adapter for the entire label system, with 220V AC input and 24V DC output to provide power supply for the label and controller as well as peripheral equipment. The picking controller power supply ZJ-DY03 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
The picking controller power supply ZJ-DY03 is a power adapter for the entire label system, with 220V AC input and 24V DC output to provide power supply for the label and controller as well as peripheral equipment. The picking controller power supply ZJ-DY03 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Ⅱ Technical parameters -- Picking controller power supply ZJ-DY03
| Model | ZJ-DY03 |
| Input voltage range | 90～264VAC |
| Rated power | 150W |
| Output DC voltage | 24VDC |
| Frequency range | 47～63Hz |
| Peak load | 160W (10 seconds) |
| Ripple and noise | 240mVp-p |
| Operating temperature | -20～+70℃ |
| Working humidity | 20 to 90%RH, non-condensing |
| Safety specification | UL60950-1, TUV EN60950-1 certification passed |
| MTBF | ≥563k hrs.MIL-HDBK-217F（25℃） |
| Dimensions | 193×123×45mm |
Ⅲ Product networking diagram -- Picking controller power supply ZJ-DY03
● Total number of electronic tags (including adapters) covered by each single zone controller and zone power supply: 80 S-shaped connections;
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.

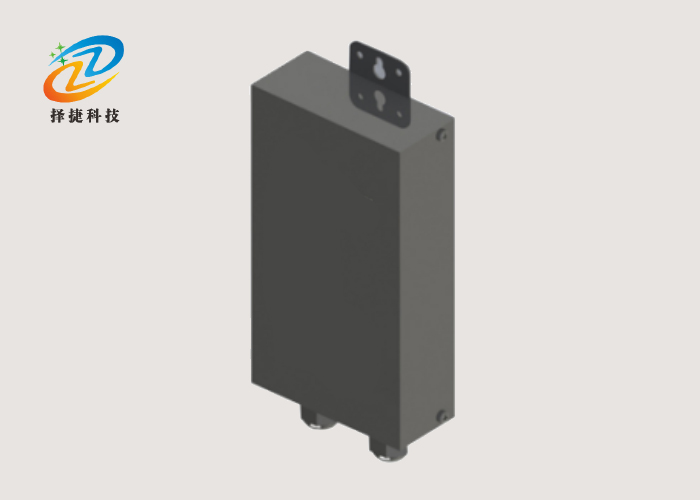

Ⅳ Product reality -- Picking controller power supply ZJ-DY03
