Ⅰ Product Overview -- Pick matching resistance end board ZJ-DJB02
Name: Pick matching resistance end board ZJ-DJB02
Pick matching resistor end board ZJ-DJB02 is placed at the end of the entire line with protocol-specified line end impedance matching resistance. The pick-match resistance end board ZJ-DJB02 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Pick matching resistor end board ZJ-DJB02 is placed at the end of the entire line with protocol-specified line end impedance matching resistance. The pick-match resistance end board ZJ-DJB02 is an iot device for use on shelves. Its main role is to act as an Internet of Things information access point of the cargo location, collect user operation information through sensors such as buttons, and pass system data to users in the form of visual information through lights and screens to complete human-computer interaction. Usually, in this way, users can be intuitively and efficiently guided to find the corresponding cargo location of the electronic cargo location label, improve operational efficiency and accuracy, and reduce labor costs and management costs. It is widely used in outpatient pharmacy, hospital pharmacy, e-commerce warehouse, spare parts warehouse, electronic components warehouse, hardware accessories, machinery manufacturing and other warehousing and picking scenes.
Ⅱ Technical parameters -- pick matching resistance end board ZJ-DJB02
| Model | ZJ-DJB02 |
| Dimensions | 38mm×15mm×24mm |
| Resistance value | 120Ω |
Ⅲ Product networking diagram -- Pick matching resistance end board ZJ-DJB02
● Total number of electronic tags (including adapters) covered by each single zone controller and zone power supply: 80 S-shaped connections;
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.
● Total number of electronic tags (including adapters) covered by each dual zone controller and zone power supply: S-shaped connections, 120.

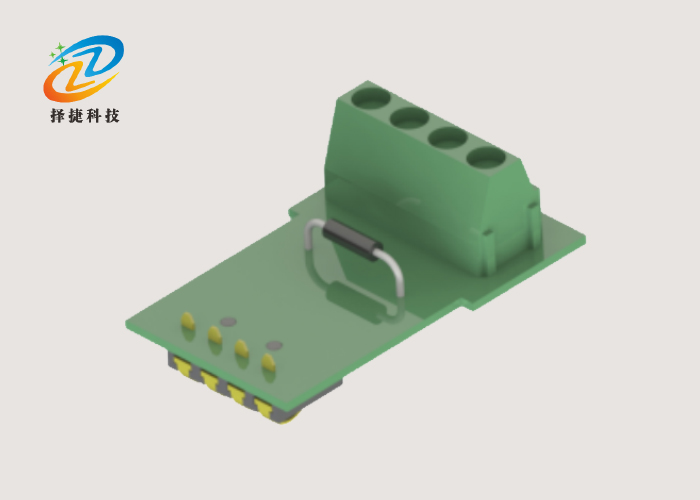

Ⅳ Product display - pick matching resistance end board ZJ-DJB02
