Ⅰ Product Overview -- NFCφ30 yellow patrol electronic tag ZJH30C
Name: NFCφ30 yellow patrol electronic tag ZJH30C
NFCφ30 yellow electronic tag ZJH30C shell is made of refined mold, advanced anti-corrosion and high temperature resistant material, internal package RF card chip, round hole shape, thickness 4.5mm, the middle hole can be installed screws fixed or attached to the object, internal epoxy engineering resin package, moisture resistance, corrosion resistance, suitable for harsh environment.
NFCφ30 yellow electronic tag ZJH30C shell is made of refined mold, advanced anti-corrosion and high temperature resistant material, internal package RF card chip, round hole shape, thickness 4.5mm, the middle hole can be installed screws fixed or attached to the object, internal epoxy engineering resin package, moisture resistance, corrosion resistance, suitable for harsh environment.
Ⅱ Product features -- NFCφ30 yellow patrol electronic tag ZJH30C
* Waterproof, moisture-proof, ultrasonic welding package chip
* Small and exquisite appearance, durable, does not fade
* Waterproof, shock-proof and corrosion-proof products
* Can be strung on the key chain, easy to carry
* Multiple colors available (black, white, etc.)
* Can be produced according to customer design
* Can spray ID code, serial number, laser, printing
* Small and exquisite appearance, durable, does not fade
* Waterproof, shock-proof and corrosion-proof products
* Can be strung on the key chain, easy to carry
* Multiple colors available (black, white, etc.)
* Can be produced according to customer design
* Can spray ID code, serial number, laser, printing
Ⅲ Product application -- NFCφ30 yellow patrol electronic tag ZJDZ30E
Applicable to production line piecework, product identification, inspection, access control, bus, parking lot, identity authentication, attendance management, tickets, one-card payment, asset management property management, security patrol, etc
Common chip frequency: low frequency (ID), high frequency (F08NTAG series), ultra-high frequency (H3-UBIK711 circular inlay or PCB board)
Note: Anti-metal patrol label can be made (with 3M double-sided adhesive on the back)
| Product model | ZJDZ30E |
| Chip type | 213 |
| Operating frequency (modulation method) | 125Khz,13.56Mhz,915Mhz |
| Protocol standard | ISO11784/11785,ISO15693,ISO14443A/B,ISO18000-6C |
| Read-write times | More than 1,000,000 times |
| Dimensions (customizable) | Outer diameter 30mm inner diameter 5mm thickness 4.5mm |
| Material | ABS |
| Colour (customizable) | White, black |
| Antistatic | Prevent electrostatic breakdown, withstand voltage above 5000V |
| Operating temperature | -20℃ - 75℃ |
| Storage temperature | -20℃ - 90℃ |
| Useful life | More than 10 years |
| Weight | 5 grams |
Ⅴ Product display -- NFCφ30 yellow patrol electronic tag ZJDZ30E

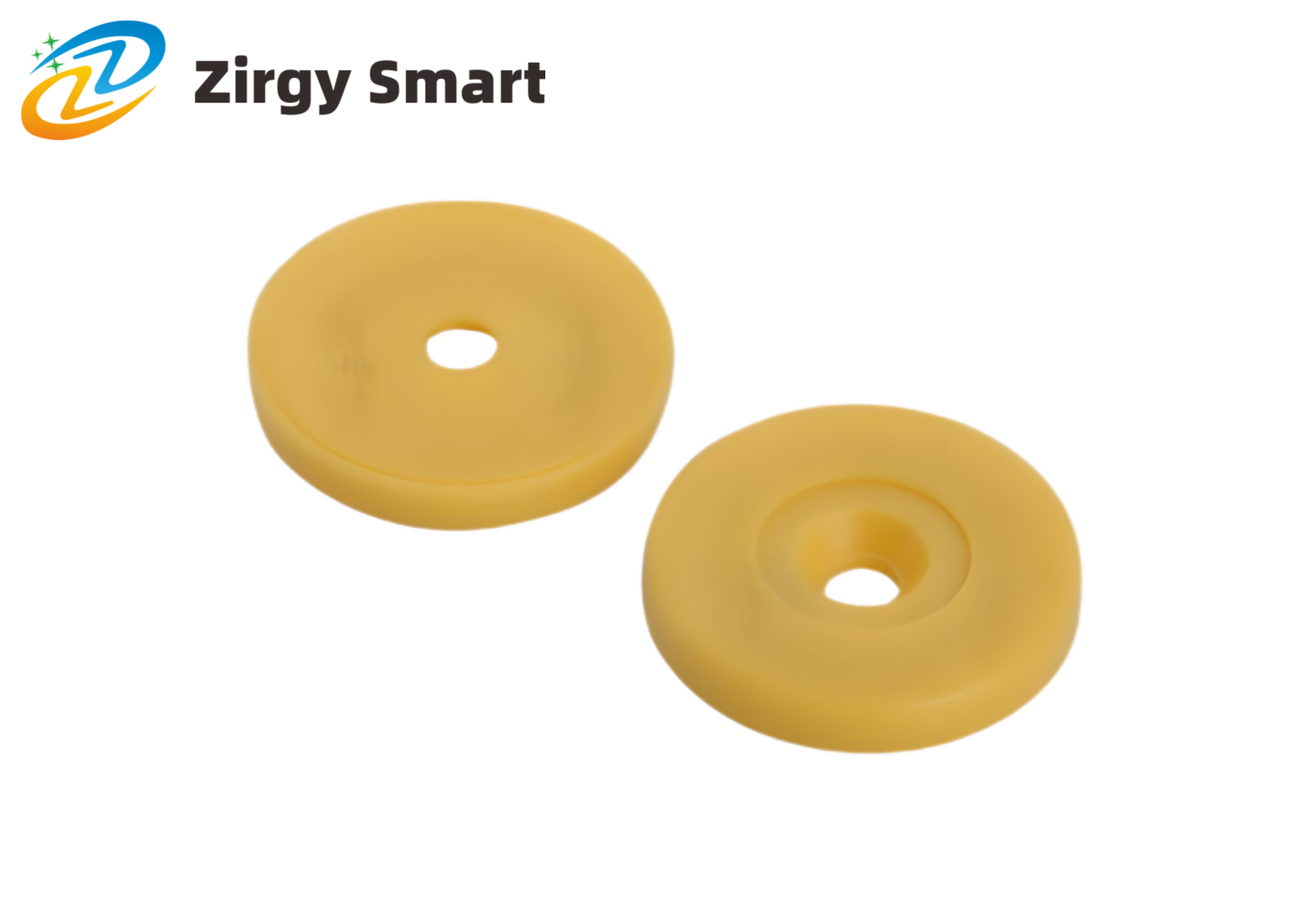

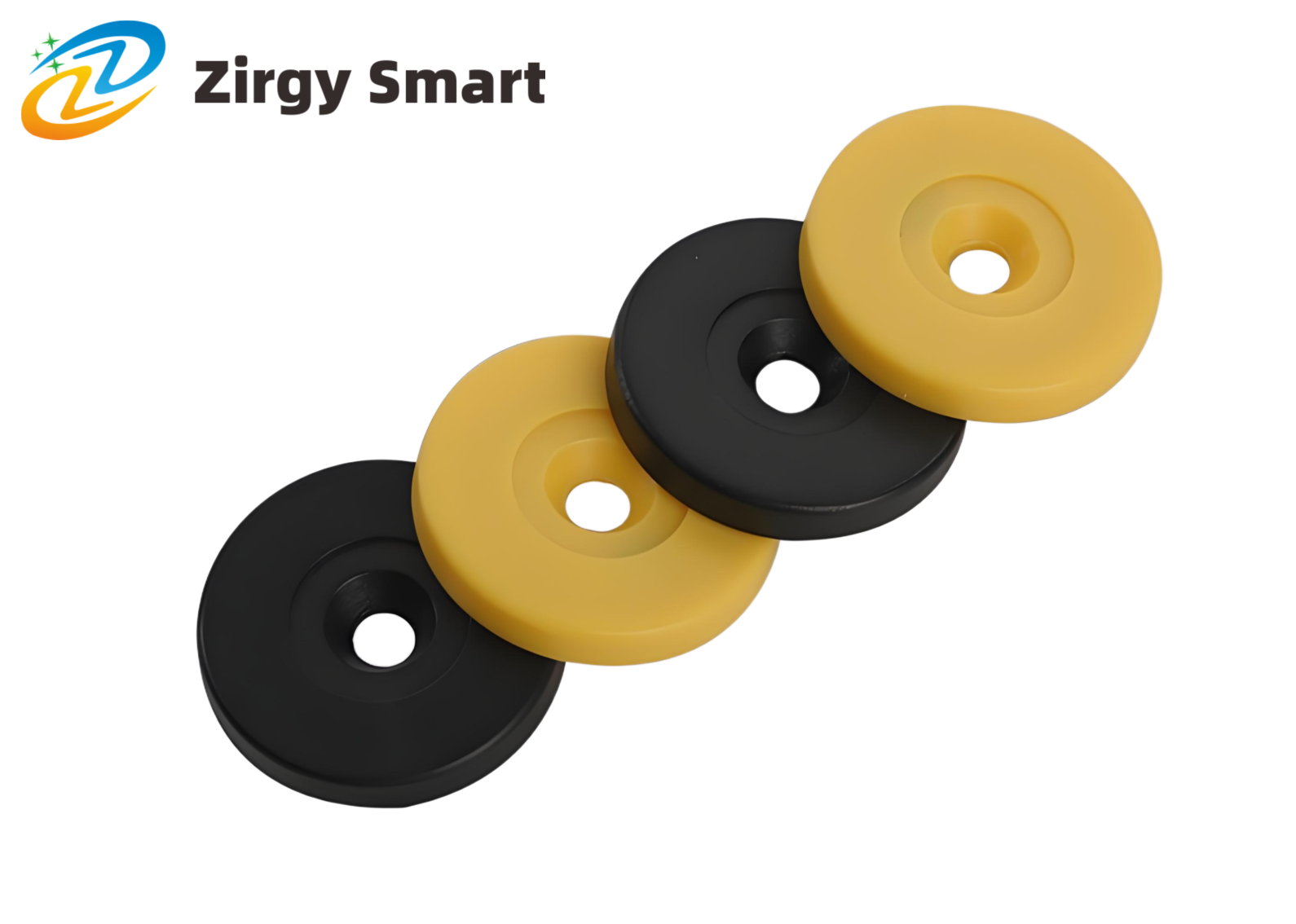

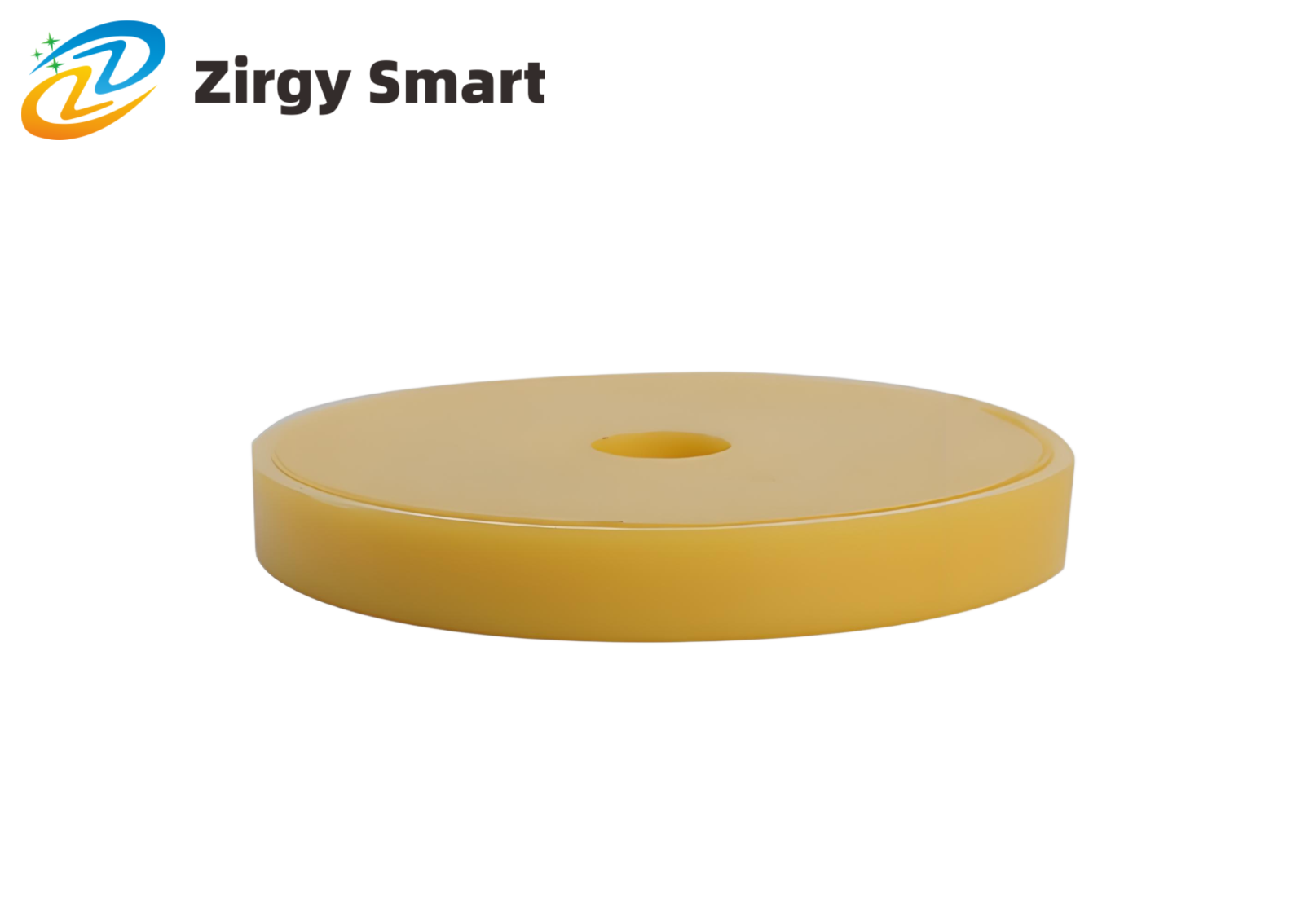

Real-shot display
