Ⅰ Chip features -- NFC tag Ntag216
- Contactless energy and data transmission
- Working efficiency 13.56MHz
- Data transmission rate is 106kbit/s
- Data integrity is 16-bit CRC, parity check, bit coding, bit counting
- Working distance up to 100 mm (depending on various parameters such as field strength and antenna geometry)
- 7 byte serial number (according to ISO/IEC14443-3 protocol)
- UID ASCⅡ image for automatic serialization of NDEF messages
- Trigger an automatic NFC counter when reading a command
The FAST READ feature allows scanning full NDEF messages with a single fast-read command, reducing overhead in high-throughput production environments
- Working efficiency 13.56MHz
- Data transmission rate is 106kbit/s
- Data integrity is 16-bit CRC, parity check, bit coding, bit counting
- Working distance up to 100 mm (depending on various parameters such as field strength and antenna geometry)
- 7 byte serial number (according to ISO/IEC14443-3 protocol)
- UID ASCⅡ image for automatic serialization of NDEF messages
- Trigger an automatic NFC counter when reading a command
The FAST READ feature allows scanning full NDEF messages with a single fast-read command, reducing overhead in high-throughput production environments
Ⅱ Technical specifications -- NFC tag Ntag216
Name: NFC tag Ntag216 56mm x 18mm
Optional chip: NTAG216
Antenna size: None
Tag size: 56mm*18mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -10℃-65℃
Optional chip: NTAG216
Antenna size: None
Tag size: 56mm*18mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -10℃-65℃
Ⅲ Product Display -- NFC tag Ntag216

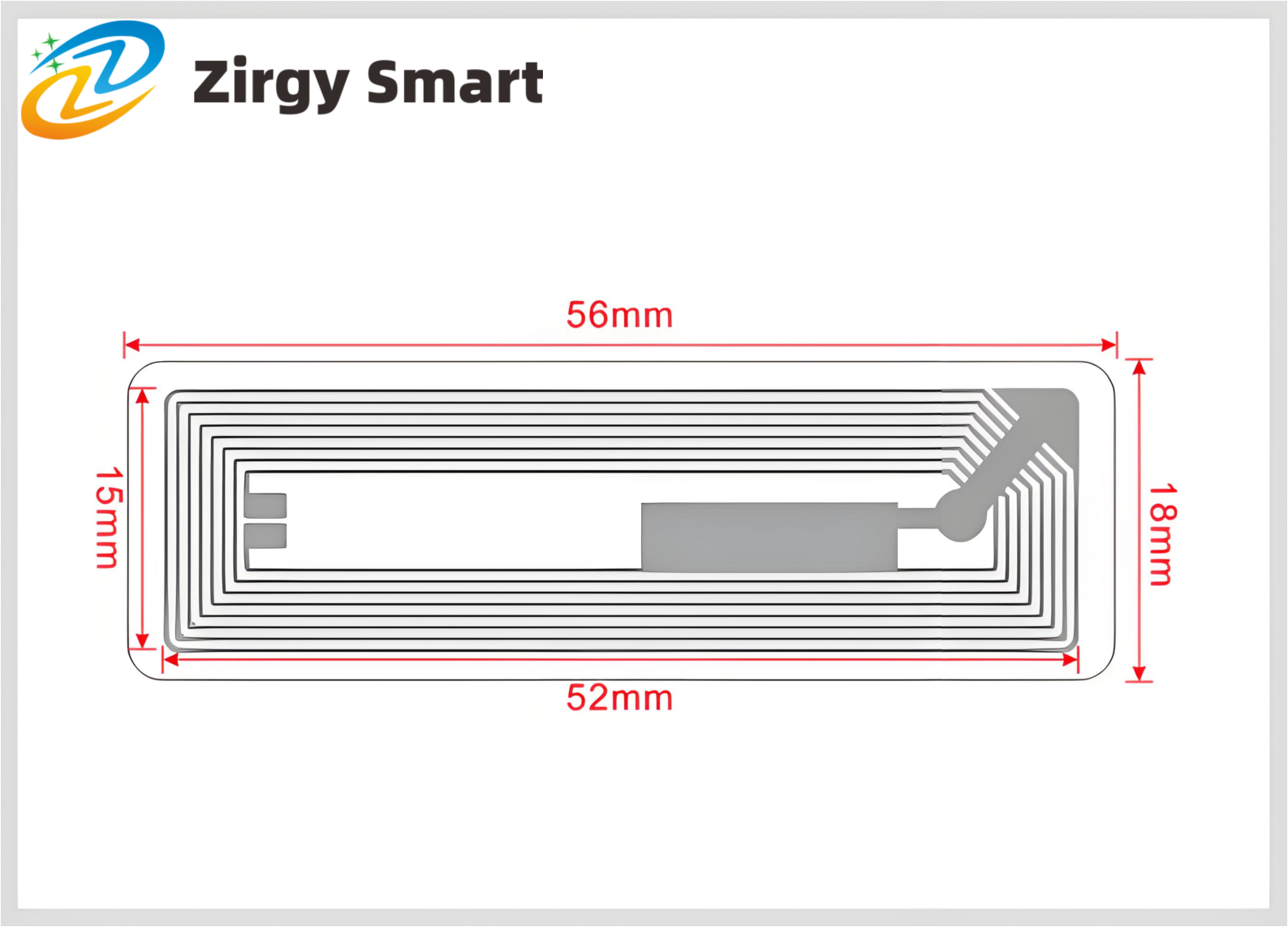

1.Sectional display
2.Real-shot display
Ⅳ Production process - NFC label Ntag216
