Ⅰ Chip features--NFC tag Ntag213
- Contactless energy and data transmission
- Operating frequency is 13.56 MHz
- Data transmission rate is 106 kbit/s
- Data integrity includes 16-bit CRC (Cyclic Redundancy Check), parity check, bit encoding, and bit counting
- The operating distance can reach up to 100 millimeters (depending on various parameters such as the field strength and the geometry of the antenna)
- 7-byte serial number (in accordance with the ISO/IEC 14443-3 protocol)
- UID ASCII mirroring for the automatic serialization of NDEF (NFC Data Exchange Format) messages
- Automatically triggers the NFC counter when a read command is executed
- The fast reading function allows scanning of the complete NDEF message with a single FAST-READ command, thereby reducing the overhead in high-throughput production environments
- Operating frequency is 13.56 MHz
- Data transmission rate is 106 kbit/s
- Data integrity includes 16-bit CRC (Cyclic Redundancy Check), parity check, bit encoding, and bit counting
- The operating distance can reach up to 100 millimeters (depending on various parameters such as the field strength and the geometry of the antenna)
- 7-byte serial number (in accordance with the ISO/IEC 14443-3 protocol)
- UID ASCII mirroring for the automatic serialization of NDEF (NFC Data Exchange Format) messages
- Automatically triggers the NFC counter when a read command is executed
- The fast reading function allows scanning of the complete NDEF message with a single FAST-READ command, thereby reducing the overhead in high-throughput production environments
Ⅱ Technical parameters--NFC tag Ntag213
Name: NFC tag Ntag 213 30mm*15mm
Optional chip: NTAG213
Antenna dimensions: None
Tag dimensions: 30mm*15mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read-write times: More than 100,000 times
Data retention: More than 10 years
Optional fabric: None
Operating temperature: -10℃-65℃
Antenna dimensions: None
Tag dimensions: 30mm*15mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read-write times: More than 100,000 times
Data retention: More than 10 years
Optional fabric: None
Operating temperature: -10℃-65℃
Ⅲ Product display--NFC tag Ntag213

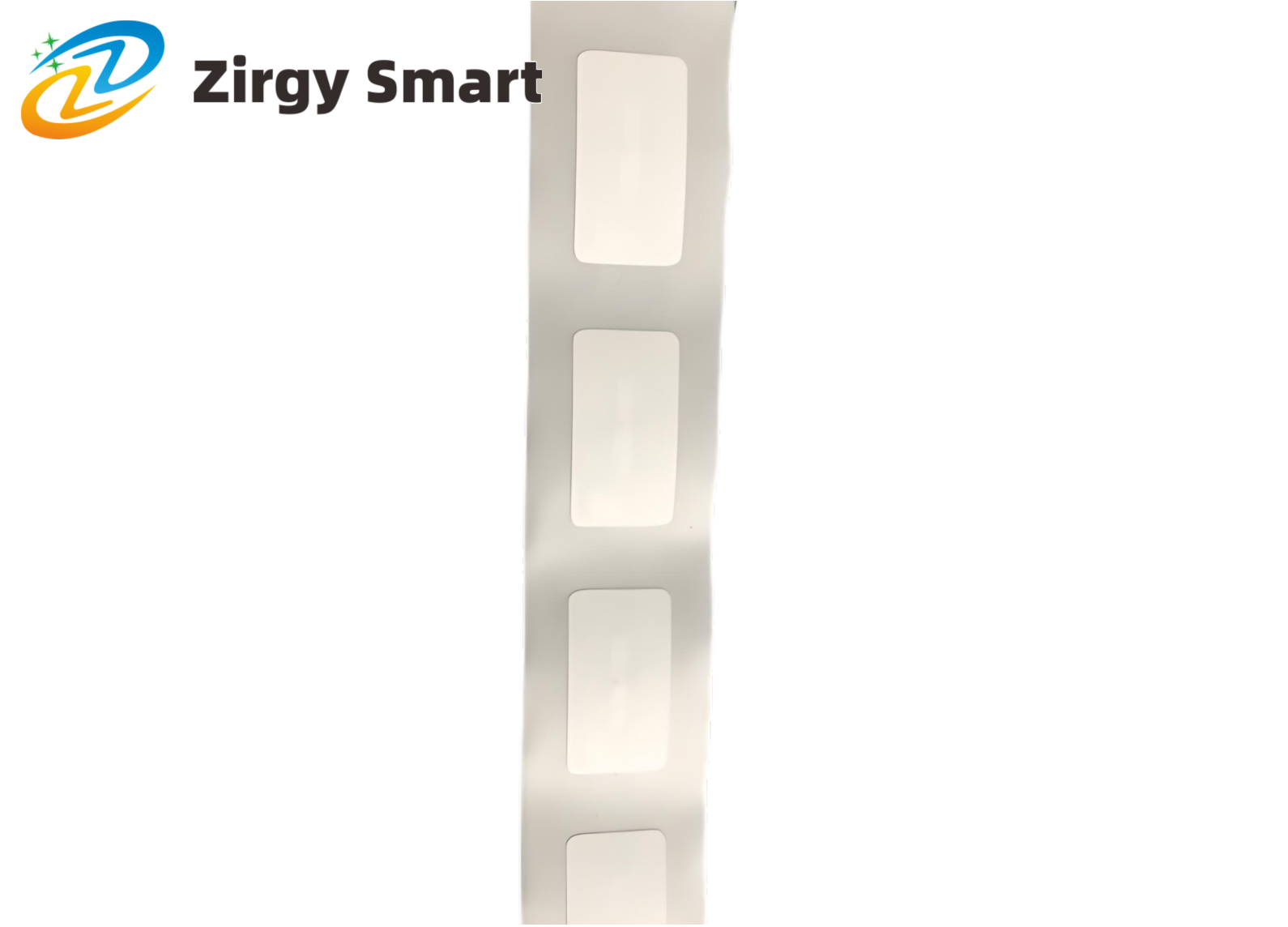

Real-shot display
Ⅳ Production processes--NFC tag Ntag213
