Ⅰ Product overview——Nail-shaped electronic tag ZJDX2237
Name: nail-shaped electronic tag ZJDX2237
The nail-shaped electronic tag ZJDX2237 is suitable for the management of ancient urban trees, concrete anti-counterfeiting, etc. Its shell is made by injecting high-grade anti-corrosion and high-temperature-resistant materials into a refined mold. Inside, an RFID radio-frequency chip is encapsulated and filled with high-temperature-resistant epoxy resin.
Ⅱ Product characteristics——Nail-shaped electronic tag ZJDX2237
* It has a small and exquisite appearance, is sturdy and durable, and will not fade.
* The product is waterproof, shockproof and corrosion-resistant.
* Installation is convenient.
* It can be manufactured according to the appearance design provided by the customer.
* A variety of chips can be encapsulated as required.
* The product is waterproof, shockproof and corrosion-resistant.
* Installation is convenient.
* It can be manufactured according to the appearance design provided by the customer.
* A variety of chips can be encapsulated as required.
Ⅲ Product application——Nail-shaped electronic tag ZJDX2237
It is suitable for the management of ancient urban trees, wood tracking, concrete anti-counterfeiting, etc.
Commonly used chip frequencies: low frequency TK4100 (small head), high frequency, ultra-high frequency H3 (large head)
ⅣTechnical parameters——Nail-shaped electronic tag ZJDX2237
| Product code | ZJDX2237 |
| Chip type | TK4100/I CODE SLI-X/H3 etc. |
| Operating frequency (modulation mode) | 125KHz/13.56MHz/915MHz |
| Agreement standard | ISO11784/11785 ISO15693 ISO14443A/B ISO18000-6C |
| Read/write times | More than one million |
| Dimension (can be customized) | 22*37*3mm |
| Material | ABS |
| Color (can be customized) | Black/white |
| Anti-static | Prevent electrostatic breakdown, with a withstand voltage of over 5000 volts. |
| Operating temperature | -20℃-75℃ |
| Storage temperature | -20℃-90℃ |
| Useful life | more than ten years |
| Weight | 0.5g |
Ⅴ Product display——Nail-shaped electronic tag ZJDX2237

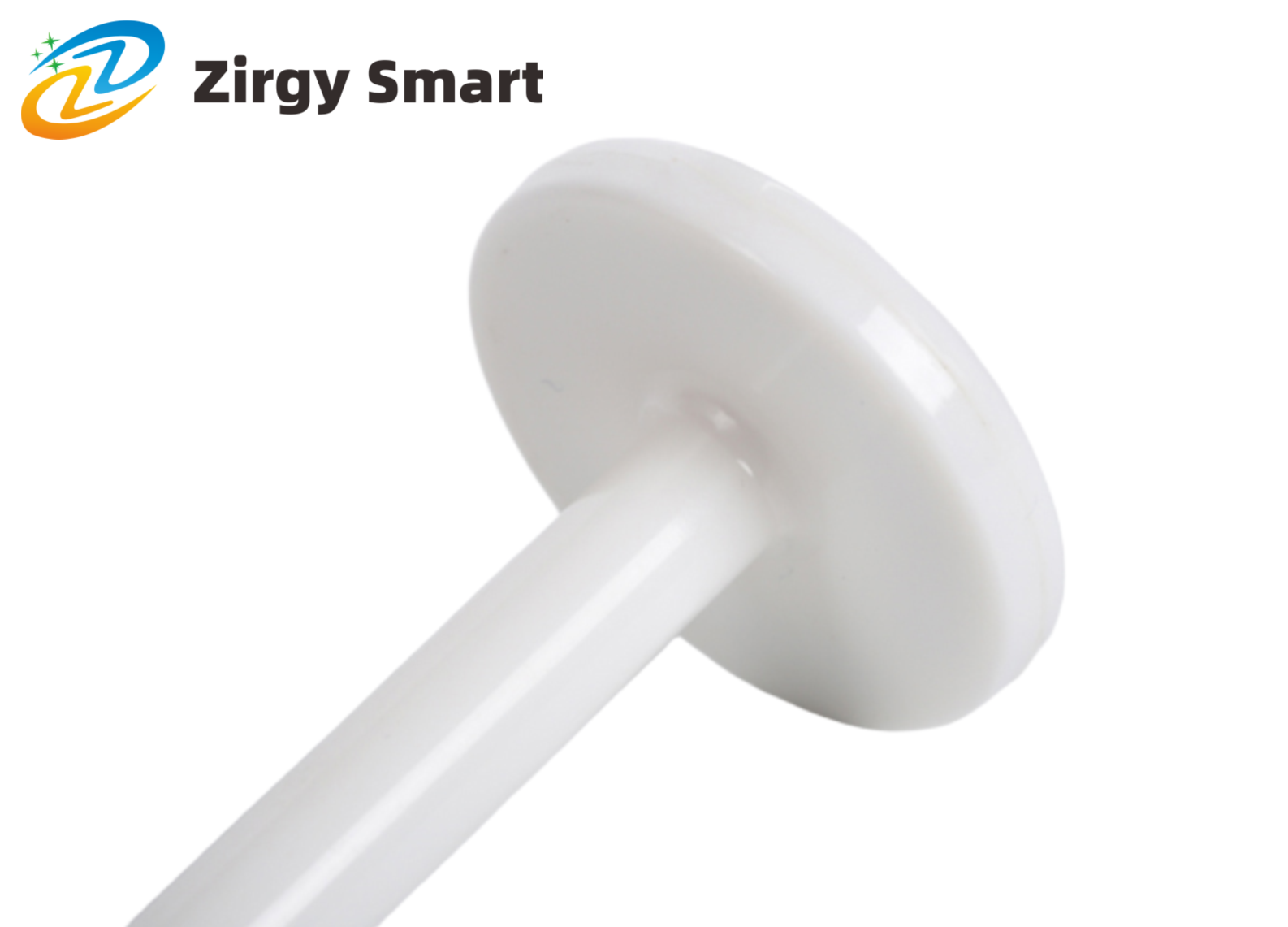

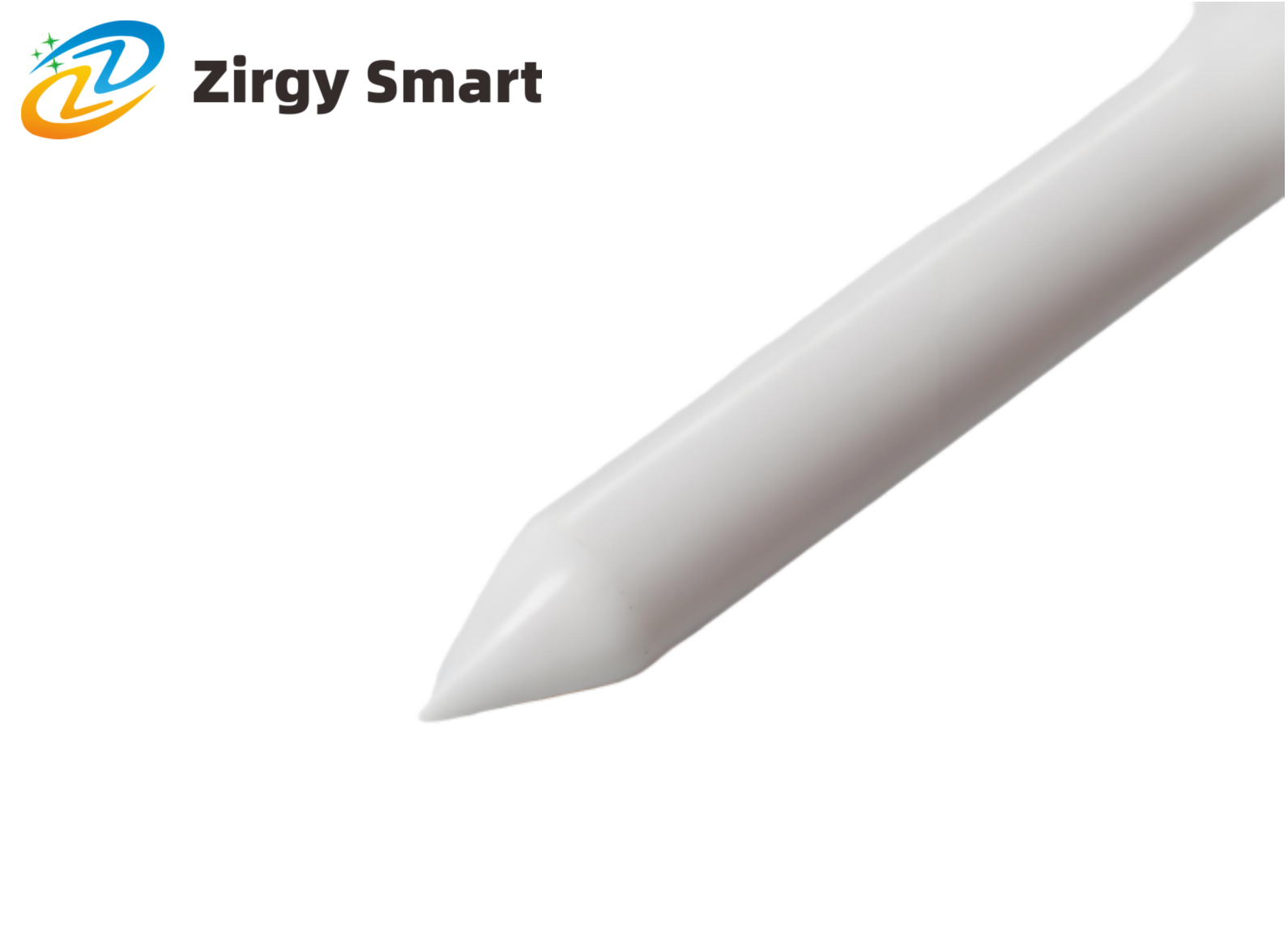

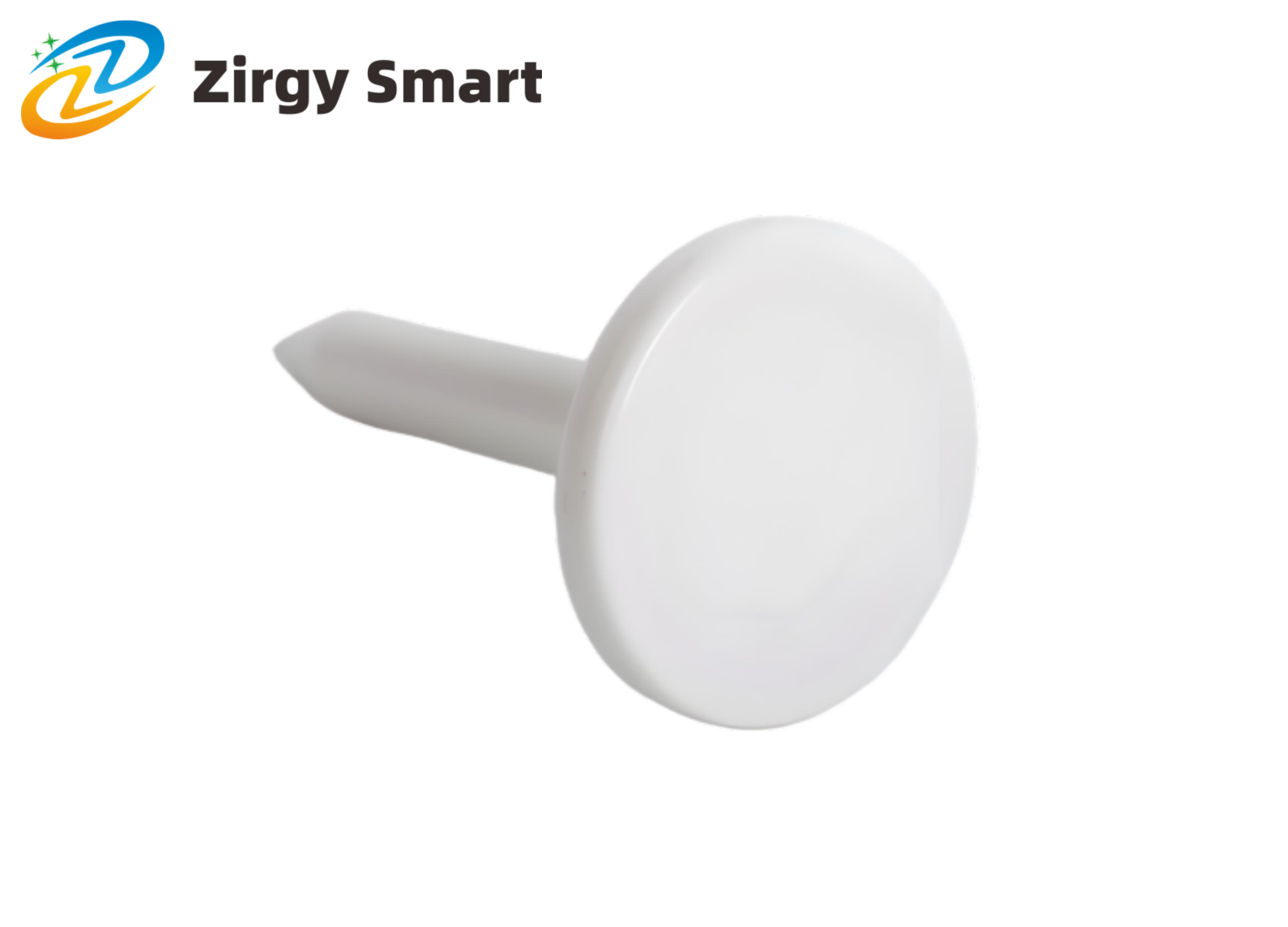

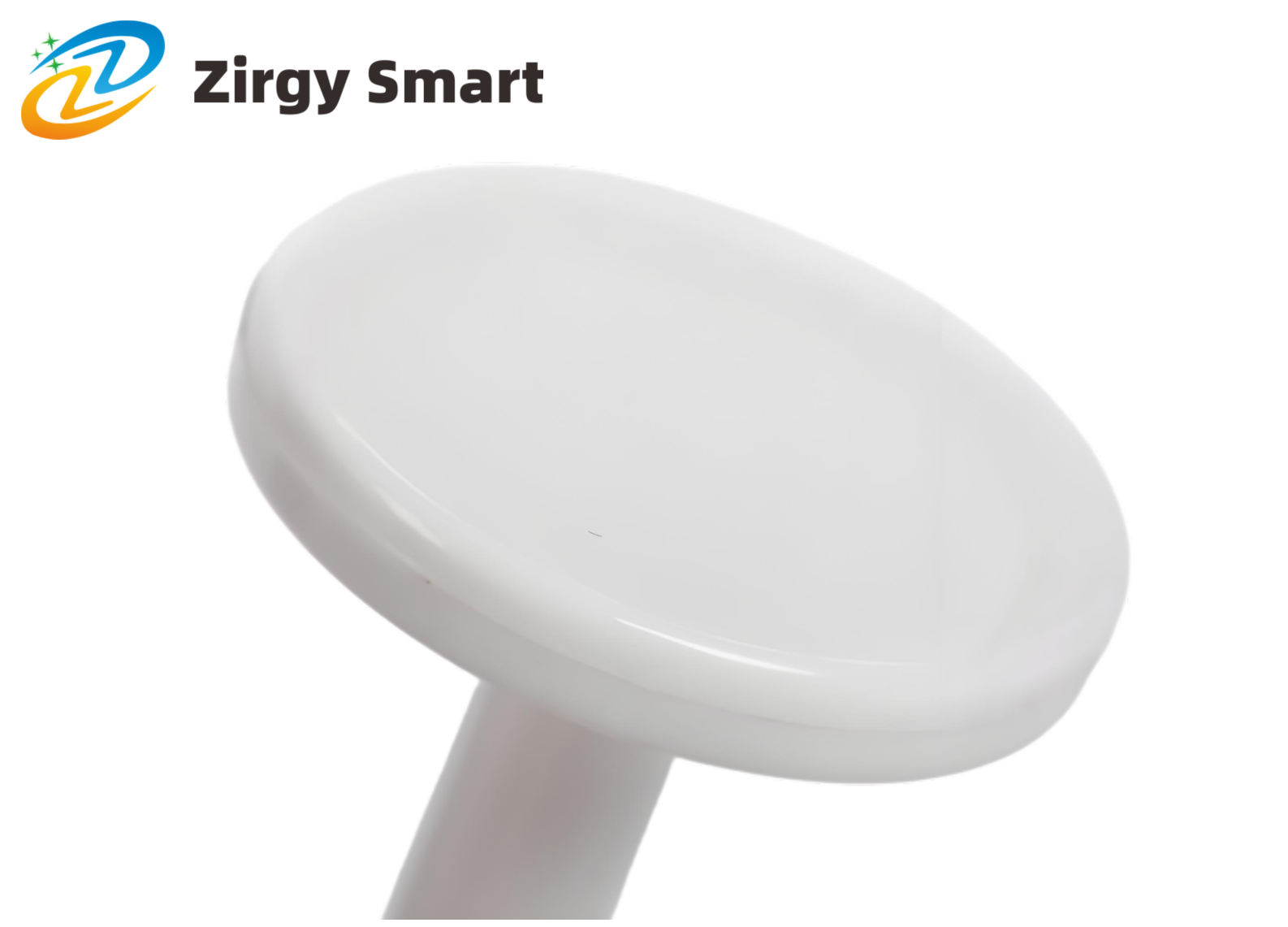

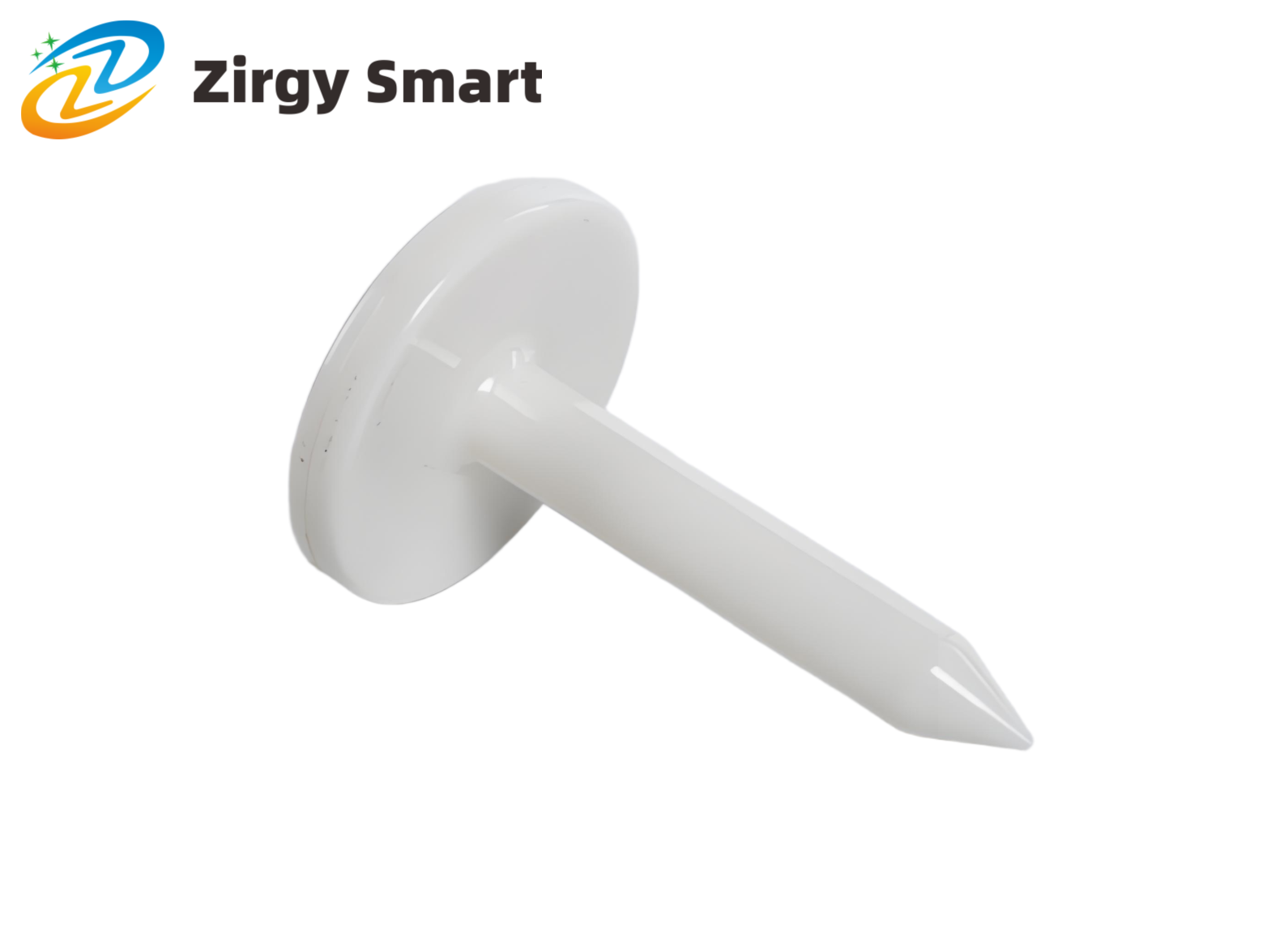

Real-shot display
