Ⅰ Main features - strong acid and alkali resistance to metal labels
Strong acid and alkali resistance label ZJ2626, metal surface, strong acid and alkali resistance, can be exposed to fuel B, mineral oil, petroleum, salt spray, vegetable oil.
Ⅱ Technical parameters -- strong acid and alkali resistance to metal labels
Name: Strong acid, alkali and metal resistant label ZJ2626
Chip type: Alien Higgs-3
Label size: 26*26mm (Aperture: 4mm*2)
Label thickness: 5.5mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 96bits (expandable to 480bits), User area 512bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 2.6 m - (US standard) 902-928MHz, metal surface; 1.3 m - (European standard) 865-868 MHZ, metal surface
Reading distance (2 watt handheld) : 1.9 m - (US standard) 902-928 MHZ, metal surface; 1.0 m - (European standard) 865-868 MHZ, metal surface
Material: PPS shell, PCB antenna
Color: Black
Installation method: adhesive, screw, binding
Weight: 6.5g
Warranty period: One year
Write times: 100,000 times
Storage temperature: -40℃ to 150℃ (high temperature resistance 230℃ up to 30 minutes, 180℃ up to 120 minutes)
Operating temperature: -40℃ to 100℃
Exposure environment: Can be exposed to fuel B, mineral oil, petroleum, salt spray, vegetable oil
Waterproof and dustproof class: IP68
Certification: Reach certification, RoHS certification, CE certification
Chip type: Alien Higgs-3
Label size: 26*26mm (Aperture: 4mm*2)
Label thickness: 5.5mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 96bits (expandable to 480bits), User area 512bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 2.6 m - (US standard) 902-928MHz, metal surface; 1.3 m - (European standard) 865-868 MHZ, metal surface
Reading distance (2 watt handheld) : 1.9 m - (US standard) 902-928 MHZ, metal surface; 1.0 m - (European standard) 865-868 MHZ, metal surface
Material: PPS shell, PCB antenna
Color: Black
Installation method: adhesive, screw, binding
Weight: 6.5g
Warranty period: One year
Write times: 100,000 times
Storage temperature: -40℃ to 150℃ (high temperature resistance 230℃ up to 30 minutes, 180℃ up to 120 minutes)
Operating temperature: -40℃ to 100℃
Exposure environment: Can be exposed to fuel B, mineral oil, petroleum, salt spray, vegetable oil
Waterproof and dustproof class: IP68
Certification: Reach certification, RoHS certification, CE certification
Ⅲ Product display -- strong acid and alkali resistance to metal labels

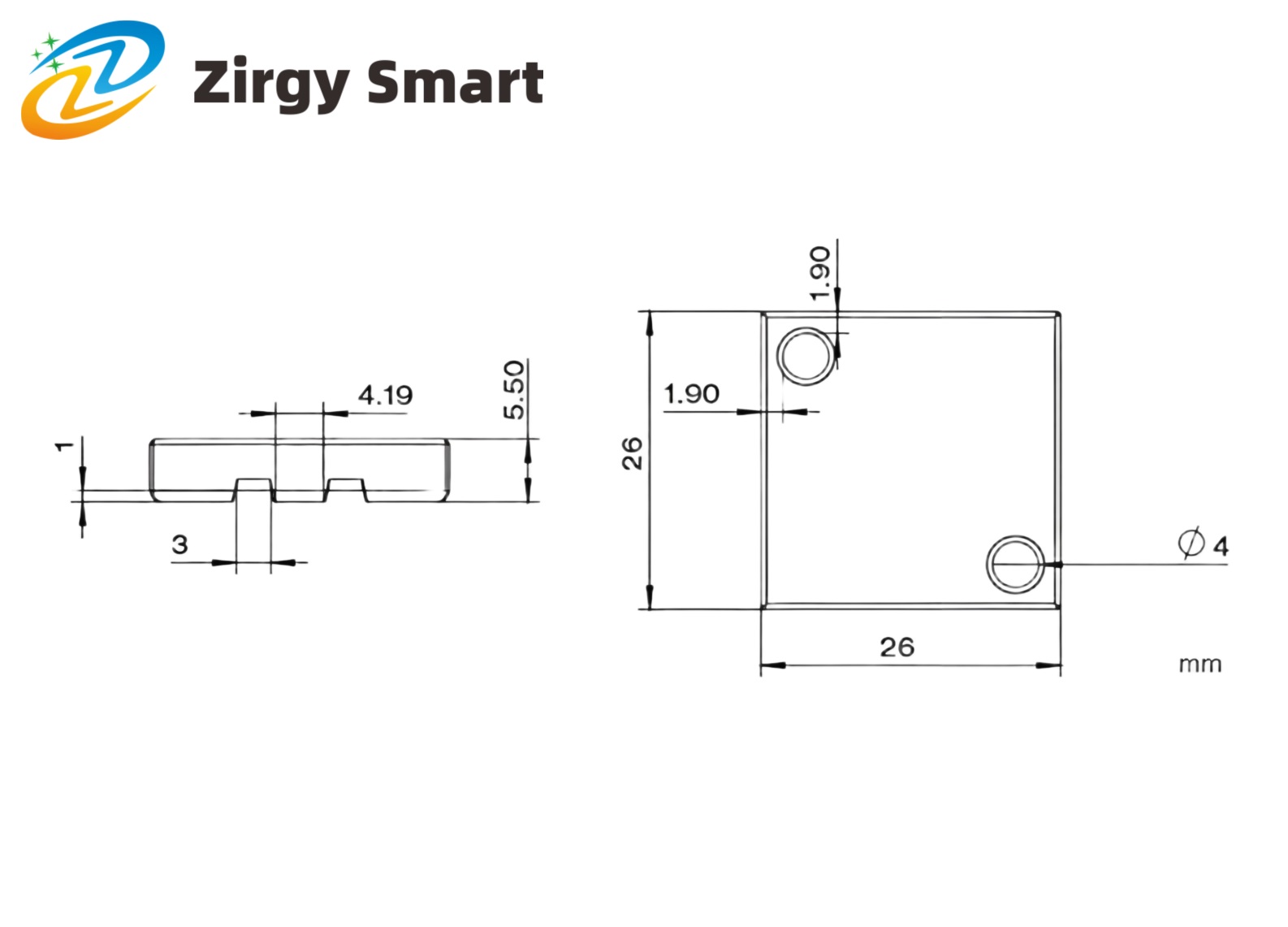

1. Sectional display
2.Real-shot display
