Ⅰ Chip features - high frequency resistance to metal tags
● Compliant with ISO/IEC 1443A
● Working efficiency 13.56MHz
● Communication baud rate 106kbit/s
● Non-contact data and energy transmission (no power required)
● Operating distance not less than 100m (related to antenna size)
● Half duplex communication mode
● Encryption algorithm conforms to M1 standard
● Typical processing time <100ms
Ⅱ Technical parameters - high frequency anti-metal label
Name: High frequency anti-metal label 40*50mm
Optional chip: FM1108
Antenna size: 40*50mm
Label size: None
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Optional chip: FM1108
Antenna size: 40*50mm
Label size: None
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display -- high frequency anti-metal label

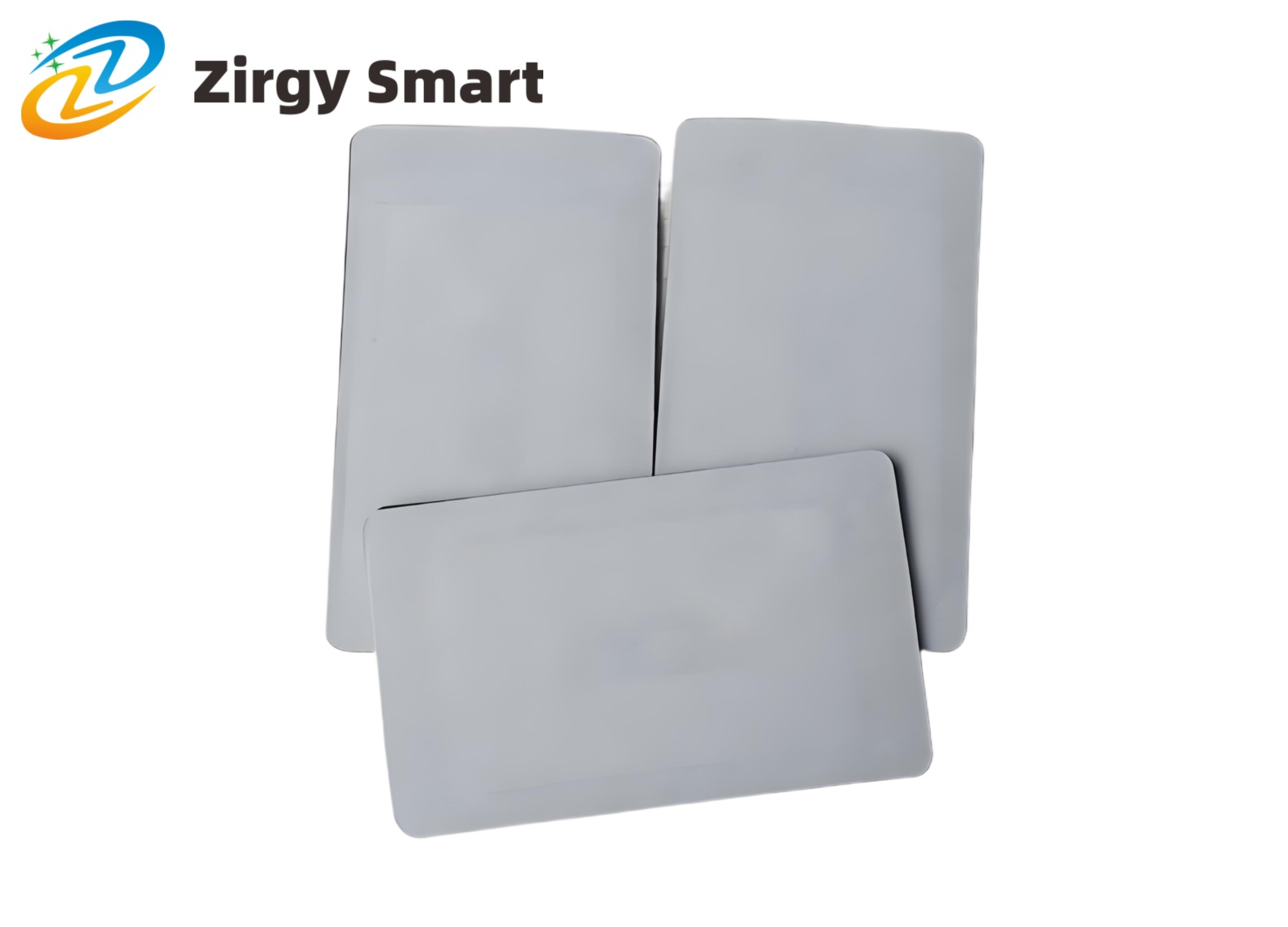

Real-shot display
