I Chip features - liquid resistant RFID tag ZJKY4318
- Comply with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
- Universal label: operating frequency 860MHz-960MHz
- 800 bit non-volatile memory
- 96-bit EPC
- 512 bit User Memory
- 64-bit specific TID (unalterable)
- 32-bit access and confuse passwords
- Pre-programmed specific unchangeable 64-bit serial number
- User storage can be managed in 64-bit blocks and can be permanently locked and protected with access passwords
- Support for all mandatory and selectable commands, including single-level commands
- There are customized commands for high-speed data writing, and EPC codes of 30 labels can be written per second
- Low power read and write operations
- Excellent working distance, up to 10 meters with appropriate antennas
II Technical parameters -- anti-liquid RFID tag ZJKY4318
Name: Liquid resistant RFID tag ZJKY4318
Optional chip: U8
Label size: 43*18mm
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Optional chip: U8
Label size: 43*18mm
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃

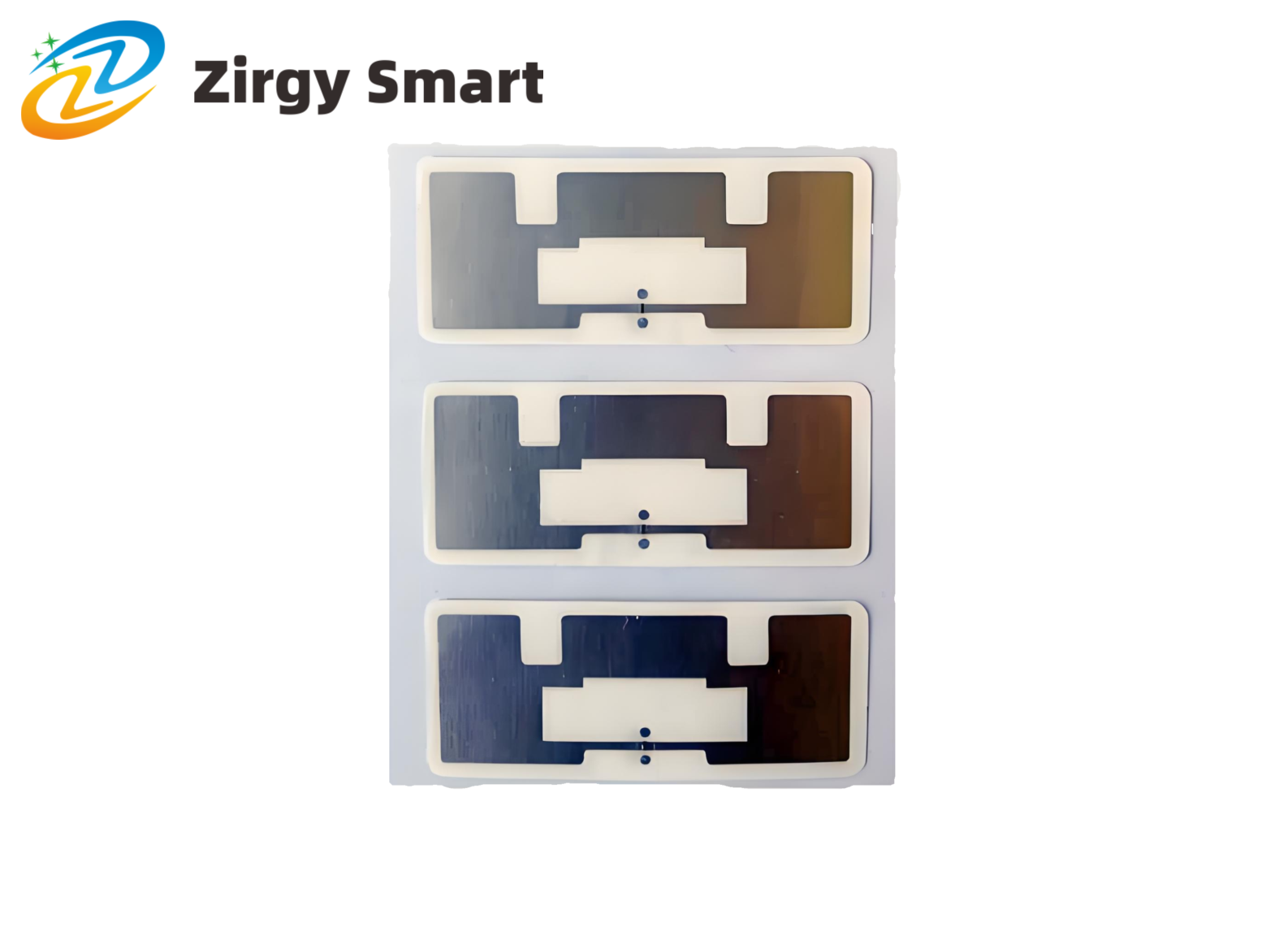

III Product display -- Liquid resistant RFID tag ZJKY4318
Real-shot display

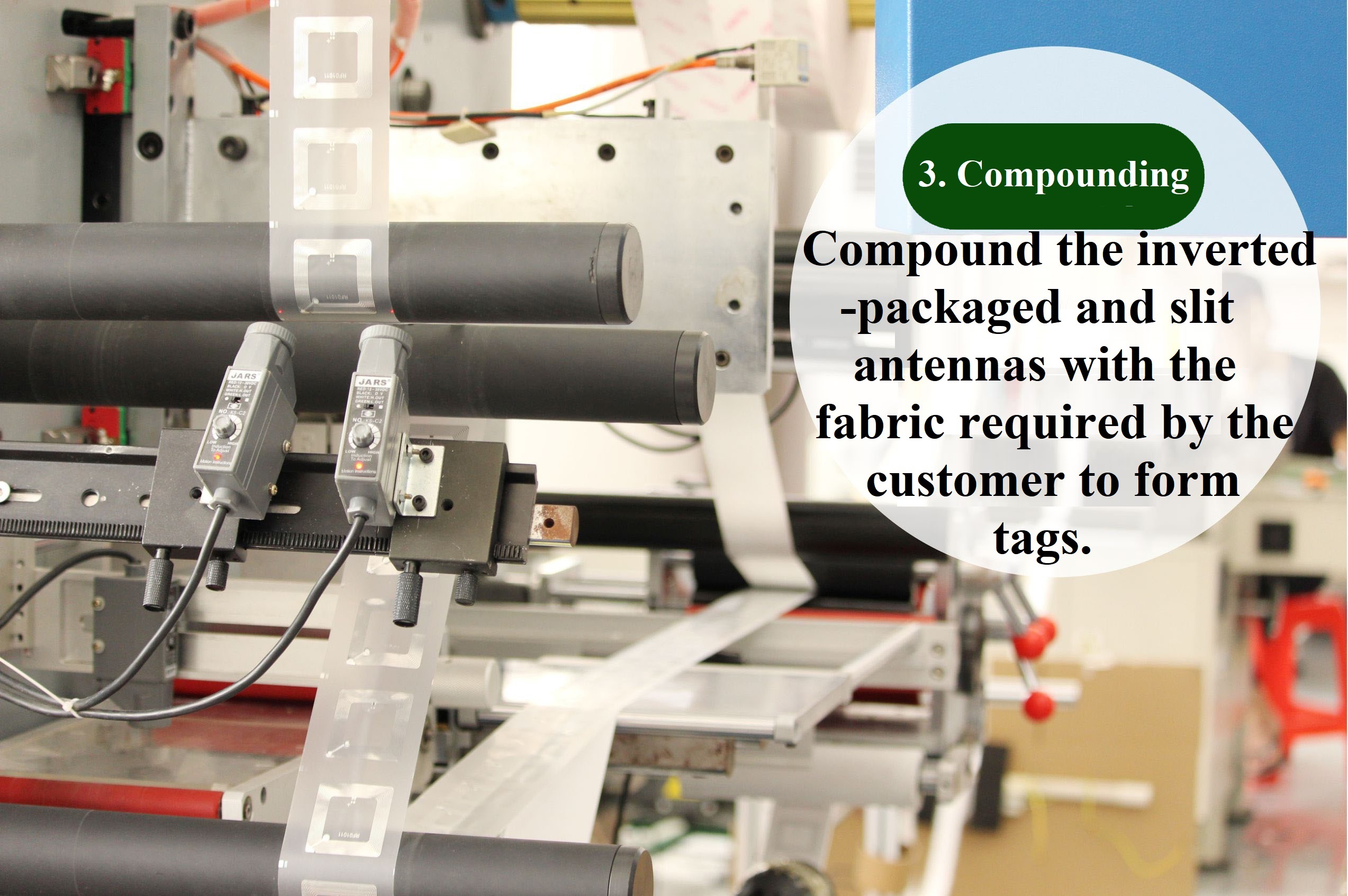

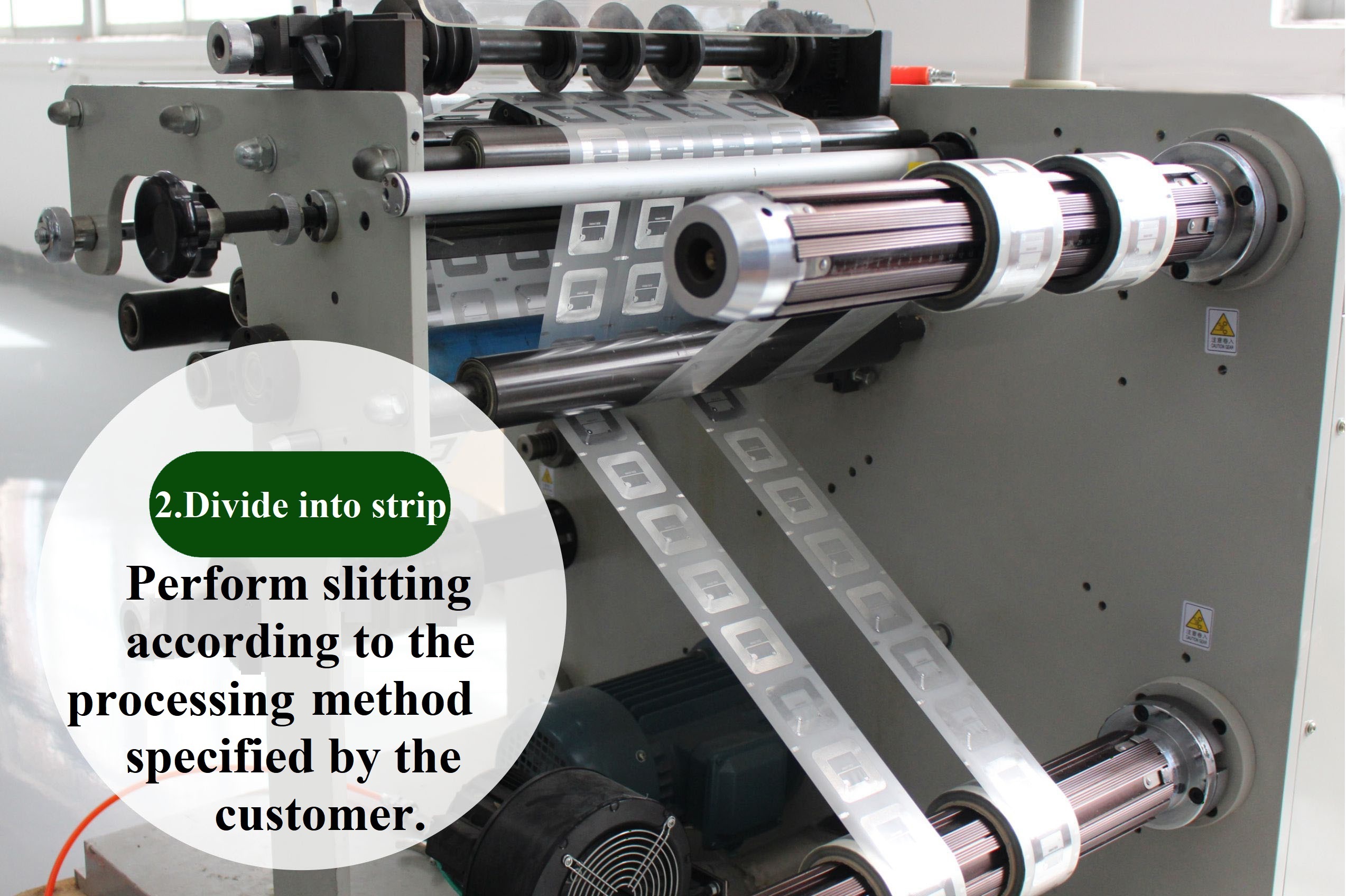

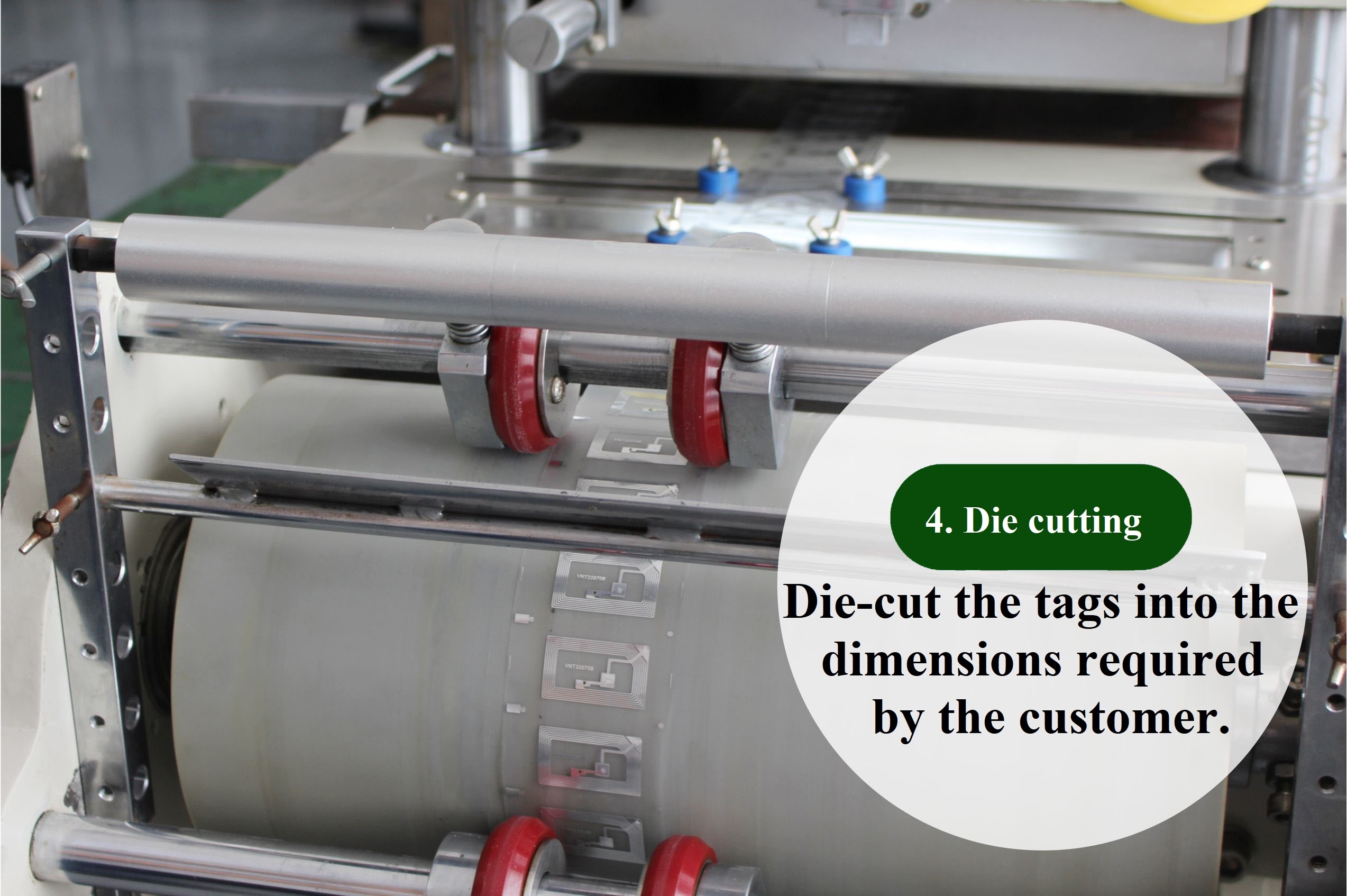

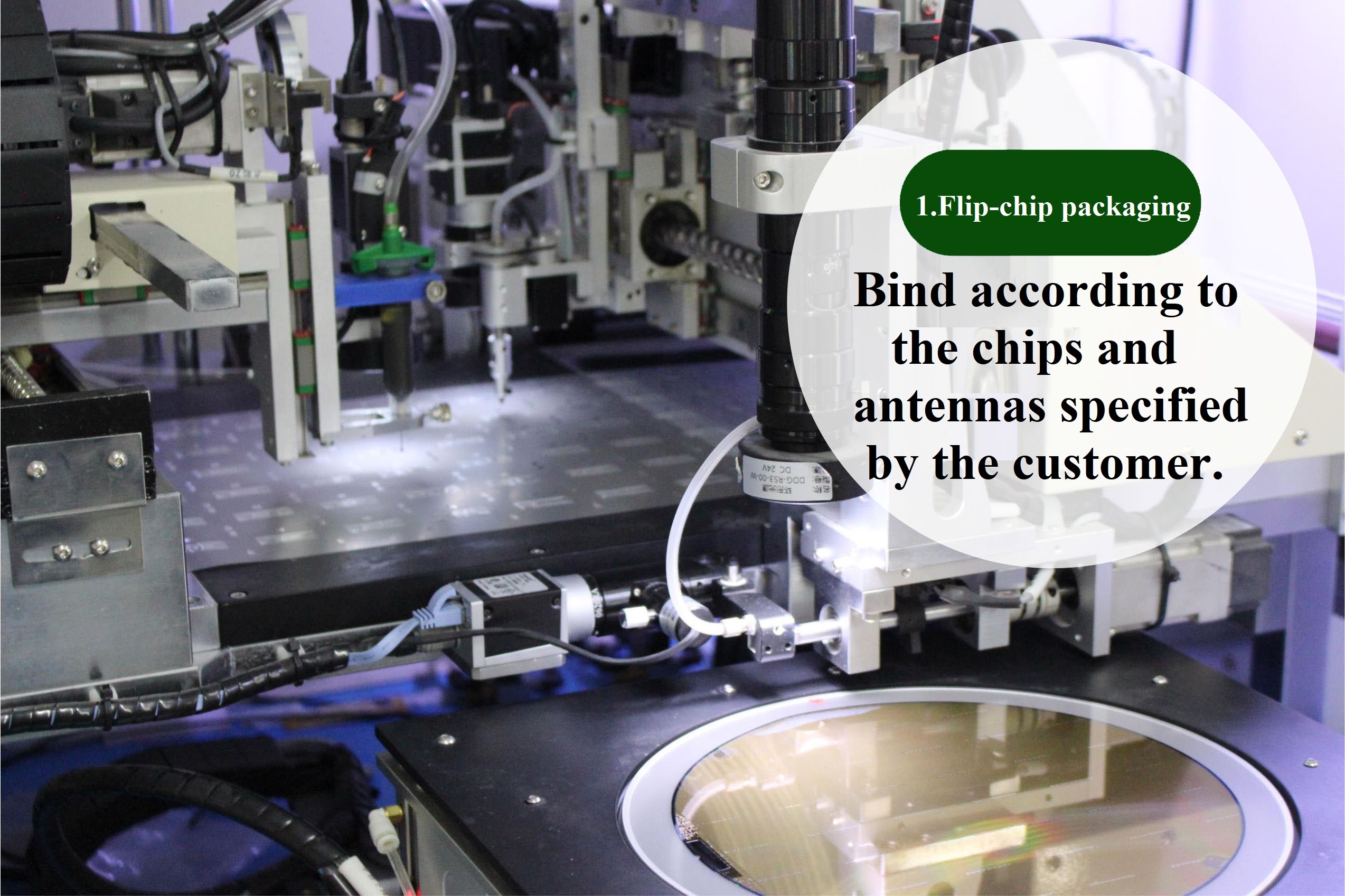

IV Production process -- liquid resistant RFID tag ZJKY4318
