I Technical parameters -- liquid resistant RFID tag ZJ9725


Name: Liquid resistant RFID tag ZJ9725

Optional chip: NXP/UCODE 8
Substrate material: PET (50μm)
Antenna process: Aluminum etching AI (9μm)
Antenna size: 94*22mm
Label size: 97*25mm
Communication protocol: IS018000-6C/EPC Class1 Gen2
Applicable carrier frequency: 860-960MHz
Storage capacity: EPC 128Bits can read and write; TID 48Bits scale can not be written; Unique TID 48 Bits;
Password area Kill/Access-64Bits Read and write; User area None
Working mode: Passive
Read and write times: 100,000 times
Data retention: 10 years
Anti-static performance of chip: 2000V (human body model)


II Product display -- Liquid resistant RFID tag ZJ9725

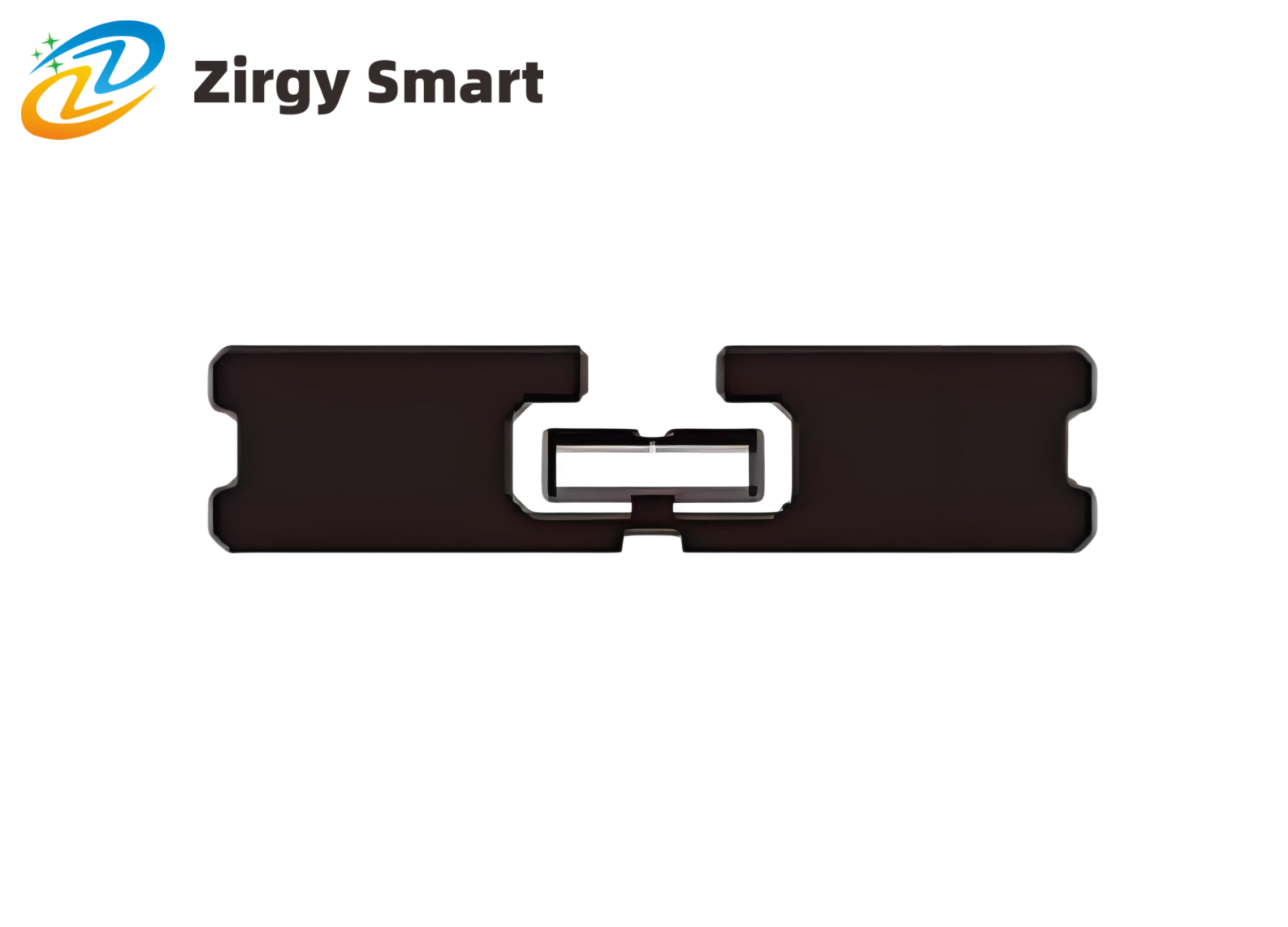

Liquid resistant RFID tag ZJ9725 real shot display Figure 1


Liquid resistant RFID tag ZJ9725 real shot display Figure 2
