ⅠProduct Overview - Electronic seal label
Name: Electronic seal label ZJ-19E
Electronic lead seal label ZJ-19E is made of imported PC polycarbonate and ABS resin molded inside and outside assembly, self-locking, easy to seal, anti-theft, printable anti-counterfeiting identification and special number, easy to manage.
● Structure: the seal has good anti-skid function, compact structure and excellent material, after sealing, the sealing line and the sealing body are integrated structure, which can not be restored after damage. After sealing, the sealing line can not be pulled out without damaging the sealing body, and the tensile strength is F≥20 kg force. After sealing, the sealing head can not be pulled out from the sealing body without damage. It adopts self-locking structure, divided into two levels of card slots, layered control. The sealing material is copper wire or nylon wire, and the surface is plastic-coated.
● Sealing body: imported PC polycarbonate, plastic steel, ABS resin and other materials, the main fire rating reaches v0, the overall fire protection is not lower than V2 level. The shell is hard and resistant to prying and has a certain toughness. With good anti-corrosion ability, in high temperature, humidity, sunshine, dust, salt spray and other extreme environment, the appearance of the seal does not change significantly. The sealing body will not melt at 110℃ and below. Self-locking parts are made of PC/ABS resin and other materials, with good anti-corrosion and tensile ability, F≥20 kg force; In the extreme environment of high temperature, humidity, sunshine, dust, salt spray and so on, it can maintain the normal tension of the sealing line is not affected by the environment.
● Application range: water and electricity meters, gas meters, weighing meter and other anti-disassembly anti-counterfeiting watch box, refueling machine, logistics, quality inspection anti-counterfeiting anti-theft management and supervision.
Electronic lead seal label ZJ-19E is made of imported PC polycarbonate and ABS resin molded inside and outside assembly, self-locking, easy to seal, anti-theft, printable anti-counterfeiting identification and special number, easy to manage.
● Structure: the seal has good anti-skid function, compact structure and excellent material, after sealing, the sealing line and the sealing body are integrated structure, which can not be restored after damage. After sealing, the sealing line can not be pulled out without damaging the sealing body, and the tensile strength is F≥20 kg force. After sealing, the sealing head can not be pulled out from the sealing body without damage. It adopts self-locking structure, divided into two levels of card slots, layered control. The sealing material is copper wire or nylon wire, and the surface is plastic-coated.
● Sealing body: imported PC polycarbonate, plastic steel, ABS resin and other materials, the main fire rating reaches v0, the overall fire protection is not lower than V2 level. The shell is hard and resistant to prying and has a certain toughness. With good anti-corrosion ability, in high temperature, humidity, sunshine, dust, salt spray and other extreme environment, the appearance of the seal does not change significantly. The sealing body will not melt at 110℃ and below. Self-locking parts are made of PC/ABS resin and other materials, with good anti-corrosion and tensile ability, F≥20 kg force; In the extreme environment of high temperature, humidity, sunshine, dust, salt spray and so on, it can maintain the normal tension of the sealing line is not affected by the environment.
● Application range: water and electricity meters, gas meters, weighing meter and other anti-disassembly anti-counterfeiting watch box, refueling machine, logistics, quality inspection anti-counterfeiting anti-theft management and supervision.
Ⅱ Product parameters - electronic seal label
| Communication rate | 106KBPS |
| Operating frequency | 13.56MHz or other optional frequency band |
| Chip antenna | 0.1mm |
| Reading rate | > 99% (related to card reader) |
| Read-write distance | Within 50mm (reader related) |
| Tension | F≥20 kg force |
| Operating temperature | -40℃~80℃(humidity is 90%) |
| Sealing section dimensions | 0 ≤0.65mm |

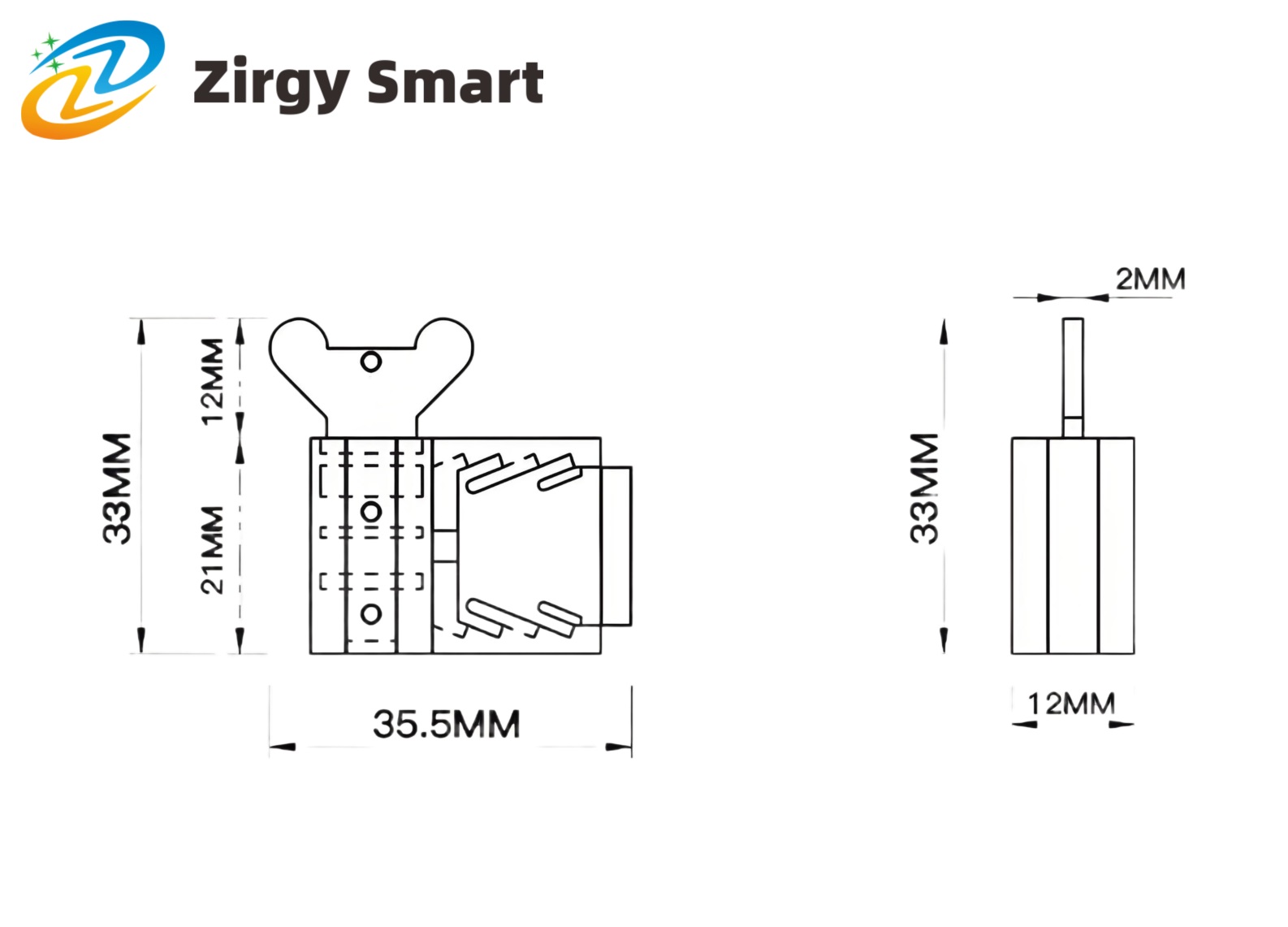

| Lock body size | 35.7*33.4*12mm |
| Closure length | 10mm≤L≤20mm |
Ⅲ Product image - electronic seal label

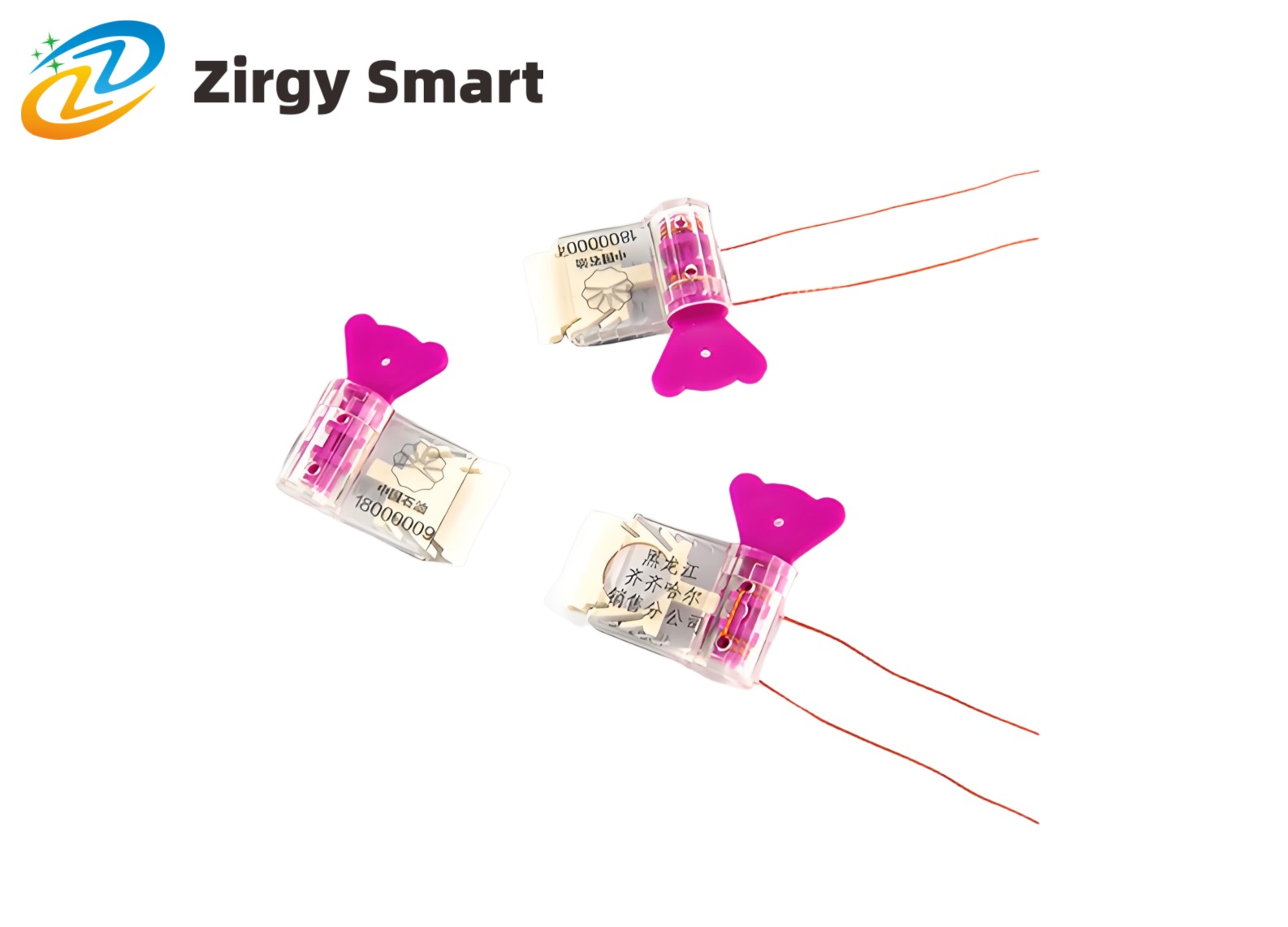

Real-shot display

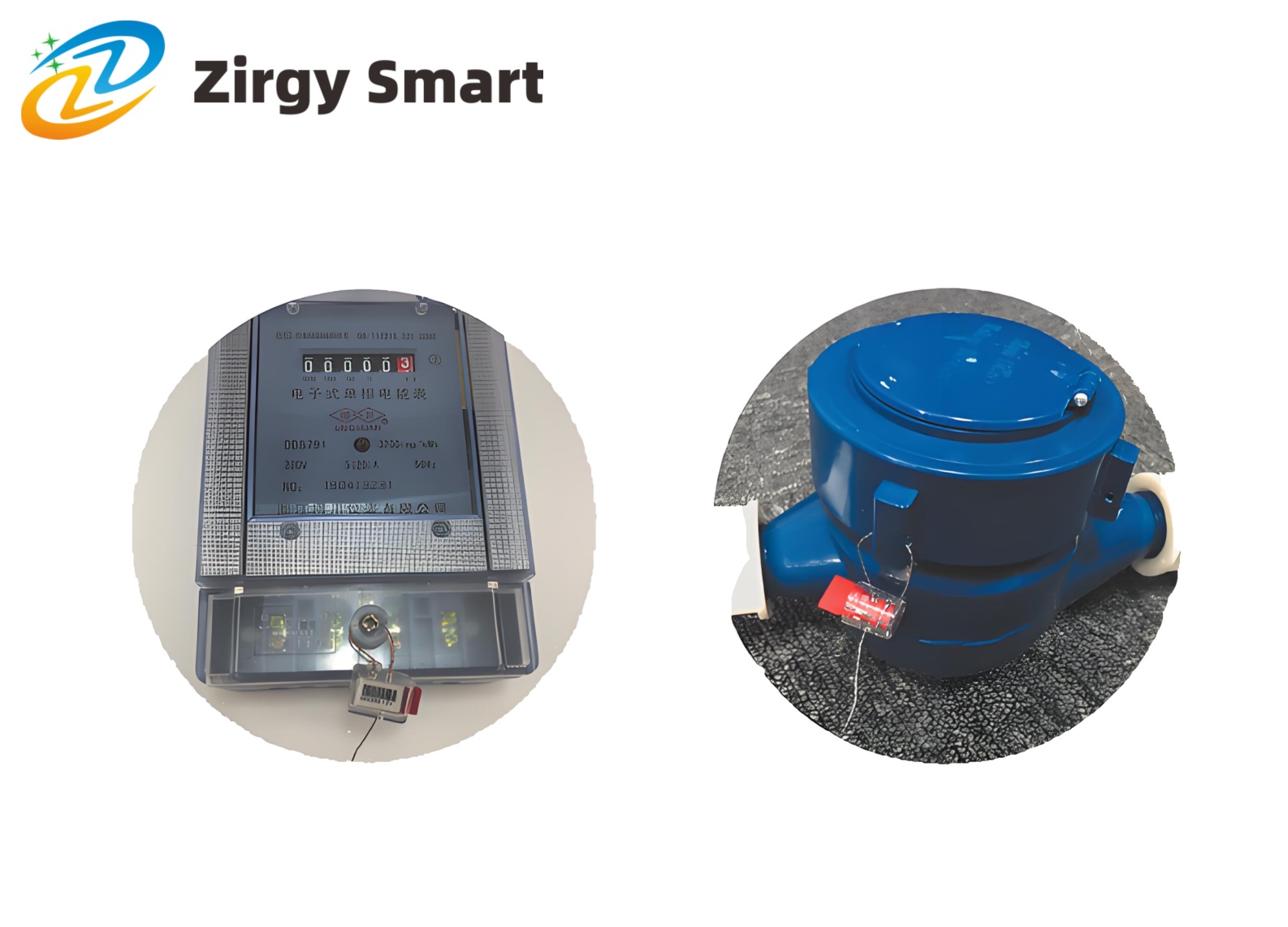

Application demonstration
