Ⅰ Product parameters——Electronic high-security seal tag
Name: Electronic high-security seal tag ZJ-10K
| Materials | The lock body is made of A3 high-quality steel combined with an outer layer of ABS plastic. |
| Lock body dimension | 120*24*24mm |

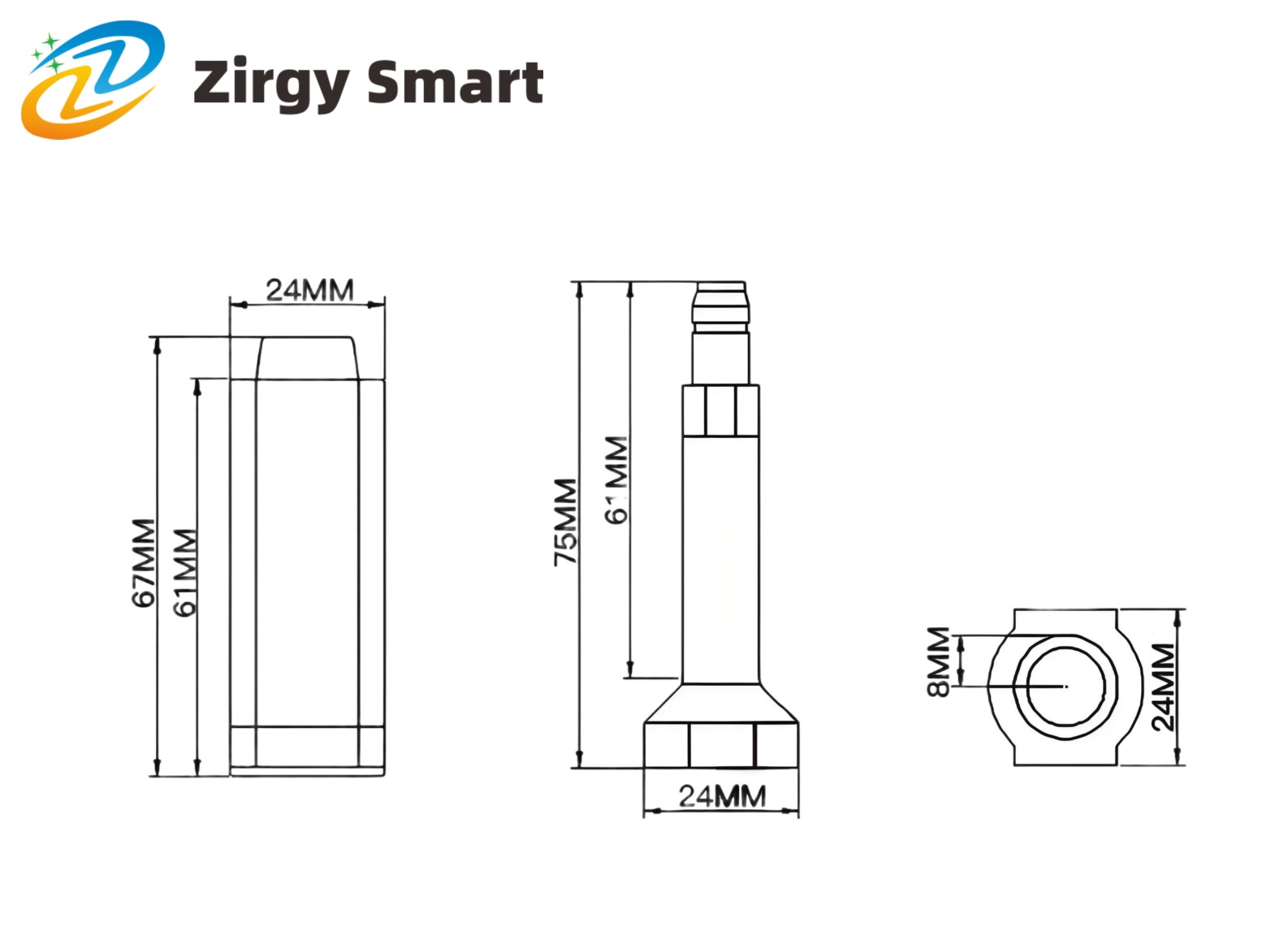

| Dimensions | Male connector: 75.4*24*24MM; Female connector: 67*24*24MM |
| Operating frequency | 13.56MHZ/860 ~ 960MHZ |
| Chip type | FM11RF08/NTAG213/H3/H, etc. (chip is customizable) |
| Reading distance | Around 0-4M (related to the configuration of the interrogator) |
| Operating temperatue | -40℃ ~ 100℃ |
| TImes of reading and writing | 100,000 times |
| Data retention time | More than ten years |
| Printing | Serial numbers, digits, letters, etc. are printed by laser printing. |
| Scope of application | Container trucks, large trucks, tank trucks, doors, etc. |
| Standard packaging | 10 pieces per box, 500 pieces per carton. |
Ⅱ Product pictures——Electronic high-security seal tag
Real-shot display

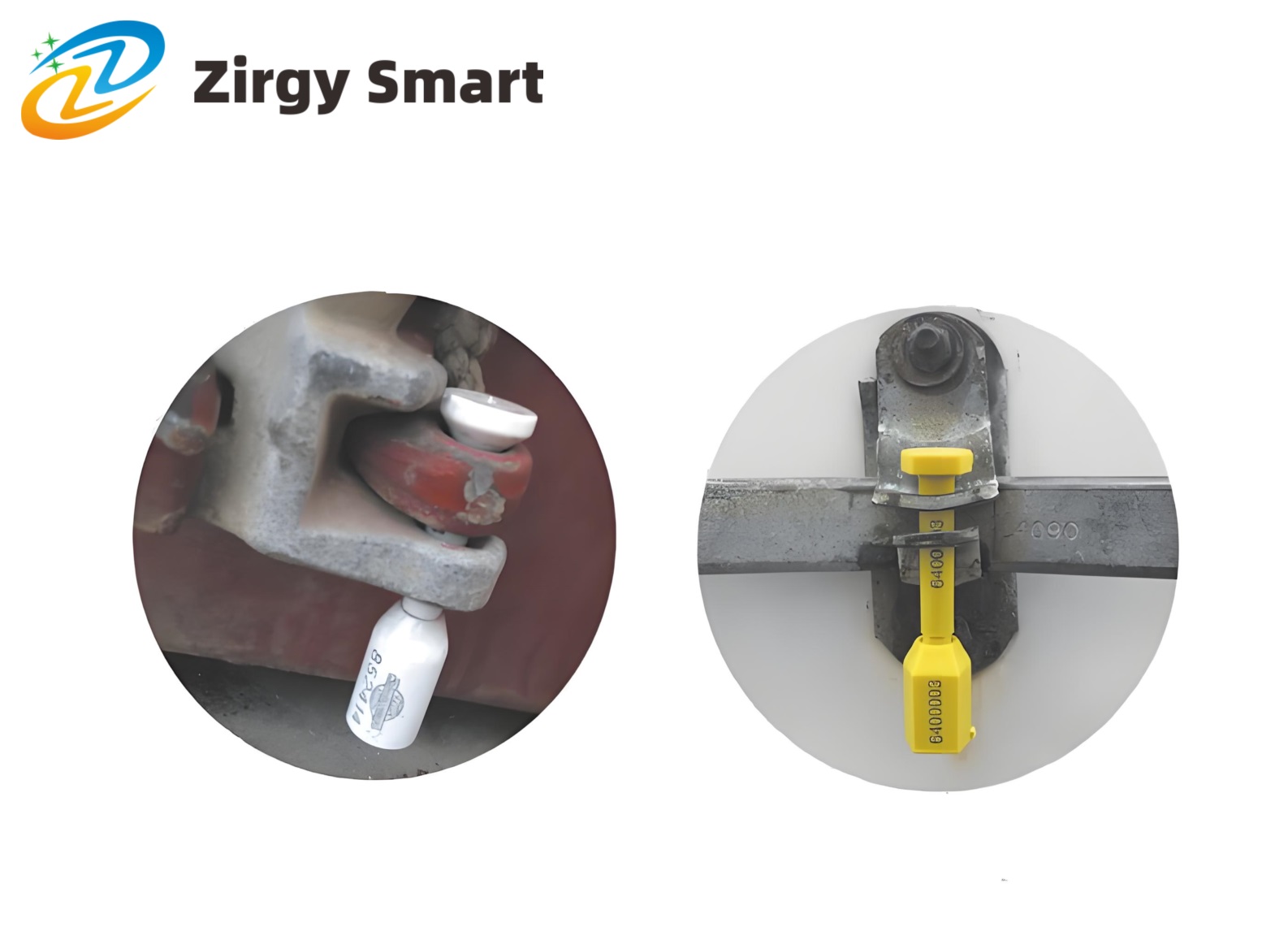

Application demonstration
