Ⅰ Product Overview - electronic high seal label
Name: Electronic high seal label ZJ-05K
Electronic high security seal label ZJ-05K is made of ABS plastic as a seal shell, the lock body inside the reed structure, outsourcing ABS injection, lock body surface can be customized by laser typing, marking, coding, bar code, color and other information, mainly used in containers, container trucks, trucks, a sealing device. The one-time blockade can not be broken, can not be opened, can prevent the weakness of the old seal is still restored to the original state after being damaged. Each high seal has a special code and product one-to-one correspondence, in order to facilitate systematic management.
Electronic high security seal label ZJ-05K is made of ABS plastic as a seal shell, the lock body inside the reed structure, outsourcing ABS injection, lock body surface can be customized by laser typing, marking, coding, bar code, color and other information, mainly used in containers, container trucks, trucks, a sealing device. The one-time blockade can not be broken, can not be opened, can prevent the weakness of the old seal is still restored to the original state after being damaged. Each high seal has a special code and product one-to-one correspondence, in order to facilitate systematic management.
Ⅱ Structure features - electronic high seal label
- It has good anti-skid function, compact structure and excellent material, after solid sealing, the sealing line and the sealing body are integrated structure, which can not be restored after damage;
- High frequency high guarantee blockade high mechanical strength (using international box sealing standards), after solid sealing, it is not easy to be pulled out without damaging the seal body;
- High frequency and high protection blockade adopts locking fixed design, which can not rotate between the lock rod and the lock body after solid sealing, and can not be restored after damage;
- High frequency high guarantee blocking internal band chip with global specific ID code.
- High frequency high guarantee blockade high mechanical strength (using international box sealing standards), after solid sealing, it is not easy to be pulled out without damaging the seal body;
- High frequency and high protection blockade adopts locking fixed design, which can not rotate between the lock rod and the lock body after solid sealing, and can not be restored after damage;
- High frequency high guarantee blocking internal band chip with global specific ID code.
Ⅲ Product features - electronic high seal label
- High frequency and high security seal can not be read before sealing and after damage;
- The reading distance is less than 5 cm;
- Can restrain external code, bar code and LOGO;
- World specific ID, sensor reading, not easy to forge;
- High security structure, in line with ISO-17712 specifications;
- Tensile strength up to 1000Kg.
- The reading distance is less than 5 cm;
- Can restrain external code, bar code and LOGO;
- World specific ID, sensor reading, not easy to forge;
- High security structure, in line with ISO-17712 specifications;
- Tensile strength up to 1000Kg.
Ⅳ Application range - electronic high seal label
All kinds of standard containers, vans, doors, mail trucks, etc.
Ⅴ Product parameters - electronic high seal label
| Size at lock | 100.5*23.2*22.2 mm |
| High seal male head | 84.7* 23.5*22.2 mm |
| High seal head | 37.5* 23.2*21.5 mm |
| Operating frequency | 902-928MHz |
| Security | Data specificity |
| Operating temperature | -40 °C / +85 °C |
| Read and write count | More than 100,000 times |
| Data retention time | More than 10 years |
| Storage temperature and humidity | +85 °C，50% RH |
| Label content | 10-bit decimal encoding |
| Signature protection | Weatherproof, waterproof |
Ⅵ Product image - Electronic high seal label

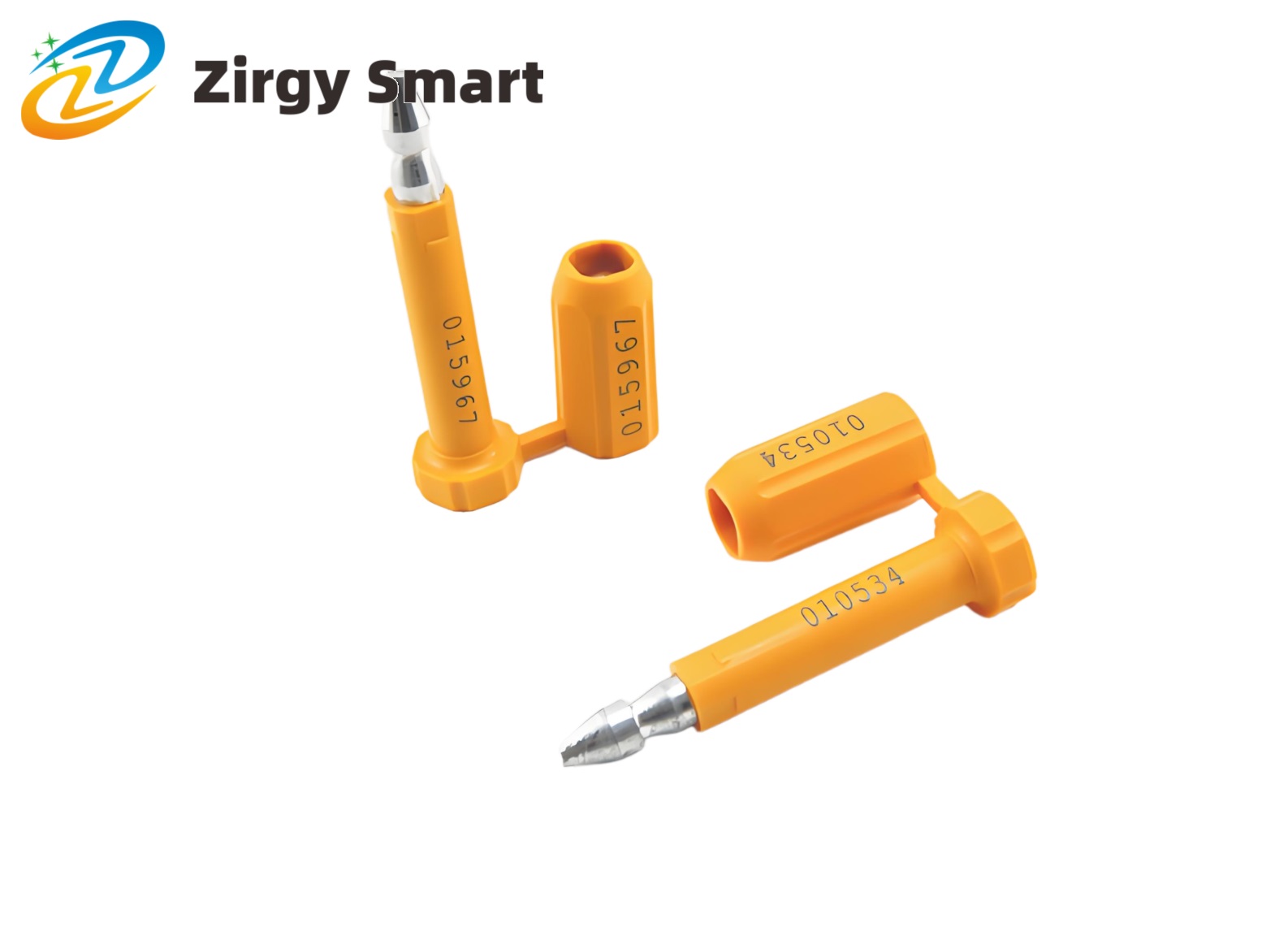

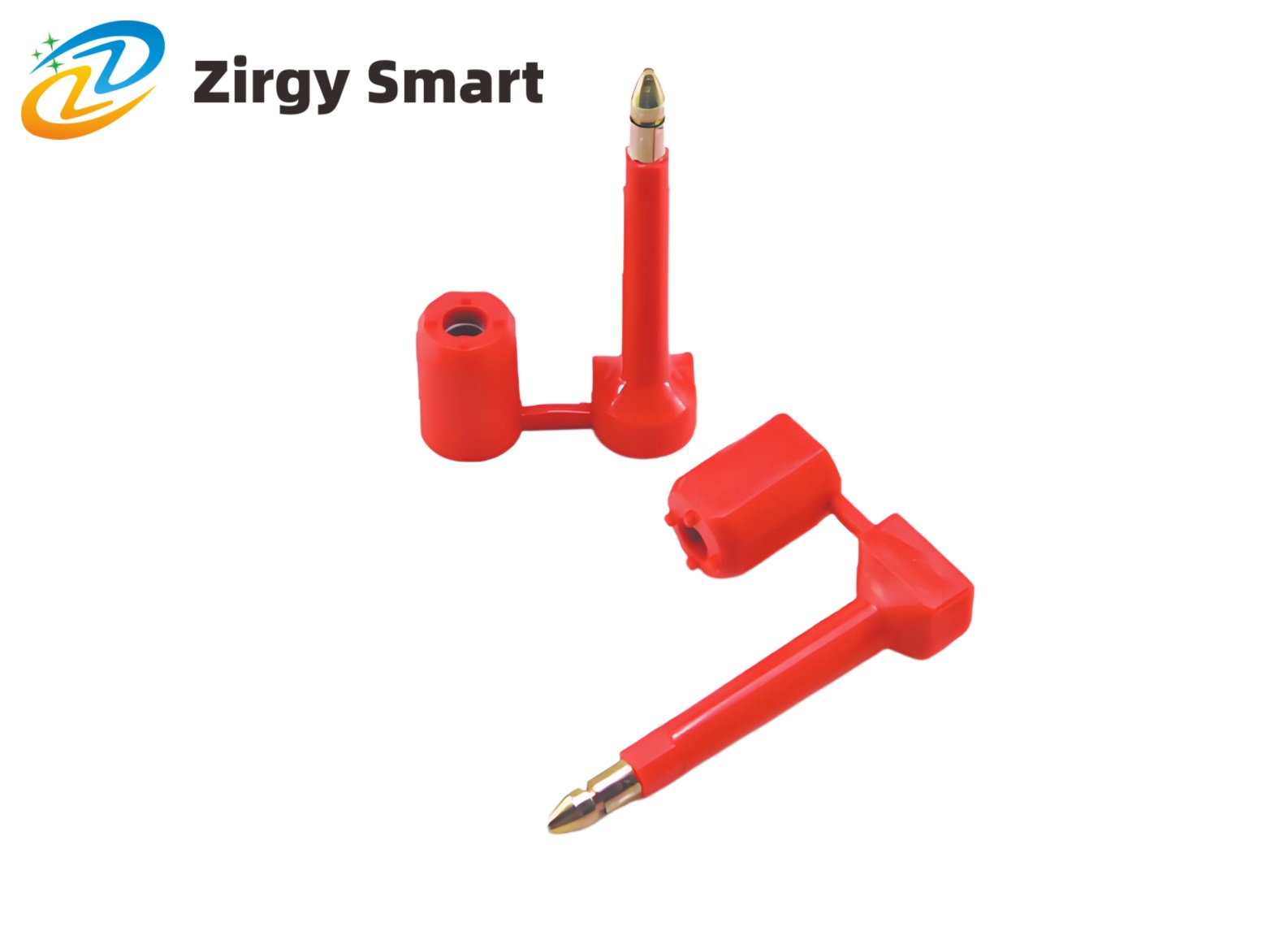

Real-shot display

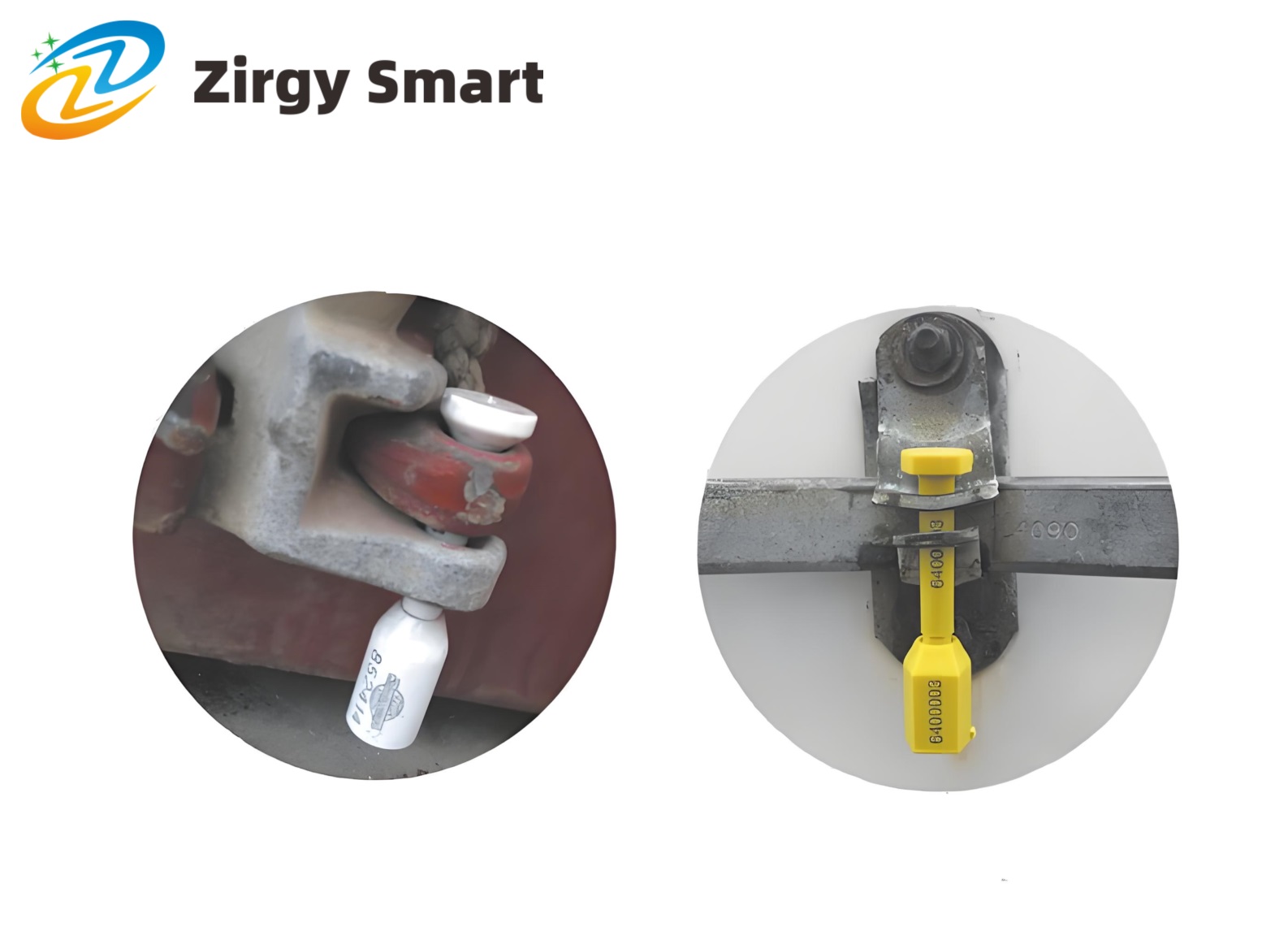

Application demonstration
