Ⅰ Main features - high temperature resistance 280 degrees metal resistant electronic tag
High temperature resistance 280 degrees metal resistant electronic tag ZJ4215, metal surface, high temperature resistance, can work normally at 180 degrees high temperature for 10 hours.
Ⅱ Technical parameters -- high temperature resistance 280 degrees metal resistant electronic tag
Name: High temperature resistance 280 degrees metal resistant electronic tag ZJ4215
Chip type: Alien Higgs-4
Label size: 42*15mm, (Aperture: 4mm*2)
Label thickness: The thickness of the chip slot with protruding is 2.8mm, and the thickness of the chip slot without protruding is 2.1mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 128bits, User area 128bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 6.8 m - (US standard) 902-928MHz, metal surface; 7.0 m - (European standard) 865-868 MHZ, metal surface
Reading distance (2 watt handheld) : 5.3 m - (US standard) 902-928 MHZ, metal surface; 5.5 m - (European standard) 865-868 MHZ, metal surface
Material: PTFE
Color: Black
Installation method: Back glue or screw
Weight: 2.2g
Warranty period: One year
Write times: 100,000 times
Storage temperature: -55℃ to 200℃ (high temperature resistance 280℃ up to 50 minutes, 250℃ up to 150 minutes)
Working temperature: -40℃ to 100℃ (working for 10 hours at 180℃)
Waterproof and dustproof class: IP68
Certification: Reach certification, RoHS certification, CE certification
Chip type: Alien Higgs-4
Label size: 42*15mm, (Aperture: 4mm*2)
Label thickness: The thickness of the chip slot with protruding is 2.8mm, and the thickness of the chip slot without protruding is 2.1mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 128bits, User area 128bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 6.8 m - (US standard) 902-928MHz, metal surface; 7.0 m - (European standard) 865-868 MHZ, metal surface
Reading distance (2 watt handheld) : 5.3 m - (US standard) 902-928 MHZ, metal surface; 5.5 m - (European standard) 865-868 MHZ, metal surface
Material: PTFE
Color: Black
Installation method: Back glue or screw
Weight: 2.2g
Warranty period: One year
Write times: 100,000 times
Storage temperature: -55℃ to 200℃ (high temperature resistance 280℃ up to 50 minutes, 250℃ up to 150 minutes)
Working temperature: -40℃ to 100℃ (working for 10 hours at 180℃)
Waterproof and dustproof class: IP68
Certification: Reach certification, RoHS certification, CE certification
Ⅲ Product display -- high temperature resistance 280 degrees metal resistant electronic label

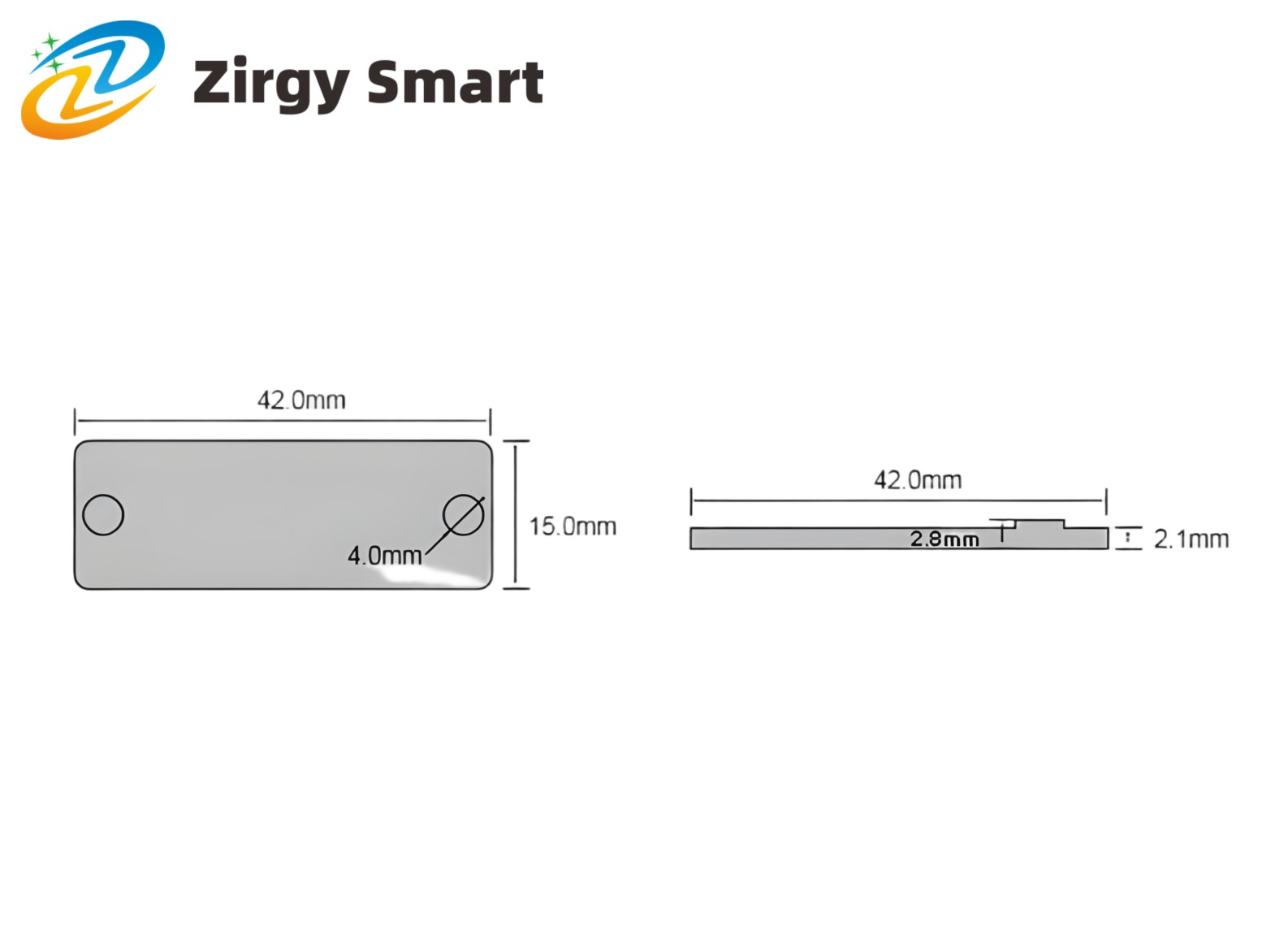

1.Sectional display
2.Real-shot display
